In-Lite HYVE 60mm Honeycomb 12V Recessed Light

In-Lite HYVE 60mm Honeycomb 12V Recessed Light

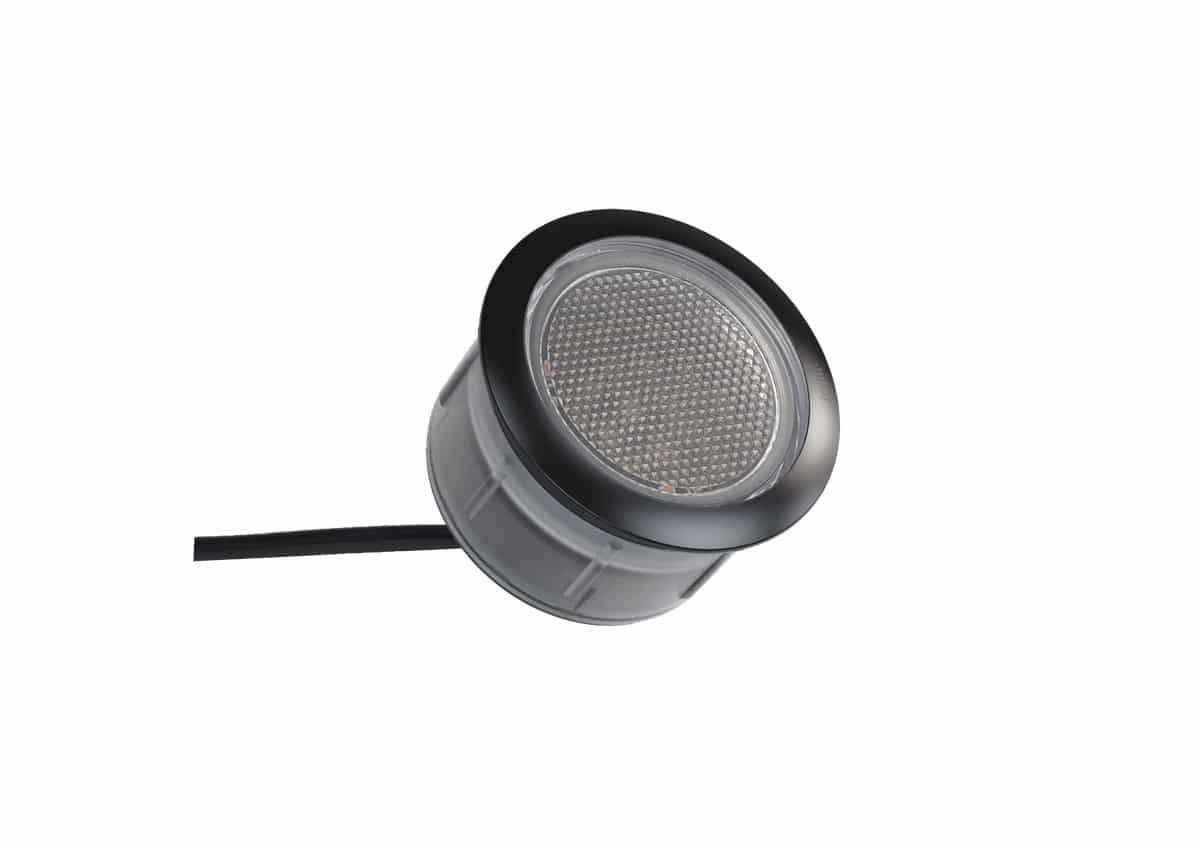

HYVE is the larger 60mm honeycomb ground light, designed to add a warm decorative point to paths, terraces, steps and driveway edges. The structured lens gives a more distinctive light image than a plain frosted marker.

The stainless-steel 68mm bezel creates a durable finished edge and coordinates with contemporary paving and other In-Lite recessed lights.

Where this light works best

Use repeated fittings at route changes or along an edge, checking the effect after dark before drilling the complete run.

Set out the complete run after dark before drilling every finished surface. Consistent spacing looks formal; deliberately mixed spacing and sizes creates a softer, more natural constellation.

Choose the right recessed effect

Choose HYVE for honeycomb texture, FUSION for a softer frosted point, or DOT for a clearer direct marker and SMART HUB-300 compatibility.

Compare the complete In-Lite recessed-light range before deciding, because visible diameter, lens treatment and beam direction change the result as much as lumen output.

Installation planning

Drill the opening straight and to the current In-Lite template for this exact fitting. Use a suitable wood bit for timber or a cooled diamond drill for stone, protect the cable from sharp edges and provide drainage so water cannot remain around the body.

The supplied EASY-LOCK connects to genuine In-Lite system cable. In soil, gravel or loose aggregate, choose the specified In-Lite mounting accessory instead of burying an unsupported fitting.

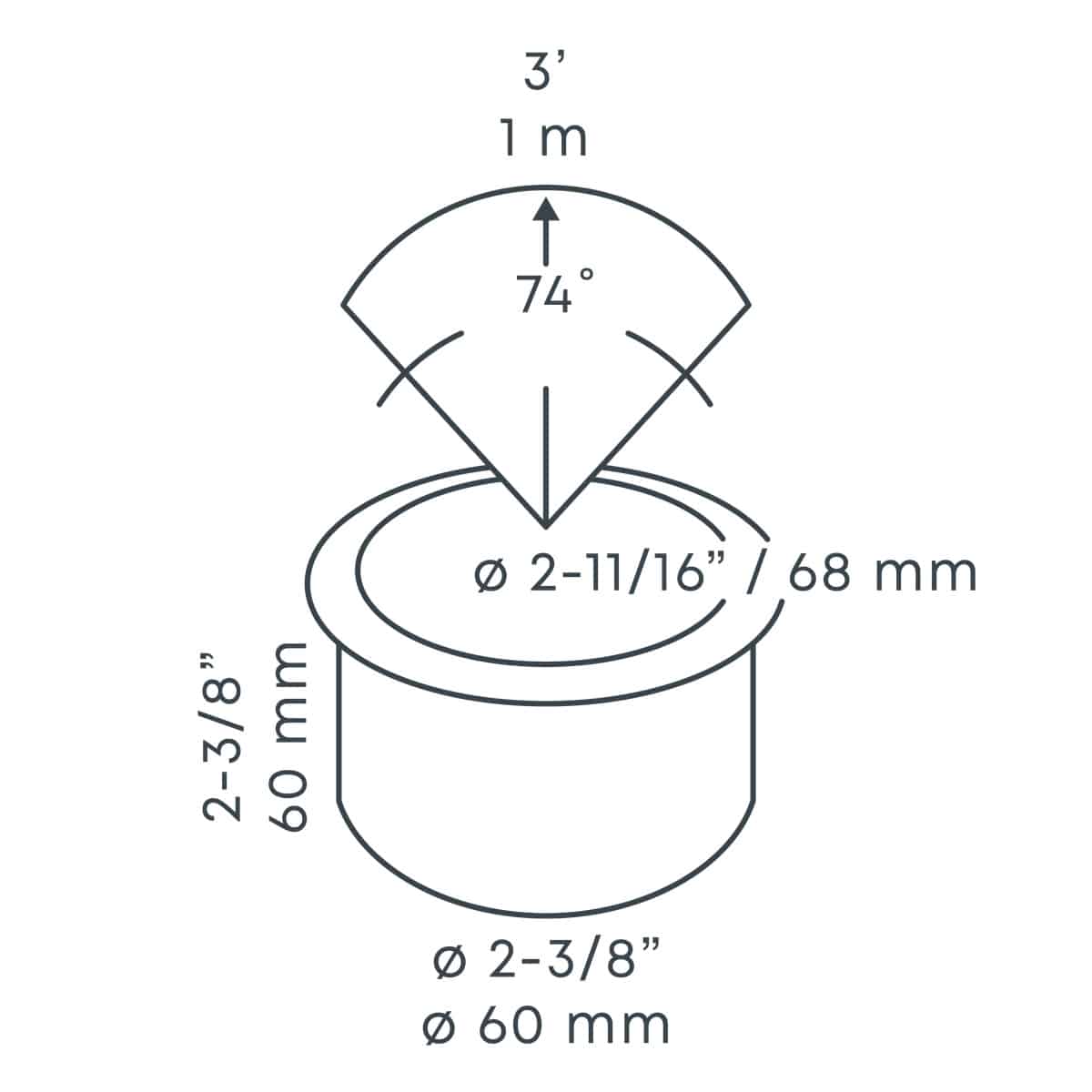

Verified technical information

• Colour temperature: 3000K warm white
• CRI: 95
• VA load: 0.8VA
• Beam angle: 74°
• IP rating: IP67
• Visible bezel diameter: 68mm
• 5-year manufacturer guarantee

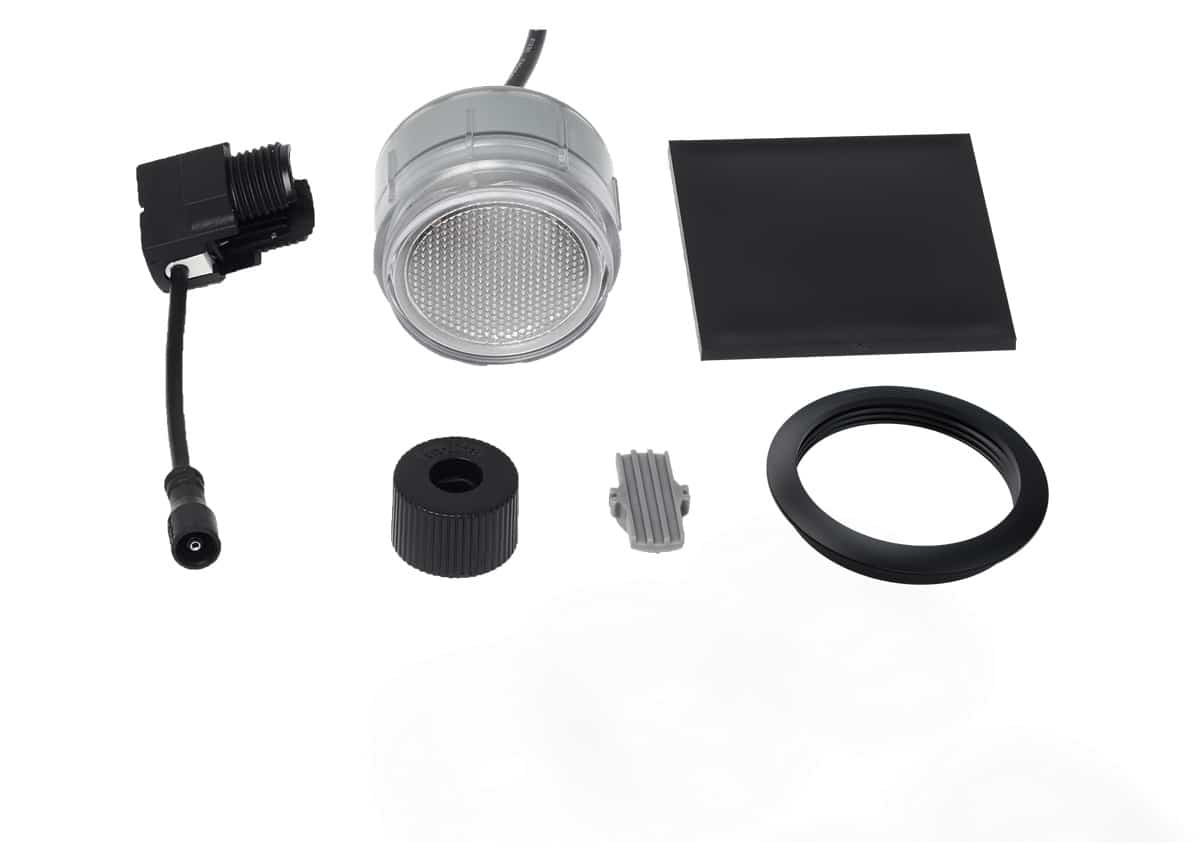

What is supplied

• One complete In-Lite recessed fitting in the selected configuration
• Fixture cable
• One EASY-LOCK system-cable connector
• Manufacturer installation guidance

Plan the circuit as one system

Add the stated VA load for every fitting when sizing the In-Lite transformer. Total VA rather than wattage, map every branch and leave sensible spare capacity. Contact us with a sketch if you would like help checking spacing, cut-outs, cable routing or transformer load.

Set out recessed lighting before the surface is finished

For In-Lite HYVE 60mm Honeycomb 12V Recessed Light, confirm the cut-out, recess depth, drainage and material thickness from the current installation drawing before drilling. Recessed lights are most convincing when their spacing follows the paving, step or deck geometry and the source is not directly in the normal line of sight.

Dry-lay the fittings and cable route first, then test the effect after dark. Do not bury an EASY-LOCK or other serviceable connection where it cannot be reached without lifting a finished surface.

Compatible and related In-Lite products

For the same project, compare In-Lite CBL Two-Wire Garden Lighting System Cable, In-Lite CBL-EXT CORD Garden Light Extension Cable, In-Lite HUB-75 UK 12V Garden Lighting Transformer, and In-Lite EASY-LOCK Fixture-to-System Cable Connector. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
