In-Lite FUSION 60mm Diffuse 12V Recessed Light

In-Lite FUSION 60mm Diffuse 12V Recessed Light

A broad, soft-glow recessed light with stainless-steel bezel for paths, terraces, steps and driveway edges

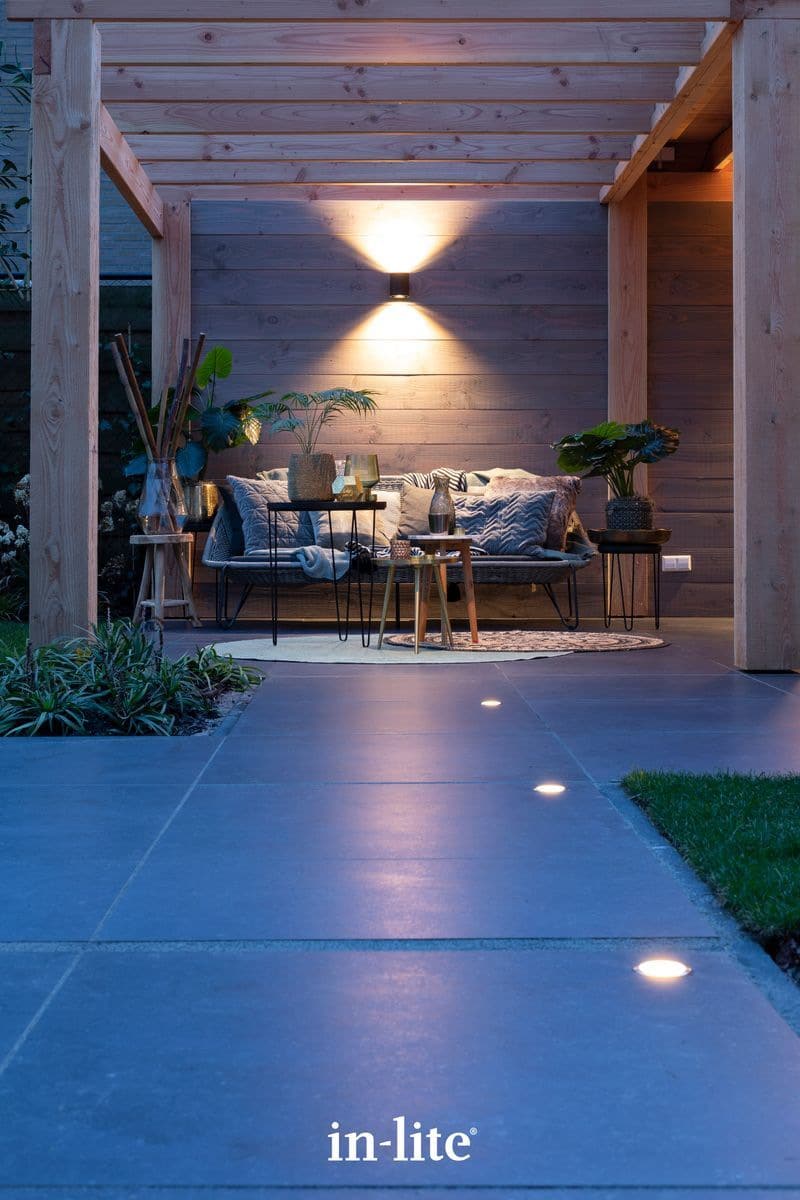

FUSION is the larger 60mm diffuse ground light for gently marking terraces, paths, steps and driveway edges. Its broad frosted surface produces an atmospheric point rather than a beam for lighting a tree or wall.

The light is soft and non-glare, making it comfortable near seating and along frequently used routes. It works particularly well when mixed with smaller FUSION 22 points for a varied star-path effect.

Where this light works best

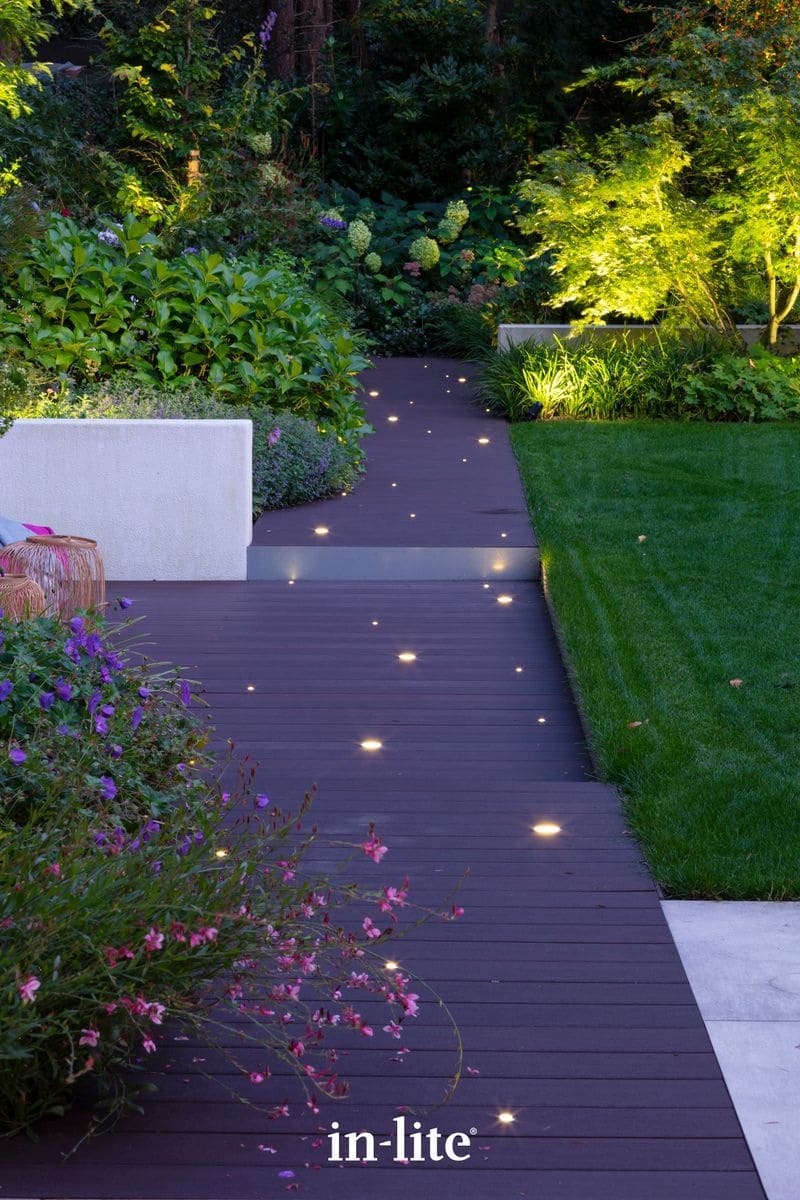

Use repeated fittings to describe a route or terrace edge. The 68mm stainless-steel bezel gives a crisp finished edge over the 60.8mm installation opening.

Set out the complete run after dark before drilling every finished surface. Consistent spacing looks formal; deliberately mixed spacing and sizes creates a softer, more natural constellation.

Choose the right recessed effect

Choose FUSION for diffuse non-glare route marking. Choose a FLUX family uplight where you need a focused beam on planting or architecture.

Compare the complete In-Lite recessed-light range before deciding, because visible diameter, lens treatment and beam direction change the result as much as lumen output.

Installation planning

Drill the opening straight and to the current In-Lite template for this exact fitting. Use a suitable wood bit for timber or a cooled diamond drill for stone, protect the cable from sharp edges and provide drainage so water cannot remain around the body.

The supplied EASY-LOCK connects to genuine In-Lite system cable. In soil, gravel or loose aggregate, choose the specified In-Lite mounting accessory instead of burying an unsupported fitting.

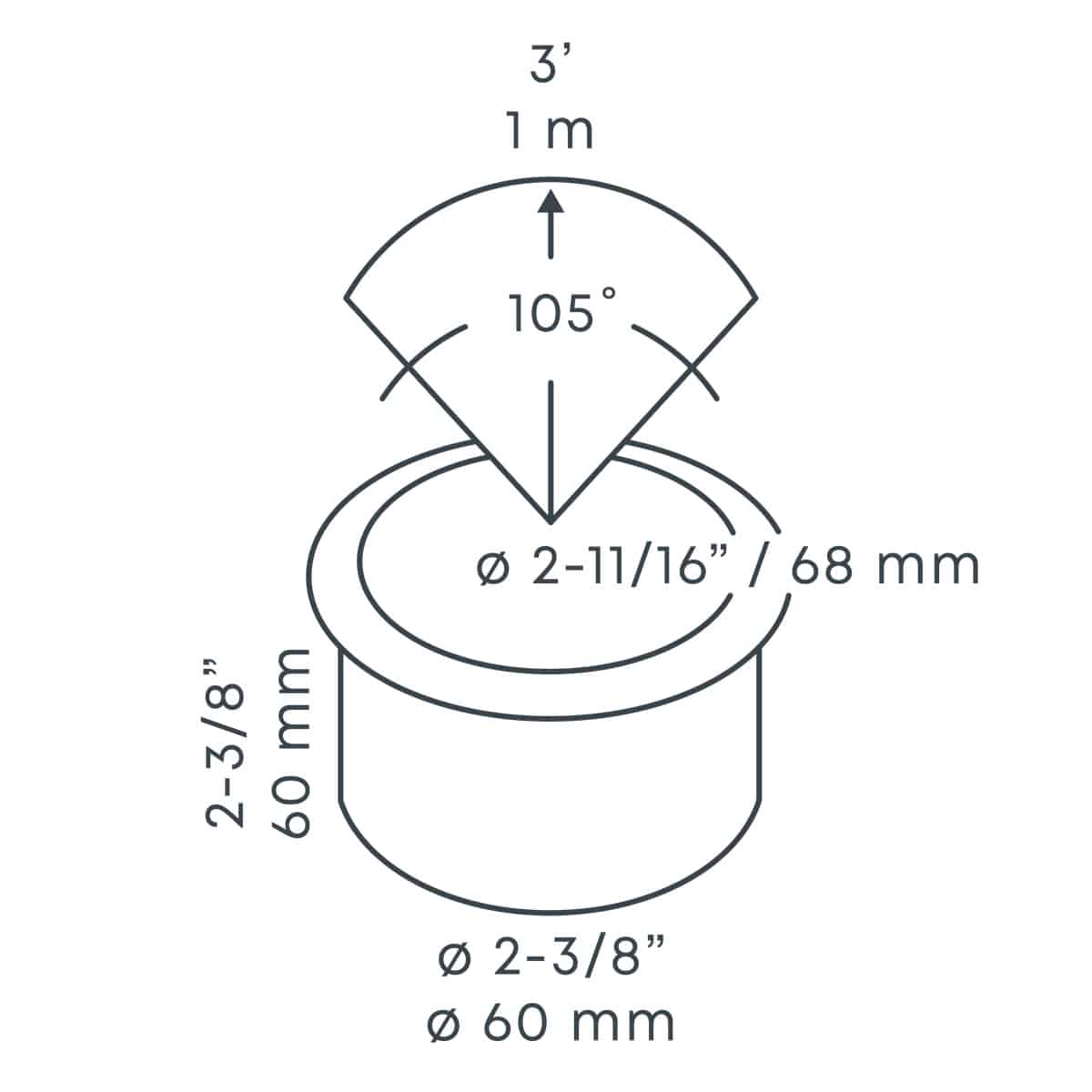

Technical information

• Colour temperature: warm white
• VA load: 1VA
• Beam angle: 105° diffuse
• IP rating: IP67
• Visible bezel diameter: 68mm
• Required opening: 60.8mm
• Drive-over rated when correctly installed
• 5-year manufacturer guarantee

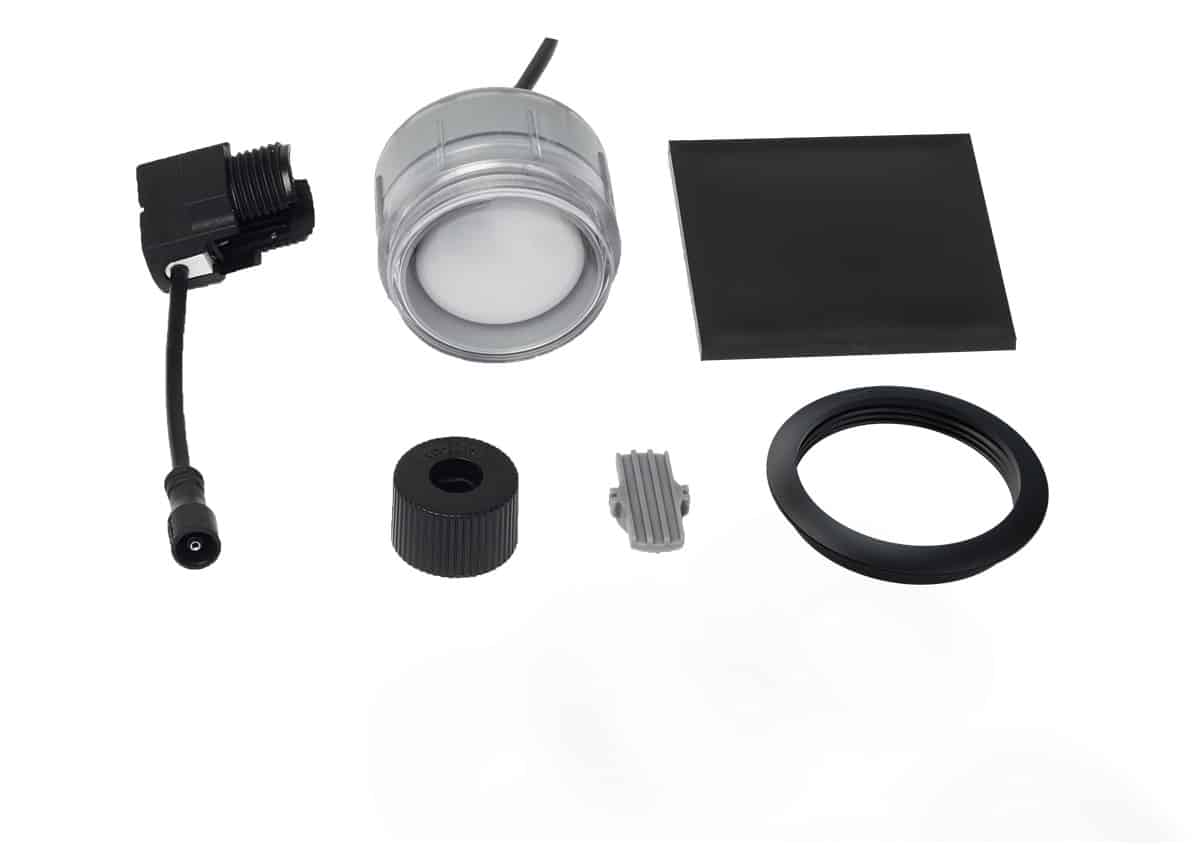

What is supplied

• One complete In-Lite recessed fitting in the selected configuration
• Fixture cable
• One EASY-LOCK system-cable connector
• Manufacturer installation guidance

Plan the circuit as one system

Add the stated VA load for every fitting when sizing the In-Lite transformer. Total VA rather than wattage, map every branch and leave sensible spare capacity. Contact us with a sketch if you would like help checking spacing, cut-outs, cable routing or transformer load.

Compare 60mm effects

Compare diffuse, honeycomb and direct marker effects before choosing a matching run of lights.

In-Lite HYVE 60mm Honeycomb 12V Recessed Light · In-Lite DOT 60mm Direct 12V Recessed Path Light

Optional accessories

Choose the documented plate, box or spike for the mounting surface and exact fitting generation. Existing stainless assemblies are not automatically the same as a new threaded module.

In-Lite PLATE 75 Recessed-Light Accessory · In-Lite BOX 100 Recessed-Light Accessory · In-Lite SPIKE 60 Recessed-Light Accessory

Choose a compatible transformer

Do not connect this fitting to SMART HUB 300. Use a compatible 12V HUB with sufficient total and per output VA capacity. Compare transformers and smart controls.
