In-Lite DOT 60mm Direct 12V Recessed Path Light

In-Lite DOT 60mm Direct 12V Recessed Path Light

DOT is the larger direct-light member of the family, with a 60mm light source and 68mm finished bezel. It produces a crisp but compact marker for driveways, paths and terrace edges without becoming a high-output uplight.

Available in Black, Pearl Grey and Stainless Steel, it can be coordinated with paving or mixed with DOT 22 for a varied star-path pattern. DOT is compatible with all current HUB transformers, including SMART HUB-300.

Where this light works best

Place fittings around 1 to 1.5 metres apart as a starting point, then adjust to the path width and desired rhythm.

Set out the complete run after dark before drilling every finished surface. Consistent spacing looks formal; deliberately mixed spacing and sizes creates a softer, more natural constellation.

Choose the right recessed effect

Choose DOT where a defined direct point is wanted, FUSION for a diffused non-glare marker or HYVE for honeycomb texture.

Compare the complete In-Lite recessed-light range before deciding, because visible diameter, lens treatment and beam direction change the result as much as lumen output.

Installation planning

Drill the opening straight and to the current In-Lite template for this exact fitting. Use a suitable wood bit for timber or a cooled diamond drill for stone, protect the cable from sharp edges and provide drainage so water cannot remain around the body.

The supplied EASY-LOCK connects to genuine In-Lite system cable. In soil, gravel or loose aggregate, choose the specified In-Lite mounting accessory instead of burying an unsupported fitting.

Verified technical information

• Colour temperature: 2850K warm white
• CRI: 98
• VA load: 0.8VA
• IP rating: IP67

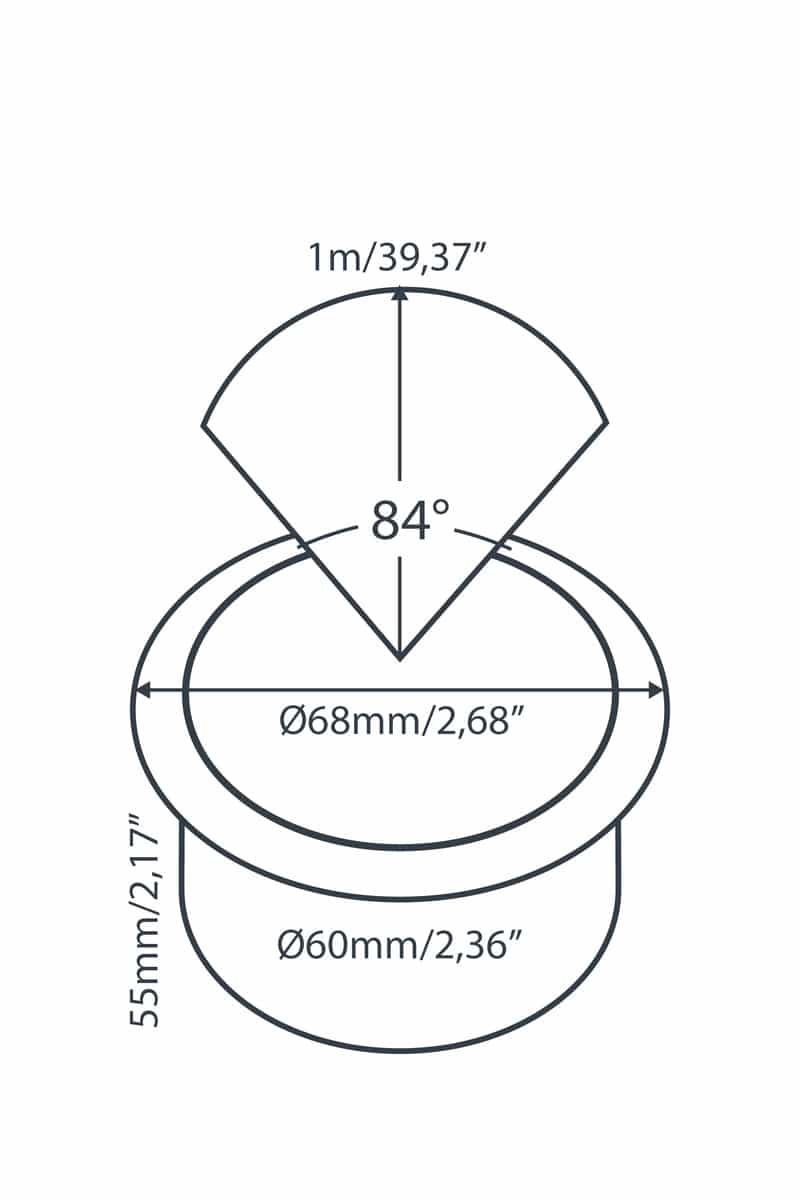

• Visible bezel diameter: 68mm
• Required opening: 60mm
• Compatible with SMART HUB-300
• 5-year manufacturer guarantee

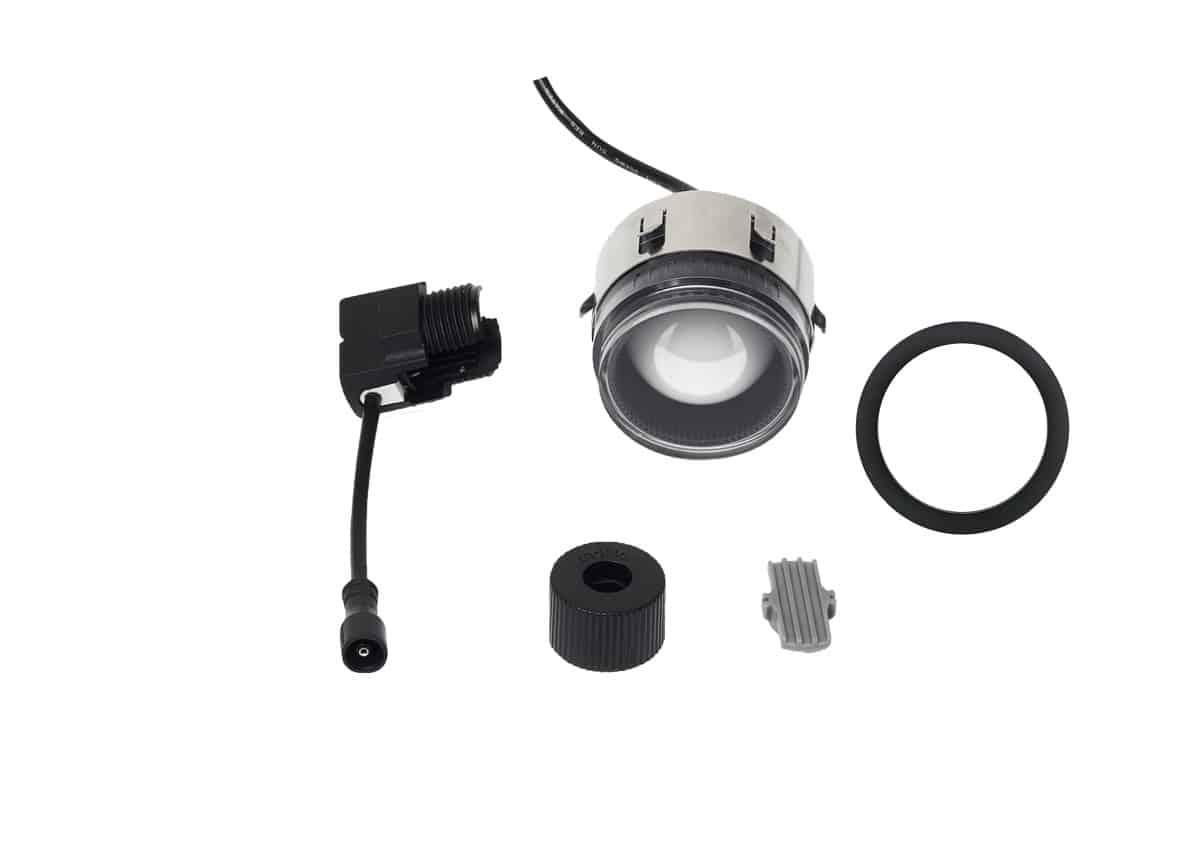

What is supplied

• One complete In-Lite recessed fitting in the selected configuration
• Fixture cable
• One EASY-LOCK system-cable connector
• Manufacturer installation guidance

Plan the circuit as one system

Add the stated VA load for every fitting when sizing the In-Lite transformer. Total VA rather than wattage, map every branch and leave sensible spare capacity. Contact us with a sketch if you would like help checking spacing, cut-outs, cable routing or transformer load.
