In-Lite EVO FLEX DRIVER 1 Replacement Driver

In-Lite EVO FLEX DRIVER 1 Replacement Driver

EVO FLEX DRIVER 1 is the original in-line driver used with standard, fixed-output warm-white EVO FLEX 1, 2 and 3 strips. It sits between the EASY-LOCK side of the In-Lite 12V circuit and the strip-light connector, conditioning the supply required by the flexible luminaire.

This is a replacement component, not a complete light

The LED strip, EASY-LOCK, transformer, system cable and mounting accessories are not included. Choose this product when replacing a confirmed EVO FLEX DRIVER 1 or when building an arrangement from separately specified original components.

It is not the app-dimming SMART DRIVER 1 and it is not the colour-control SMART DRIVER TONE. Match the label and connector type of the existing equipment before ordering.

Compatibility

• For standard In-Lite EVO FLEX 1, 2 and 3
• Power input: compatible In-Lite 12V system
• Fixed-output warm-white control

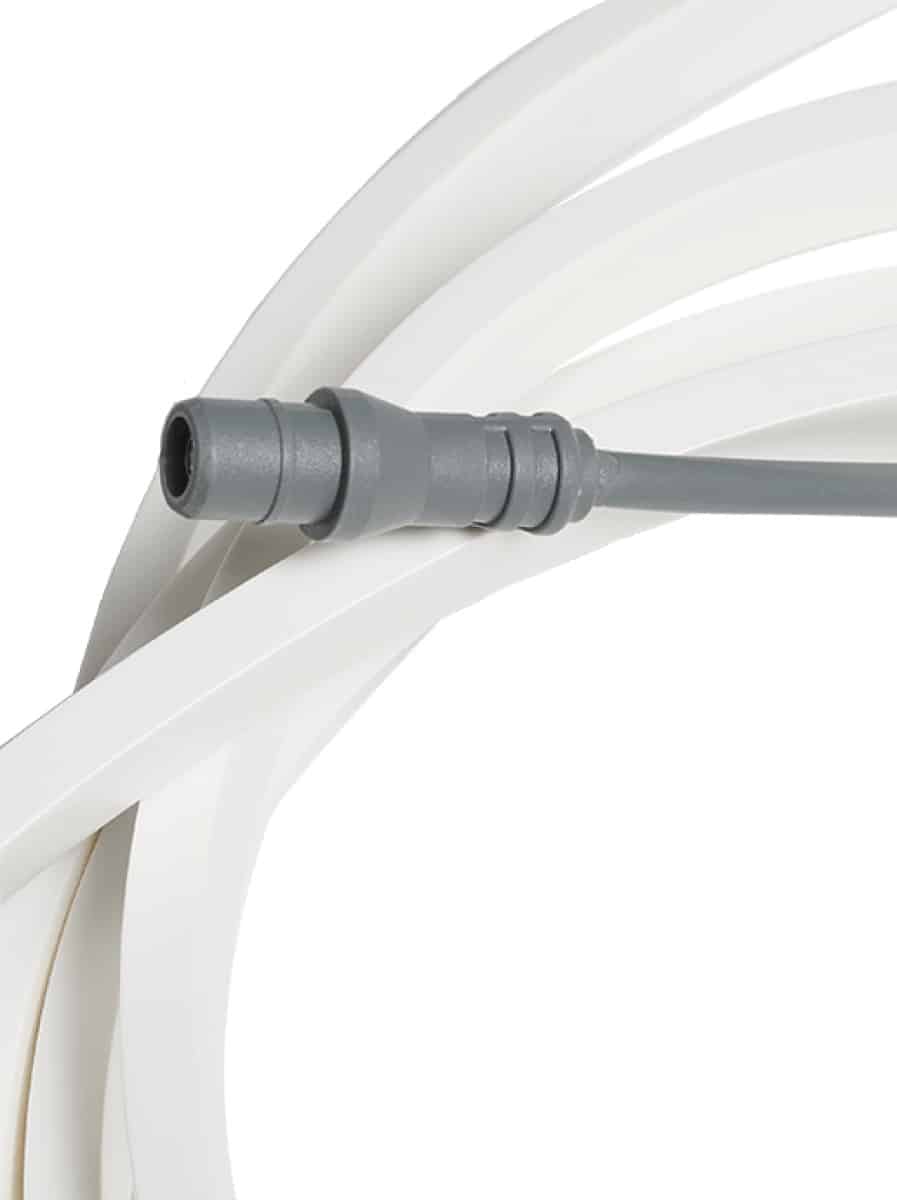

• Use the grey-coded original EVO FLEX connection system
• Not for SMART EVO FLEX TONE RGB strips
• Manufacturer article number: 10250330

Approximate installation dimensions

• Driver body: 106 × 50 × 24mm
• Input cable: approximately 650mm
• Output cable: approximately 75mm

Allow a dry, accessible service position for the driver in accordance with the EVO FLEX instructions. Do not encase it permanently behind a finish that must be destroyed for testing or replacement.

Complete the EVO FLEX installation

If you do not already own the correct strip and connection parts, the safer purchase is the complete EVO FLEX set. Browse EVO FLEX strips, profiles, clips and corners, and select a suitable In-Lite transformer from the total VA load.

Plan the finished effect before fixing the product

In-Lite EVO FLEX DRIVER 1 Replacement Driver works best when its position, sight line and neighbouring fittings are considered together. Set out the component or light temporarily, view it after dark and confirm that the cable route, mounting surface and future access all make sense before drilling or burying anything.

Where this is one part of a configurable family, match the manufacturer reference as well as the family name. That avoids combining parts from different sizes or generations that look similar in photographs.

Compatible and related In-Lite products

For the same project, compare In-Lite SMART EVO FLEX TONE Replacement Strip – Without Driver, In-Lite EVO FLEX 12V Replacement LED Strip – Without Driver, In-Lite SMART DRIVER TONE 1 for SMART EVO FLEX TONE, and In-Lite SMART DRIVER 1 for SMART EVO FLEX. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
