In-Lite KILLFLASH 1 Honeycomb Glare Control for MINI SCOPE

In-Lite KILLFLASH 1 Honeycomb Glare Control for MINI SCOPE

A honeycomb optical accessory that reduces direct view into the MINI SCOPE light source when the fitting is mounted on a wall or ceiling

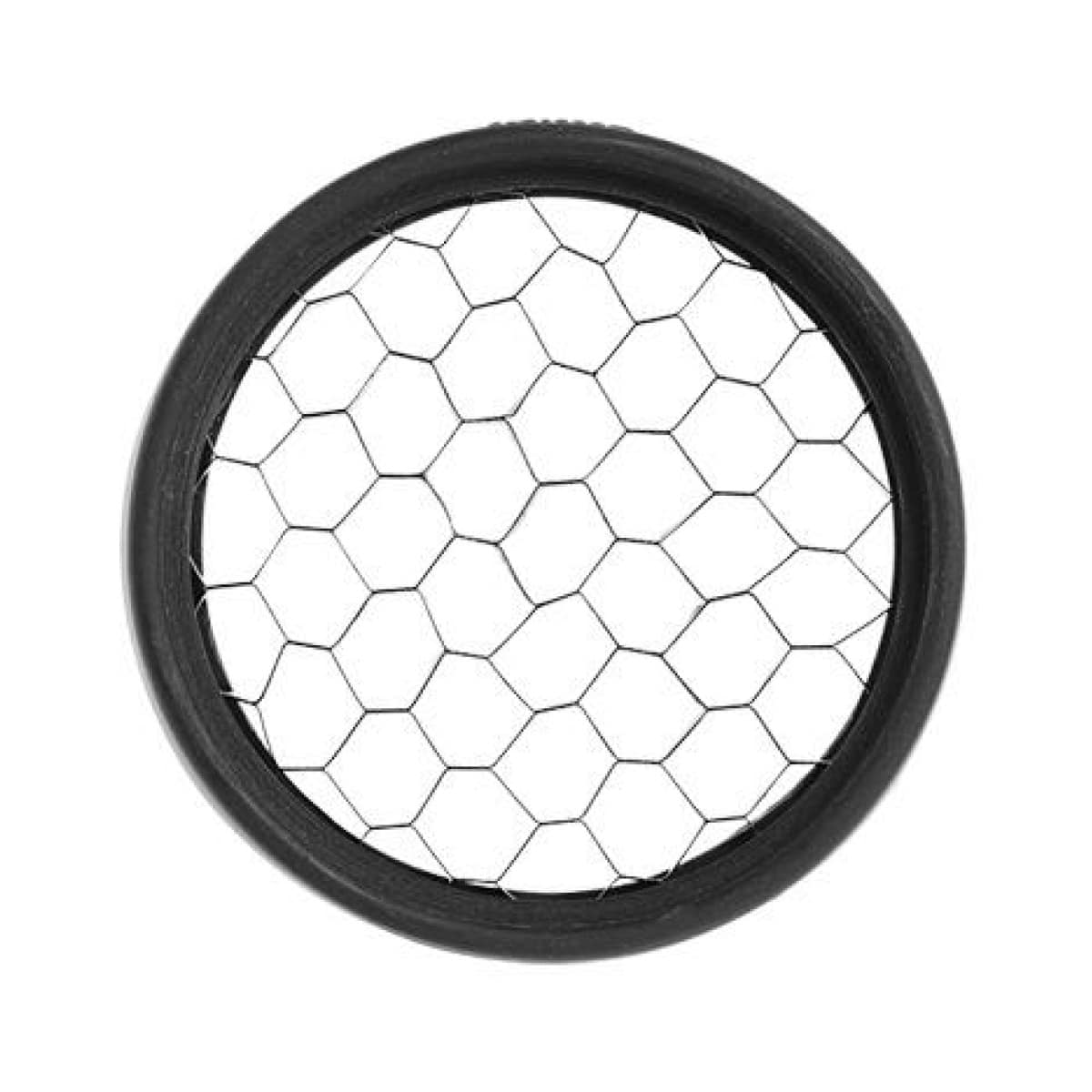

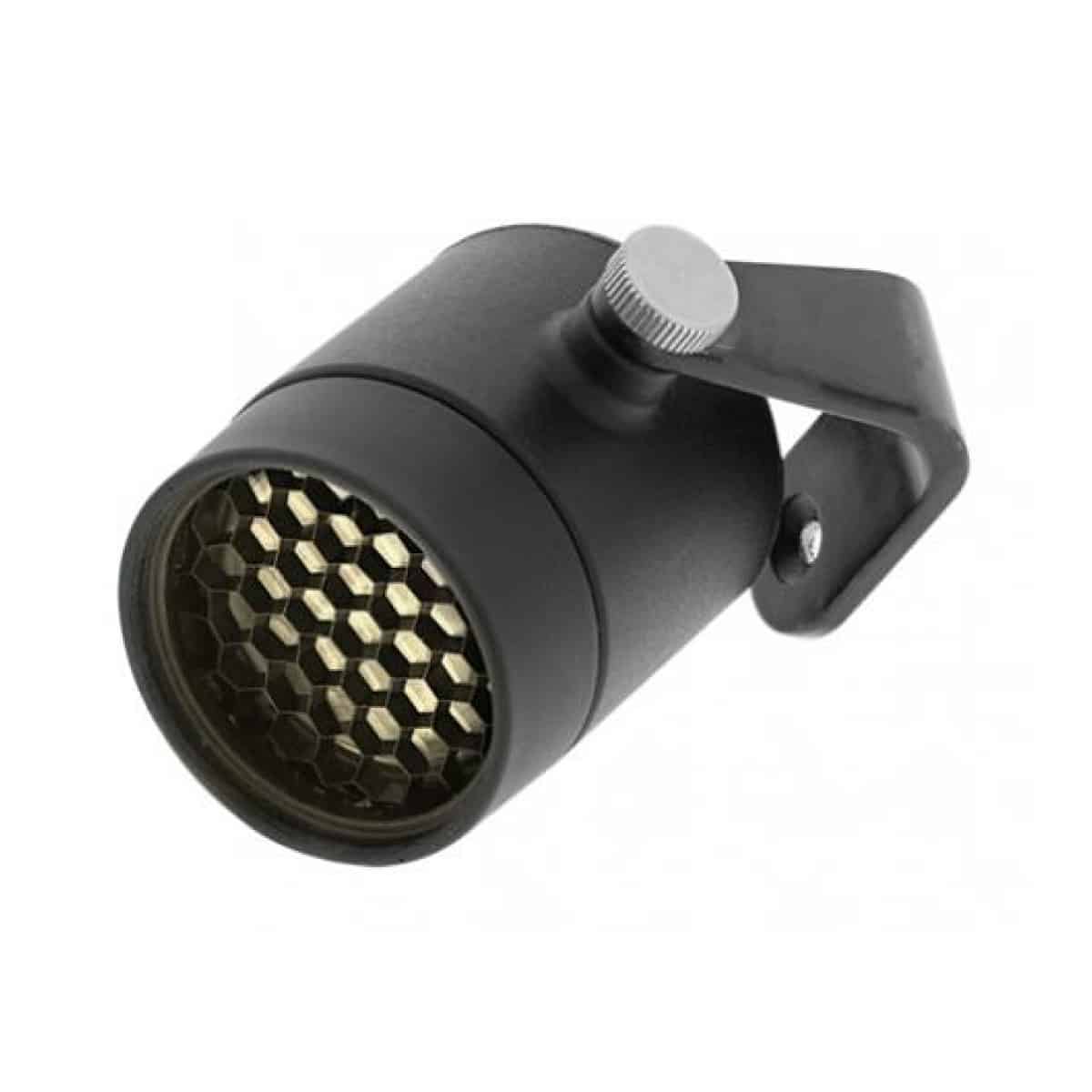

KILLFLASH 1 is a raised honeycomb ring that reduces direct view into the MINI SCOPE light source. The internal cells control oblique sight lines while allowing the focused beam to reach the feature below or beyond the fitting.

How this accessory improves the light

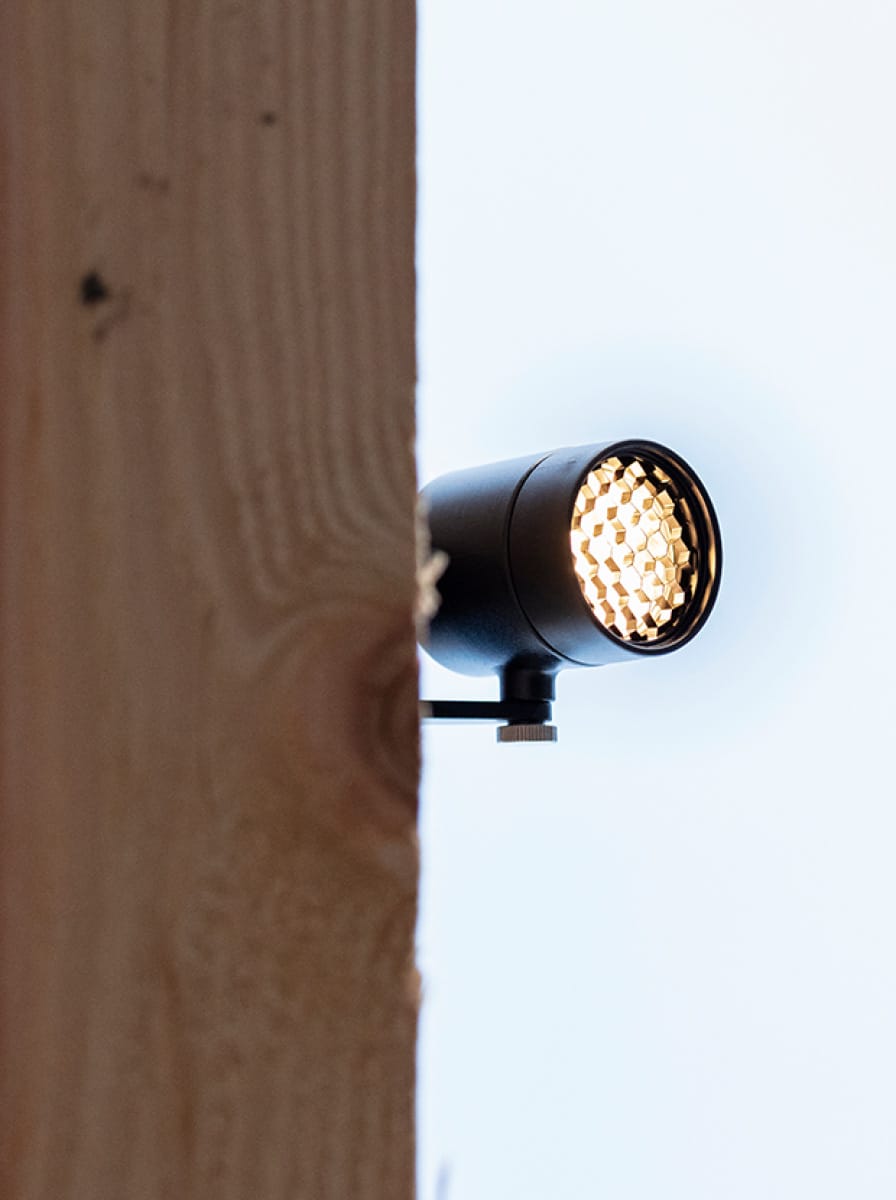

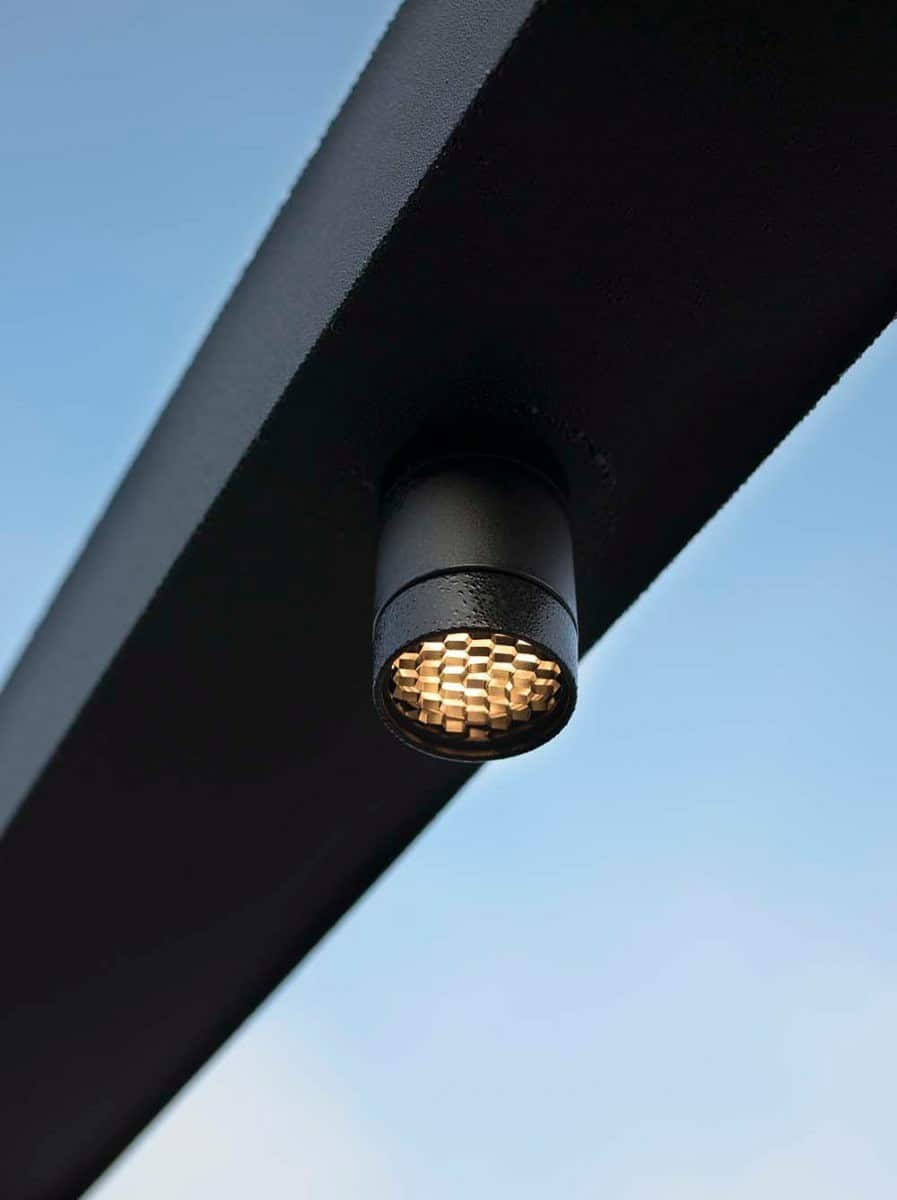

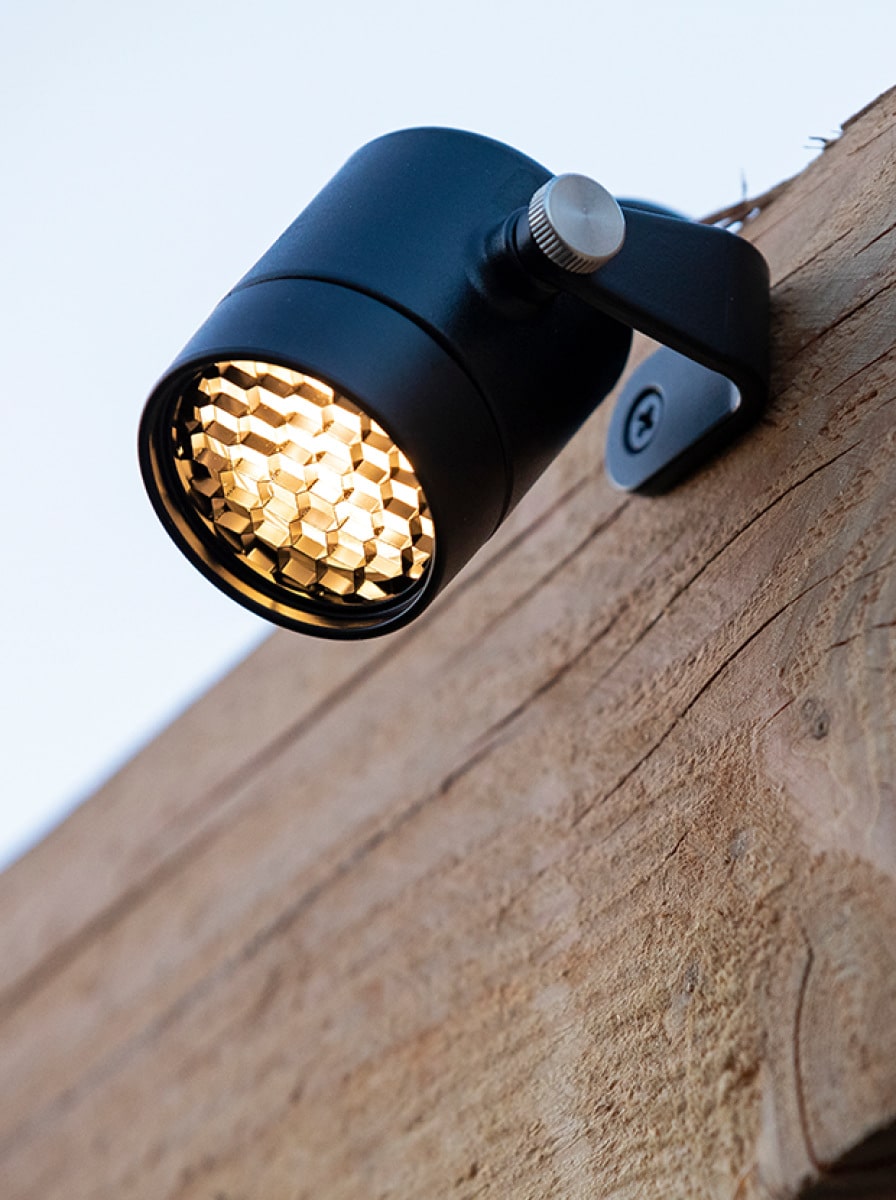

It is particularly useful when MINI SCOPE is mounted to a wall, pergola or ceiling and the source would otherwise be visible from nearby. Fit it to the lens, test the result from seated and standing positions, and still angle the spotlight carefully; optical control works best as a refinement to good placement.

Compatibility and important limits

KILLFLASH 1 is for MINI SCOPE and is also supplied as part of the MINI SCOPE CEILING concept. Use it only in a wall or ceiling application. In-Lite warns that water may remain in the fitting if a KILLFLASH is used on an upward-facing ground installation.

Technical information

• Compatibility: MINI SCOPE and related ceiling concept
• Optical structure: raised honeycomb profile
• Purpose: reduce direct view into the LED
• Installation orientation: wall or ceiling only
• Not suitable for upward-facing ground use
• Easy to fit and remove
• Manufacturer part number: 10704205

Complete the spotlight installation

Use SHIELD 1 instead where a ground-mounted MINI SCOPE needs one-sided glare screening.

Test the light after dark before completing the cable route or planting around it. Glare control and riser height are easiest to judge from the real viewing positions in the finished garden.

Position the beam for the feature, not the fitting

Use In-Lite KILLFLASH 1 Honeycomb Glare Control for MINI SCOPE with the compatible MINI SCOPE spotlight; the accessory itself does not produce light. Move the trial position around the tree, sculpture, wall or planting after dark; a small change in distance or angle can produce more depth and much less glare. Where the source can be seen from a path or seat, a compatible shield or honeycomb accessory is usually worth considering.

For larger trees, two restrained beams from different positions generally look more natural than one fitting driven at the limit of its reach. Keep the cable and EASY-LOCK accessible so the aiming position can still be adjusted as planting matures.

Compatible lights

These MINI SCOPE fittings are the documented matches. This accessory is not a MICRO SCOPE fitting.

In-Lite MINI SCOPE Compact 12V Garden Spotlight · In-Lite MINI SCOPE DUO Adjustable Twin Garden Spotlight
