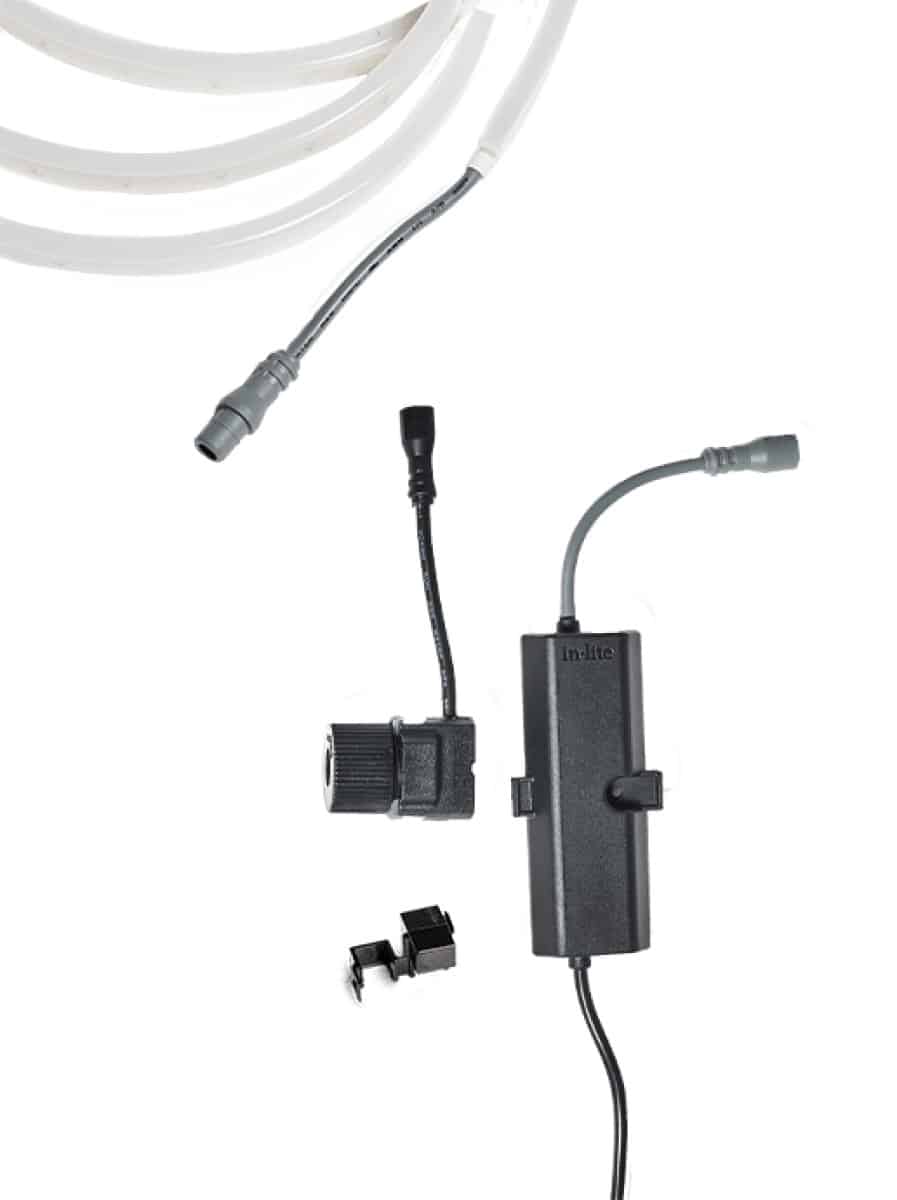

In-Lite EVO FLEX 12V Replacement LED Strip – Without Driver
| Length | 1m, 2m, 3m |
|---|---|
| Brand | |
| Guarantee | 5 Years |
| IP Rating | IP67 |
| Colour Temperature | 3000K |
| Power Source | 12V Transformer |
| Light Type | Strip Light |
| Material | Polyurethane |
| Light Colour | Warm White |
| Beam Angle | 125° |
| Dimmable | Driver dependent |
| Package Type | Replacement strip without driver |
| Works With | In-Lite 12V |
| CRI | 86 |
| Product form | Component or accessory |
Conceal the strip beneath a step, bench or coping to reveal the edge without leaving a row of exposed LED points. This is the replacement strip only. Keep a working compatible driver or purchase the matching driver separately.
Price range: £76.19 through £225.67 (inc VAT)
In-Lite EVO FLEX 12V Replacement LED Strip – Without Driver
A continuous warm white line beneath steps and benches
Conceal the strip beneath a step, bench or coping to reveal the edge without leaving a row of exposed LED points. This is the replacement strip only. Keep a working compatible driver or purchase the matching driver separately.
Choose the length and load
| 1m | 9.9VA / 6.5W |
|---|---|
| 2m | 15.7VA / 11W |
| 3m | 20.2VA / 14.5W |
Select 1m, 2m or 3m from the options. Allow the full published VA of the selected product when planning the circuit; do not size the transformer using watts alone.
What is supplied
One replacement strip in the selected length. The driver, transformer, main cable and mounting profiles are separate. Use the matching MINI WATERLOCK sealing arrangement whenever the installation instructions require it.
Power and control
Use the matching standard DRIVER 1 and a compatible in-lite HUB. For EVO FLEX 1, 2 and 3, the manufacturer recommends a maximum 40m run of 10/2 cable. Keep the driver and joints accessible.
Plan the fixing before cutting
Use a straight profile beneath an edge, a suitable visible profile where the strip is exposed, or the flexible profile for curves. Clips and masonry fixings suit different substrates. Cut only at the marked 25mm positions and seal as instructed. Do not twist the strip or fold it sharply across the light emitting face.
Technical details
| Light | 3000K warm white |
|---|---|
| Colour rendering | CRI 86 |
| Protection | IP67 |
| Section | Approximately 6.5mm wide × 12mm high |
| Cutting interval | 25mm at marked positions |
| Bending radius | Approximately 30mm, follow the manual |
| Beam | 125° |
| Driver | DRIVER 1 |
Choose the warm white driver
Use DRIVER 1 for standard warm white operation or SMART DRIVER 1 with the appropriate SMART system for dimming. Neither is the TONE driver.
In-Lite EVO FLEX DRIVER 1 Replacement Driver · In-Lite SMART DRIVER 1 for SMART EVO FLEX · In-Lite EVO FLEX-EXT CORD 1 – 1m
