In-Lite DISC WALL Circular Garden Wall Light

In-Lite DISC WALL Circular Garden Wall Light

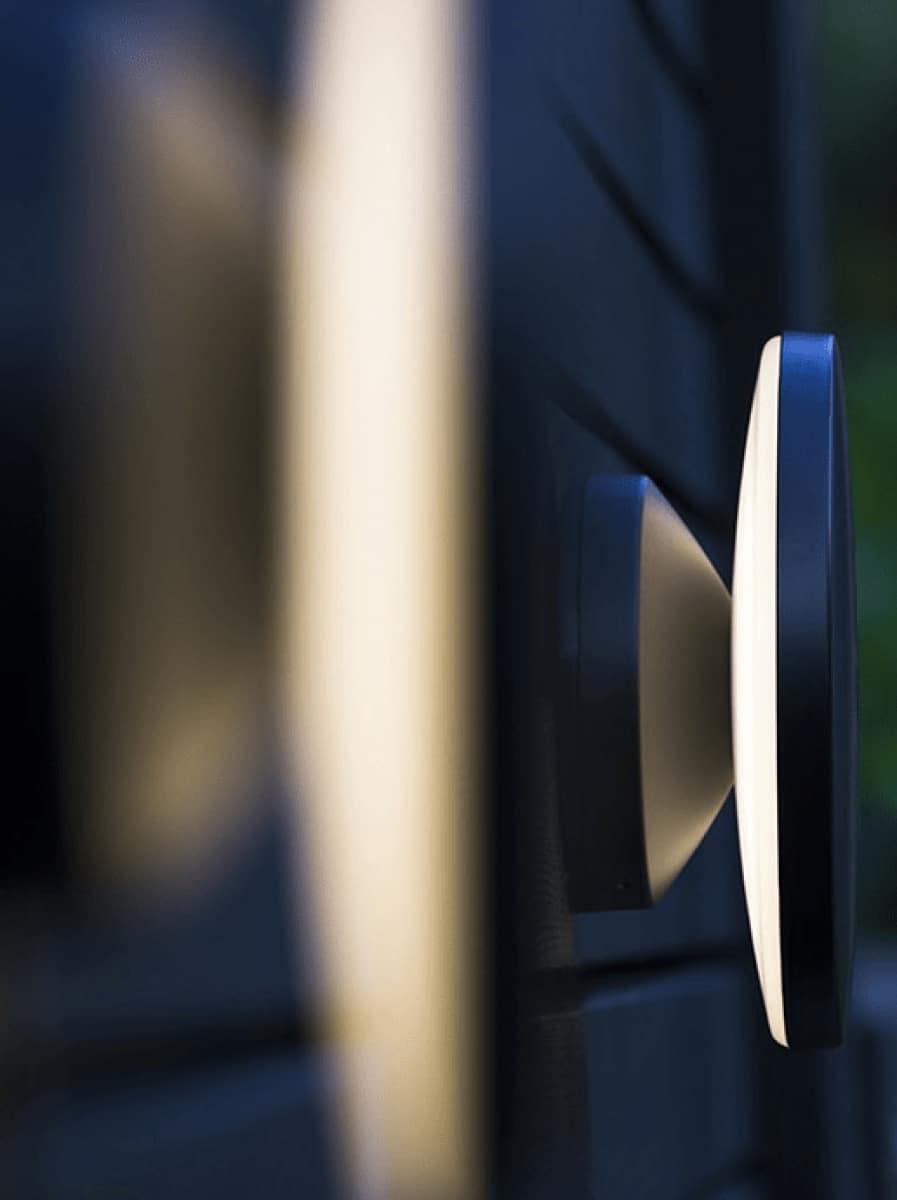

DISC WALL turns the broad circular DISC light into a distinctive wall feature. The integrated LED is concealed beneath the 200mm head, directing a warm halo back across the wall instead of exposing a bright point of light to people on the terrace or inside the house.

Choose the 12V option when the wall light will form part of a full In-Lite low-voltage garden system. Choose the 100–230V mains option where a separate mains circuit is appropriate. They create a similar visual effect, but their supply, control and installation requirements are not interchangeable.

12V or mains: the important difference

• 12V DISC WALL: 196 lumens, 4.9 VA and supplied with EASY-LOCK for an In-Lite transformer and cable circuit. Compatible with TOUCH DIMMER.
• 100–230V DISC WALL: 216 lumens, 11.8 VA and intended for a mains circuit. It includes In-Lite Human Dimming and must be installed by a suitably qualified electrician.

The 12V version is not connected directly to the mains. The mains version does not use an In-Lite HUB or EASY-LOCK cable network.

Complete wall assembly supplied

Both options are complete products assembled from the correct DISC light module and DISC BASE. Components may arrive separately packaged for assembly on site. The base fixes to a suitable stable vertical surface and conceals the connection for a clean circular silhouette.

Verified shared specification

• Head diameter: approximately 200mm
• Finish: Black
• Colour temperature: 2900K warm white
• Colour rendering: CRI 98
• Ingress protection: IP55
• Material: aluminium
• LED service-life indication: 25,000 hours
• 5-year manufacturer guarantee when correctly installed

Position for reflected light and low glare

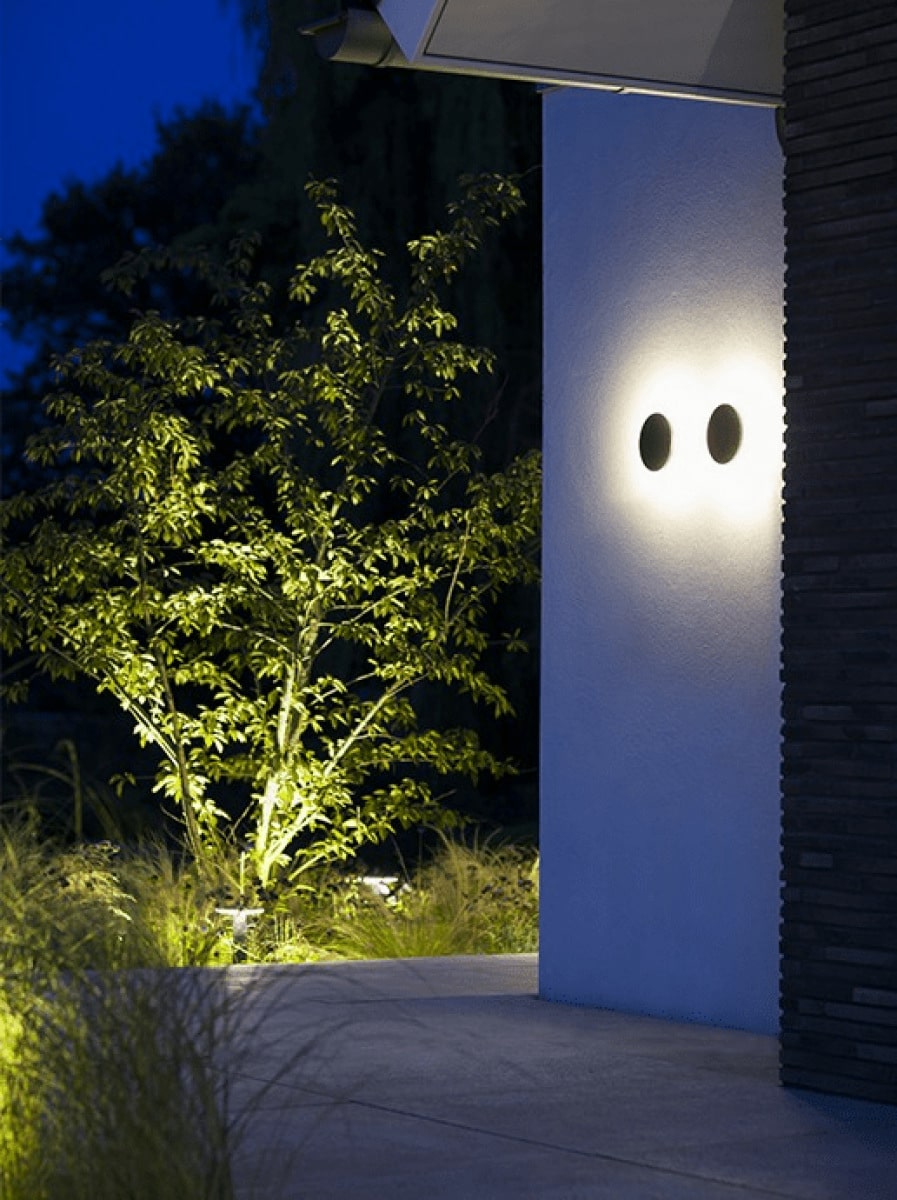

DISC WALL is particularly effective on textured brick, timber, stone and render where the reflected halo reveals the surface after dark. Check the view from windows and seating before final fixing. Several controlled pools of light usually look better than mounting one fitting very high and expecting it to illuminate the whole area.

Browse all In-Lite wall and ceiling lights. For the 12V version, also select a correctly sized In-Lite transformer and genuine In-Lite system cable.

Choose the mounting height from the finished light pattern

Before fixing In-Lite DISC WALL Circular Garden Wall Light, test the proposed position against the final wall, doorway, path or seating layout. Mounting height changes both the spread on the surface and how visible the source feels to people nearby. Align repeated fittings carefully and plan the cable entry before drilling so the finished installation remains tidy.

For mains-powered versions, electrical work must follow the current installation instructions and UK requirements. For 12V versions, include the stated VA load in the transformer calculation and use the specified In-Lite connection system.

Compatible and related In-Lite products

For the same project, compare In-Lite CBL Two-Wire Garden Lighting System Cable, In-Lite CBL-EXT CORD Garden Light Extension Cable, In-Lite HUB-75 UK 12V Garden Lighting Transformer, and In-Lite DISC 12V Garden Bollard Light. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
