In-Lite DISC 12V Garden Bollard Light

In-Lite DISC 12V Garden Bollard Light

DISC is a contemporary garden bollard with a broad circular head that throws a soft warm-white halo downwards and around the fitting. Because the light source faces the ground, it gives useful illumination across paving and planting while keeping direct glare and upward spill under control.

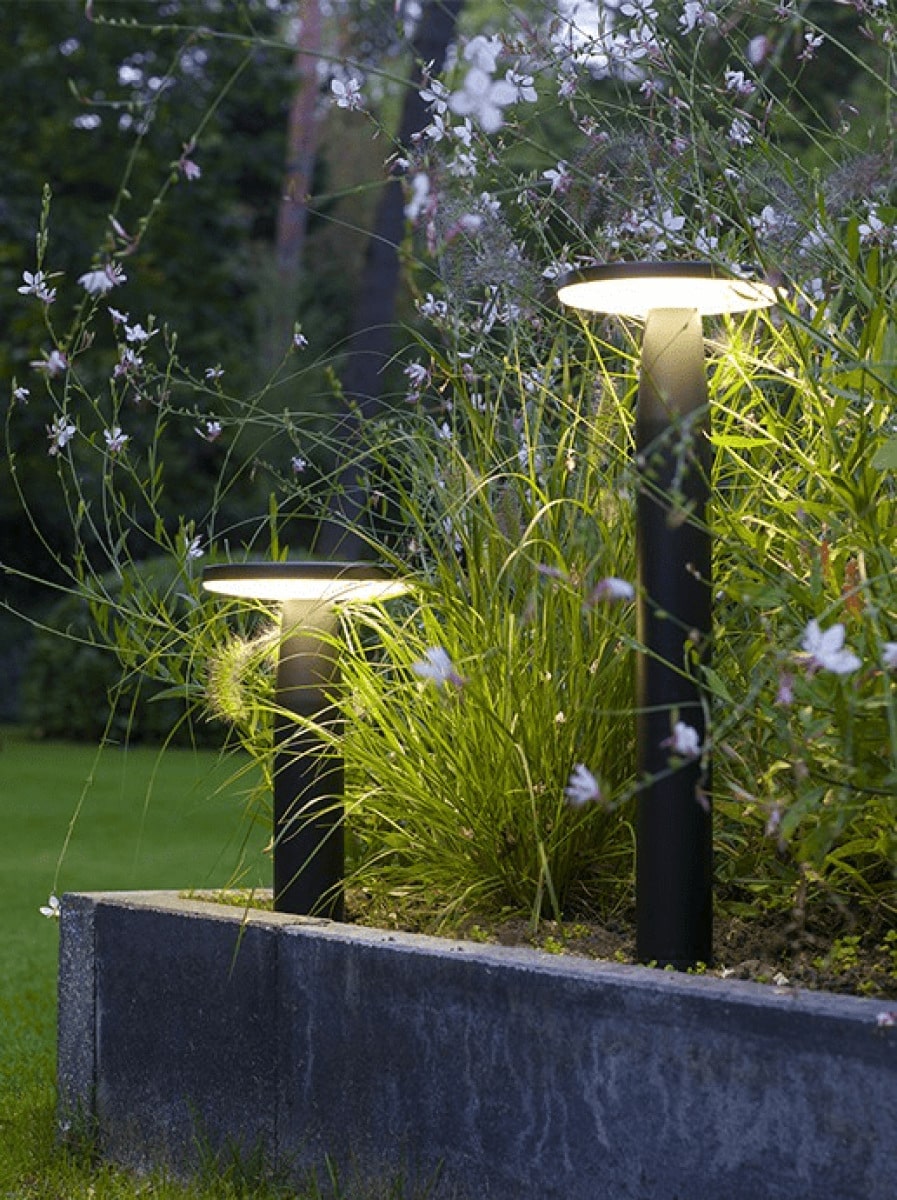

Choose the 350mm DISC LOW where the fitting should sit discreetly amongst low planting or beside a deck. Choose the 600mm DISC where the head needs to remain visible above deeper borders. Using both heights in the same scheme can look considerably more natural than a rigid row of identical fittings.

What arrives with each complete fitting

These installer-sheet products are complete assemblies, not loose DISC components. Each option combines the original In-Lite DISC LIGHT HEAD with the correct 350mm or 600mm tube, ground spike, hard-surface mounting bracket, fixing screws and EASY-LOCK connection. The components may be separately packed inside the order and assembled on site.

Where DISC works best

• paths and changes of direction that need a comfortable pool of light
• mixed borders where foliage benefits from excellent colour rendering
• decking and terraces where the source should be shielded from view
• informal planting schemes using both the LOW and standard heights

DISC is intended to reveal the route and surrounding textures, rather than flood the whole garden. Start at steps, turns, gates and seating areas; add more fittings only where a dark gap still needs attention.

Verified technical specification

• Height options: 350mm or 600mm
• Head diameter: approximately 200mm
• Bollard diameter: approximately 66mm
• Light output: 211 lumens
• Colour temperature: 2900K warm white
• Colour rendering: CRI 98
• Beam angle: 106 degrees
• Power consumption: 3W
• Transformer load: 4.9 VA per fitting
• Ingress protection: IP55
• Connection: supplied EASY-LOCK
• LED service-life indication: 25,000 hours
• 5-year manufacturer guarantee when correctly installed

Plan the In-Lite circuit

Add 4.9 VA for every DISC when sizing the In-Lite transformer. Connect it to genuine In-Lite two-wire system cable and keep the EASY-LOCK accessible rather than burying it permanently in concrete or resin.

Compare all In-Lite path, bollard and planting lights. If you send us the approximate route length, border depth and a sketch, we can help decide where the two DISC heights will work best.
