In-Lite DISC PENDANT Outdoor Hanging Light

In-Lite DISC PENDANT Outdoor Hanging Light

A broad circular outdoor pendant available as a single or triple complete kit for the In-Lite 12V system or mains power

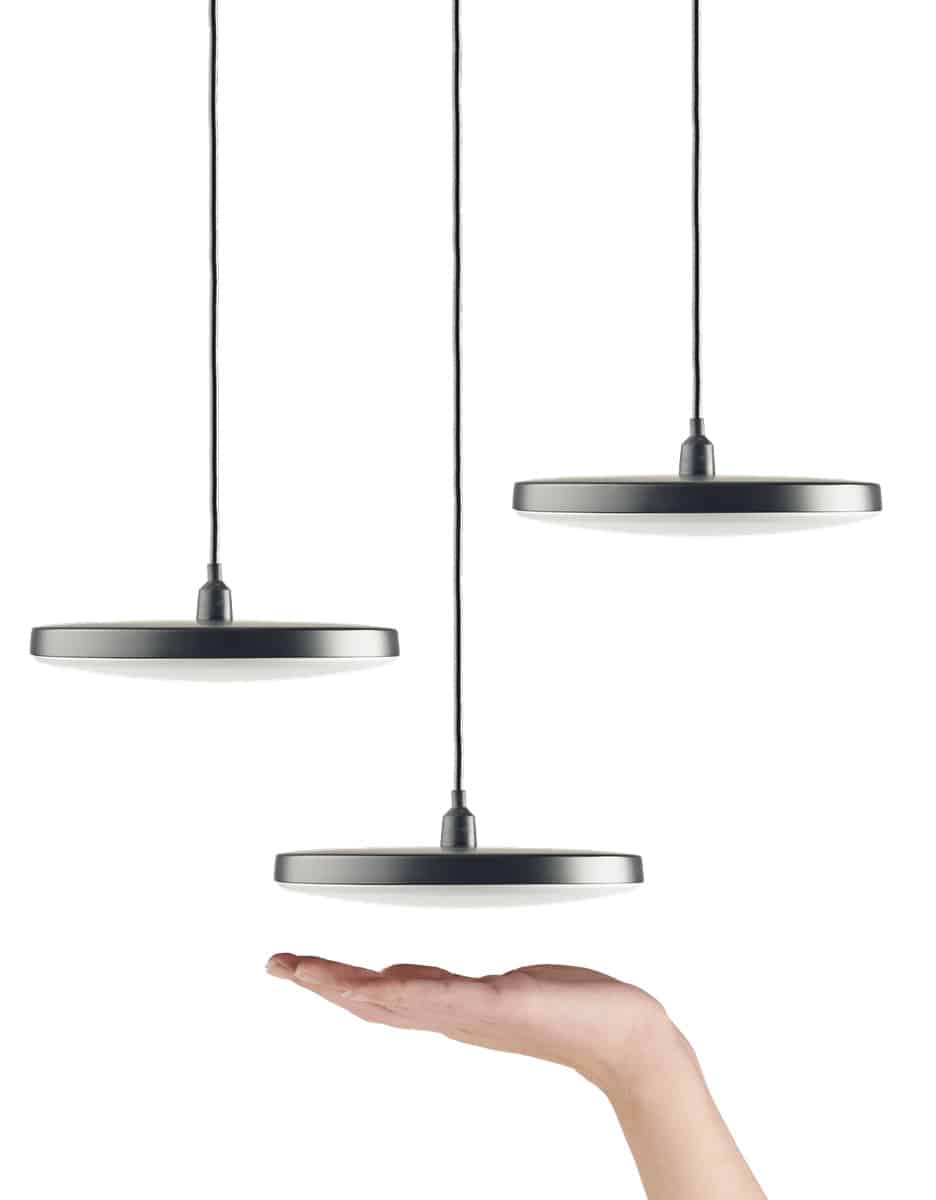

DISC PENDANT suspends the broad, glare-controlled DISC light over an outdoor dining table, lounge or covered seating area. Its circular 200mm head throws warm light downwards and outwards while keeping the LED itself largely hidden from normal viewing angles.

Choose a complete single or triple arrangement, then select either the In-Lite 12V system or a 100–230V mains circuit. The power systems create a similar appearance but have different connection, control and installation requirements.

12V or mains power

• 12V: 196 lumens and 4.9 VA per pendant. Connect each pendant to genuine In-Lite cable with its EASY-LOCK and size the HUB from the total VA. Compatible with TOUCH DIMMER.
• 100–230V mains: 216 lumens and 11.8 VA per pendant. Includes Human Dimming and requires installation by a suitably qualified electrician. No In-Lite HUB is used.

Single and triple complete kits

The DISC BASE and DISC BASE TRIPLE arrangements belong to the 100–230V mains versions, not the 12V pendant. Use the mounting components specified for your selected voltage and set. Each pendant has approximately 2.2m of cable, allowing the heads to be arranged at matching or staggered heights. The mains triple kit includes its specified power components.

For a 12V set, follow the instructions for the exact selected assembly when planning EASY-LOCK connections and any approved splitter arrangement. Allow 4.9 VA per pendant when sizing the HUB. A transformer load in VA must not be treated as a splitter power limit in watts.

Verified shared specification

• Head diameter: approximately 200mm
• Colour temperature: 2900K warm white
• Colour rendering: CRI 98
• Ingress protection: IP55
• Cable length: approximately 2.2m per pendant
• Material: aluminium
• Light effect: broad, shielded ambient light
• LED service-life indication: 25,000 hours
• 5-year manufacturer guarantee when correctly installed

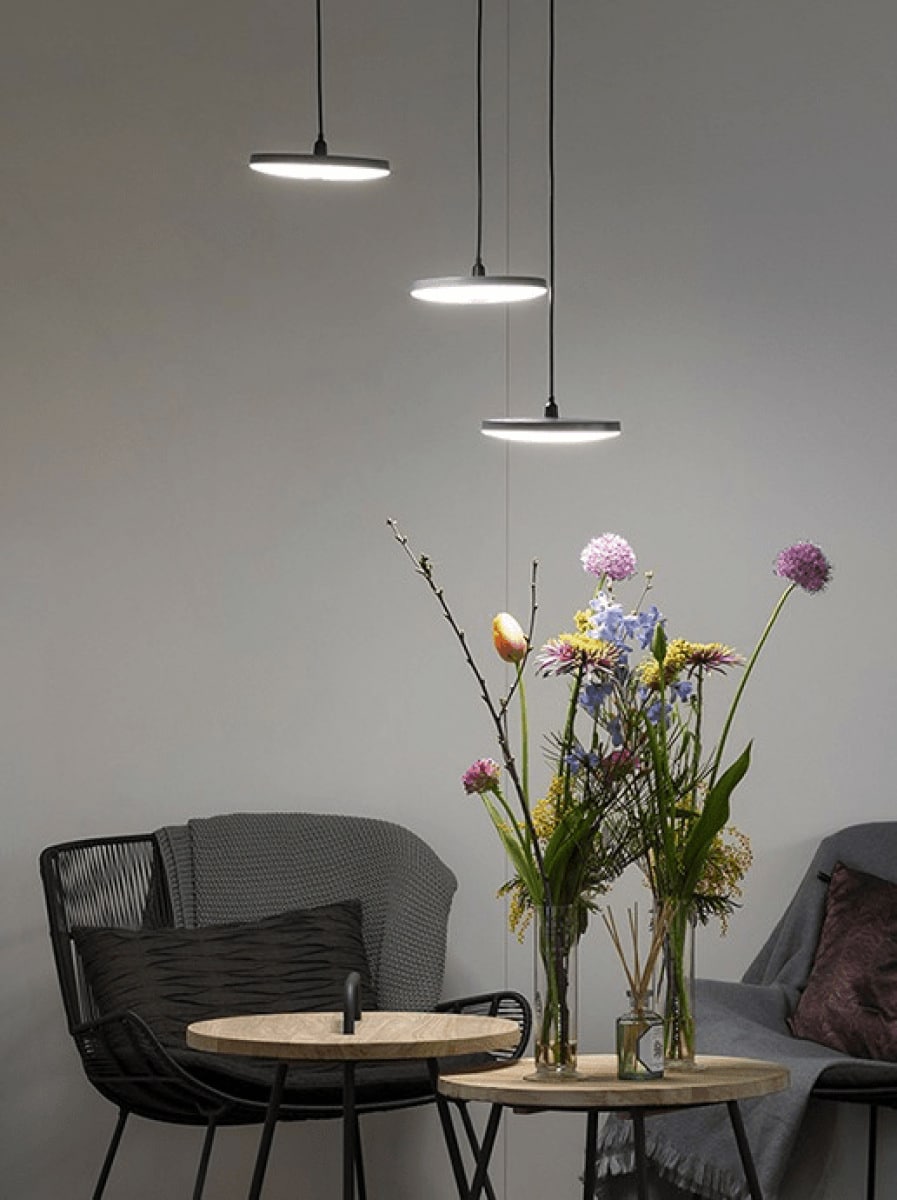

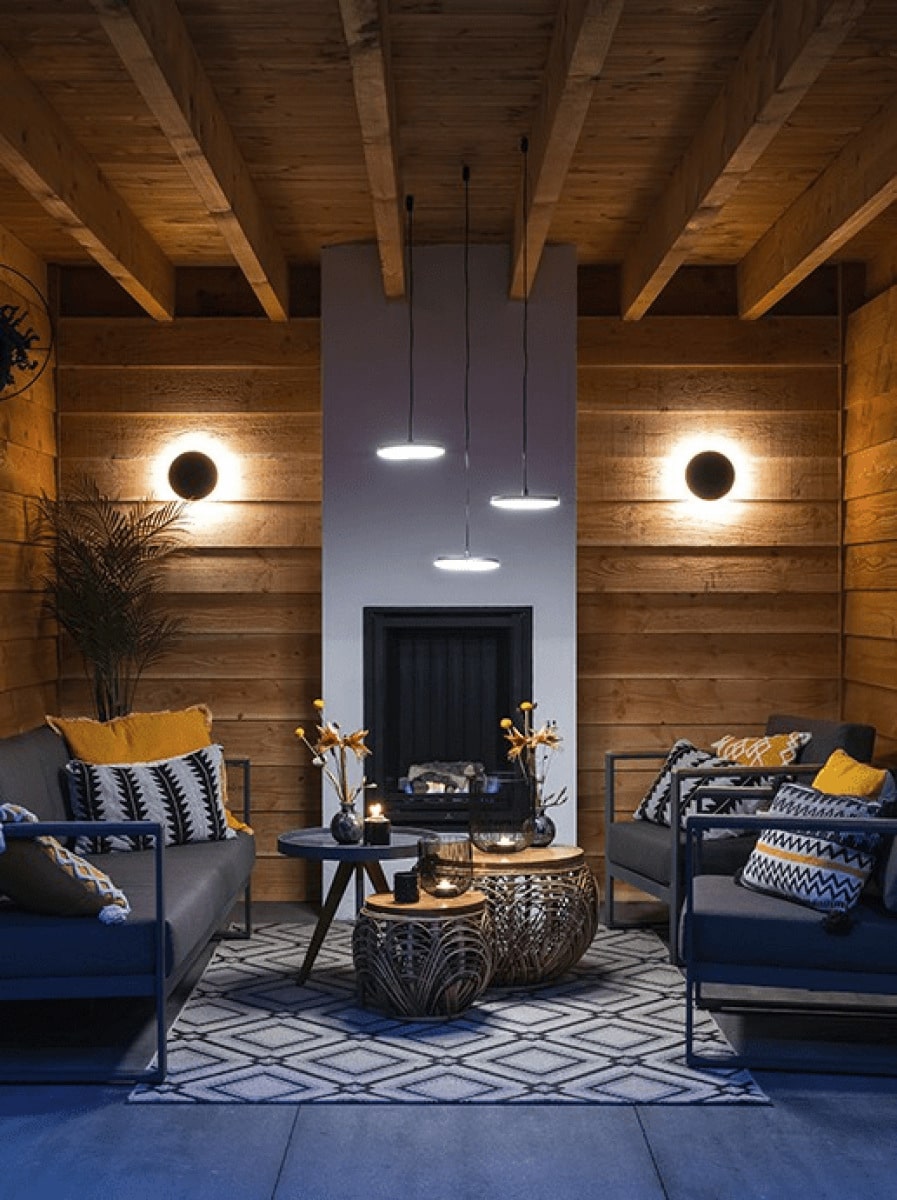

Position above a sheltered outdoor space

DISC PENDANT works best under a canopy or pergola where the mounting point is secure and the fitting is protected from excessive wind movement. Test the final height from both sitting and standing positions before shortening or securing the cable.

Browse all In-Lite wall, ceiling and hanging lights. For 12V installations, also select the appropriate In-Lite transformer and two-wire cable.

Choose the mounting height from the finished light pattern

Before fixing In-Lite DISC PENDANT Outdoor Hanging Light, test the proposed position against the final wall, doorway, path or seating layout. Mounting height changes both the spread on the surface and how visible the source feels to people nearby. Align repeated fittings carefully and plan the cable entry before drilling so the finished installation remains tidy.

For mains-powered versions, electrical work must follow the current installation instructions and UK requirements. For 12V versions, include the stated VA load in the transformer calculation and use the specified In-Lite connection system.

Assembly and matching design

Select the base only for its documented pendant assembly and voltage; DISC BASE and DISC BASE TRIPLE are for the mains pendant versions. The wall light is a matching design alternative, not a pendant component.

In-Lite BASE 1 for Pendant & Wall Assemblies · In-Lite BASE TRIPLE for Pendant Lights · In-Lite DISC WALL Circular Garden Wall Light
