In-Lite EVO DOWN 100–230V Mains Wall Light

In-Lite EVO DOWN 100–230V Mains Wall Light

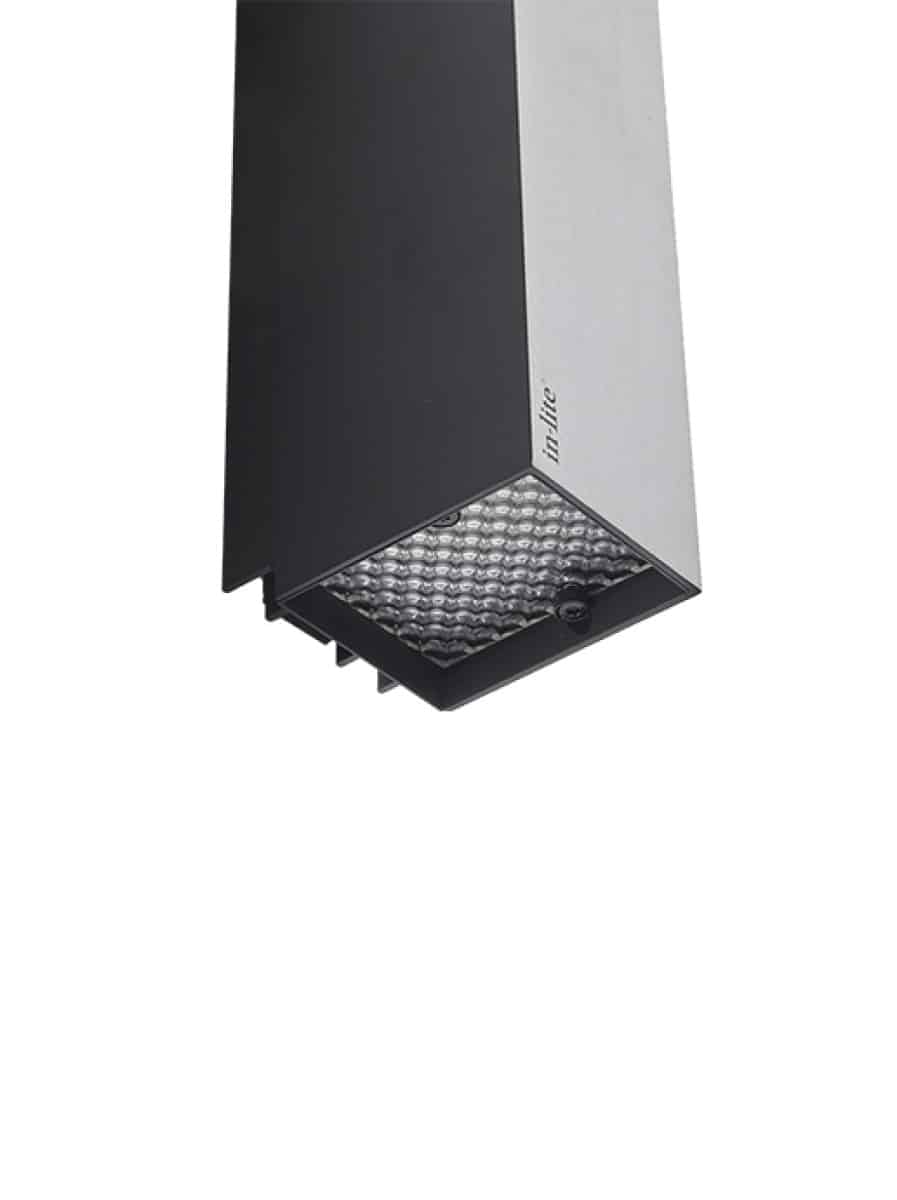

EVO DOWN 100–230V Mains Wall Light is a tall mains-powered architectural downlight for house walls, garages and outbuildings. It is the electrician-installed mains version of EVO DOWN, with a warm-white LED and a shielded source that keeps the effect comfortable around outdoor living areas.

Where this fitting works best

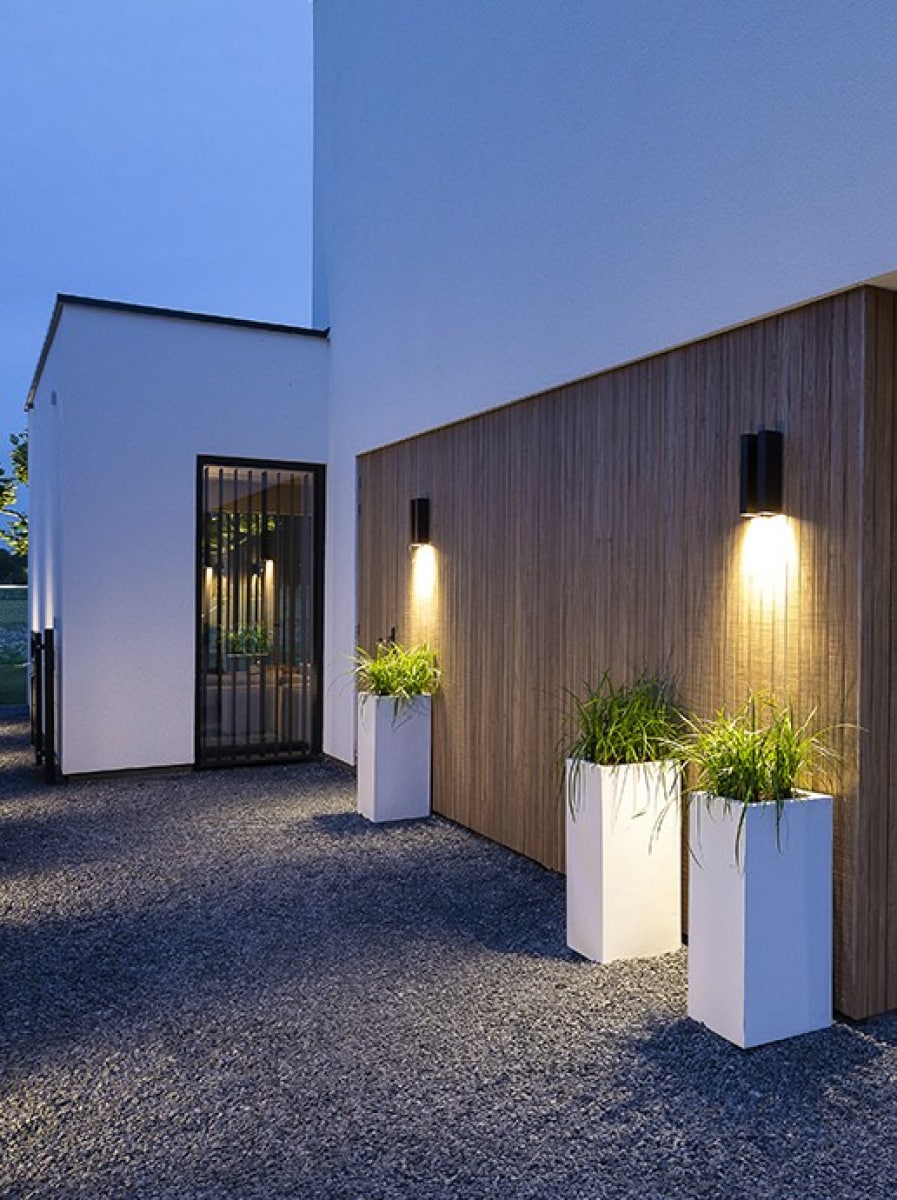

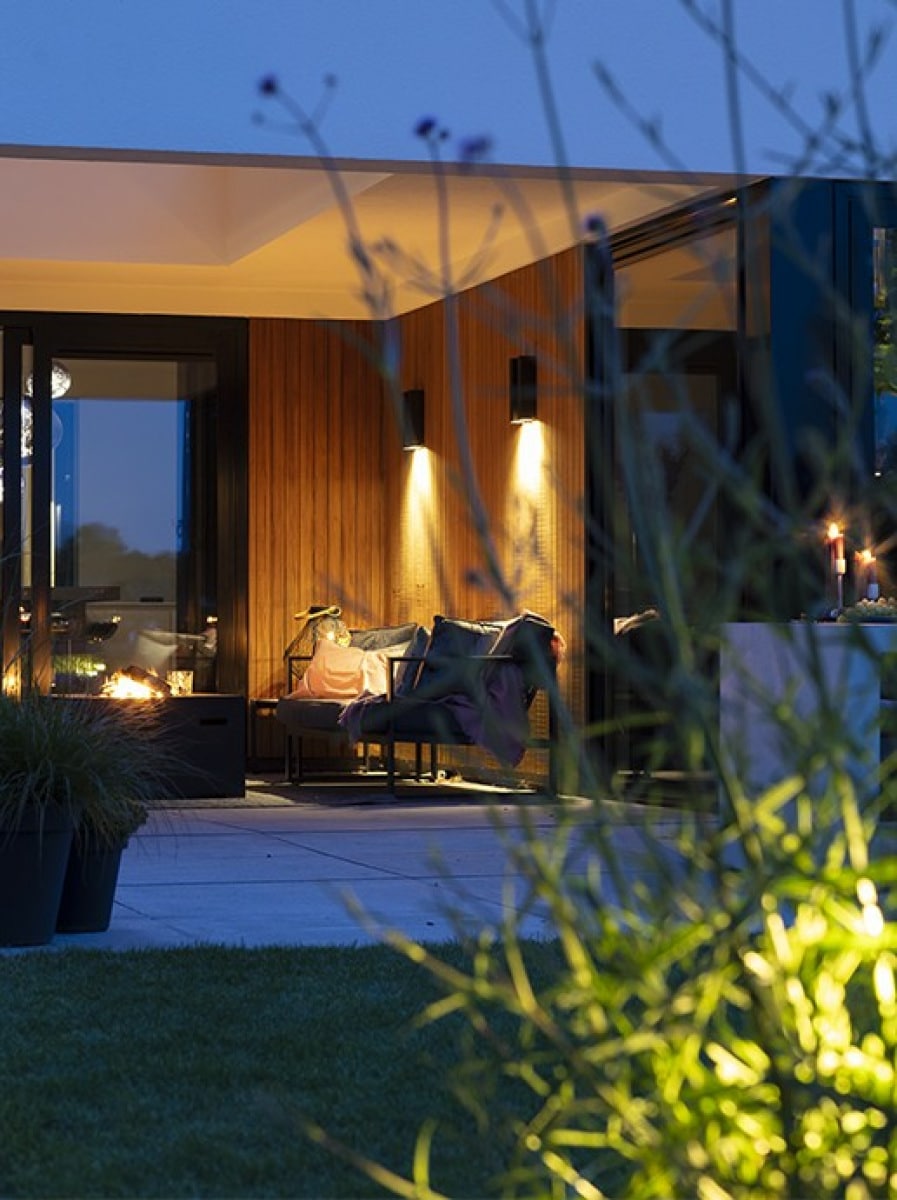

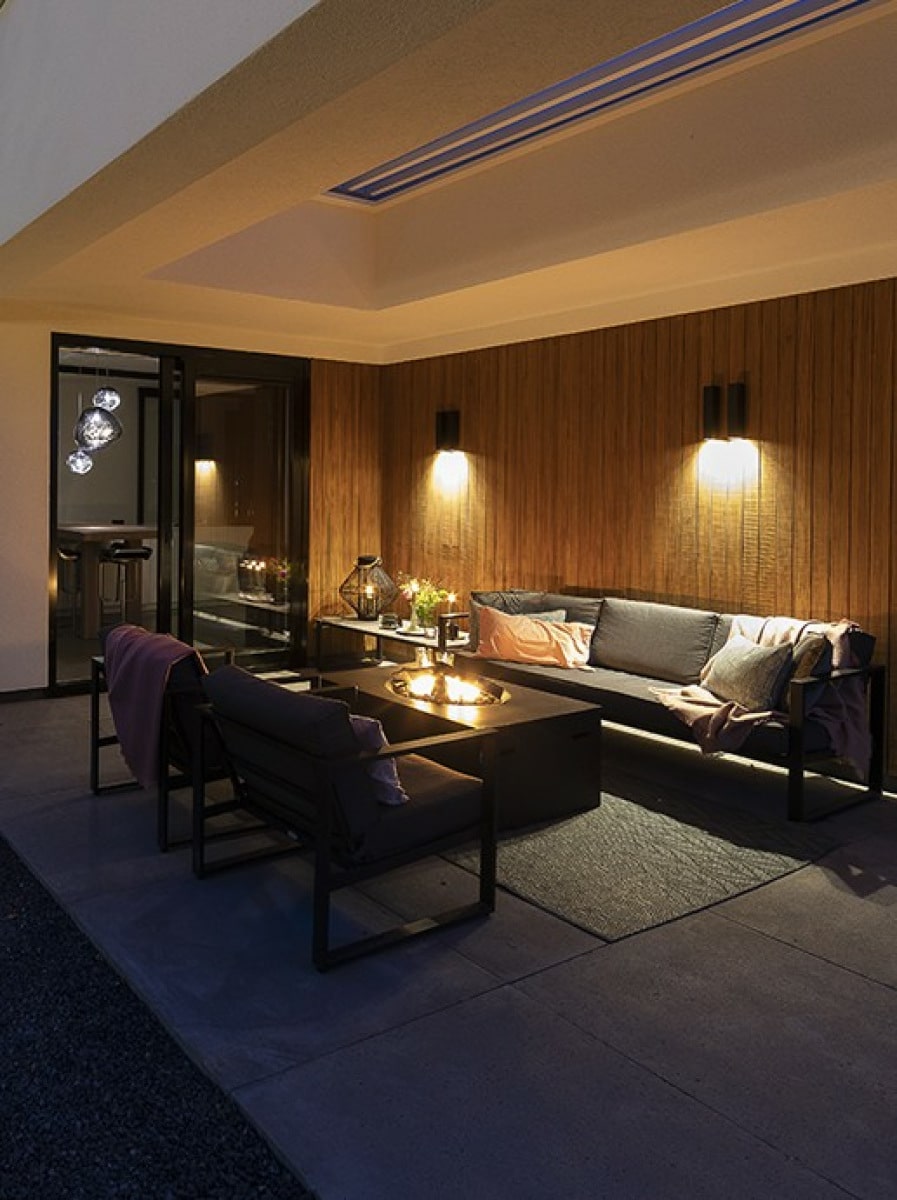

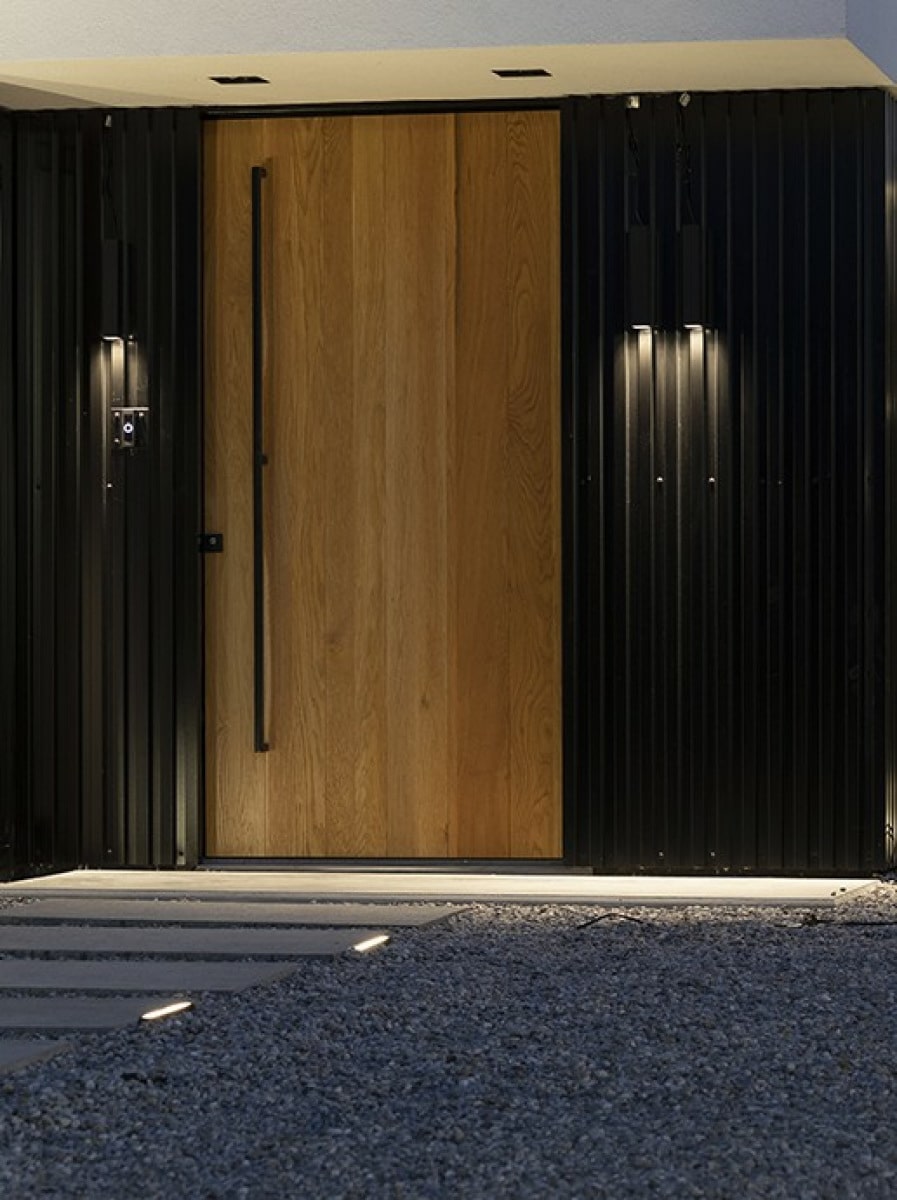

Use it on entrances, facades, fences, garden rooms and terrace walls. The stated 64° distribution is a starting point: wall texture, mounting height, ceiling height and nearby surfaces all change the final effect.

Test one proposed position after dark before drilling every fixing point. Repeated lights look best when their spacing follows the architecture rather than being chosen only by equal distance.

12V or mains installation

This is a mains-voltage fitting. It must be connected to a suitable outdoor circuit by a qualified electrician and it does not connect to an In-Lite HUB, SMART HUB, EASY-LOCK or 12V system cable.

Protect cable routes from fixings and sharp edges, use appropriate outdoor junction methods and follow the current In-Lite mounting template. Keep the fitting accessible for cleaning and future inspection.

Verified technical information

• Power source: 240V Mains
• Light type: Wall Light

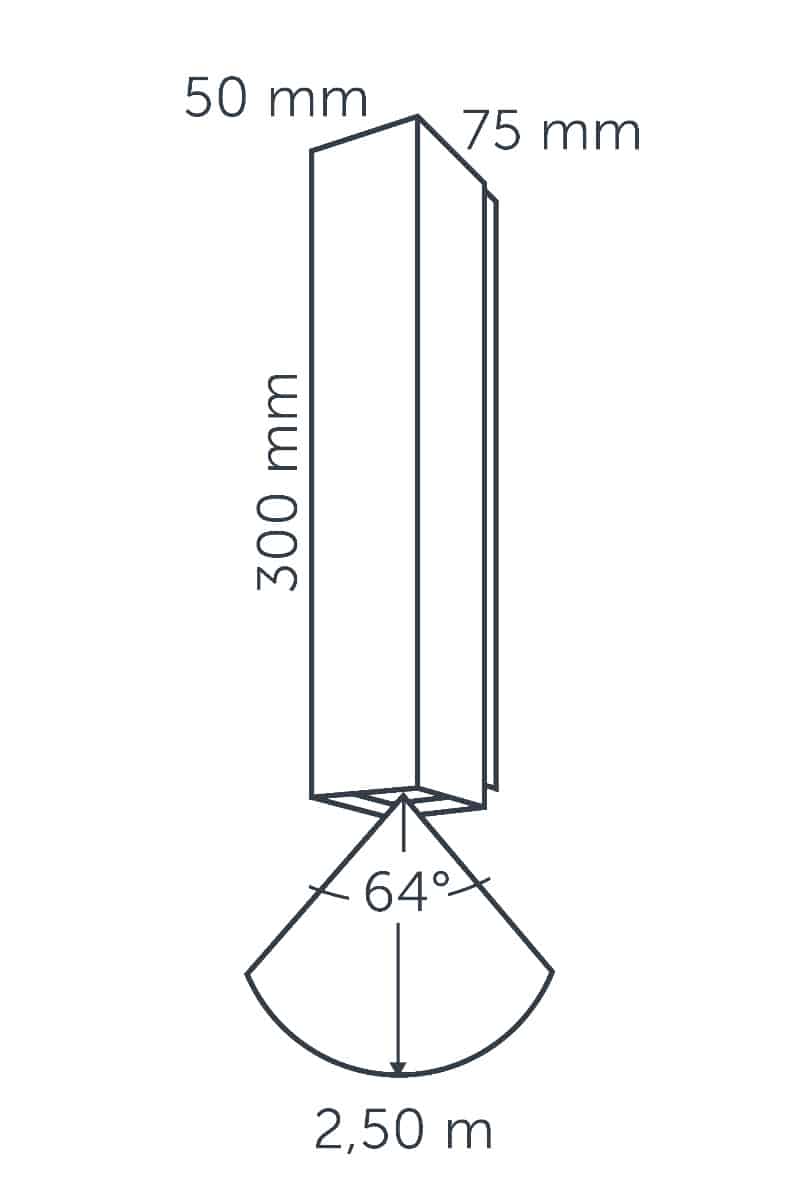

• Light direction / beam: 64°
• Colour temperature: 3000K
• Load: 11.5 VA
• Protection: IP55
• Finish: Black or Dark Grey as shown
• Manufacturer part number: 10302505
• 5-year manufacturer guarantee when correctly installed

What is supplied

• One complete EVO DOWN 100–230V Mains Wall Light
• Manufacturer mounting hardware and installation guidance

Choosing the right In-Lite wall or ceiling light

Compare the DOWN and UP-DOWN versions, body shape, mounting height and beam width before choosing a repeated facade pattern. Browse all In-Lite wall and ceiling lights, or contact us with a photograph and dimensions for practical help.

Plan the complete installation

Confirm the final circuit, switching and any compatible dimmer requirements with the installing electrician before ordering. Do not mix 12V and mains connection methods.

Choose the mounting height from the finished light pattern

Before fixing In-Lite EVO DOWN 100–230V Mains Wall Light, test the proposed position against the final wall, doorway, path or seating layout. Mounting height changes both the spread on the surface and how visible the source feels to people nearby. Align repeated fittings carefully and plan the cable entry before drilling so the finished installation remains tidy.

For mains-powered versions, electrical work must follow the current installation instructions and UK requirements. For 12V versions, include the stated VA load in the transformer calculation and use the specified In-Lite connection system.
