In-Lite ACE UP-DOWN 12V Wall Light

In-Lite ACE UP-DOWN 12V Wall Light

ACE UP-DOWN creates a balanced architectural light pattern above and below the fitting. It is well suited to entrance walls, rendered facades, garden rooms and terrace boundaries where the wall itself should become part of the night-time design.

The fitting is part of the In-Lite 12V system and is available in finishes that coordinate with the wider ACE, LIV and compact wall-light families.

The light effect on the wall

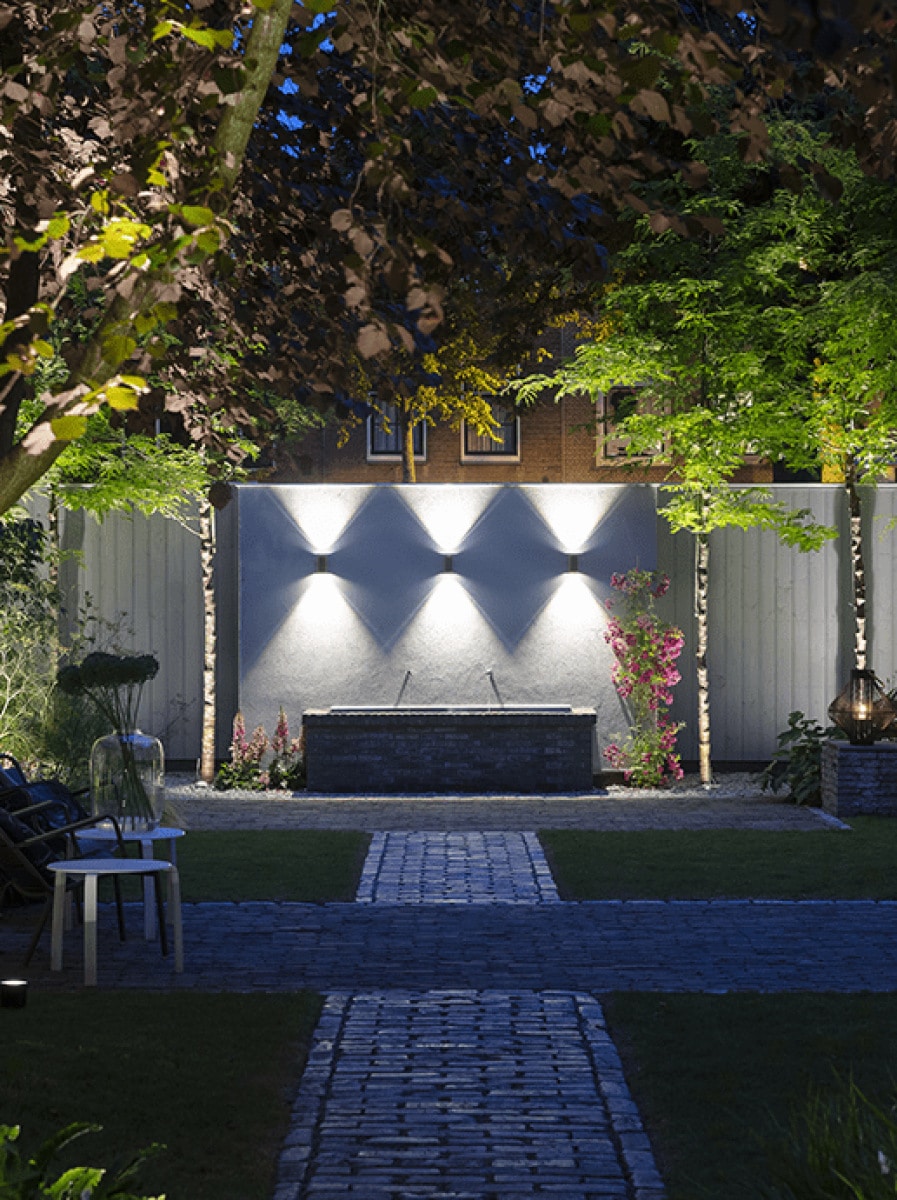

Two controlled 64-degree beams form a symmetrical hourglass on the wall. Repetition can create a strong rhythm along a long facade, while one fitting can frame a door or architectural bay.

Wall texture, mounting height and nearby surfaces all change the result. Hold a temporary light at the proposed position after dark before drilling every fixing point.

Where it works best

Mount on a clean vertical surface with enough space above and below for both beams to develop. It is particularly effective on rendered, brick and textured stone walls.

Keep the fitting out of door swings and likely impact zones, and avoid mounting where irrigation or roof run-off will pour directly over it.

Installation and cable planning

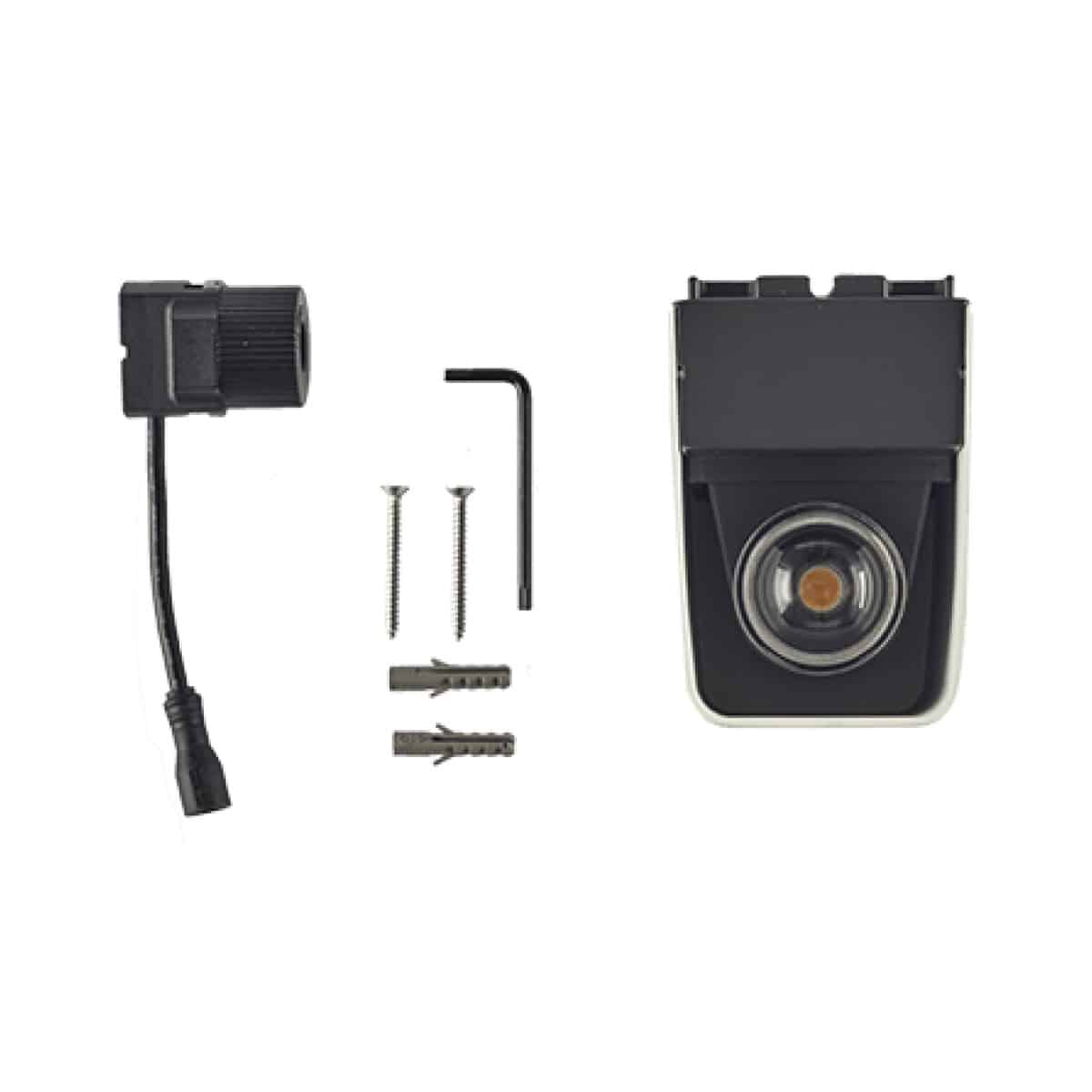

Plan the system-cable route before finishing the wall or paving. The supplied EASY-LOCK connects the fitting to genuine In-Lite system cable. Use an accessible junction position and follow the current mounting template.

Verified technical information

• Light effect: up-and-down wall wash
• Colour temperature: 3000K warm white

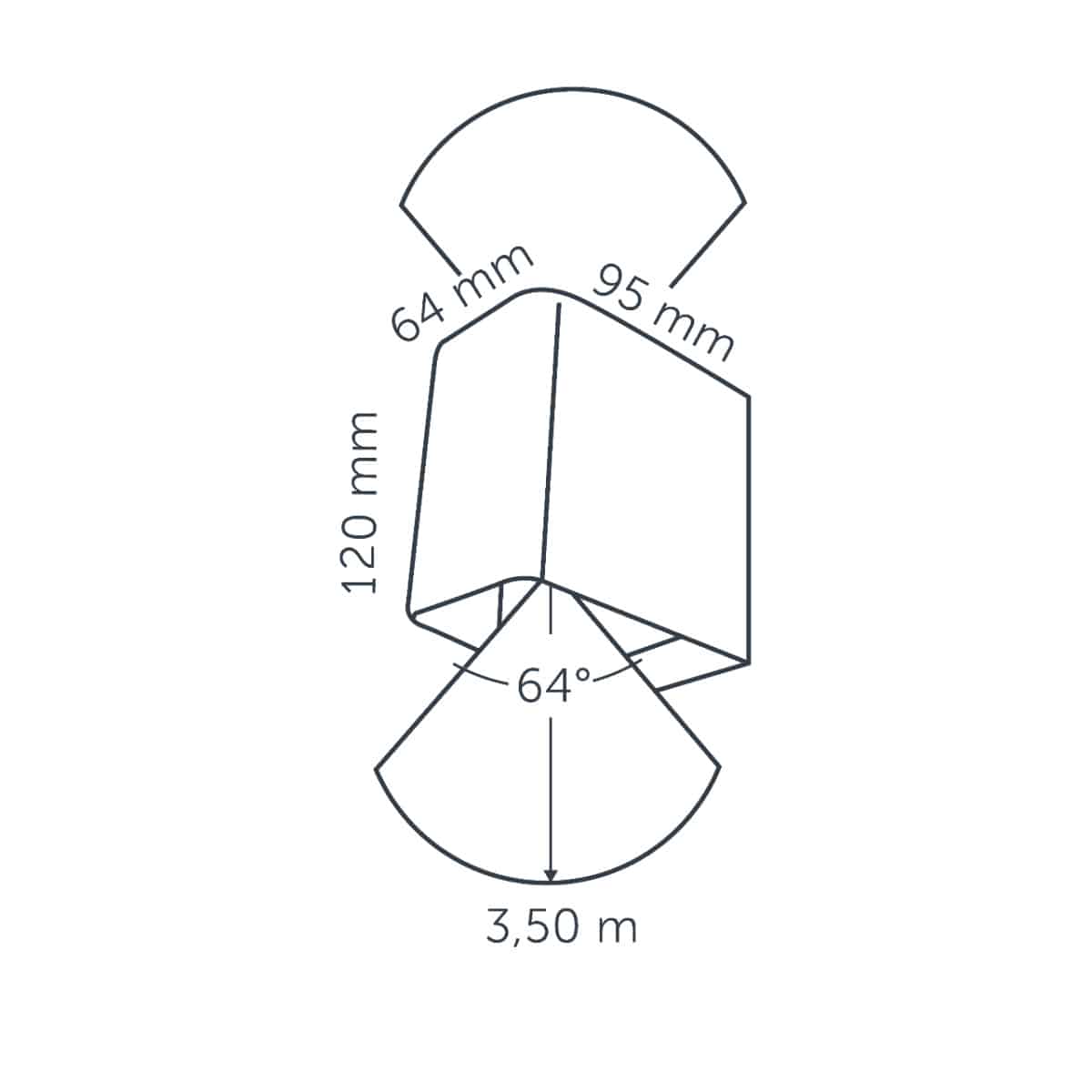

• Beam angle: 64° up and down
• Transformer load: 10.3 VA
• Supply: In-Lite 12V low-voltage system
• Protection: IP55
• Material: coated aluminium
• Expected LED life: 25,000 hours
• Manufacturer guarantee: 5 years when correctly installed as an In-Lite system

Choosing between similar In-Lite wall lights

Choose ACE UP-DOWN for a symmetrical architectural effect. Choose ACE DOWN where light should stay below the fitting, or HALO UP-DOWN for a rounder contemporary body.

Browse all In-Lite wall and ceiling lights or contact us with a wall photograph, dimensions and intended effect for practical help comparing the options.

Plan the complete In-Lite circuit

Add 10.3 VA for every fitting when sizing the transformer. Total the VA load on the whole route and leave sensible spare capacity for later additions.

Compatible and related In-Lite products

For the same project, compare In-Lite CBL Two-Wire Garden Lighting System Cable, In-Lite CBL-EXT CORD Garden Light Extension Cable, In-Lite HUB-75 UK 12V Garden Lighting Transformer, and In-Lite ACE UP-DOWN 100–230V Mains Wall Light. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
