In-Lite HALO UP-DOWN 12V Wall Light

In-Lite HALO UP-DOWN 12V Wall Light

HALO UP-DOWN 12V Wall Light is a round architectural wall light that produces matching beams above and below. It is the 12V bidirectional member of the HALO family, with a warm-white LED and a shielded source that keeps the effect comfortable around outdoor living areas.

Where this fitting works best

Use it on entrances, facades, fences, garden rooms and terrace walls. The stated 85° up and down distribution is a starting point: wall texture, mounting height, ceiling height and nearby surfaces all change the final effect.

Test one proposed position after dark before drilling every fixing point. Repeated lights look best when their spacing follows the architecture rather than being chosen only by equal distance.

12V or mains installation

The fitting connects to genuine In-Lite 12V system cable. An EASY-LOCK and fixture cable are supplied; add the stated VA load when sizing the HUB transformer.

Protect cable routes from fixings and sharp edges, use appropriate outdoor junction methods and follow the current In-Lite mounting template. Keep the fitting accessible for cleaning and future inspection.

Verified technical information

• Power source: 12V Transformer
• Light type: Wall Light

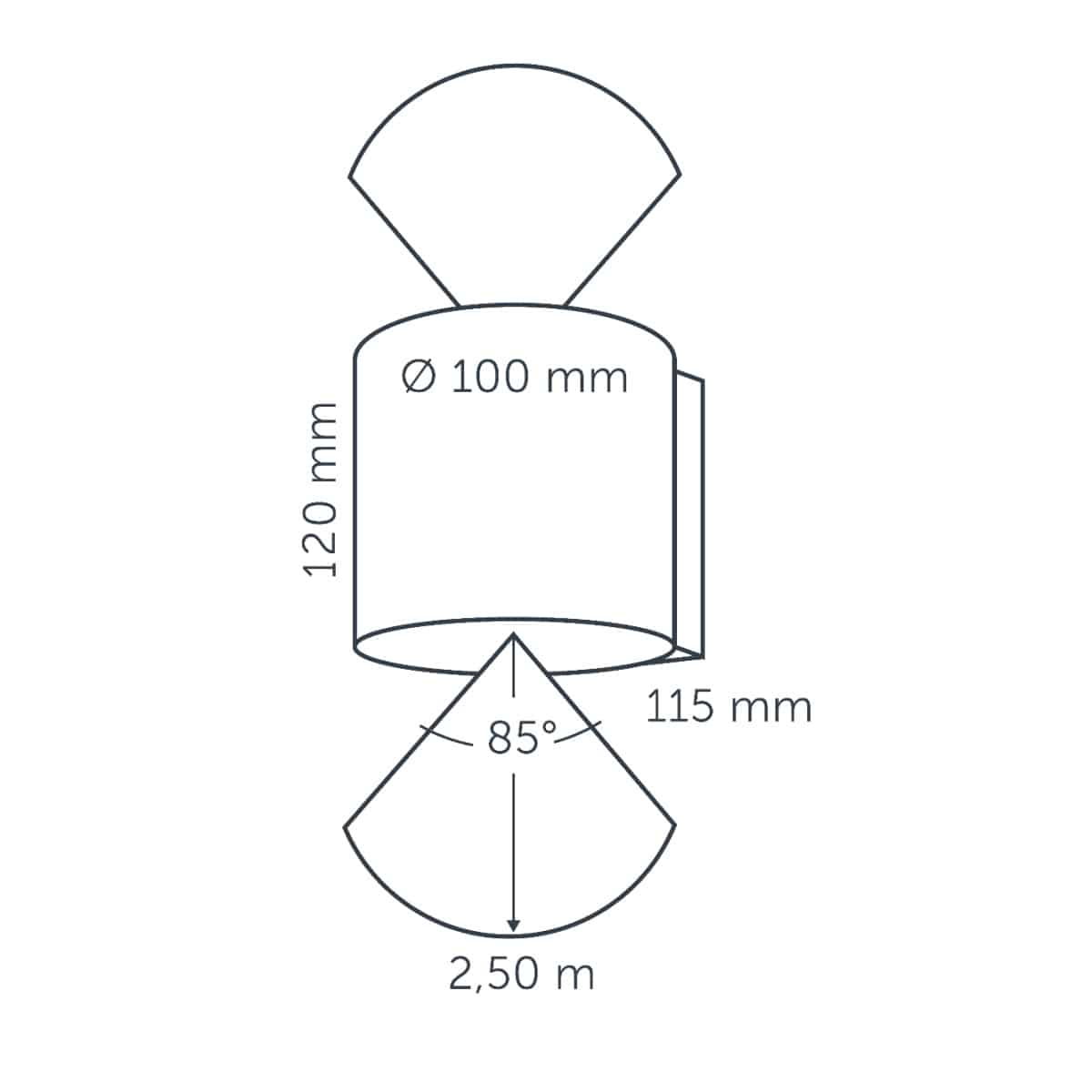

• Light direction / beam: 85° up and down
• Colour temperature: 3000K
• Load: 10 VA
• Protection: IP55
• Finish: Black or Dark Grey as shown
• Manufacturer part number: 10302605
• 5-year manufacturer guarantee when correctly installed

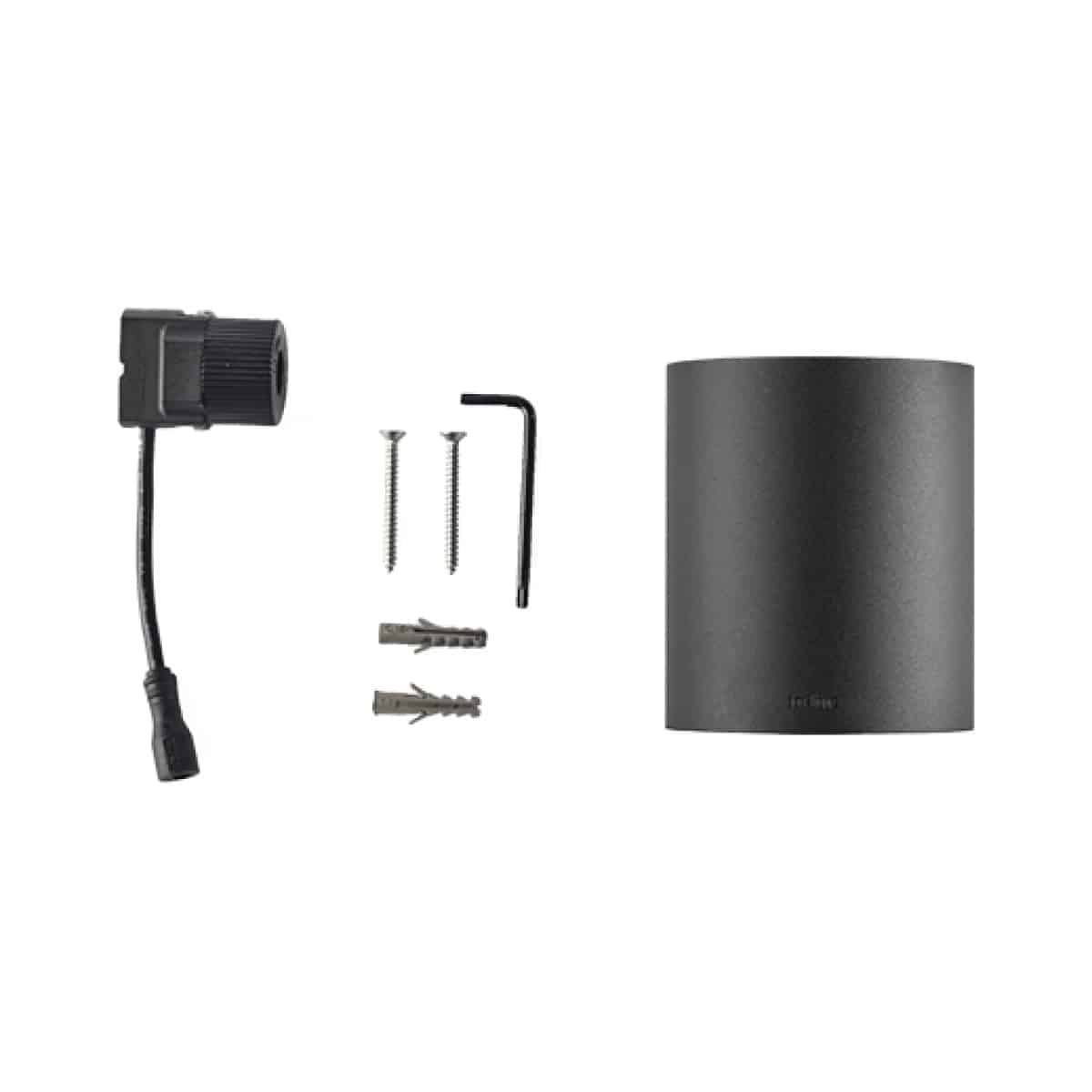

What is supplied

• One complete HALO UP-DOWN 12V Wall Light
• Manufacturer mounting hardware and installation guidance
• EASY-LOCK and fixture cable for the In-Lite 12V system

Choosing the right In-Lite wall or ceiling light

Compare the DOWN and UP-DOWN versions, body shape, mounting height and beam width before choosing a repeated facade pattern. Browse all In-Lite wall and ceiling lights, or contact us with a photograph and dimensions for practical help.

Plan the complete installation

Add 10 VA per fitting and compare the In-Lite transformers and smart controls before ordering. Do not mix 12V and mains connection methods.

Choose the mounting height from the finished light pattern

Before fixing In-Lite HALO UP-DOWN 12V Wall Light, test the proposed position against the final wall, doorway, path or seating layout. Mounting height changes both the spread on the surface and how visible the source feels to people nearby. Align repeated fittings carefully and plan the cable entry before drilling so the finished installation remains tidy.

For mains-powered versions, electrical work must follow the current installation instructions and UK requirements. For 12V versions, include the stated VA load in the transformer calculation and use the specified In-Lite connection system.

Compatible and related In-Lite products

For the same project, compare In-Lite CBL Two-Wire Garden Lighting System Cable, In-Lite CBL-EXT CORD Garden Light Extension Cable, In-Lite HUB-75 UK 12V Garden Lighting Transformer, and In-Lite HALO UP-DOWN 100–230V Mains Wall Light. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
