In-Lite AIM FLOOR Complete 12V Spotlight with GRIP 3 Base

In-Lite AIM FLOOR Complete 12V Spotlight with GRIP 3 Base

This complete In-Lite AIM FLOOR set combines the modular AIM FLOOR lighting assembly with its genuine GRIP 3 base. It is the straightforward option when you need a ready-to-assemble freestanding spotlight rather than separate component listings.

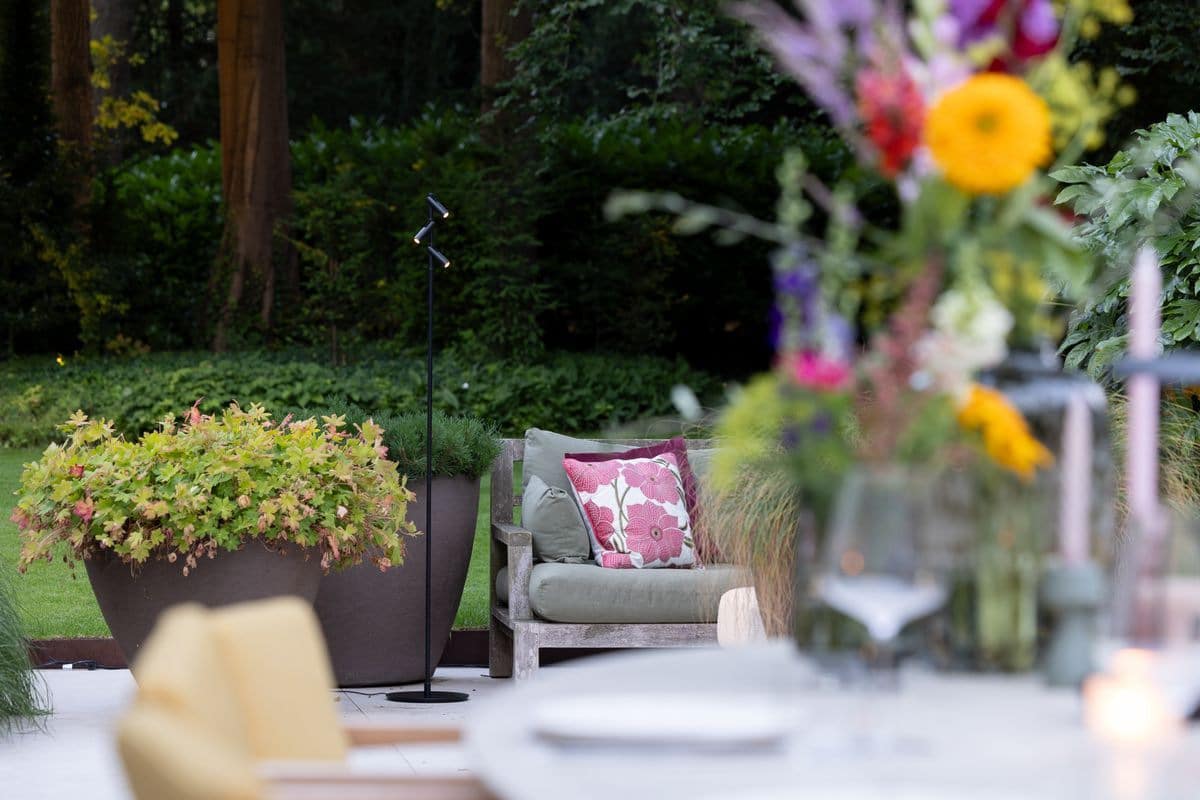

Use it on a patio, paved path, deck or outdoor living area to illuminate pots, shrubs, artwork, walls and architectural details. Because it is freestanding, the direction can be refined as furniture and seasonal planting change.

Part of the modular In-Lite AIM family

AIM is built around a compact warm-white light head, waterproof modular connections and precise mechanical adjustment. The 35° beam reaches up to approximately 3.5 metres and the integrated honeycomb glare control helps shield the LED from normal viewing positions. A 3000K colour temperature and CRI 90 preserve the appearance of foliage, flowers, timber and stone.

What is supplied

One AIM FLOOR 12V lighting assembly and one GRIP 3 base. A compatible In-Lite transformer and system cable are required separately.

Verified lighting specification

• 84 lumen light output
• 3000K warm-white LED
• CRI 90 colour rendering
• 35° beam with reach up to 3.5m
• 2.1VA transformer load and 1.2W consumption per light head
• IP55 outdoor enclosure
• Black aluminium finish
• Five-year In-Lite system guarantee

Plan compatibility before ordering components

This is a modular AIM item, so check whether your installation requires a complete fitting, an additional light head, a mounting base or a ceiling/floor configuration. Add the VA of every head to the transformer total. If you are unsure, send us a photograph or sketch of the mounting position and we will help identify the parts required.

For a complete installation, browse the In-Lite transformers and smart controls, system cables and connectors and the full In-Lite garden lighting range. If you are planning several fittings, send us a sketch with the cable route and the features you want to light; we can help check the transformer load, cable layout and compatible accessories before you order.

Position the beam for the feature, not the fitting

Use In-Lite AIM FLOOR Complete 12V Spotlight with GRIP 3 Base to light the face and structure of the subject rather than simply aiming at its base. Move the trial position around the tree, sculpture, wall or planting after dark; a small change in distance or angle can produce more depth and much less glare. Where the source can be seen from a path or seat, a compatible shield or honeycomb accessory is usually worth considering.

For larger trees, two restrained beams from different positions generally look more natural than one fitting driven at the limit of its reach. Keep the cable and EASY-LOCK accessible so the aiming position can still be adjusted as planting matures.

Compatible and related In-Lite products

For the same project, compare In-Lite GRIP 3 Base for AIM FLOOR, In-Lite AIM FLOOR 12V Spotlight Without Base, In-Lite AIM CEILING 12V Outdoor Ceiling Spotlight, and In-Lite AIM LIGHT HEAD Modular Spotlight Head. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
