Burtons Submersible Amalgam UV Clarifiers

Burtons Submersible Amalgam UV Clarifiers

High output amalgam ultraviolet clarifiers designed for Burtons drum filters and professional pond filtration systems.

Burtons Submersible Amalgam UV clarifiers provide a powerful and reliable solution for maintaining clear and healthy pond water. These high performance UV units are designed specifically for installation inside Burtons drum filters and filtration chambers, where they treat pond water directly within the filter system.

Because the UV sits inside the filtration chamber, water flows directly across the lamp as it moves through the filter. As a result, algae cells receive strong ultraviolet exposure at one of the most effective points in the filtration process. Consequently, green water algae becomes easier to control while overall pond clarity improves.

Burtons Submersible Amalgam UV units are available in sizes from 20 watt to 80 watt. Therefore they suit a wide range of pond systems, from medium sized garden ponds through to larger koi ponds and more demanding filtration installations.

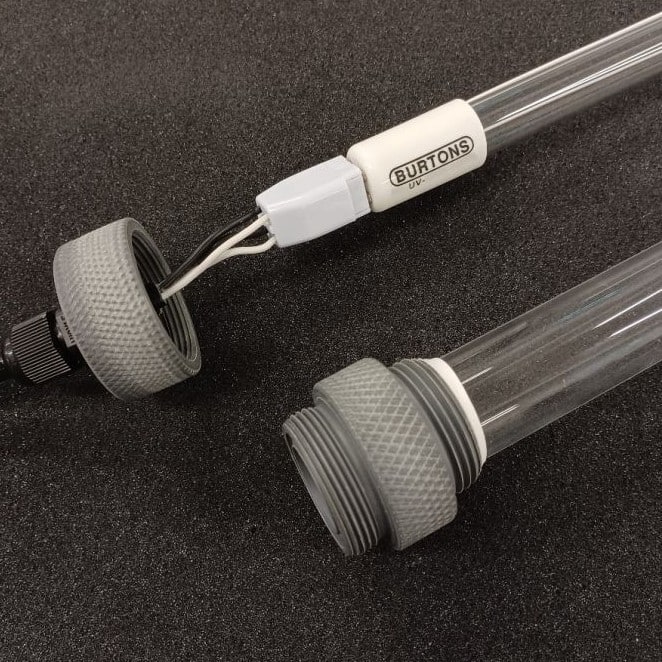

Each unit includes a UV lamp, a high purity quartz sleeve and an intelligent electronic ballast. Together these components deliver strong ultraviolet output, reliable operation and straightforward installation within the filtration system.

Why Choose Amalgam UV Technology

Amalgam UV lamps are designed to produce significantly higher ultraviolet output compared with Burtons Standard Submersible UV. Because of this increased efficiency, amalgam UV units are often preferred for larger ponds or filtration systems where stronger UV performance is required.

In addition to increased UV intensity, amalgam lamps also provide a longer service life. Burtons Amalgam Submersible UV units offer a bulb life of up to 13,000 hours, which helps reduce the frequency of lamp replacement and ongoing maintenance.

Furthermore, amalgam technology allows the lamp to operate efficiently across a wider temperature range while maintaining consistent UV output. This makes amalgam UV clarifiers particularly suitable for demanding koi pond filtration systems and larger ponds.

UV Installed Inside the Drum Filter

Installing a UV unit inside the drum filter provides several additional benefits beyond controlling green water algae.

Firstly, ultraviolet light helps reduce the build up of organic biofilm on the drum filter mesh. Over time this biofilm can restrict water flow through the screen and cause the drum to trigger cleaning cycles more frequently.

However, when the UV limits organic growth on the mesh, the drum screen remains cleaner for longer. As a result, water flows more freely through the drum filter.

In addition, the drum often performs fewer automatic cleaning cycles. Consequently, the filtration system operates more efficiently while still maintaining excellent water clarity.

Installation and Compatibility

Burtons Submersible Amalgam UV units are designed for installation inside filtration chambers. Most pond keepers install them inside Burtons drum filters and combi filters.

However, these UV units can also operate inside other filtration chambers where submersible installation is possible.

For installation inside certain Burtons drum filters including the BD300, BD300 Combi, BD500 and BD700, you will need a stainless steel UV mounting fitting. This fitting allows the UV unit to sit securely inside the filter housing.

In addition, the 80 watt model includes a Burtons UV weather box. This provides additional protection for the electrical components and improves long term reliability.

Choosing the Correct UV Size

Selecting the correct UV size depends on several factors including pond volume, stocking density and the filtration system installed.

For example, medium sized ponds may require a 20 watt or 30 watt UV unit. Larger ponds and koi ponds usually benefit from the higher output provided by the 40 watt or 80 watt models.

Therefore, choosing the correct UV size allows the filtration system to control algae more effectively. At the same time, maintaining stable and healthy pond water becomes much easier.

Overall, Burtons Submersible Amalgam UV clarifiers provide a powerful and efficient upgrade for drum filter systems. They help pond owners maintain clear water while supporting the performance of modern pond filtration systems.

---

Key Features

• High output amalgam ultraviolet clarifier designed for pond filtration systems
• Ideal for installation inside Burtons drum filters and combi filters
• Powerful UV output for effective green water algae control
• Amalgam UV technology for improved performance and efficiency
• Extended lamp life of up to 13,000 hours
• Helps prevent organic biofilm forming on drum filter mesh screens
• Can reduce the frequency of automatic drum cleaning cycles
• High purity quartz sleeve for maximum ultraviolet radiation transfer
• Intelligent electronic ballast for stable and efficient UV performance
• Available in sizes from 20 watt to 80 watt
• Supplied complete with UV lamp, quartz sleeve and power pack
• Suitable for installation in a wide range of filtration chambers
• 80 watt model supplied with Burtons UV weather box for additional protection
• Optional stainless steel UV fitting available for installation in certain drum filters

---

Technical Specifications

• Manufacturer Burtons Aquatics
• Product Name Burtons Submersible Amalgam UV Clarifier
• SKU BURTONS UVA UNIT
• Available Wattages 20 watt, 30 watt, 40 watt, 80 watt
• Lamp Type Amalgam UV
• Lamp Life up to 13,000 hours
• Quartz Sleeve High purity quartz for maximum UV transmission
• Ballast Intelligent electronic ballast
• Installation Type Submersible internal installation
• Compatible Filters Burtons drum filters and combi filters
• Additional Mounting Stainless steel fitting required for BD300, BD300 Combi, BD500 and BD700 drum filters
• Included Components UV lamp, quartz sleeve, electronic ballast and power pack
• Weather Protection 80 watt unit supplied with Burtons UV weather box

Recommended Pond Sizes

• 20 watt suitable for ponds up to 3,000 gallons
• 30 watt suitable for ponds up to 4,500 gallons
• 40 watt suitable for ponds up to 6,000 gallons
• 80 watt suitable for ponds up to 10,000 gallons

Compatible Burtons Drum Filters

Burtons Submersible UV clarifiers are designed to integrate directly with Burtons drum filters and combi filtration systems. Selecting the correct UV unit for your filter ensures the best algae control and filtration performance.

Typical recommendations include:

BD150 Combi
10 watt UV unit

BD300 Combi, BD300 and BD300 Cube
20 watt UV unit

BD500 and TF500
30 watt UV unit

BD700, TF700 and TF1000
40 watt or 80 watt UV unit depending on pond size and stocking levels

For installation in certain drum filters including the BD300, BD300 Combi, BD500 and BD700, a stainless steel UV mounting fitting is required in order to secure the UV inside the filter housing.

Installing a UV directly inside the drum filter ensures water receives ultraviolet treatment as it passes through the filtration system. This helps eliminate green water algae while also reducing organic growth on the drum mesh.
