Burtons BD 700 Pond Drum Filter

Burtons BD 700 Pond Drum Filter

High Capacity Self Cleaning Drum Filter for Large Koi Ponds

The Burtons BD 700 Pond Drum Filter is a powerful automatic mechanical filtration system designed for large koi ponds and heavily stocked ornamental ponds. These ponds require high water turnover and reliable debris removal. Burtons Aquatics manufactures the BD 700 in the UK using durable components and proven drum filtration technology. At the heart of the filter is a precision 60 micron stainless steel drum screen that removes fine waste before it can break down and affect water quality.

As the largest model in the Burtons BD drum filter range, the BD 700 offers exceptional flow capacity. At the same time, it maintains the same reliable self cleaning technology used throughout the range. As a result, it is an excellent choice for large koi ponds with high stocking levels and demanding filtration requirements.

Unlike traditional pond filters, the BD 700 does not require frequent manual cleaning. Instead, it uses a fully automated drum cleaning system. As debris builds up on the drum screen, the water level inside the drum chamber begins to rise. A float switch detects this change and automatically starts the cleaning cycle.

During the cleaning process, the drum rotates while a high pressure wash pump sprays the stainless steel screen clean. The system then flushes trapped debris into a waste tray and out to drain. Because this process happens automatically, the filter continues to operate without interruption. Consequently, water remains clear while maintenance requirements are greatly reduced.

How the Burtons BD700 Drum Filter Works

Pond water enters the drum filter through three large 110 mm inlets. It then flows through the rotating stainless steel drum screen. The 60 micron mesh captures fine debris including fish waste, uneaten food, blanketweed fragments and suspended solids.

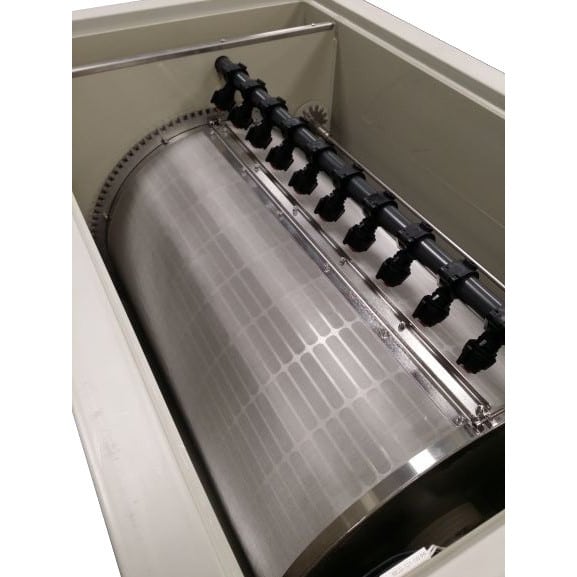

As debris collects on the screen, the water level inside the drum chamber gradually increases. The internal float switch monitors this level and activates the cleaning cycle when necessary. During the cycle, the drum rotates while ten spray jets wash the screen using pressurised water. The system then flushes the debris through the waste outlet and discharges it to drain.

Because the drum cleans itself automatically, mechanical filtration remains efficient at all times. In addition, this process protects downstream biological filters by preventing solid waste from reaching the biological media.

The BD 700 works in both gravity fed and pump fed pond filtration systems. Therefore, it is suitable for a wide range of large pond installations. The BD range also has internal UV clarifiers which keep the water clear and the screen clear of bio film.

Why Choose a Drum Filter for a Koi Pond

Drum filters provide one of the most effective forms of mechanical filtration for koi ponds. First, they remove solid waste before it has time to break down in the water. As a result, water clarity improves and biological filters experience less strain.

Traditional sponge filters, pressure filters and bead filters often allow fine particles to pass through the system. In addition, they require frequent manual cleaning to maintain performance. By comparison, a drum filter removes debris automatically as it accumulates on the screen.

For large koi ponds with heavy feeding regimes and high fish stocking levels, drum filters provide a reliable and low maintenance filtration solution. Consequently, they help maintain stable water quality and healthier pond conditions.

Gravity Fed vs Pump Fed Installation

The Burtons BD700 can operate in both gravity fed and pump fed pond filtration systems.

In a gravity fed setup, water flows directly from the pond into the drum filter through bottom drains and skimmers. This allows the drum filter to remove debris before the water reaches the pump. Consequently, pumps and biological filters remain protected. In gravity fed installations the BD 700 can handle flow rates up to 75,000 litres per hour.

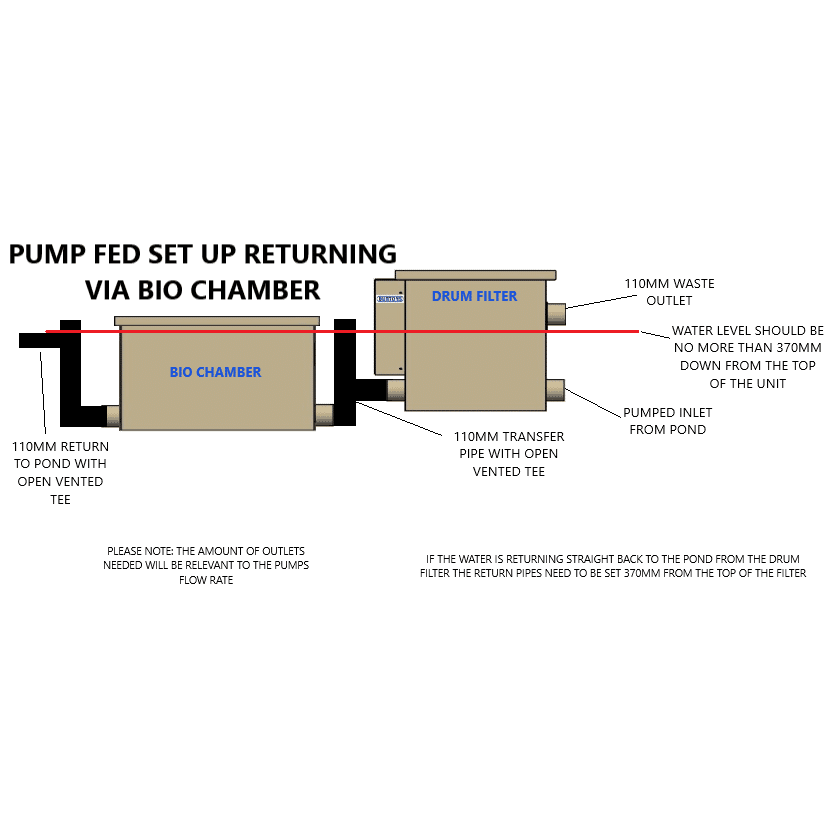

Alternatively, the BD-700 can operate in pump fed systems. In this configuration, a pump sends water from the pond directly into the drum filter. This approach is common on ponds that were not originally built with bottom drains. In pump fed installations the BD 700 can handle flow rates up to 55,000 litres per hour.

Please note that stock levels can change quickly on Burtons drum filters, particularly during busy periods. If your chosen model is not immediately available from stock, a member of our team will contact you as soon as possible with an estimated delivery timeframe.

---

Key Features

• High capacity self cleaning drum filter for large koi ponds
• 60 micron stainless steel drum screen for fine mechanical filtration
• Suitable for gravity fed and pump fed pond filtration systems
• Handles flow rates up to 75,000 litres per hour in gravity fed installations
• Handles flow rates up to 55,000 litres per hour in pump fed systems
• Three 110 mm inlets and three 110 mm outlets for high flow circulation
• Low energy wash pump included and pre fitted

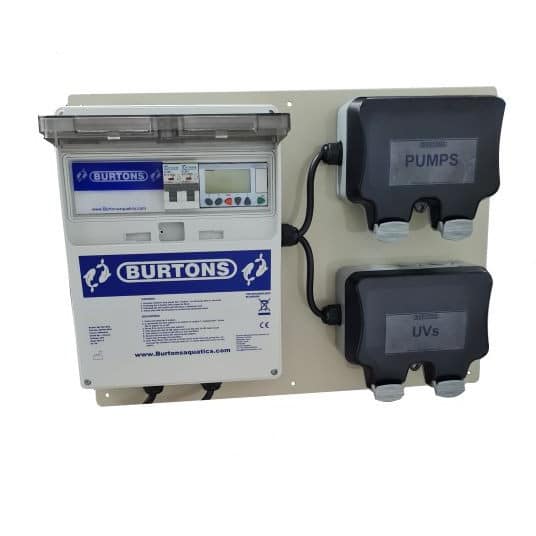

• Weatherproof digital control box with integrated socket panel

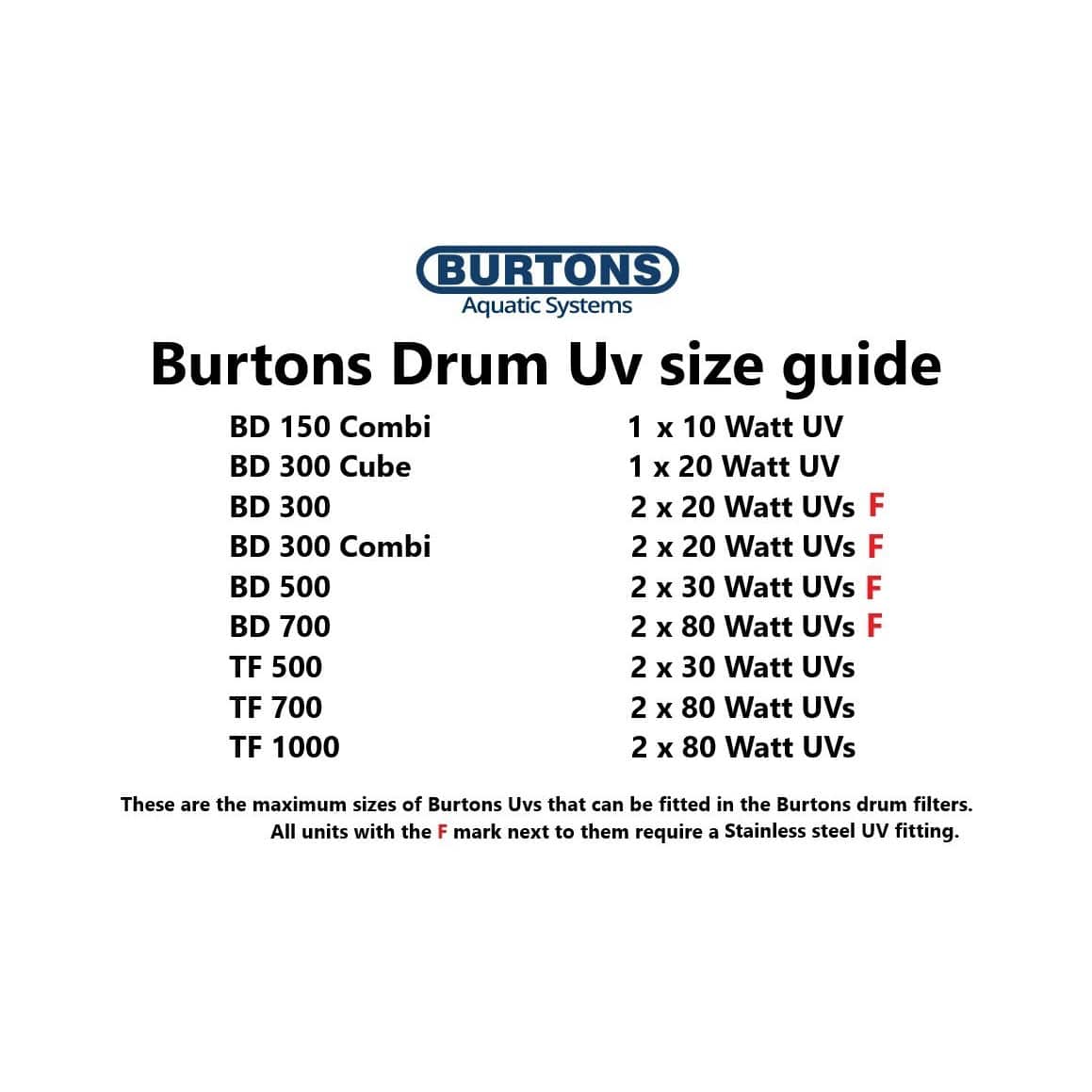

• Compatible with up to two 80 watt Burtons Standard Submersible UV or Burtons Amalgam Submersible UV
• Safety cover switch cuts power when the lid is lifted
• Designed and manufactured in the UK by Burtons Aquatics

---

Technical Specifications

• Manufacturer Burtons Aquatics
• Screen size 60 micron stainless steel mesh
• Maximum flow rate gravity fed 75,000 litres per hour
• Maximum flow rate pump fed 55,000 litres per hour
• Standby power consumption 1.3 watts
• Cleaning cycle power consumption 200 watts
• Number of spray tips 10
• Inlets 3 x 110 mm
• Outlets 3 x 110 mm
• Dimensions 658 x 740 x 1180 mm
• Installation height above water level 25 cm

---

Other Burtons Drum Filters in the Range

Burtons Aquatics manufacture a wide range of professional drum filters designed for koi ponds and large ornamental ponds. Each model offers the same reliable self cleaning mechanical filtration while supporting different pond sizes, flow rates and installation types.

If you are comparing drum filters for your pond, the following models are also available within the Burtons range:

Combi Drum Filters

Burtons BD 150 Combi Drum Filter
A compact drum filter with integrated biological filtration, designed for smaller koi ponds and installations where space is limited.

Burtons BD 300 Combi Drum Filter
A drum filter with integrated moving bed biological filtration, providing a compact all in one filtration solution for koi ponds.

Drum Filters

Burtons BD 300 Pond Drum Filter
A high performance self cleaning drum filter designed for medium sized koi ponds with flow rates up to 35,000 litres per hour.

Burtons BD 500 Pond Drum Filter
A larger capacity drum filter suitable for heavily stocked koi ponds requiring flow rates up to 55,000 litres per hour.

Burtons BD 700 Pond Drum Filter
A high capacity drum filter designed for large koi ponds and demanding filtration systems requiring high water turnover.

High Through Flow Drum Filters

Burtons TF 500 Drum Filter
A through flow drum filter designed for high flow koi pond systems with multiple inlet connections and efficient mechanical filtration.

Burtons TF 700 Drum Filter
A large capacity through flow drum filter suitable for larger koi ponds and professional pond filtration installations.

Burtons TF 1000 Drum Filter
The largest drum filter in the Burtons range, designed for very large koi ponds, lakes and commercial aquatic filtration systems.
