Oase BioTec ScreenMatic2 90000

Oase BioTec ScreenMatic 90000

Advanced Flow Through Mechanical and Biological Pond Filtration

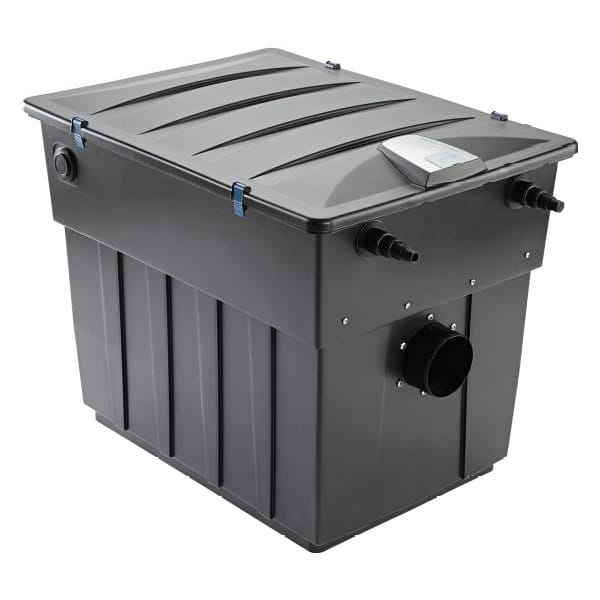

The Oase BioTec ScreenMatic2 90000 is a high capacity, low maintenance flow through pond filter designed for large garden ponds that demand reliable mechanical and biological filtration. It is suitable for ponds up to 90,000 litres in ornamental setups, up to 45,000 litres with fish, or up to 22,500 litres with koi, making it ideal for ponds with higher biological loads.

At the heart of the system is Oase’s automatic 300 micron pre filter screen. This continuously removes leaves, algae and coarse debris before it reaches the biological filtration stages. As a result, finer filtration media stays cleaner for longer and overall system efficiency is improved.

In addition, an intelligent ScreenMatic sensor monitors debris build up on the screen. It activates the cleaning cycle only when required, which helps reduce unnecessary wear and energy use. Collected waste is then transported into an external debris tray, allowing for clean and hygienic disposal.

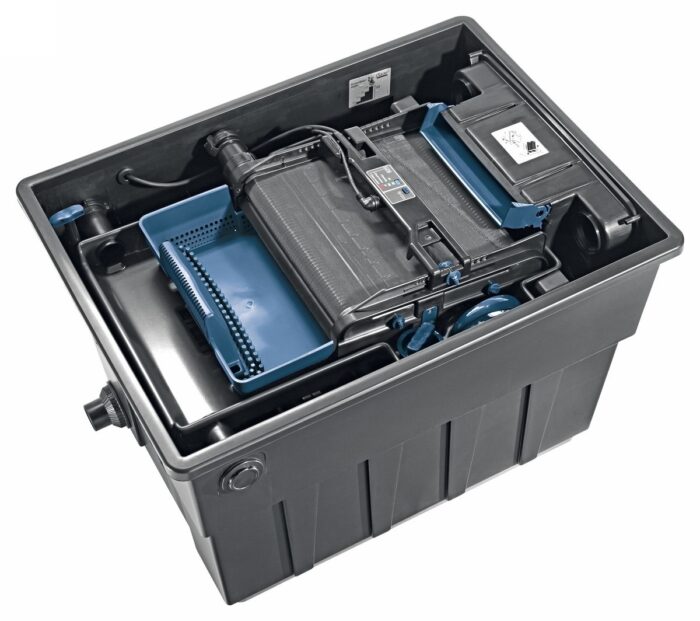

After mechanical pre filtration, water flows through a multi stage biological filtration system using 16 high capacity filter foams. These foams provide a large surface area for beneficial bacteria to colonise. Consequently, ammonia and nitrite are broken down naturally, supporting stable water quality and long term pond health.

Furthermore, the inclusion of special filter granulate improves nutrient control and helps maintain balanced water conditions. This makes the BioTec ScreenMatic2 90000 particularly well suited to larger ponds and more demanding environments.

Maintenance is simple and user friendly. For example, a compression cleaning handle allows the filter foams to be cleaned in place, while an instant cleaning button enables manual activation when needed. Finally, for enhanced algae control, the system can be paired with compatible Oase Bitron UV clarifiers.

Key features

• High capacity flow through pond filter for larger ornamental and koi ponds
• Automatic 300 micron pre filter screen for early debris removal
• Intelligent ScreenMatic sensor activates self cleaning only when required
• 16 high capacity filter foams for extensive biological filtration
• Integrated special filter granulate for improved nutrient control
• External debris collection tray for clean waste disposal
• Compression cleaning handle for easy foam maintenance
• Manual instant clean function for full user control
• Compatible with Oase Bitron UV clarifiers for enhanced algae control

Technical specifications

• Maximum pond size ornamental: up to 90,000 litres
• Maximum pond size with fish: up to 45,000 litres
• Maximum pond size with koi: up to 22,500 litres
• Maximum flow rate: 12,500 litres per hour
• Coarse debris extraction: 300 micron
• Dimensions filter (L x W x H): 788 x 590 x 645 mm
• Inlet conConnections: 25 / 32 / 38 / 50 mm (1″, 1¼”, 1½”, 2″)
• Outlet connection: DN 110
• Sludge discharge connection: DN 50
• Number of filter foams: 16 (4 blue, 6 red, 6 purple)
• Special filter granulate: 5 kg
• Net weight: 43.5 kg
• Guarantee: 2 years plus 1 year upon registration

Explore Other Oase BioTec ScreenMatic² Models

The BioTec ScreenMatic² range offers tailored filtration solutions for ponds of varying sizes:

• Oase BioTec ScreenMatic² 40000 – Ideal for smaller ponds with moderate filtration needs.
• Oase BioTec ScreenMatic² 60000 – Ideal for larger ponds needing enhanced capacity.
• Oase BioTec ScreenMatic² 90000 – Advanced filtration for high-stock Koi ponds.
• Oase BioTec ScreenMatic² 145000 – Maximum performance for large-scale ponds and lakes.

For a complete breakdown of how the ScreenMatic² series works and which model best suits your pond, check out our comprehensive Oase ScreenMatic Pond Filter Guide.

Technical information

UV sizing and maintenance notes

Oase BioTec ScreenMatic2 90000 should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.

• Replace UV lamps as part of routine seasonal maintenance.
• Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
• Match the UV to the pump and filter rather than installing it in isolation.
• Allow safe access for lamp changes and winter maintenance.

Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
