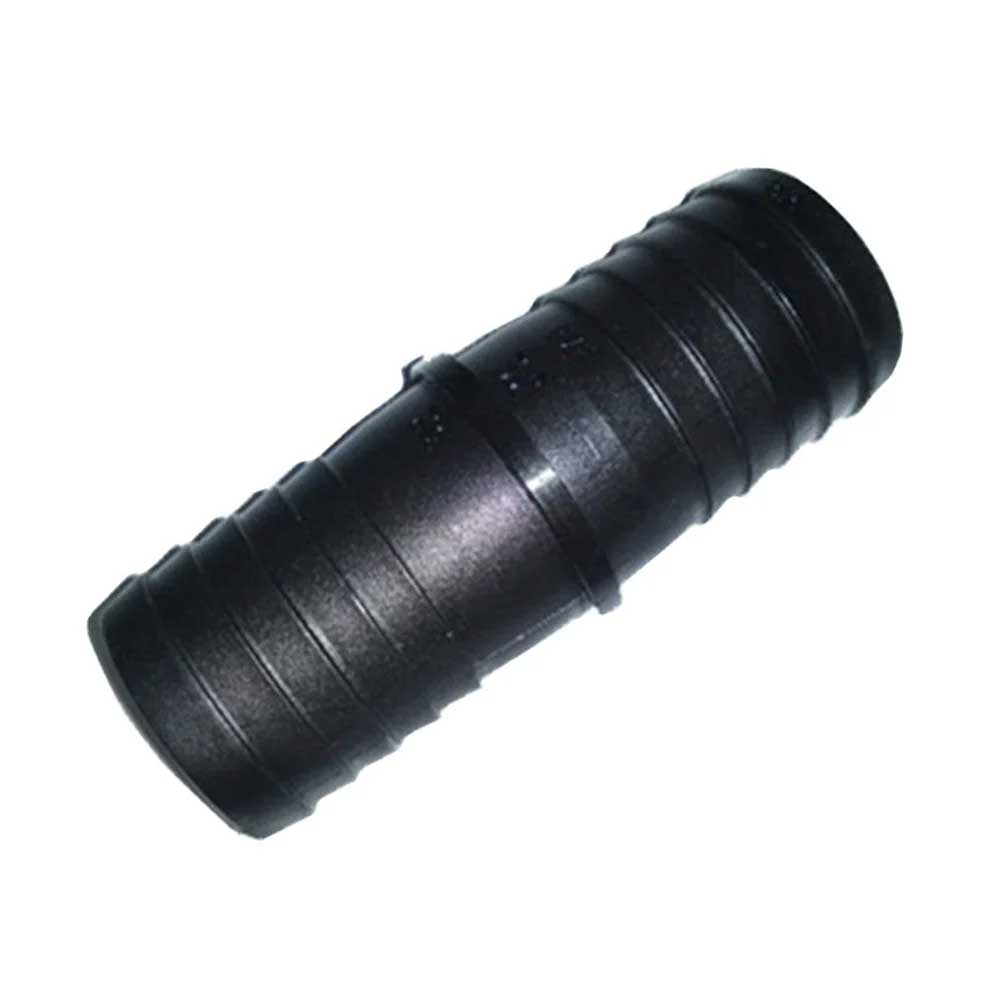

Kockney Koi Straight Barbed Hose Joiners

Kockney Koi Straight Barbed Hose Joiners

Straight Flexible-Hose Connectors for Pond Pipe Extensions and Repairs

The Kockney Koi Straight Barbed Hose Joiners are practical inline connectors designed to join two compatible sections of flexible pond hose together in a straight and continuous pipe run. They provide a simple solution for extending an existing hose, connecting two shorter hose lengths, replacing a damaged section of pipe, or modifying the position of pond pumps, filters, UVC units, waterfalls, fountains, and other water-circulation equipment.

Flexible hose is widely used in pond installations because it can be routed around landscaping, filter housings, pond edges, walls, equipment cabinets, and other obstacles more easily than rigid pipework. However, a single hose length may not always be long enough to reach between the pump and the connected equipment. A straight barbed joiner allows two correctly sized hose sections to be connected without changing the direction of the pipe run.

The fitting has a straight inline configuration, with a barbed hose connection at each end. Each hose section is pushed firmly over one side of the joiner until it is properly seated. Suitable hose clips should then be positioned over both connections and tightened evenly to hold the hose securely in place. Pond Planet specifically recommends securing the flexible hose with hose clips for the best results.

The raised barbed profile helps create a defined gripping surface inside the flexible hose. When the hose and fitting are correctly matched and secured with appropriately sized clips, the connection provides a practical route for water to continue between the two hose sections.

These connectors are especially useful for long pond-pipe runs. Instead of needing one continuous length of flexible hose, installers can join two separate lengths together at a suitable and accessible location. This may be helpful when extending pipework from a submersible pump to a filter house, connecting a filtration system to a distant return point, or routing water towards a waterfall or stream.

They can also provide a convenient repair option when only one part of a hose has been damaged. If a flexible pipe becomes split, punctured, crushed, or worn in a localised area, the damaged section may be cut out and the remaining serviceable hose reconnected using one or more correctly sized straight joiners. Pond Planet specifically describes the fitting as suitable for repairing split pipes.

Using a joiner for a local repair can avoid replacing an otherwise usable full hose run. This can be particularly valuable where the pipe has already been routed beneath decking, through landscaping, behind filtration equipment, or across a long distance.

The joiners are also helpful when pond equipment is moved. Relocating a pump, filter, UVC clarifier, fountain, or water return can leave an existing hose slightly too short. Adding another compatible hose section with a straight joiner may allow the pipework to reach the new position without rebuilding the entire installation.

A straight connector keeps the hose route travelling in the same general direction. It does not divide the water supply like a tee fitting or turn the hose like an elbow. This makes it most suitable for simple extensions and repairs where an uninterrupted inline connection is required.

The Kockney Koi Straight Barbed Hose Joiners are available in a range of common pond-hose sizes. The retailer lists ½″/12mm, ¾″/19mm, 1″/25mm, 1¼″/32mm, 1½″/38mm, and 2″/50mm options. This allows the fitting to be matched to many commonly used flexible pond pipes.

Selecting the correct size is essential. The joiner should match the hose’s stated internal diameter, and both hose sections should normally be the same size. A connector that is too large may be difficult to insert and could damage or overstretch the pipe. A connector that is too small may create a loose connection that cannot be secured reliably with a hose clip.

The hose ends should be cut cleanly and squarely before fitting. Uneven, split, or heavily damaged ends may not sit properly over the connector. Cutting back to sound hose helps provide a cleaner and more secure installation.

If the hose is stiff, carefully warming the end in warm water may make it easier to push onto the barbed fitting. Excessive heat should not be used, as this may weaken or deform the hose. After fitting, the hose should be allowed to return to its normal condition before the system is operated.

Two correctly sized hose clips are required—one for each hose connection. The clips should be placed over the hose where it covers the barbed ends and tightened gradually. Overtightening should be avoided because it may crush the hose, distort the fitting, or damage the pipe wall.

The completed joint should be positioned where it is reasonably accessible for inspection. Connections hidden permanently beneath soil, concrete, or inaccessible structures may be difficult to check or repair later. Where concealment is necessary, the joint should be fully tested before it is covered.

Long or water-filled hose runs should also be supported so that their full weight does not pull against the joiner. Supporting the pipe helps reduce stress on the connection and nearby equipment outlets.

Whether used for a new pond installation, a pipework extension, a filter relocation, or an emergency repair, Kockney Koi Straight Barbed Hose Joiners provide a straightforward method of connecting compatible flexible pond hose.

Features

• Connects two compatible sections of flexible pond hose
• Straight inline configuration
• Barbed connection at both ends
• Suitable for extending long flexible-pipe runs
• Useful for repairing split or damaged hoses
• Simple push-on installation
• Designed to be secured with two suitable hose clips
• Available in several common pond-hose diameters
• Suitable for new installations, repairs, and modifications
• Useful for pumps, filters, UVC units, waterfalls, and water returns
• Kockney Koi pond-pipe fitting

Available Sizes

Pond Planet lists the following variants:

• ½″ / 12mm
• ¾″ / 19mm
• 1″ / 25mm
• 1¼″ / 32mm
• 1½″ / 38mm
• 2″ / 50mm

The connector size should match the internal diameter of the flexible hose.

When to Use

Use a Kockney Koi Straight Barbed Hose Joiner when:

• Two flexible hose sections need to be joined
• An existing pond-hose run needs to be extended
• A pump or filter has been moved farther away
• A localised split needs to be removed and repaired
• A damaged section of flexible pipe needs replacing
• Two shorter hose lengths need to form one longer run
• A filtration system needs to reach a new return point
• Hose is being routed towards a waterfall or stream
• An existing connection needs to be rebuilt
• A simple straight connection is required
• An emergency pond-hose repair is needed
• Flexible pipework is being modified during an upgrade

Suitable Applications

These joiners may be used in compatible flexible-hose arrangements involving:

• Pond pumps
• Pond filters
• UVC clarifiers
• Waterfalls
• Fountains
• Streams and cascades
• Pond return lines
• Filter-house pipework
• Water-feature circulation
• Garden pond plumbing
• Koi pond filtration systems
• General aquatic water-transfer systems

Compatibility depends on selecting the correct hose and fitting diameter.

How It Works

The joiner creates an internal connection between two flexible hose sections.

One hose is pushed over the barbed connection on the first end. The second hose is pushed over the opposite end.

A suitable hose clip is then fitted around each hose connection. Once both clips are tightened correctly, the joiner holds the hose sections together and creates a continuous water route.

The fitting does not change the hose direction or divide the flow. Water enters from one pipe section, passes through the straight joiner, and continues into the second section.

Installation Instructions

1. Switch off and electrically isolate the pond pump.
2. Stop water flow through the hose.
3. Confirm the internal diameter of the flexible pipe.
4. Select the matching joiner size.
5. Cut both hose ends cleanly and squarely.
6. Remove split, crushed, or weakened sections.
7. Check that the hose interiors are clear.
8. Slide one hose clip onto each hose section.
9. Push the first hose fully over one end of the joiner.
10. Push the second hose fully over the opposite end.
11. Position each clip over the barbed connection area.
12. Tighten the clips gradually and evenly.
13. Avoid overtightening or deforming the hose.
14. Support the connected pipework where necessary.
15. Restore water flow.
16. Inspect both sides of the joint for leakage.
17. Recheck the clips after the system has operated.

Repairing a Split Hose

For a localised repair:

1. Identify the complete damaged area.
2. Switch off the pump and drain the pipe where required.
3. Cut out the split or weakened section.
4. Make sure the remaining hose ends are in good condition.
5. Measure the gap between the two remaining sections.
6. Add replacement hose if the removed section creates too much distance.
7. Use one or two correctly sized straight joiners as required.
8. Secure every connection with a suitable hose clip.
9. Test the repaired pipe before concealing or returning it to service.

A joiner should not be attached to hose that remains cracked, brittle, severely distorted, or weakened around the connection area.

Installation Tips

Match the Internal Diameter

Flexible pond hose is usually identified by its internal diameter. Check the hose markings or measure it before choosing the connector.

Use Matching Hose Sections

For a straight joiner, both pipes should normally have the same internal diameter. A reducer fitting is required when joining different hose sizes.

Use Two Hose Clips

Each side of the joiner requires its own secure connection. Pond Planet recommends adding two hose clips—one at each end.

Cut the Hose Squarely

A straight, clean cut allows more of the hose to sit evenly over the barbed fitting.

Avoid Excessive Heat

Warm water may help soften stiff hose, but boiling water, flames, and high-temperature tools should not be used.

Keep the Joint Accessible

Place the connection where it can be inspected and tightened later where practical.

Support Long Pipe Runs

Do not allow heavy, water-filled hose to pull continuously against the joiner.

Avoid Immediate Sharp Bends

Allow the hose to leave each end of the connector without being forced into a tight curve.

Choosing the Correct Size

The best fitting is the one that matches the hose’s internal measurement.

For example:

• Use a 12mm joiner with compatible 12mm hose.
• Use a 19mm joiner with compatible 19mm hose.
• Use a 25mm joiner with compatible 25mm hose.
• Use a 32mm joiner with compatible 32mm hose.
• Use a 38mm joiner with compatible 38mm hose.
• Use a 50mm joiner with compatible 50mm hose.

Hose dimensions and flexibility can vary between manufacturers. Confirm the actual fit before completing the installation.

Product Specifications

Brand: Kockney Koi
Product Name: Straight Barbed Hose Joiners
Product Type: Straight flexible-hose connector
Connection Style: Barbed connection at both ends
Configuration: Straight inline joiner
Available Sizes: 12mm, 19mm, 25mm, 32mm, 38mm, and 50mm
Equivalent Sizes: ½″, ¾″, 1″, 1¼″, 1½″, and 2″
Primary Function: Connecting two flexible hose sections
Installation Method: Push hose onto each end and secure with two hose clips
Suitable Uses: Pipe extensions, repairs, equipment relocation, and pond-system modifications
Retailer’s Displayed Product Code: KKBARBSTR12

Ideal For

• Garden pond owners
• Koi pond installations
• Flexible pond-hose systems
• Pond pump connections
• Filter-house pipework
• Filtration-system extensions
• Split-pipe repairs
• Waterfall installations
• Water-feature plumbing
• Pond maintenance professionals
• Emergency hose repairs
• New and existing pond systems

Related Hose Joiner Options

Barbed hose joiners are useful for extending flexible hose runs or repairing a damaged hose section. Match the fitting size to the internal diameter of the hose and secure with suitable clips.

• For angled joins, see Kockney Koi Elbow Barbed Hose Joiners.
• For branch connections, see Kockney Koi T-Piece Barbed Hose Joiners.
• For reducing between hose sizes, see Kockney Koi Barbed Hose Reducers.
• Secure joins with stainless steel hose clips.
