Kockney Koi T-Piece Barbed Hose Joiners

Kockney Koi T-Piece Barbed Hose Joiners

Three-Way Flexible-Hose Connectors for Splitting Pond Water Flow

The Kockney Koi T-Piece Barbed Hose Joiners are practical three-way connectors designed to join three compatible sections of flexible pond hose within one water-circulation system. Their T-shaped configuration allows water travelling through one hose to be divided between two separate branches, making them ideal for pond filtration systems, waterfalls, fountains, streams, water features, return lines, and other installations where a single water supply needs to serve two destinations.

Flexible pond hose is commonly used to connect pumps, filters, ultraviolet clarifiers, waterfalls, fountains, and pond-return outlets. In some installations, however, one continuous hose route is not enough. Water from a single pump may need to be directed towards two different pieces of equipment or divided between two separate return points. A T-piece provides a simple branching point without requiring a complicated arrangement of separate connectors.

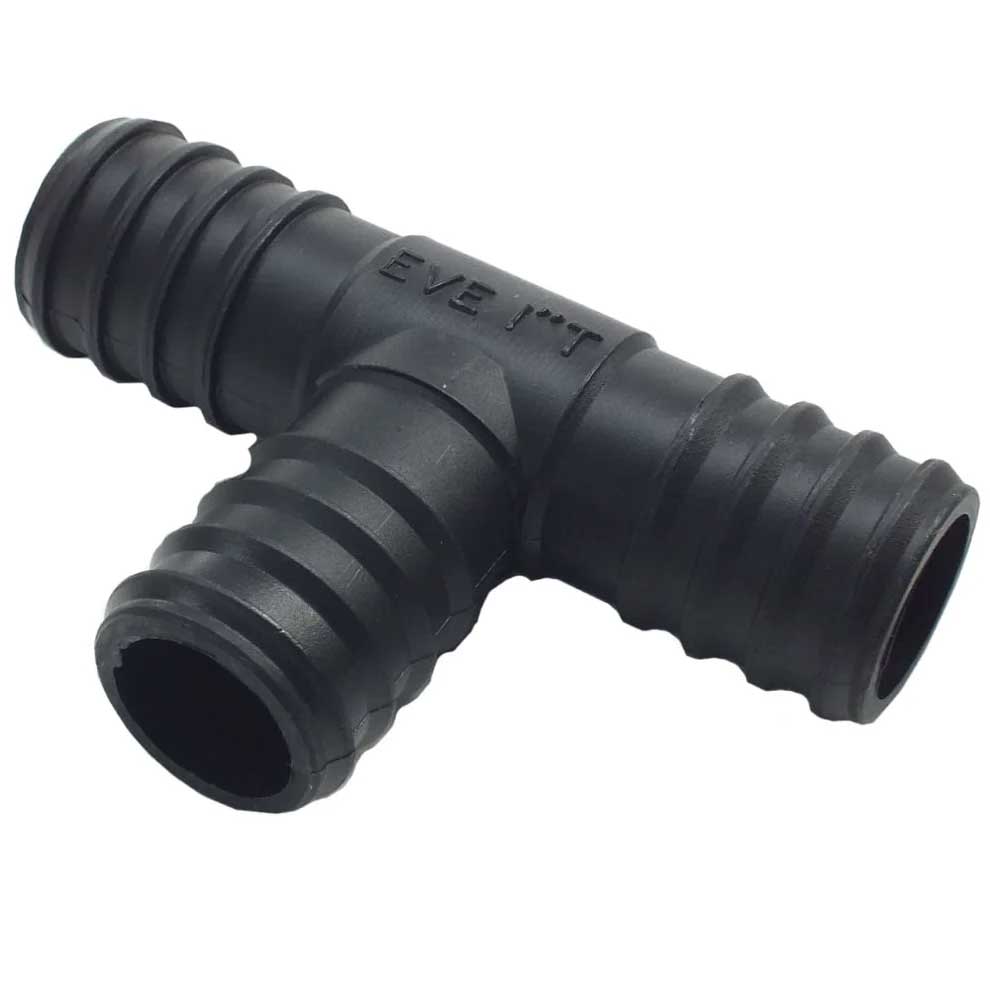

The fitting consists of three barbed hose connections arranged in a T-shaped layout. One connection can be used as the inlet receiving water from the pond pump, while the two remaining connections form separate outlets. The fitting may also be used in another suitable direction where the complete system has been correctly planned.

Each end features a raised barbed profile designed to fit inside compatible flexible hose. The hose is pushed firmly over each connection until it is fully seated. Three correctly sized hose clips should then be positioned over the connection points and tightened evenly to help keep all three hose sections securely attached.

The barbed design provides a defined gripping surface inside the hose and helps reduce the likelihood of the pipe pulling away during operation when correctly installed. For the best results, every connected hose should be secured individually rather than relying only on the friction between the pipe and fitting.

The T-piece is particularly useful when one pond pump is intended to supply two water routes. For example, one branch may carry water towards a filter while the other supplies a waterfall. It can also divide water between two pond returns, two water features, or two areas of a larger filtration arrangement.

Using one pump to supply two branches may help simplify suitable pond systems, but the fitting does not increase the pump’s total output. The available water is divided between the connected outlets. The amount travelling through each branch will depend on factors such as hose length, hose diameter, vertical lift, bends, connected equipment, and other restrictions within the system.

A T-piece alone does not provide individual flow control. Where the amount of water passing through each outlet needs to be adjusted, compatible valves or flow-control fittings may be required on the separate branches. This can be useful when one outlet requires more flow than the other.

These connectors are also suitable when modifying an established pond installation. If a second waterfall, return point, fountain, or filter component is added, the existing hose can be cut at a suitable location and connected to a T-piece. Two new hose branches can then be routed towards the required equipment.

The fitting can also help create a more organised filter-house arrangement. Instead of using several loosely connected adaptors, the T-shaped connector provides one compact point where the water route divides. Positioning it in an accessible area makes the three hose connections easier to inspect and maintain.

Kockney Koi T-Piece Barbed Hose Joiners are available in several commonly used pond-hose sizes, including 12mm, 19mm, 25mm, 32mm, and 38mm. This range allows the fitting to be used in small water-feature installations as well as larger pond-filtration and return systems.

The selected fitting should match the internal diameter of all three connected hose sections. These T-pieces are designed to join hoses of the same stated size. A reducing tee or additional reducer fittings would be needed when connecting hoses with different diameters.

Correct size selection is essential. A fitting that is too small may create a loose connection that cannot be secured properly. A fitting that is too large may overstretch, split, or damage the flexible hose during installation.

Before fitting the T-piece, each hose should be measured and cut cleanly. The ends should be square and free from cracks, splits, crushing, or serious distortion. Damaged sections should be removed so that only sound hose is installed over the barbed connections.

Flexible hose can sometimes be difficult to push fully onto a barbed connector, particularly in larger sizes or colder conditions. Carefully softening the hose end in warm water may make installation easier. Excessive heat, open flames, boiling water, and high-temperature tools should not be used because they may damage the hose.

Once the hoses are connected, three suitable hose clips should be fitted—one around each branch. The clips should be positioned over the barbed connection areas and tightened gradually. They should hold the hose firmly without cutting into the pipe, crushing the fitting, or causing visible deformation.

The complete assembly should be supported so that the weight of long, water-filled hose runs does not pull against the T-piece. Supporting each branch helps reduce stress on the connector and nearby pumps, filters, or other equipment.

The T-piece should ideally remain accessible after installation. An accessible fitting is easier to inspect for movement or leakage and can be adjusted or replaced without dismantling large sections of the pond system.

Whether used to divide flow between a filter and waterfall, supply two pond-return lines, add a second water feature, or reorganise filter-house plumbing, the Kockney Koi T-Piece Barbed Hose Joiner provides a straightforward way to create three-way flexible-hose connections.

Features

• Connects three compatible sections of flexible pond hose
• T-shaped three-way connection
• Ideal for splitting one water route into two branches
• Barbed hose connection on all three ends
• Suitable for pond pumps, filters, waterfalls, and water features
• Simple push-on installation
• Designed to be secured using three hose clips
• Useful for new installations, extensions, and system modifications
• Helps create a compact and organised branching point
• Available in several common flexible-hose sizes
• Suitable for garden ponds and koi pond systems
• Kockney Koi pond-pipe fitting

Available Sizes

The T-piece joiners are available in:

• ½″ / 12mm
• ¾″ / 19mm
• 1″ / 25mm
• 1¼″ / 32mm
• 1½″ / 38mm

Select the fitting that matches the internal diameter of all three flexible hose sections.

When to Use

Use a Kockney Koi T-Piece Barbed Hose Joiner when:

• One pump supply needs to be divided into two routes
• Water needs to be directed towards a filter and waterfall
• Two pond-return points are required
• A second fountain or water feature is being added
• An existing flexible-hose system needs another branch
• Water needs to be distributed to two compatible components
• Filter-house pipework needs a compact branching point
• An established pond circulation system is being modified
• Two areas of a pond need separate water returns
• Flexible hose is preferred instead of rigid pipework
• A simple three-way hose connection is required
• An existing T-piece needs replacing

Example Applications

Filter and Waterfall

Water from a suitable pond pump can enter the T-piece and be divided between a compatible filter and waterfall.

Two Pond Returns

The two outlet branches can carry water to separate return points, helping distribute circulation around different areas of a pond.

Filter and Water Feature

One branch can supply compatible filtration equipment while the other carries water towards a fountain, stream, or decorative feature.

Two Water Features

The incoming water route may be divided between two compatible waterfalls, fountains, or cascades.

Filtration-System Extension

A new branch can be added when compatible equipment is incorporated into an existing flexible-hose installation.

How It Works

Water enters the fitting through one connected hose.

Inside the T-piece, the water route divides and continues into the two remaining flexible hose branches.

The actual distribution between the two outlets will depend on the resistance within each route. A shorter or less restricted branch may receive more water than a longer branch or one connected to restrictive equipment.

Where controlled or balanced flow is required, compatible valves may be installed on one or both outlet branches.

The fitting itself provides the connection and division point but does not actively regulate the flow.

Installation Instructions

1. Switch off and electrically isolate the pond pump.
2. Stop water movement through the pipework.
3. Decide where the water route should divide.
4. Confirm the internal diameter of all three hoses.
5. Select the matching T-piece size.
6. Plan the direction of the two outlet branches.
7. Cut the hose ends cleanly and squarely.
8. Remove any split, crushed, or weakened pipe sections.
9. Check that the hoses and fitting are clean.
10. Slide one hose clip onto each of the three hose sections.
11. Push the inlet hose fully onto the first barbed connection.
12. Push the two outlet hoses onto the remaining connections.
13. Position the T-piece in the required direction.
14. Move each hose clip over its barbed connection area.
15. Tighten all three clips gradually and evenly.
16. Avoid overtightening or damaging the hose.
17. Support all long or heavy hose runs.
18. Restore water flow through the system.
19. Inspect all three connections for leakage.
20. Check the branch flow and adjust compatible valves if installed.
21. Reinspect the hose clips after the system has been operating.

Installation Tips

Match All Three Hose Sizes

A standard T-piece is intended to connect three hoses of the same diameter. Check the internal measurement before ordering.

Use Three Hose Clips

Each connected hose requires its own securing clip. One clip should be fitted to every barbed connection.

Plan the Branch Direction

Position the T-piece so the outlet hoses can leave the fitting without immediate sharp bends or twisting.

Keep the Fitting Accessible

Install the branching point where the clips and connections can be inspected during future maintenance.

Support the Pipework

Do not allow heavy, water-filled hoses to hang entirely from the T-piece. Support the branches to reduce strain.

Add Flow-Control Valves Where Needed

The T-piece splits the water route but does not guarantee an equal division. Valves can provide better control over individual branches.

Avoid Closing Both Branches

Do not operate a pump against two fully closed outlet lines unless the pump manufacturer and system design specifically allow it.

Check for Restrictions

Long hoses, tight bends, smaller components, and connected equipment can reduce the flow through an individual branch.

Understanding Split Flow

The water will not necessarily divide equally between the two outlets.

The branch receiving more water may be influenced by:

• Shorter hose length
• Fewer bends
• Lower vertical lift
• Less restrictive equipment
• More open valves
• Cleaner pipework
• A more direct return route

The branch with greater resistance may receive less flow. Separate valves can help balance the system where required.

Choosing the Correct Size

Use the size matching the hose’s stated internal diameter:

• 12mm T-piece: compatible 12mm flexible hose
• 19mm T-piece: compatible 19mm flexible hose
• 25mm T-piece: compatible 25mm flexible hose
• 32mm T-piece: compatible 32mm flexible hose
• 38mm T-piece: compatible 38mm flexible hose

Hose dimensions and flexibility may vary slightly between manufacturers. Check the fit before completing the installation.

Product Specifications

Brand: Kockney Koi
Product Name: Kockney Koi T-Piece Barbed Hose Joiners
Product Type: Three-way flexible-hose connector
Connection Style: Barbed connection on three ends
Fitting Configuration: T-piece
Available Sizes: 12mm, 19mm, 25mm, 32mm, and 38mm
Equivalent Sizes: ½″, ¾″, 1″, 1¼″, and 1½″
Primary Function: Connecting three hoses and splitting water flow
Installation Method: Push hose onto each connection and secure with three hose clips
Suitable Uses: Pond circulation, filtration branches, water features, returns, extensions, and modifications
Displayed Product Code: KKBARBTEE12

Ideal For

• Garden pond circulation systems
• Koi pond installations
• Pond pump pipework
• Filter-house plumbing
• Filter and waterfall arrangements
• Multiple pond returns
• Fountains and streams
• Water-feature installations
• Flexible pond-hose systems
• Existing system upgrades
• Professional pond installers
• Pond maintenance and repairs

Related Hose Joiner Options

T-piece hose joiners are useful where a flexible hose run needs to be split, but always consider flow loss when feeding more than one outlet from a single pump.

• For straight joins, see Kockney Koi Straight Barbed Hose Joiners.
• For angled joins, see Kockney Koi Elbow Barbed Hose Joiners.
• For reducing between hose sizes, see Kockney Koi Barbed Hose Reducers.
• Secure joins with stainless steel hose clips.
