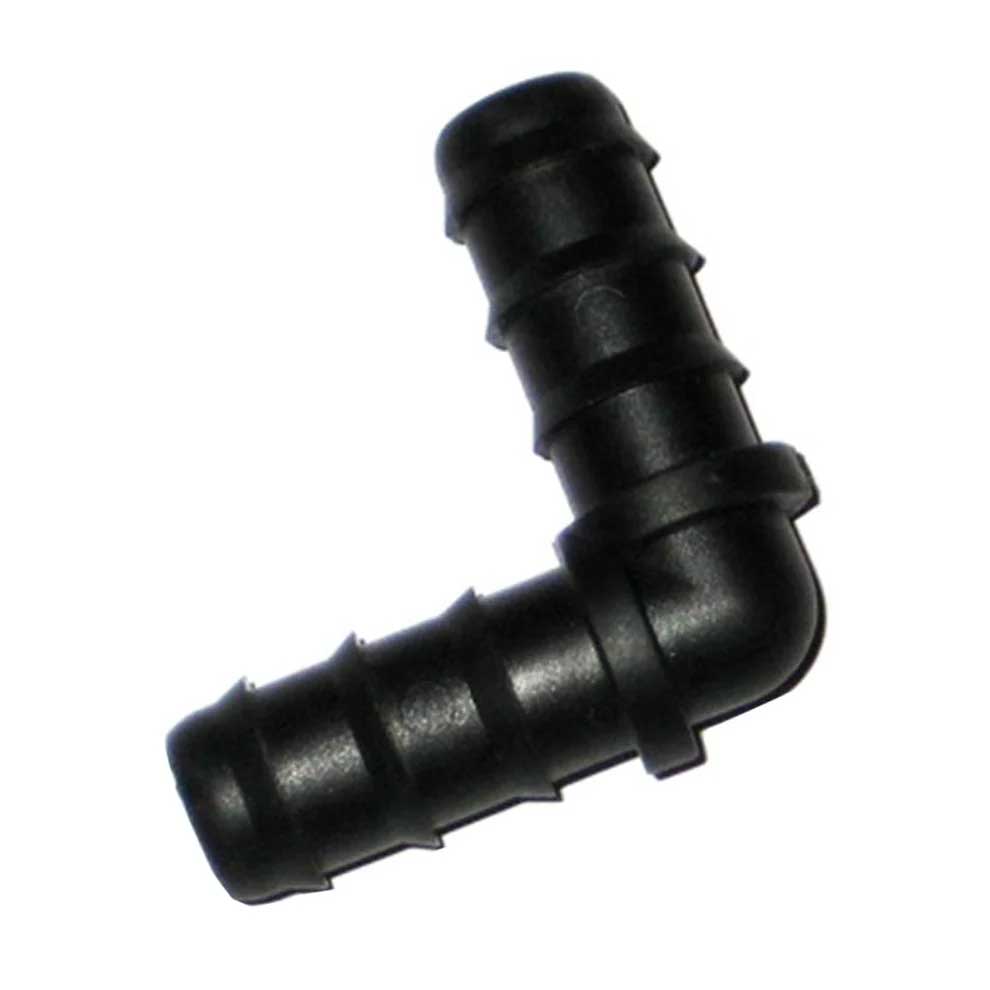

Kockney Koi Elbow Barbed Hose Joiners

Kockney Koi Elbow Barbed Hose Joiners

90-Degree Flexible-Hose Connectors for Compact Pond Pipework Installations

The Kockney Koi Elbow Barbed Hose Joiners are practical right-angle connectors designed to join two compatible sections of flexible pond hose while changing the direction of the pipework by approximately 90 degrees. They provide a simple and organised solution for routing pond plumbing around corners, walls, filters, pumps, equipment cabinets, landscaping, and other obstacles where a straight hose connection would be inconvenient or take up too much space.

Flexible pond hose can usually be curved around equipment, but creating a very tight bend may cause the hose to flatten, kink, twist, or place unnecessary stress on nearby connections. A correctly sized elbow joiner creates a defined right-angle turn, allowing the pipework to change direction within a much smaller area than would normally be required for a wide hose bend.

This makes the fitting particularly useful inside pond filter houses, pump chambers, equipment boxes, and narrow spaces behind filtration units. It may also be used along pond edges, beside walls, beneath decking, or anywhere the hose must follow a compact and controlled route.

Each fitting has a barbed hose connection at both ends. One flexible hose section is pushed firmly onto one side of the elbow, while the second hose section is connected to the opposite side. When installed, the two pipes meet at a right angle and create one continuous route through which pond water can travel.

The raised barbed sections help provide a secure gripping surface inside the flexible hose. For the best installation, each hose connection should be secured using a correctly sized hose clip. Two clips are normally required—one for each side of the elbow.

The elbow fitting can help prevent the large loops that may otherwise be needed when flexible hose is turned around a corner. This allows pond equipment to be installed closer together and helps create a neater, more professional-looking plumbing arrangement.

It is especially helpful where a pump outlet or filter connection faces in a different direction from the intended pipe route. Rather than forcing the hose into an immediate bend, the elbow can redirect the line towards the next component, return point, waterfall, fountain, stream, or filtration unit.

The joiner may also be used when modifying an existing pond system. If a pump, filter, UVC clarifier, or water feature is repositioned, the existing hose route may no longer follow the most practical direction. Cutting the hose and installing a compatible elbow can help adapt the pipework to the revised equipment layout.

These fittings can also support localised hose repairs where a damaged corner or badly kinked section must be removed. The weakened hose may be cut back to sound material and reconnected using a correctly sized elbow, provided that both remaining hose sections are in suitable condition.

Available in several commonly used diameters, the Kockney Koi Elbow Barbed Hose Joiners can be matched to flexible pond pipes ranging from small water-feature hose to larger filter and pump connections. The available options include 12mm, 19mm, 25mm, 32mm, 38mm, and 50mm.

Selecting the correct size is essential. The elbow should match the internal diameter of both flexible hose sections. A connector that is too small may produce a loose joint, while an oversized fitting may overstretch or damage the pipe.

For the cleanest installation, the hose ends should be cut squarely and inspected before fitting. Split, crushed, brittle, or distorted sections should be removed so that only sound hose is pushed over the connector.

If the hose is stiff, the end may be softened carefully using warm water before installation. Excessive heat, boiling water, open flames, and heat guns should be avoided because they may weaken or permanently deform the pipe.

Once the hose is fully seated on both ends, suitable hose clips should be positioned over the barbed connection areas and tightened gradually. The clips should hold the hose securely without crushing it or damaging the connector.

The completed elbow should be positioned where it does not carry the full weight of long, water-filled pipe runs. Supporting the hose on both sides can reduce strain on the connection and on the outlets of nearby pumps, filters, or UVC units.

Whether used for a new pond installation, a compact filter-house layout, a pipework modification, or a damaged-hose repair, the Kockney Koi Elbow Barbed Hose Joiner provides a straightforward way to connect flexible hose neatly around a corner.

Features

• Connects two compatible flexible-hose sections
• Changes the pipework direction by approximately 90 degrees
• Ideal where installation space is limited
• Barbed connection at both ends
• Helps reduce large or untidy hose loops
• Provides a defined right-angle pipe route
• Simple push-on installation
• Designed to be secured with two suitable hose clips
• Suitable for new systems, repairs, and modifications
• Available in several common pond-hose sizes
• Useful for pumps, filters, UVC units, waterfalls, and water features
• Kockney Koi pond-pipe fitting

Available Sizes

The elbow joiners are available in the following sizes:

• ½″ / 12mm
• ¾″ / 19mm
• 1″ / 25mm
• 1¼″ / 32mm
• 1½″ / 38mm
• 2″ / 50mm

The selected fitting should match the stated internal diameter of the flexible hose.

When to Use

Use a Kockney Koi Elbow Barbed Hose Joiner when:

• Flexible pond hose needs to turn around a corner
• Pipework must be installed in a restricted space
• A straight hose run would interfere with other equipment
• A large hose loop would look untidy or take up too much room
• A pump outlet needs to be redirected
• Pipework must pass around a filter or UVC unit
• A hose route needs to follow a wall or equipment cabinet
• Pond equipment has been moved or reorganised
• A damaged or kinked corner section needs replacing
• Hose needs to be routed beneath decking
• Water must be directed towards a waterfall or return
• A compact filtration installation is being constructed

Suitable Applications

These fittings may be used in compatible flexible-hose systems involving:

• Pond pumps
• Pressure and gravity-fed filters
• UVC clarifiers
• Pond return lines
• Waterfalls
• Streams and cascades
• Fountains
• Water features
• Filter-house pipework
• Pump chambers
• Garden pond circulation systems
• Koi pond filtration installations

Compatibility depends on selecting the correct fitting and hose diameter.

How It Works

The fitting creates a continuous right-angle route between two sections of flexible hose.

Water enters through the first hose, travels around the elbow, and continues into the second hose. The fitting changes the direction of the pipework without dividing or reducing the line into separate branches.

Each hose section is pushed over one barbed end of the fitting. A hose clip is then fitted around each connection to help prevent the hose from pulling away during operation.

Because the fitting creates a fixed corner, the hose itself does not need to be forced into a tight bend near the connection.

Installation Instructions

1. Switch off and electrically isolate the connected pond pump.
2. Stop the water flow through the hose.
3. Confirm the internal diameter of both hose sections.
4. Select an elbow joiner in the matching size.
5. Plan the direction of the 90-degree turn.
6. Cut both hose ends cleanly and squarely.
7. Remove any damaged, crushed, or weakened pipe.
8. Check that the fitting and hose interiors are clean.
9. Slide one suitable hose clip onto each hose section.
10. Push the first hose fully over one barbed end.
11. Push the second hose fully over the opposite end.
12. Rotate the elbow into the required direction.
13. Position each clip over the barbed connection area.
14. Tighten the clips gradually and evenly.
15. Avoid overtightening or crushing the hose.
16. Support the pipework on both sides where required.
17. Restore the water flow.
18. Check both connections for leakage.
19. Reinspect the clips after the system has been operating.

Installation Tips

Match the Internal Hose Diameter

Flexible pond pipe is normally identified by its internal diameter. Check the hose markings or measure it before selecting the elbow.

Plan the Elbow Direction

Position the fitting before tightening the clips. Once the system is operating, twisting the connection may loosen the hose or place strain on nearby equipment.

Use Two Hose Clips

Both sides of the elbow require a secure connection. Use one correctly sized hose clip on each hose section.

Cut the Hose Squarely

An even, straight cut allows the hose to sit more securely over the barbed connector.

Soften Stiff Hose Carefully

Warm water may make a rigid hose end easier to install. Avoid flames, heat guns, or excessive temperatures.

Do Not Overtighten

The clips should secure the hose firmly, but excessive tightening may cut into the hose or deform the fitting.

Support Heavy Pipework

A long hose filled with water can become heavy. Use suitable support so its weight does not pull against the elbow.

Keep the Joint Accessible

Where practical, position the fitting so it can be inspected and tightened during future maintenance.

Benefits of Using an Elbow Joiner

A correctly installed elbow fitting can help:

• Create a neat 90-degree hose route
• Reduce the space required for a hose bend
• Prevent flexible hose from being forced into a tight curve
• Route pipework around filters, walls, and equipment
• Improve access within a filter house
• Reduce large and untidy pipe loops
• Simplify equipment relocation
• Repair damaged corner sections
• Produce a cleaner pond-plumbing layout
• Make future inspection and maintenance easier

Choosing the Correct Size

Use the fitting that matches the hose’s internal measurement:

• 12mm joiner: compatible 12mm flexible hose
• 19mm joiner: compatible 19mm flexible hose
• 25mm joiner: compatible 25mm flexible hose
• 32mm joiner: compatible 32mm flexible hose
• 38mm joiner: compatible 38mm flexible hose
• 50mm joiner: compatible 50mm flexible hose

Both connected hoses should normally be the same size. A reducing elbow or separate reducer is required when connecting different pipe diameters.

Product Specifications

Brand: Kockney Koi
Product Name: Elbow Barbed Hose Joiners
Product Type: Flexible-hose elbow connector
Connection Style: Barbed connection at both ends
Fitting Configuration: 90-degree elbow
Available Sizes: 12mm, 19mm, 25mm, 32mm, 38mm, and 50mm
Equivalent Sizes: ½″, ¾″, 1″, 1¼″, 1½″, and 2″
Primary Function: Connecting two flexible hoses around a corner
Installation Method: Push hose onto both ends and secure using two hose clips
Suitable Uses: Compact pipework, repairs, system modifications, and equipment installation
Displayed Product Code: KKBARBEL12

Ideal For

• Garden pond owners
• Koi pond installations
• Filter houses
• Pump chambers
• Flexible pond-hose systems
• Pond pump connections
• Filter and UVC pipework
• Waterfall plumbing
• Water-feature installations
• Compact equipment areas
• Pond maintenance professionals
• New and existing pond systems

Related Hose Joiner Options

Elbow hose joiners help change direction in a flexible hose run without forcing a tight bend into the hose.

• For straight joins, see Kockney Koi Straight Barbed Hose Joiners.
• For branch connections, see Kockney Koi T-Piece Barbed Hose Joiners.
• For reducing between hose sizes, see Kockney Koi Barbed Hose Reducers.
• Secure joins with stainless steel hose clips.
