In-Lite SMART FLUX TONE RGBW Recessed Uplight

In-Lite SMART FLUX TONE RGBW Recessed Uplight

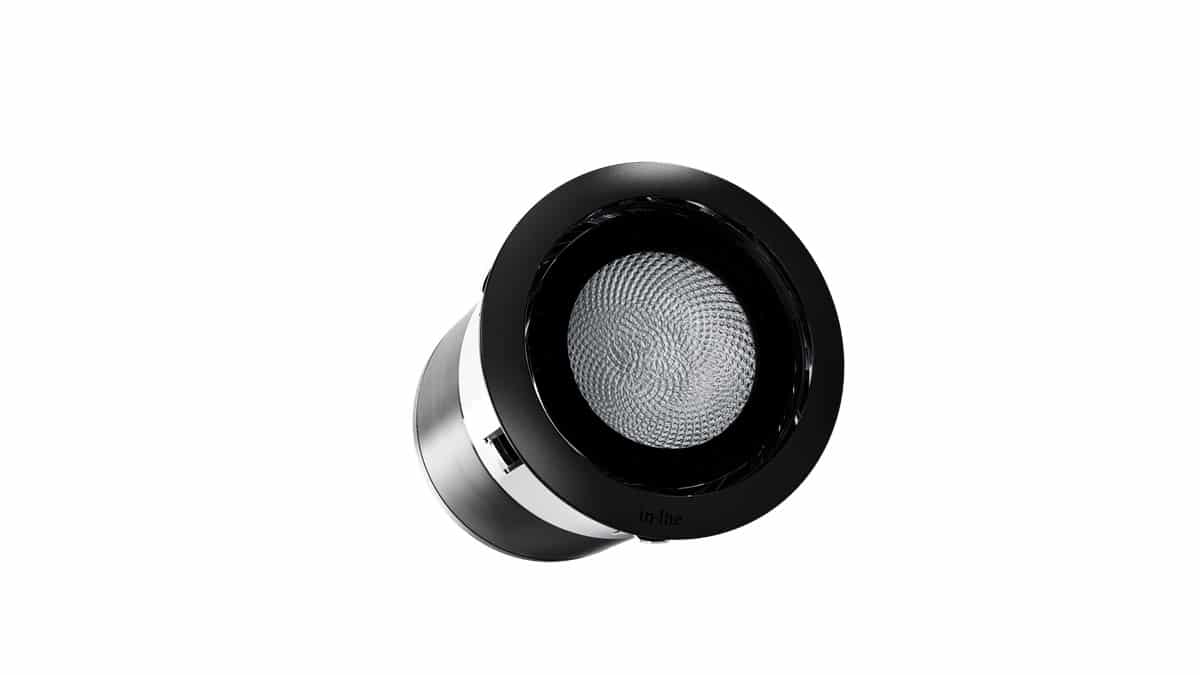

SMART FLUX TONE is the colour-capable recessed uplight for feature planting and architecture. Its RGBW LED can provide coloured scenes as well as usable white light, controlled as part of a compatible In-Lite smart system.

The 32° beam is focused enough to accent a tree, sculpture or facade detail without the fitting standing above the surface. Black, Pearl Grey and Stainless Steel bezel finishes are available.

Where this light works best

Plan the aiming direction before cutting the finished surface. Keep the fitting accessible for maintenance and position it where drainage is reliable.

Set out the complete run after dark before drilling every finished surface. Consistent spacing looks formal; deliberately mixed spacing and sizes creates a softer, more natural constellation.

Choose the right recessed effect

Choose SMART FLUX TONE when scene control and colour matter. Choose standard FLUX for a fixed 3000K warm-white beam with a lower transformer load.

Compare the complete In-Lite recessed-light range before deciding, because visible diameter, lens treatment and beam direction change the result as much as lumen output.

Installation planning

Drill the opening straight and to the current In-Lite template for this exact fitting. Use a suitable wood bit for timber or a cooled diamond drill for stone, protect the cable from sharp edges and provide drainage so water cannot remain around the body.

The supplied EASY-LOCK connects to genuine In-Lite system cable. In soil, gravel or loose aggregate, choose the specified In-Lite mounting accessory instead of burying an unsupported fitting.

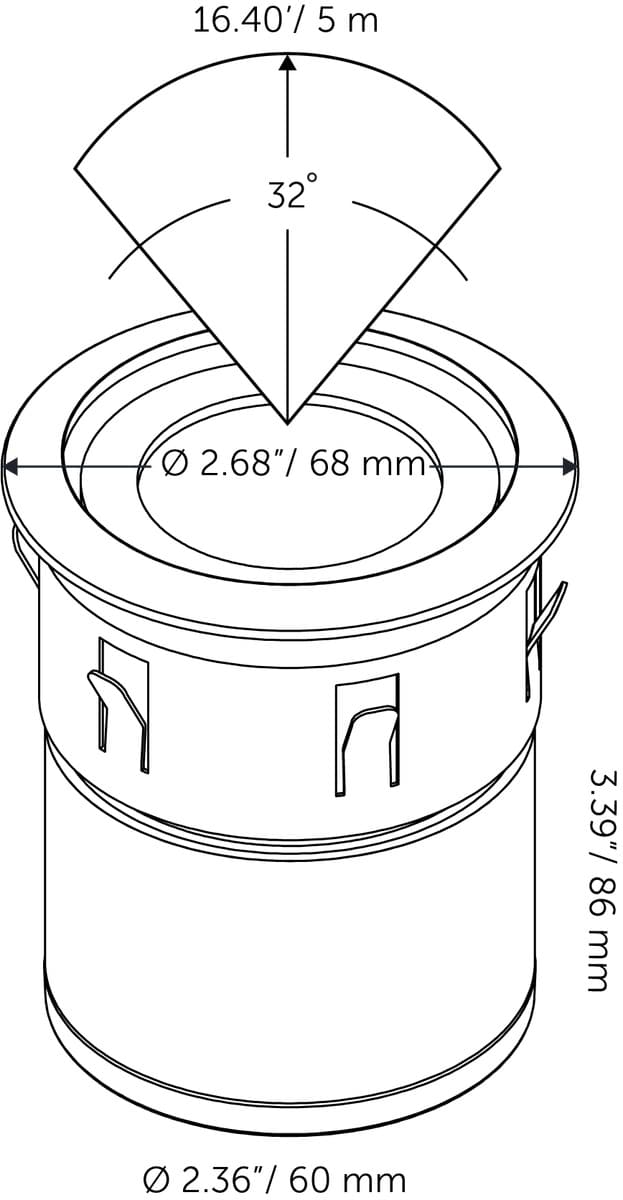

Verified technical information

• Beam angle: 32°
• Transformer load: 9.5 VA
• Colour: RGBW
• IP rating: IP67
• Visible bezel diameter: 68mm
• Supply: In-Lite 12V system
• 5-year manufacturer guarantee

What is supplied

• One complete In-Lite recessed fitting in the selected configuration
• Fixture cable
• One EASY-LOCK system-cable connector
• Manufacturer installation guidance

Plan the circuit as one system

Add the stated VA load for every fitting when sizing the In-Lite transformer. Total VA rather than wattage, map every branch and leave sensible spare capacity. Contact us with a sketch if you would like help checking spacing, cut-outs, cable routing or transformer load.
