In-Lite SMART EVO FLEX TONE RGB 12V LED Strip – Complete Set

In-Lite SMART EVO FLEX TONE RGB 12V LED Strip – Complete Set

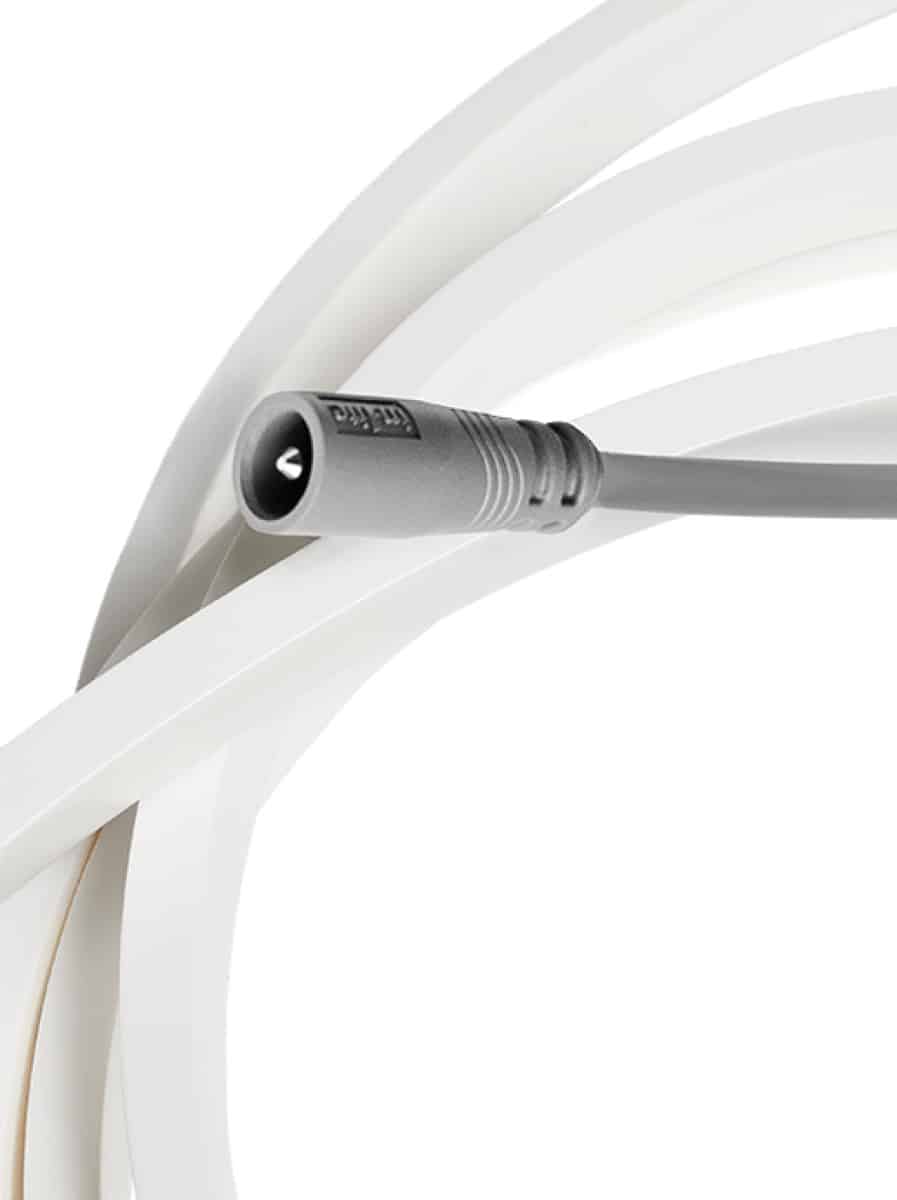

SMART EVO FLEX TONE RGB 12V LED Strip – Complete Set creates RGB colour plus a 3100K warm-white setting without the individual bright LED dots often visible in ordinary tape lighting. Its narrow side-bending polyurethane body can follow straight edges or organic curves, making it useful under steps, coping, benches, raised borders and other details where the fitting should almost disappear by day.

It requires a compatible In-Lite SMART HUB and the In-Lite app to select colour, warm white and brightness.

A complete, matched In-Lite set

Each option is a complete set containing the selected strip, SMART DRIVER TONE 1, EASY-LOCK and MINI WATERLOCK. The driver is connected in line between the EASY-LOCK and strip.

Choose the length, then plan the fixing

The available one, two, three and five-metre sizes can be shortened at the marked 25mm cut points. After cutting, seal the end with the supplied compatible MINI WATERLOCK in accordance with the installation instructions. Cutting elsewhere or leaving the end unsealed can compromise the weather protection.

The strip bends sideways with an approximate 30mm radius; it is not designed to twist sharply or fold across its light-emitting face. Use original EVO FLEX profiles, clips, corners, spikes or FIX accessories for the surface and shape rather than relying on an improvised adhesive alone.

Verified technical information

• Width: approximately 6.5mm
• Height: approximately 12mm
• Cut interval: every 25mm at the marked positions
• Approximate bending radius: 30mm
• Beam angle: 125 degrees
• Light colour: RGB plus 3100K warm white
• Colour rendering: not stated for the colour-changing version
• Ingress protection: supplier specification IP68; current In-Lite product page states IP67 for the assembled range
• Body material: polyurethane
• Power source: compatible In-Lite 12V system
• LED service-life indication: 25,000 hours
• 5-year manufacturer guarantee when correctly installed

Transformer and cable planning

Use the VA shown for the selected length—not its physical length alone—when sizing the In-Lite transformer. In-Lite recommends connecting EVO FLEX 1, 2 and 3 to a maximum 40m run of 10/2 system cable for reliable operation. Keep the driver and connection accessible for testing and future service.

Browse all In-Lite decorative and linear lighting and In-Lite cable and connectors. If you send us the proposed shape, substrate, length and distance from the transformer, we can help identify the complete strip, driver and fixing arrangement.
