In-Lite LUNA Asymmetric 12V Recessed Light

In-Lite LUNA Asymmetric 12V Recessed Light

An asymmetric recessed light that sends a broad angled wash across walls, steps and surrounding surfaces

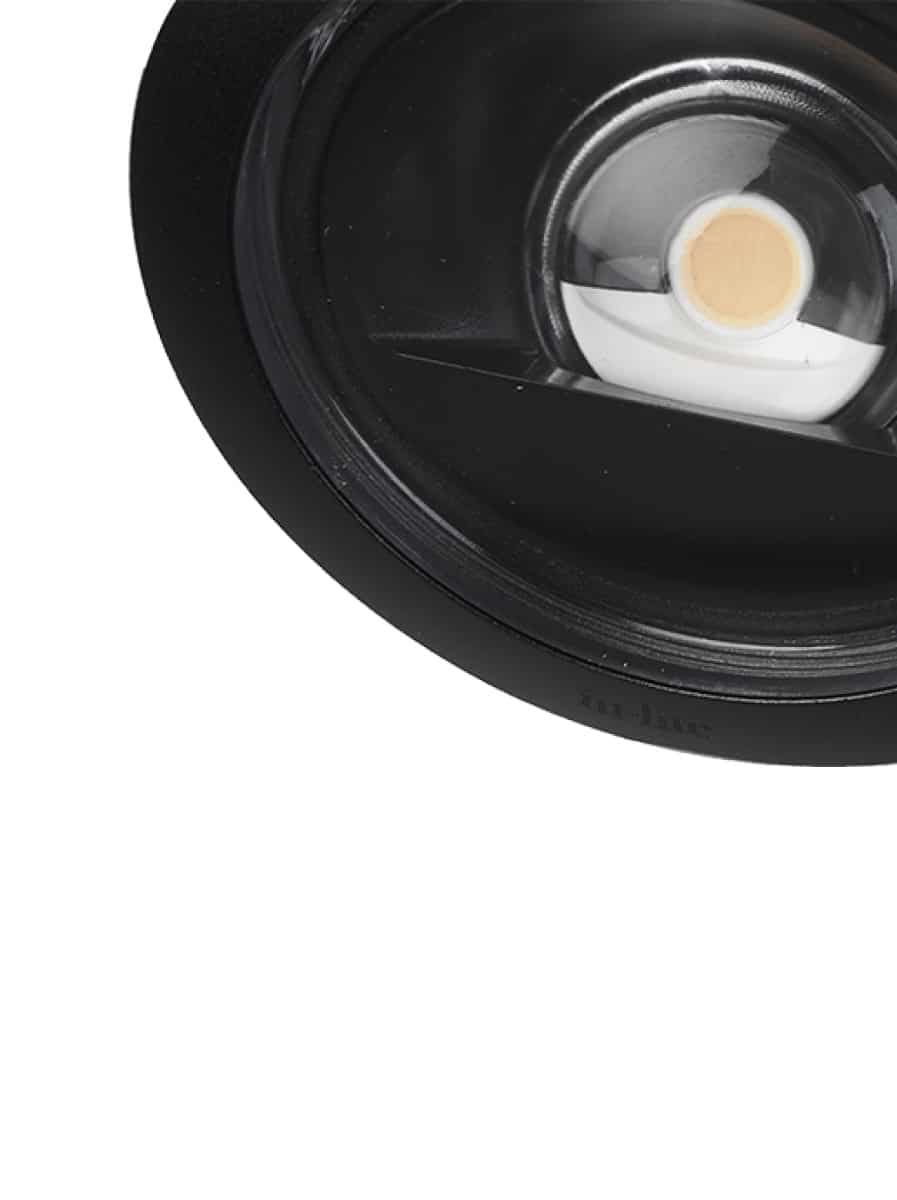

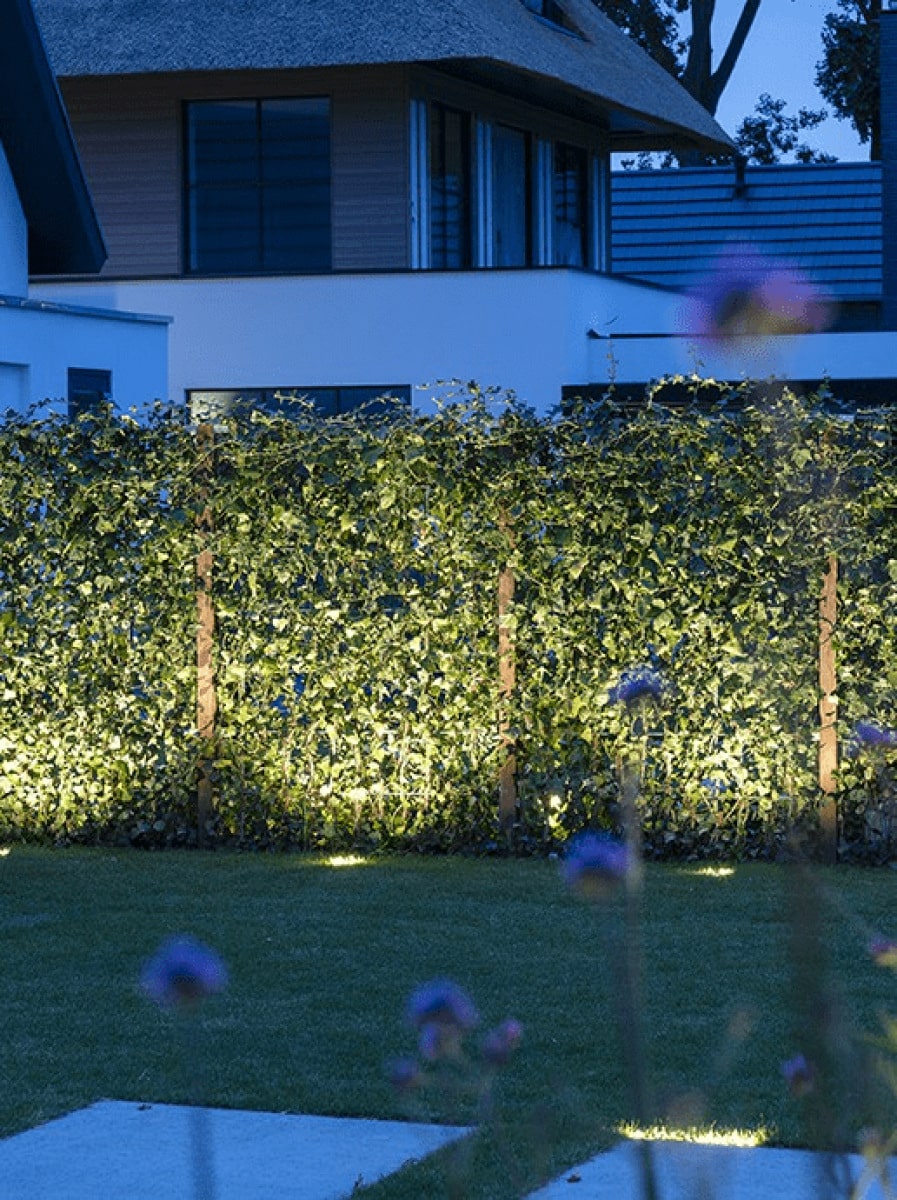

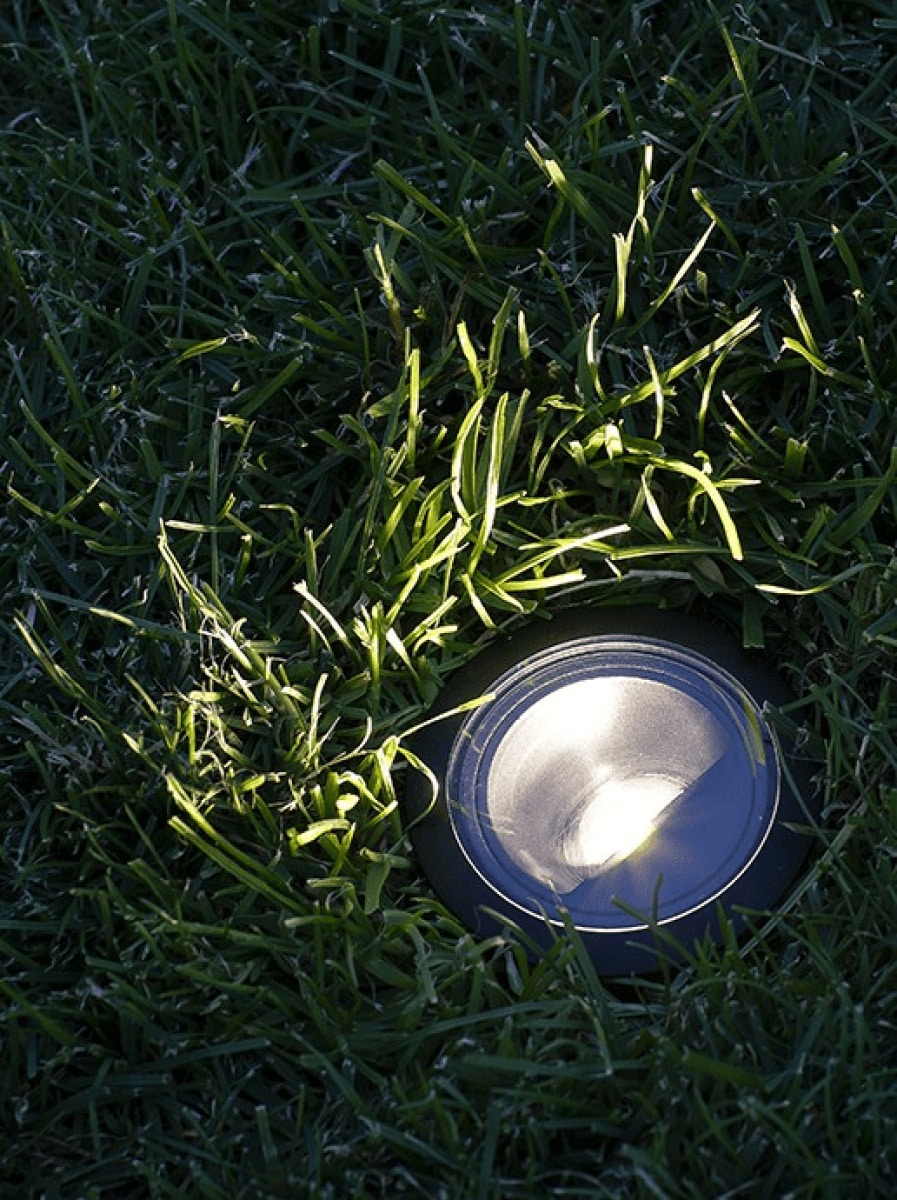

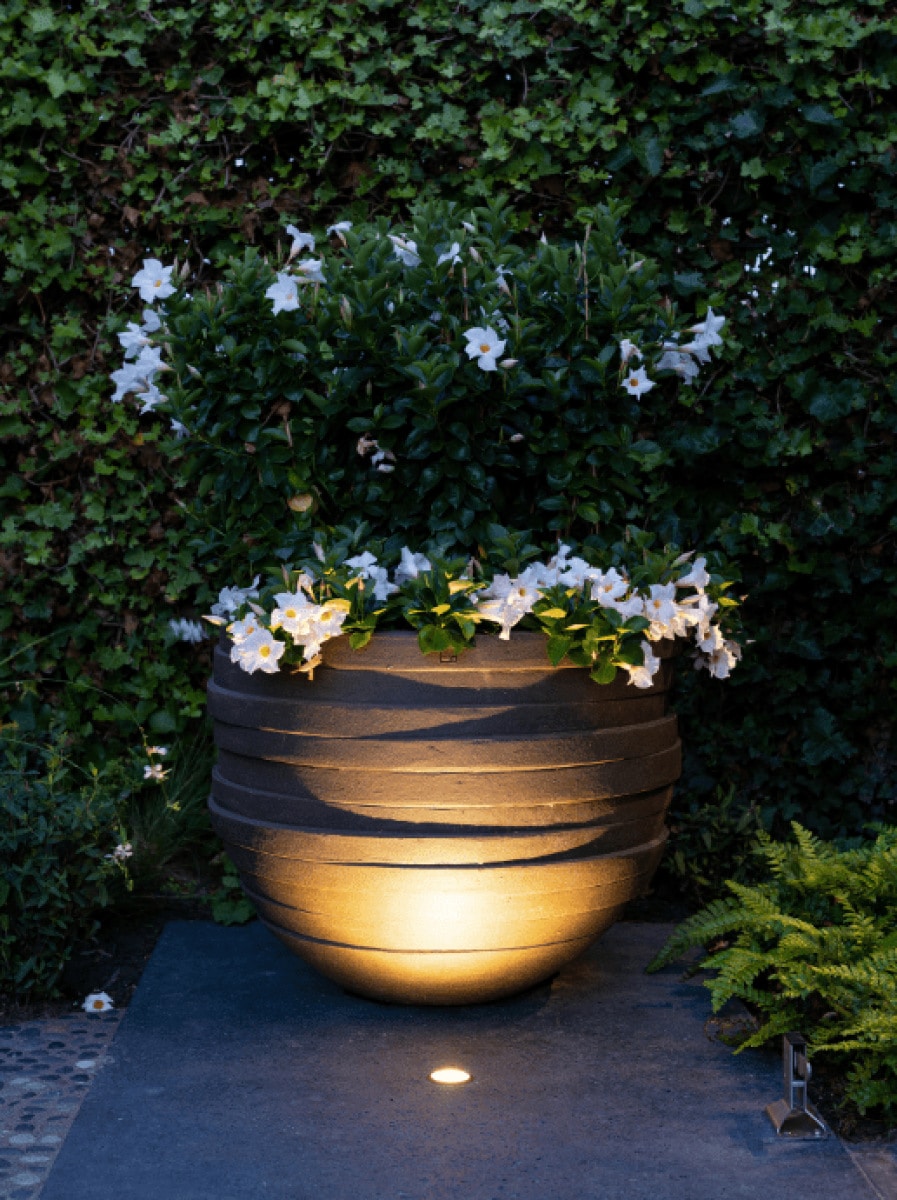

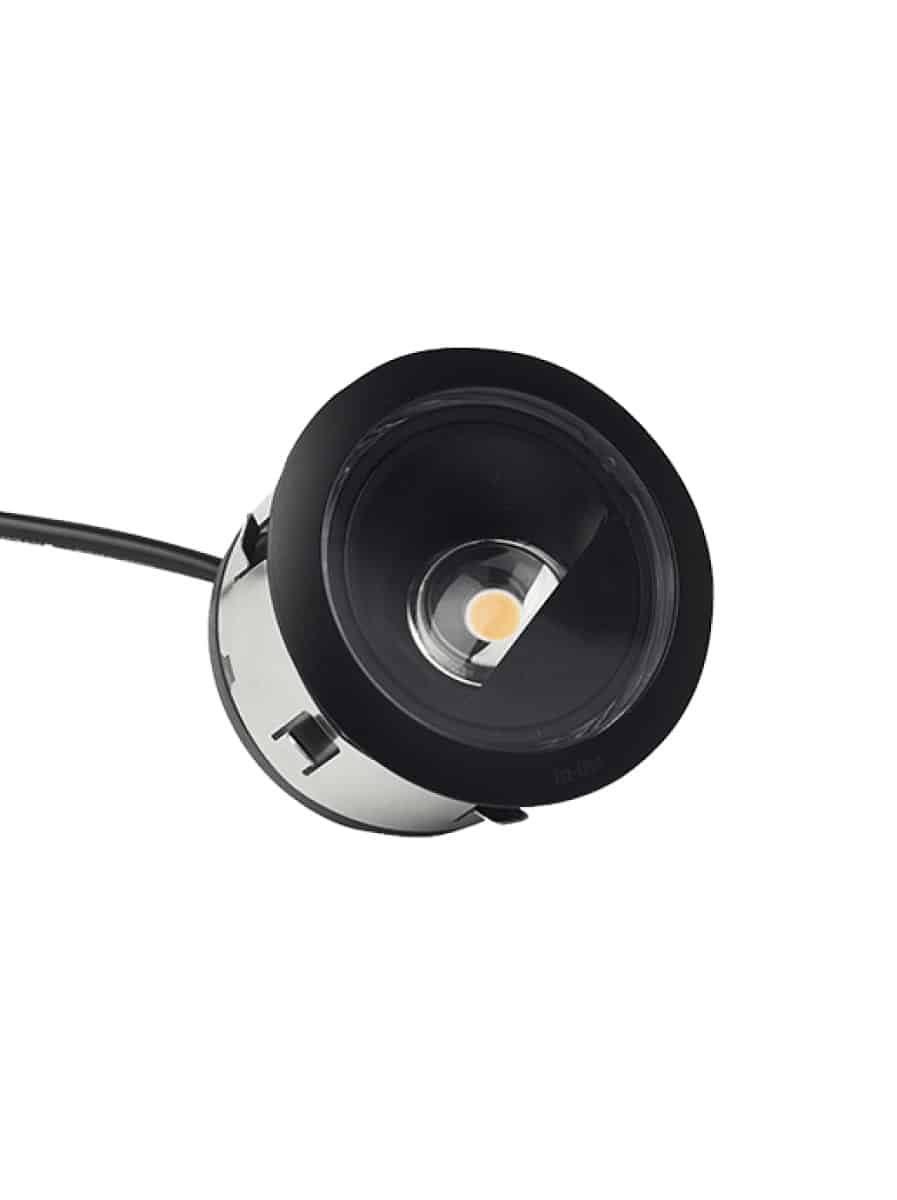

LUNA uses an asymmetric optic to throw light out of the fitting and across a nearby surface, rather than producing a vertical cone. It is useful at walls, steps, low facades and architectural edges where a conventional uplight would send too much light straight upwards.

The broad 79° × 85° distribution creates a directional wash while the fitting itself remains recessed. Three bezel finishes allow it to coordinate with the installation surface.

Where this light works best

Plan the aiming direction before cutting the finished surface. Keep the fitting accessible for maintenance and position it where drainage is reliable.

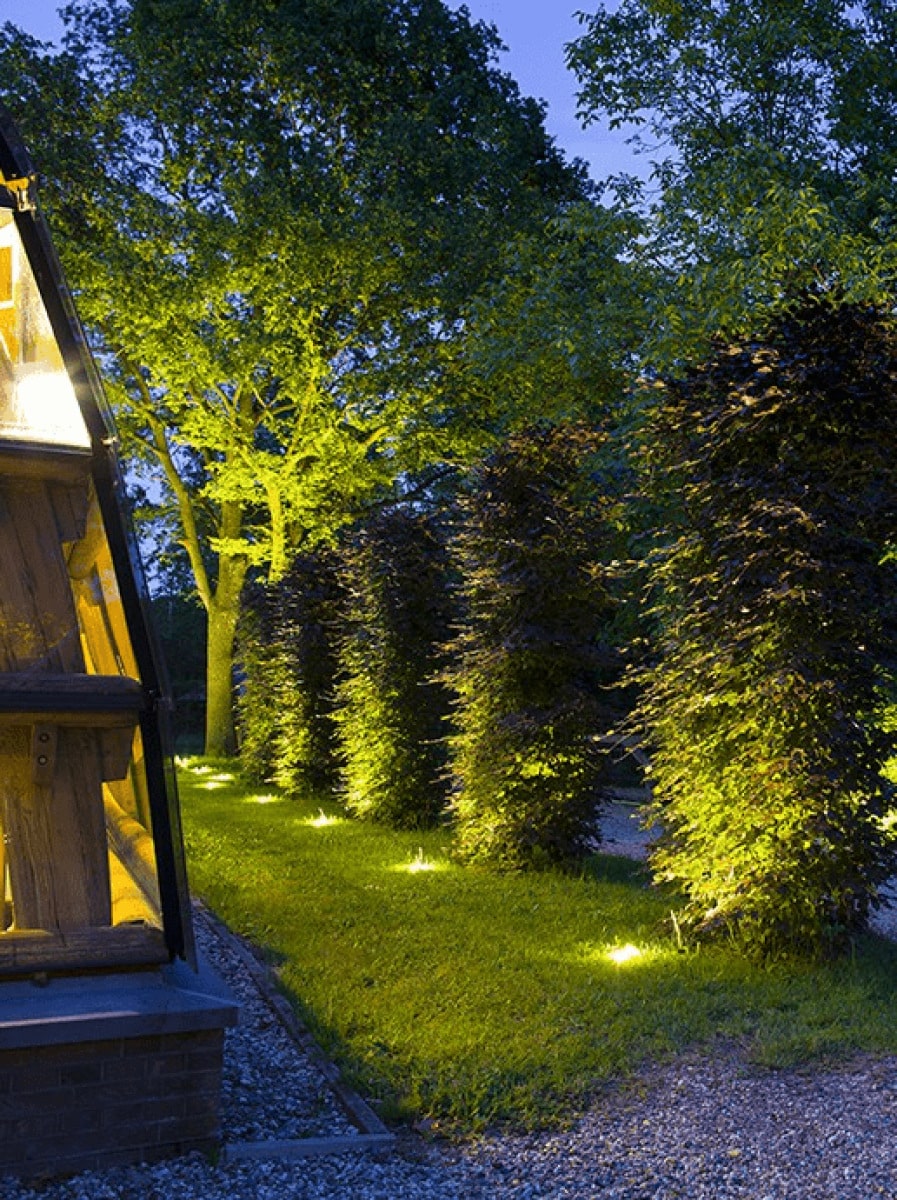

Set out the complete run after dark before drilling every finished surface. Consistent spacing looks formal; deliberately mixed spacing and sizes creates a softer, more natural constellation.

Choose the right recessed effect

Choose LUNA for a broad angled wash, BIG FLUX ASYMMETRIC for greater focused reach on a facade, or the diffuse FUSION/HYVE families for route marking.

Compare the complete In-Lite recessed-light range before deciding, because visible diameter, lens treatment and beam direction change the result as much as lumen output.

Installation planning

Drill the opening straight and to the current In-Lite template for this exact fitting. Use a suitable wood bit for timber or a cooled diamond drill for stone, protect the cable from sharp edges and provide drainage so water cannot remain around the body.

The supplied EASY-LOCK connects to genuine In-Lite system cable. In soil, gravel or loose aggregate, choose the specified In-Lite mounting accessory instead of burying an unsupported fitting.

Technical information

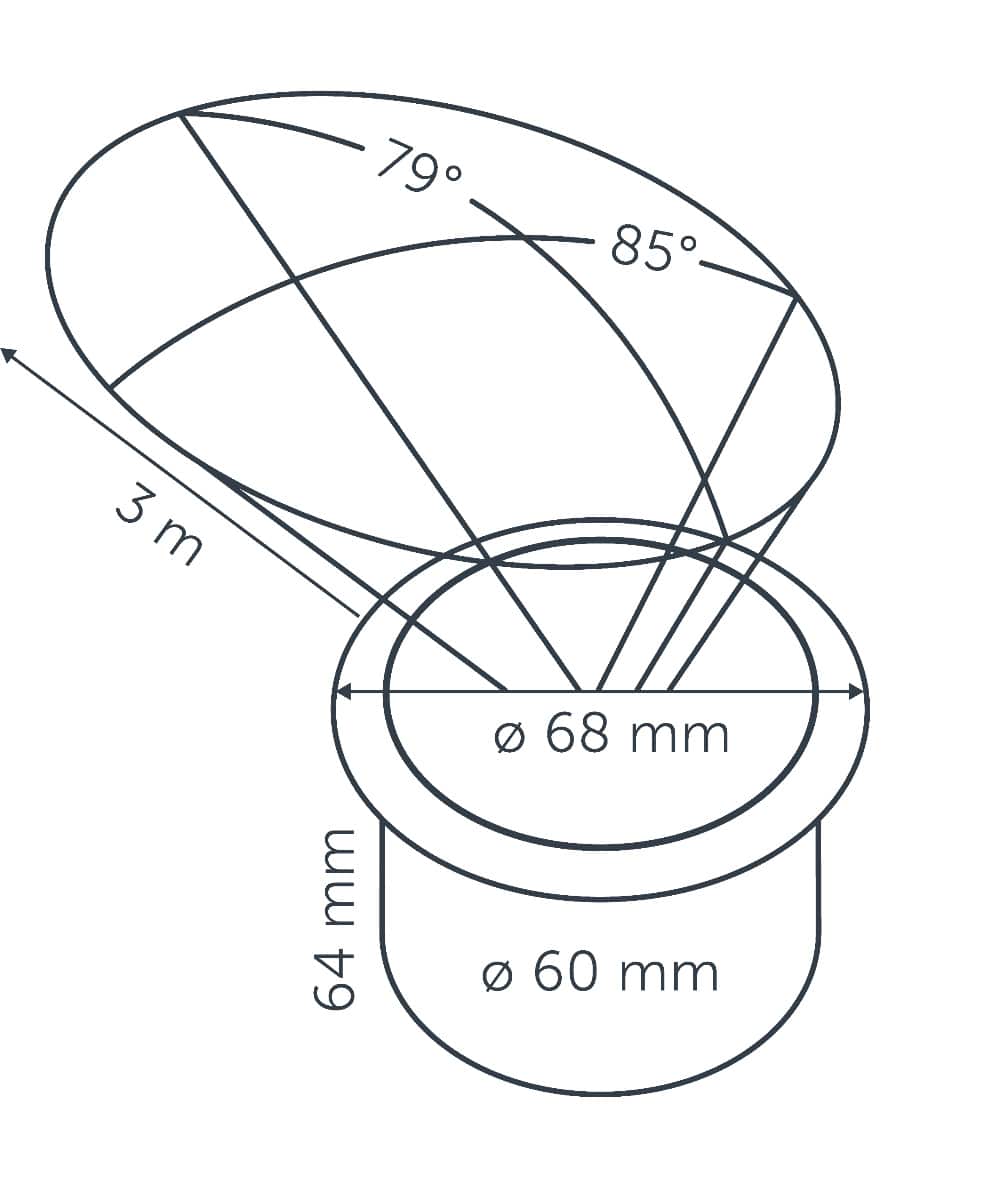

• Beam angle: 79° × 85°
• Transformer load: 5 VA
• Colour: Warm White
• IP rating: IP67
• Visible bezel diameter: 68mm
• Supply: In-Lite 12V system
• 5-year manufacturer guarantee

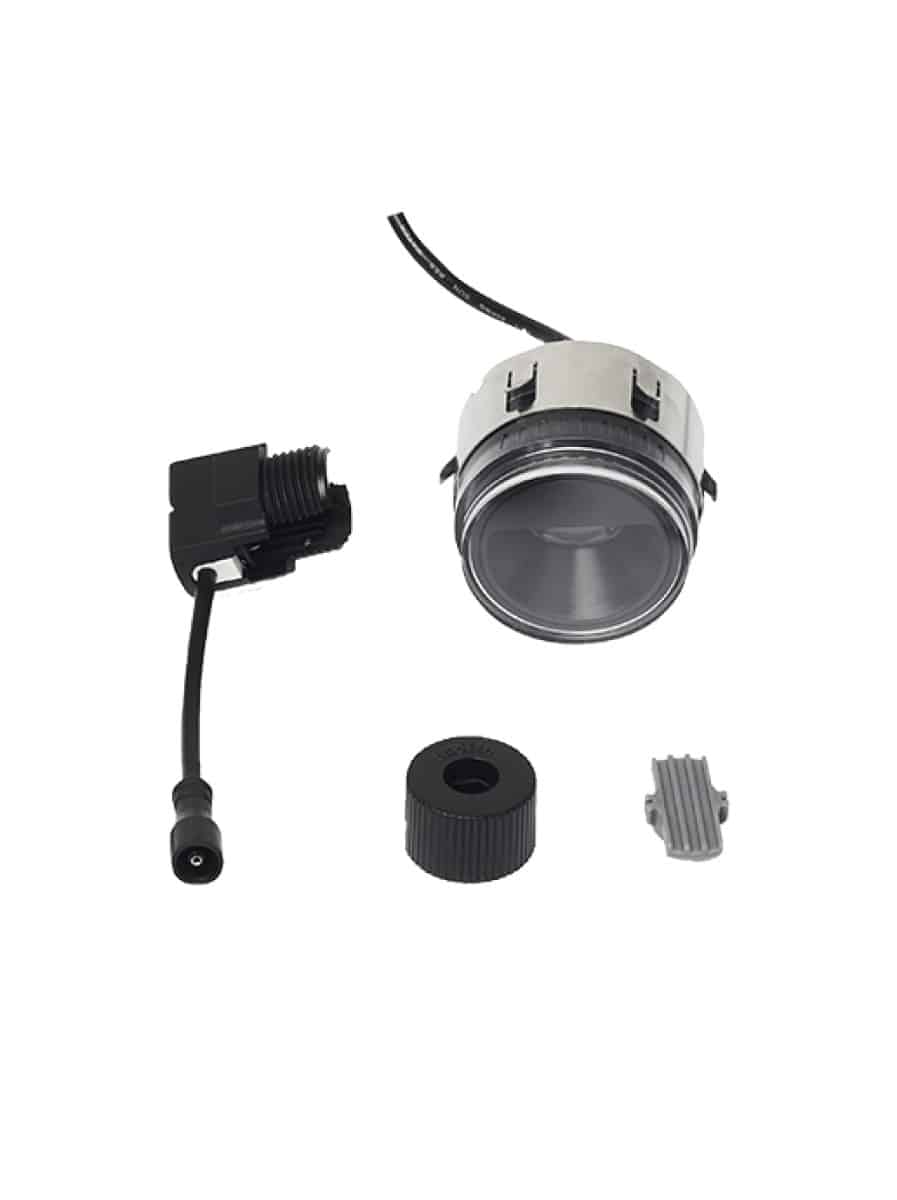

What is supplied

• One complete In-Lite recessed fitting in the selected configuration
• Fixture cable
• One EASY-LOCK system-cable connector
• Manufacturer installation guidance

Plan the circuit as one system

Add the stated VA load for every fitting when sizing the In-Lite transformer. Total VA rather than wattage, map every branch and leave sensible spare capacity. Contact us with a sketch if you would like help checking spacing, cut-outs, cable routing or transformer load.

Optional accessories

PLATE 1 and BOX 1 provide alternative installation finishes for the documented matching recessed family. Check the exact module and ring arrangement before selecting.
