In-Lite RISER 1 Fixed 350mm Spotlight Riser

In-Lite RISER 1 Fixed 350mm Spotlight Riser

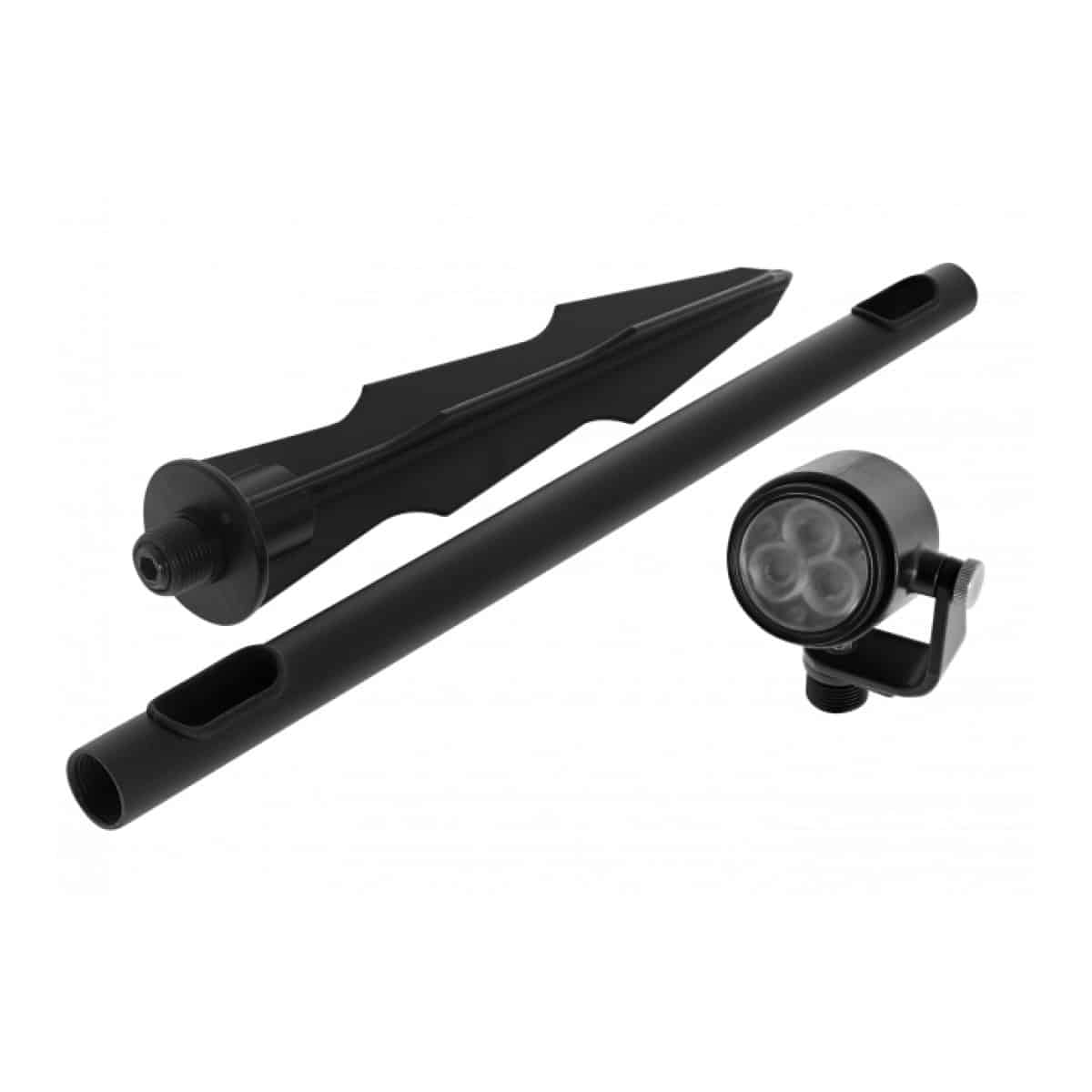

A fixed-height anodised aluminium riser that lifts compatible SCOPE spotlights above low border planting while routing the fixture cable neatly through the pole

RISER 1 lifts a compatible MINI SCOPE, SCOPE or BIG SCOPE-family spotlight to a fixed height of approximately 350mm. It is designed for borders where low foliage would otherwise interrupt the beam before it reaches a tree, shrub or architectural feature.

How this accessory improves the light

Place the reinforced ground pin in firm soil and route the fixture cable through the integrated grommet in the pole. Position the light just above the foliage that causes the obstruction, not unnecessarily high in open view. The fixed riser is especially useful where the mature planting height is predictable and a clean permanent level is wanted.

Compatibility and important limits

RISER 1 supports MINI SCOPE, SCOPE, BIG SCOPE and BIG SCOPE NARROW. The light fitting is purchased separately. Choose the adjustable RISER 2 where the border changes substantially through the season or the final height is uncertain.

Technical information

• Fixed working height: approximately 350mm
• Overall stated length: approximately 357mm
• Diameter: approximately 37mm
• Material: anodised black aluminium
• Ground pin: glass-fibre-reinforced plastic
• Integrated fixture-cable grommet
• Compatibility: MINI SCOPE, SCOPE and BIG SCOPE family
• Manufacturer part number: 10703406

Complete the spotlight installation

Use with a suitable model from the In-Lite spotlight range and add the appropriate SHIELD when direct glare remains visible.

Test the light after dark before completing the cable route or planting around it. Glare control and riser height are easiest to judge from the real viewing positions in the finished garden.

Position the beam for the feature, not the fitting

Use In-Lite RISER 1 Fixed 350mm Spotlight Riser with the compatible spotlight; the accessory itself does not produce light. Move the trial position around the tree, sculpture, wall or planting after dark; a small change in distance or angle can produce more depth and much less glare. Where the source can be seen from a path or seat, a compatible shield or honeycomb accessory is usually worth considering.

For larger trees, two restrained beams from different positions generally look more natural than one fitting driven at the limit of its reach. Keep the cable and EASY-LOCK accessible so the aiming position can still be adjusted as planting matures.

Compatible lights

These spotlight heads have the documented mounting arrangement. The spotlight is purchased separately.

In-Lite MINI SCOPE Compact 12V Garden Spotlight · In-Lite SCOPE 12V Garden Spotlight · In-Lite BIG SCOPE Wide-Beam 12V Garden Spotlight
