In-Lite EVO FLOOD 12V Wide-Beam Architectural Light

In-Lite EVO FLOOD 12V Wide-Beam Architectural Light

EVO FLOOD is a premium, surface-mounted 12V architectural light designed to cover a much broader area than a conventional garden spotlight. Its long linear body, adjustable tilt-and-slide mechanism and asymmetric beam make it especially useful for facades, retaining walls, entrance structures and large garden surfaces.

A very wide architectural beam

In-Lite describes EVO FLOOD as its broadest-coverage fixture, with a practical light pattern reaching approximately 10 metres wide and 5.5 metres high in suitable conditions. That makes it a considered alternative to using several narrow spotlights on the same wall.

The quoted reach is not a promise for every surface. Mounting distance, aiming angle, wall colour, texture and ambient light all change the final effect, so test the position after dark before permanently drilling every fixing point.

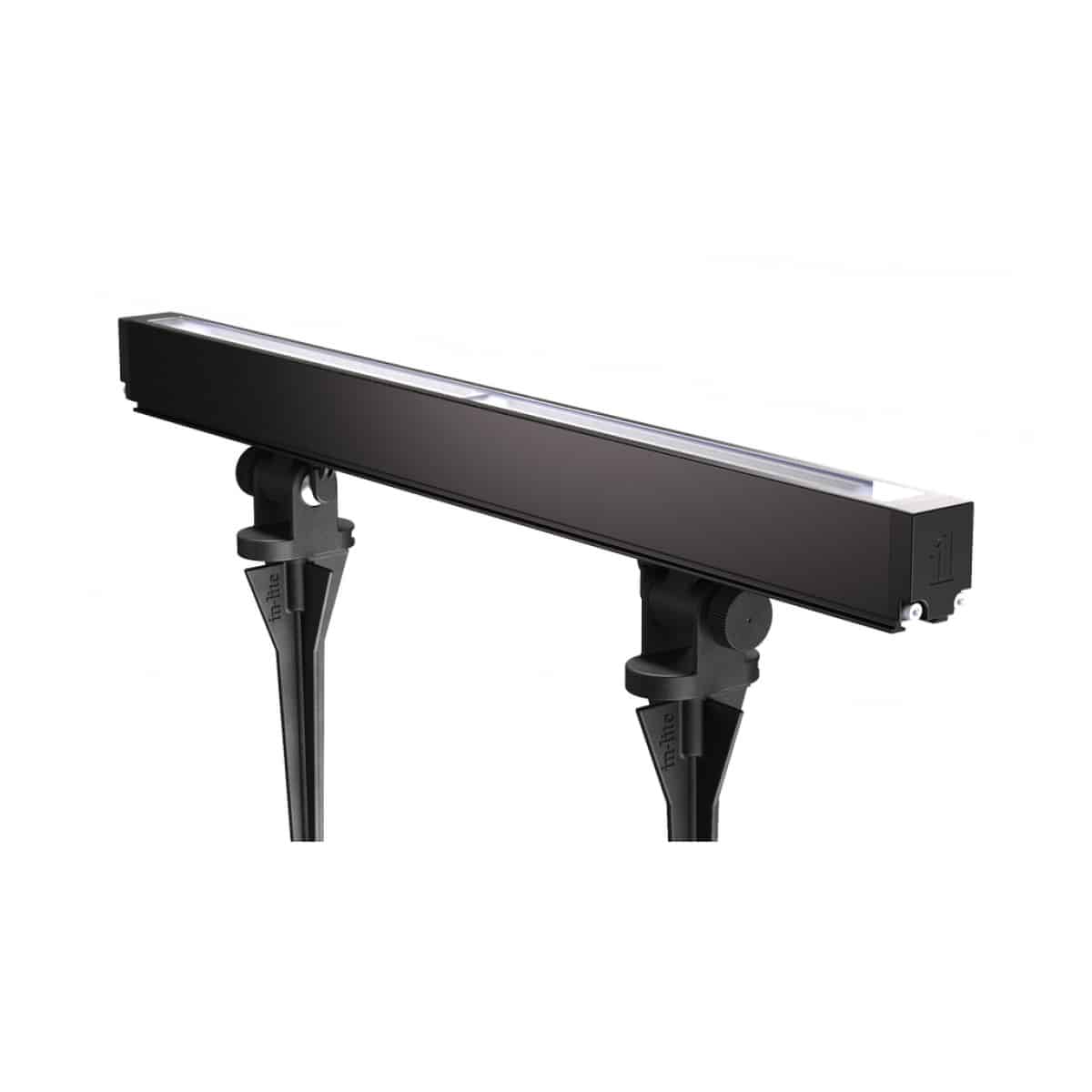

Adjustable mounting for floors or structures

The supplied components support positioning on the ground and suitable hard surfaces. The tilt-and-slide mechanism helps move the bright area up, down or across the target without relocating the entire cable route.

Excellent colour rendering

A CRI of 97 helps stone, brick, timber, foliage and architectural finishes retain a natural appearance at night. That matters on premium facade and landscape projects where a flat or distorted colour cast would undermine the materials being illuminated.

Verified technical information

• Power source: In-Lite 12V transformer system
• Rated load: 8 VA

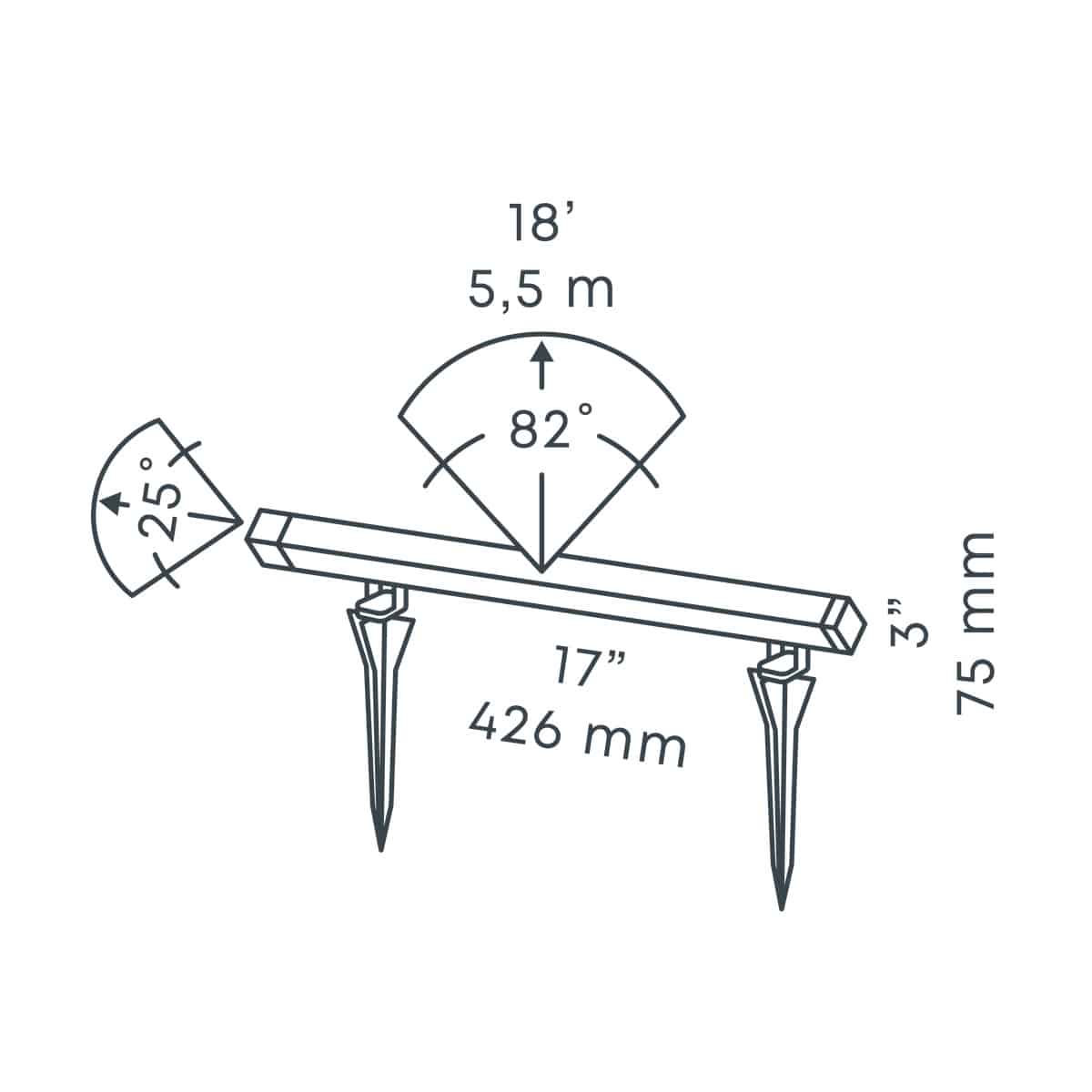

• Beam: 25° × 82° asymmetric
• Practical coverage: up to approximately 10m wide × 5.5m high
• Colour rendering: CRI 97
• Warm-white LED
• Black anodised aluminium body
• Supplied with EASY-LOCK
• 5-year manufacturer guarantee when correctly installed

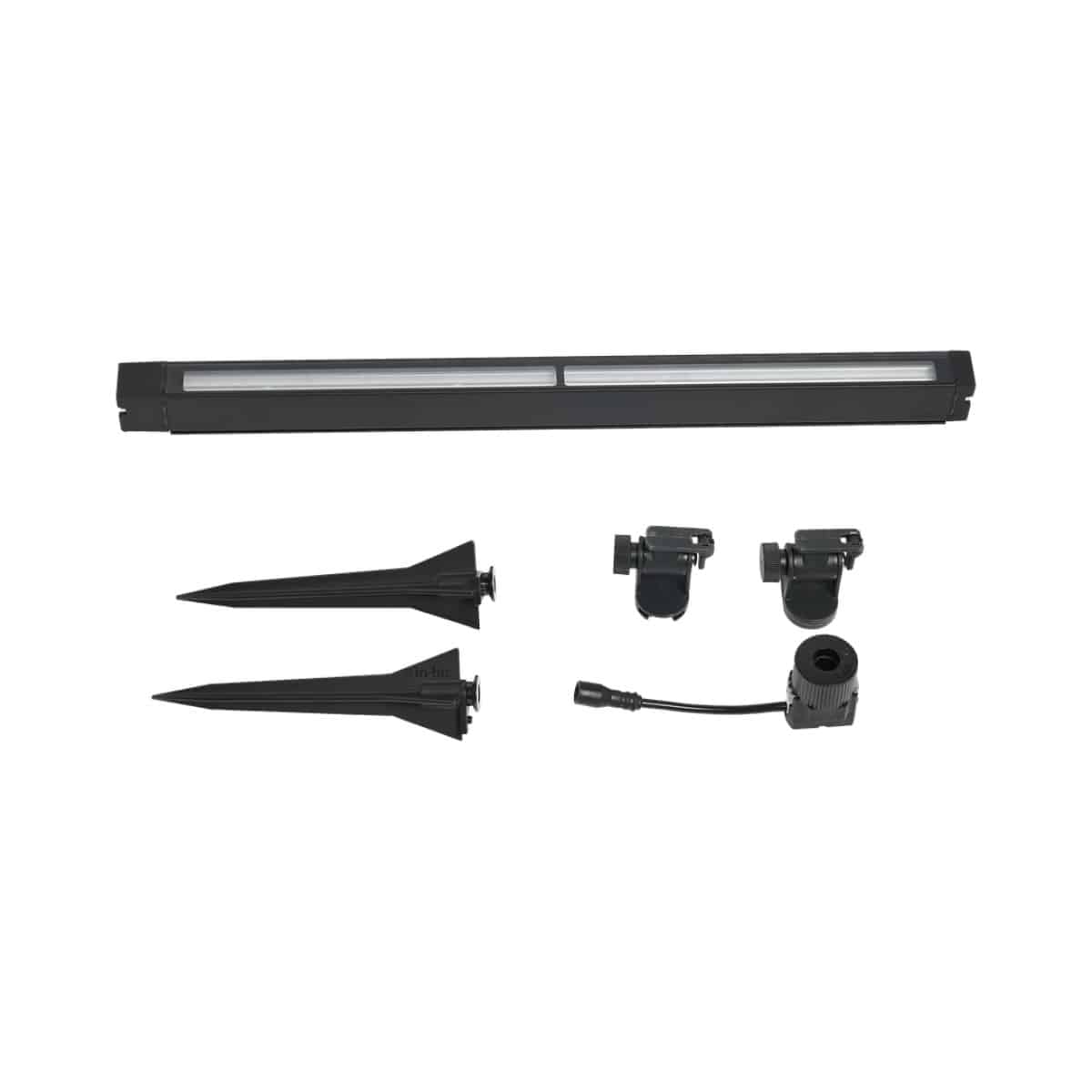

What is supplied

• EVO FLOOD fitting
• EASY-LOCK
• Ground stakes and feet
• Fixings, end caps and protective strips specified by In-Lite
• Manufacturer installation guidance

Plan the complete installation

Add 8 VA when sizing the transformer and use genuine In-Lite cable. Browse In-Lite spotlights, transformers and controls, or contact us with photographs and measurements for practical positioning advice.

Position the beam for the feature, not the fitting

Use In-Lite EVO FLOOD 12V Wide-Beam Architectural Light to light the face and structure of the subject rather than simply aiming at its base. Move the trial position around the tree, sculpture, wall or planting after dark; a small change in distance or angle can produce more depth and much less glare. Where the source can be seen from a path or seat, a compatible shield or honeycomb accessory is usually worth considering.

For larger trees, two restrained beams from different positions generally look more natural than one fitting driven at the limit of its reach. Keep the cable and EASY-LOCK accessible so the aiming position can still be adjusted as planting matures.

Compatible and related In-Lite products

For the same project, compare In-Lite CBL Two-Wire Garden Lighting System Cable, In-Lite CBL-EXT CORD Garden Light Extension Cable, In-Lite HUB-75 UK 12V Garden Lighting Transformer, and In-Lite EVO 12V Architectural Path Light. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
