In-Lite EVO GROUND 300 Linear Recessed Light

In-Lite EVO GROUND 300 Linear Recessed Light

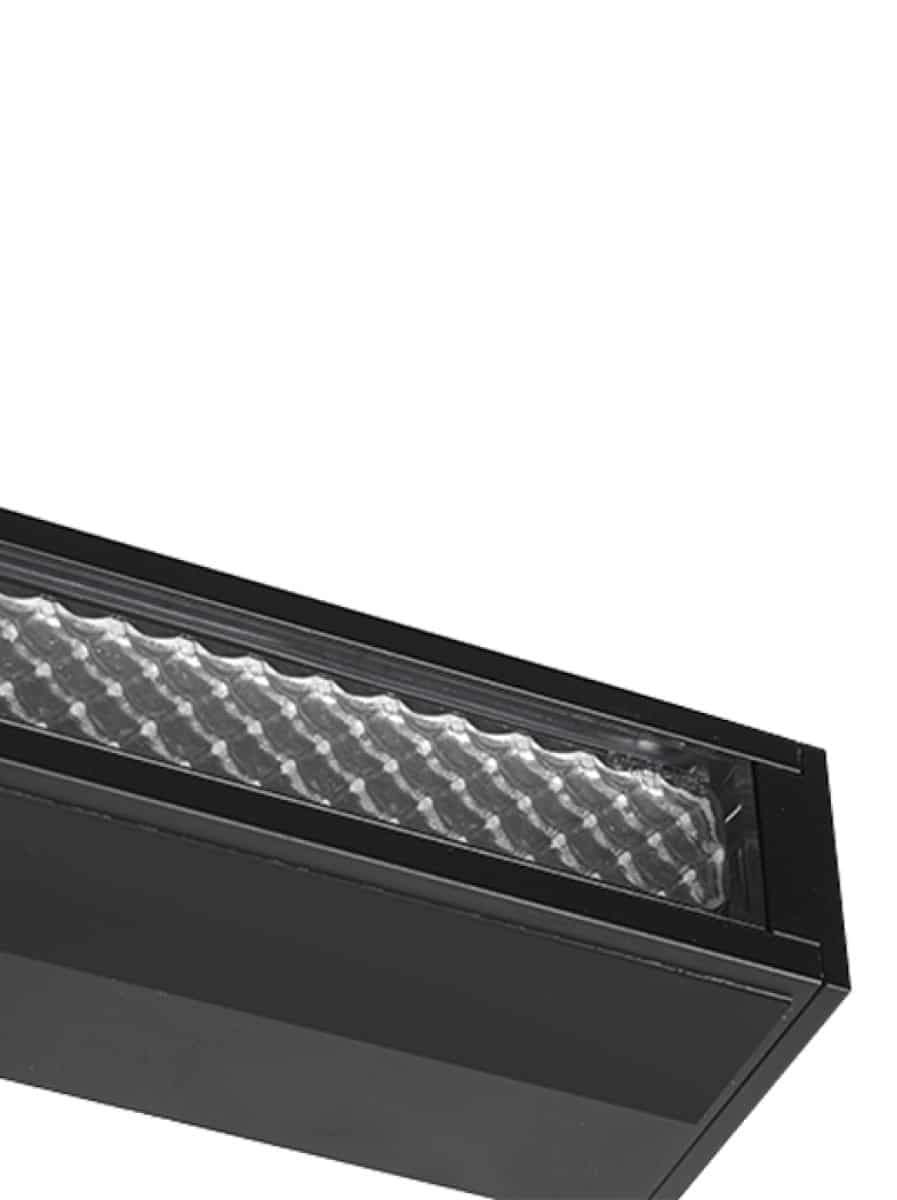

EVO GROUND 300 Linear Recessed Light is a 300mm linear recessed marker for contemporary paving, walls, steps and deck edges. It is a complete In-Lite 12V fitting for a considered recessed-light installation.

Where this light works best

Use the 89° light distribution to match the feature rather than choosing only by lumen or wattage. Narrow beams suit vertical targets and taller features, broad beams cover wider architecture, asymmetric optics push light across a surface, and diffuse modules provide orientation rather than a dramatic spotlight.

Plan the recess and drainage first

Confirm the cut-out, installation depth, drainage and cable route before forming the opening. Recessed fittings should never sit in a pocket that permanently holds water.

Verified technical information

• Power source: In-Lite 12V transformer system

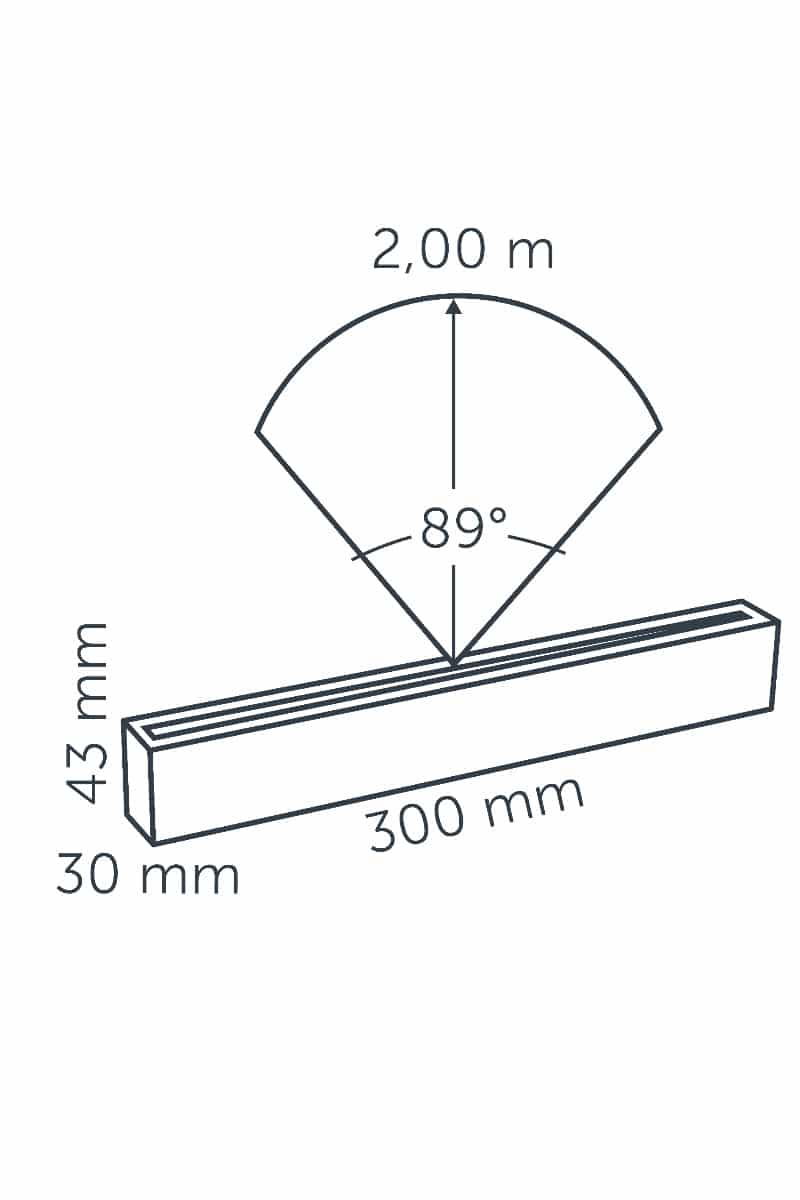

• Light distribution: 89°
• Colour / temperature: 3000K
• Rated load: 1 VA
• Protection: IP67
• Manufacturer part number: 10104500
• 5-year manufacturer guarantee when correctly installed

What is supplied

• One EVO GROUND 300 Linear Recessed Light
• Manufacturer-specified mounting and connection components
• Manufacturer installation guidance

Complete the installation correctly

Browse In-Lite recessed lights and compatible bezels, transformers and smart controls, and cables and connectors. Contact us with the module and bezel part numbers if you would like compatibility checked before dispatch.

Practical design advice

Position recessed lights from the target backwards. Mark the centre of the tree, facade or path feature, test the aiming and glare from normal viewpoints, then commit to the cut-out. A small change in location can make more difference than choosing the next larger fitting.

Set out recessed lighting before the surface is finished

For In-Lite EVO GROUND 300 Linear Recessed Light, confirm the cut-out, recess depth, drainage and material thickness from the current installation drawing before drilling. Recessed lights are most convincing when their spacing follows the paving, step or deck geometry and the source is not directly in the normal line of sight.

Dry-lay the fittings and cable route first, then test the effect after dark. Do not bury an EASY-LOCK or other serviceable connection where it cannot be reached without lifting a finished surface.

Compatible and related In-Lite products

For the same project, compare In-Lite CBL Two-Wire Garden Lighting System Cable, In-Lite CBL-EXT CORD Garden Light Extension Cable, In-Lite HUB-75 UK 12V Garden Lighting Transformer, and In-Lite EASY-LOCK Fixture-to-System Cable Connector. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
