In-Lite EVO DOWN 12V Architectural Wall Light

In-Lite EVO DOWN 12V Architectural Wall Light

A tall architectural downlight with a broad, diffuse wall wash for contemporary entrances and facades

EVO DOWN 12V Architectural Wall Light is a tall architectural downlight with a broad, diffuse wall wash for contemporary entrances and facades. It is the 12V system version of EVO DOWN, with a warm-white LED and a shielded source that keeps the effect comfortable around outdoor living areas.

Where this fitting works best

Use it on entrances, facades, fences, garden rooms and terrace walls. The stated 90° distribution is a starting point: wall texture, mounting height, ceiling height and nearby surfaces all change the final effect.

Test one proposed position after dark before drilling every fixing point. Repeated lights look best when their spacing follows the architecture rather than being chosen only by equal distance.

12V or mains installation

The fitting connects to genuine In-Lite 12V system cable. An EASY-LOCK and fixture cable are supplied; add the stated VA load when sizing the HUB transformer.

Protect cable routes from fixings and sharp edges, use appropriate outdoor junction methods and follow the current In-Lite mounting template. Keep the fitting accessible for cleaning and future inspection.

Technical information

• Power source: 12V Transformer
• Light type: Wall Light

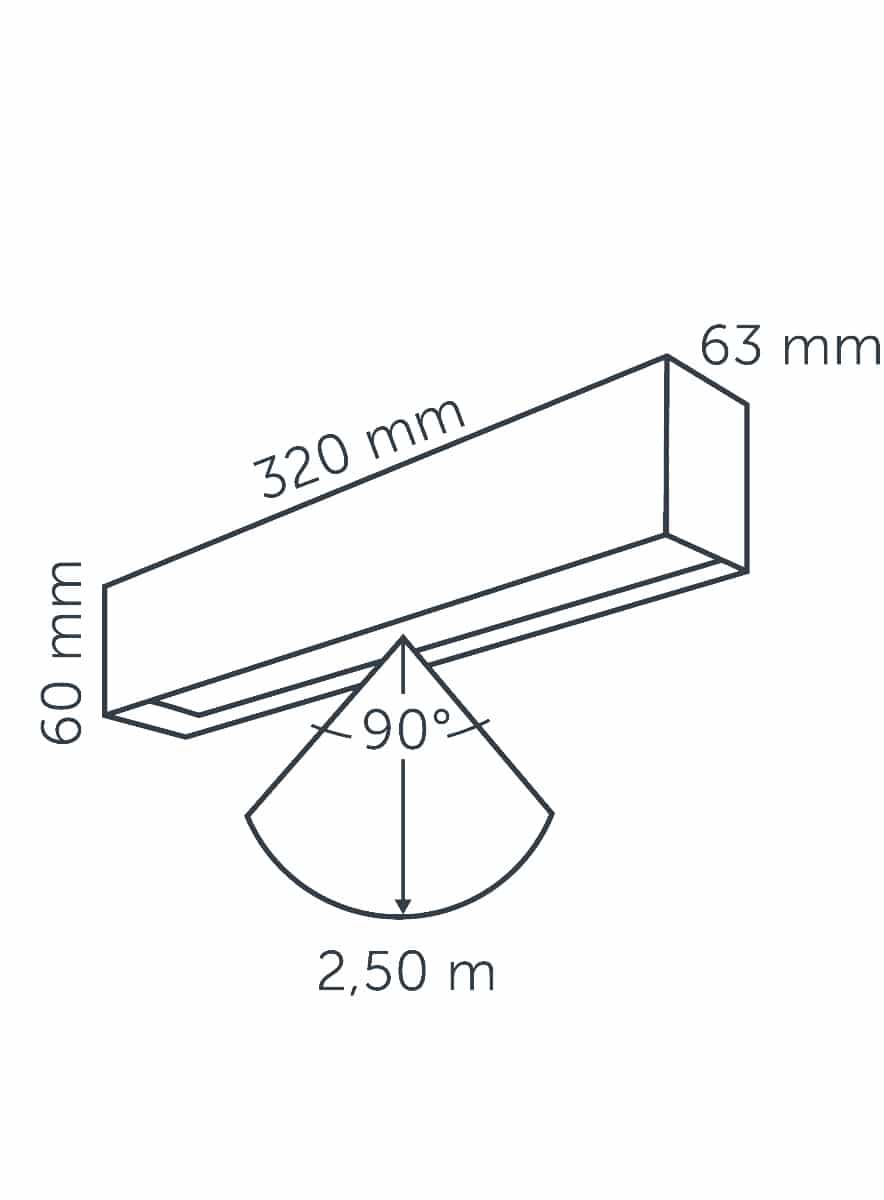

• Light direction / beam: 90°
• Colour temperature: 2950K
• Load: 2.1 VA
• Protection: IP53
• Finish: Black or Dark Grey as shown
• Manufacturer part number: 10302500
• 5-year manufacturer guarantee when correctly installed

What is supplied

• One complete EVO DOWN 12V Architectural Wall Light
• Manufacturer mounting hardware and installation guidance
• EASY-LOCK and fixture cable for the In-Lite 12V system

Choosing the right In-Lite wall or ceiling light

Compare the DOWN and UP-DOWN versions, body shape, mounting height and beam width before choosing a repeated facade pattern. Browse all In-Lite wall and ceiling lights, or contact us with a photograph and dimensions for practical help.

Plan the complete installation

Add 2.1 VA per fitting and compare the In-Lite transformers and smart controls before ordering. Do not mix 12V and mains connection methods.

Choose the mounting height from the finished light pattern

Before fixing In-Lite EVO DOWN 12V Architectural Wall Light, test the proposed position against the final wall, doorway, path or seating layout. Mounting height changes both the spread on the surface and how visible the source feels to people nearby. Align repeated fittings carefully and plan the cable entry before drilling so the finished installation remains tidy.

For mains-powered versions, electrical work must follow the current installation instructions and UK requirements. For 12V versions, include the stated VA load in the transformer calculation and use the specified In-Lite connection system.

Matching design family

Continue the EVO appearance into paths and planting. These are separate 12V fittings and need an appropriate transformer even if your wall light is mains powered.

In-Lite EVO LOW 12V Architectural Path Light · In-Lite EVO 12V Architectural Path Light
