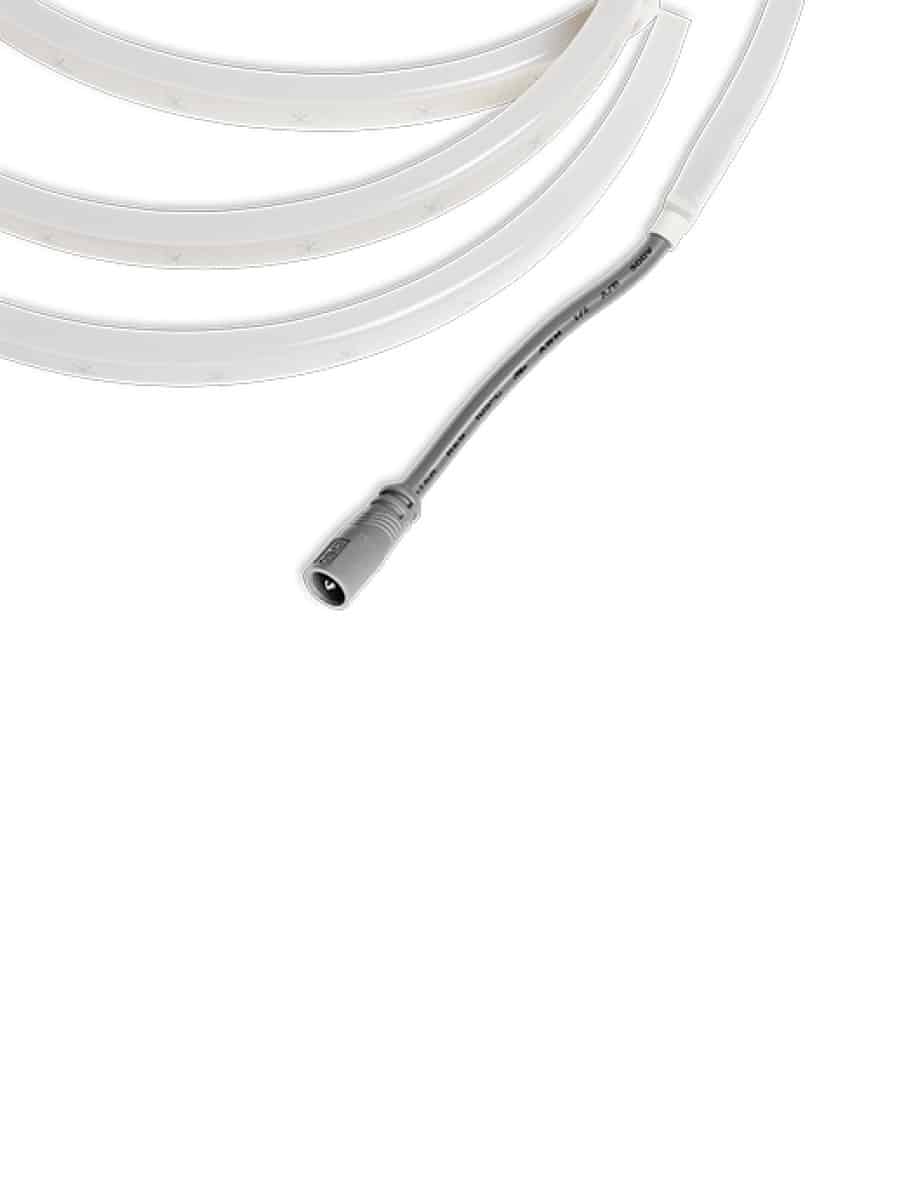

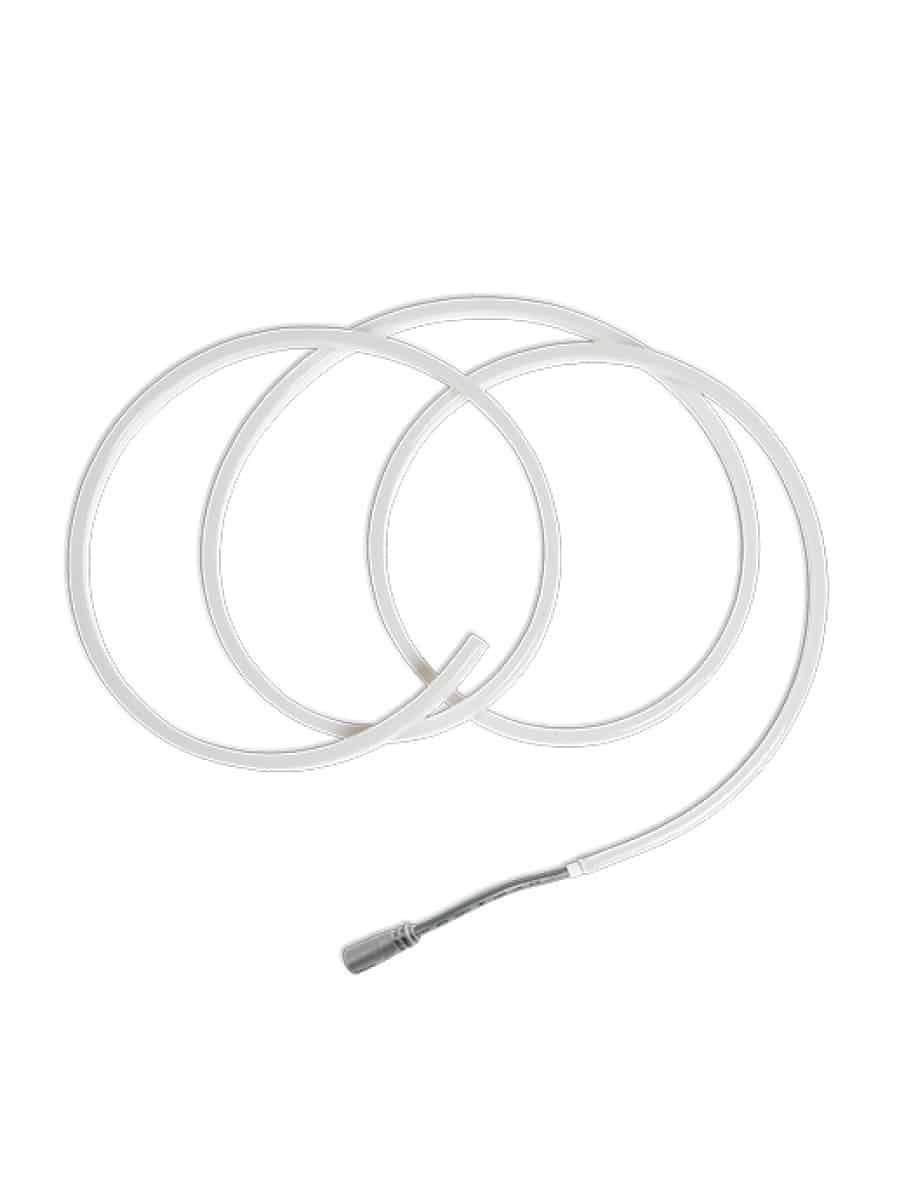

In-Lite SMART EVO FLEX TONE Replacement Strip – Without Driver
| Length | 1m, 2m, 5m |
|---|---|
| Brand | |
| Guarantee | 5 Years |
| IP Rating | IP67 |
| Colour Temperature | RGBW |
| Power Source | 12V Transformer |
| Light Type | Strip Light |
| Material | Polyurethane |
| Light Colour | RGBW |
| Beam Angle | 125° |
| Dimmable | Yes – In-Lite app |
| Package Type | Replacement strip without driver |
| Works With | SMART System |
| CRI | 85+ |
| Product form | Component or accessory |
Use colour to change the mood around a terrace, or select white light for a quieter evening setting. This is the replacement strip only. Keep a working compatible driver or purchase the matching driver separately.
Price range: £90.67 through £428.17 (inc VAT)
In-Lite SMART EVO FLEX TONE Replacement Strip – Without Driver

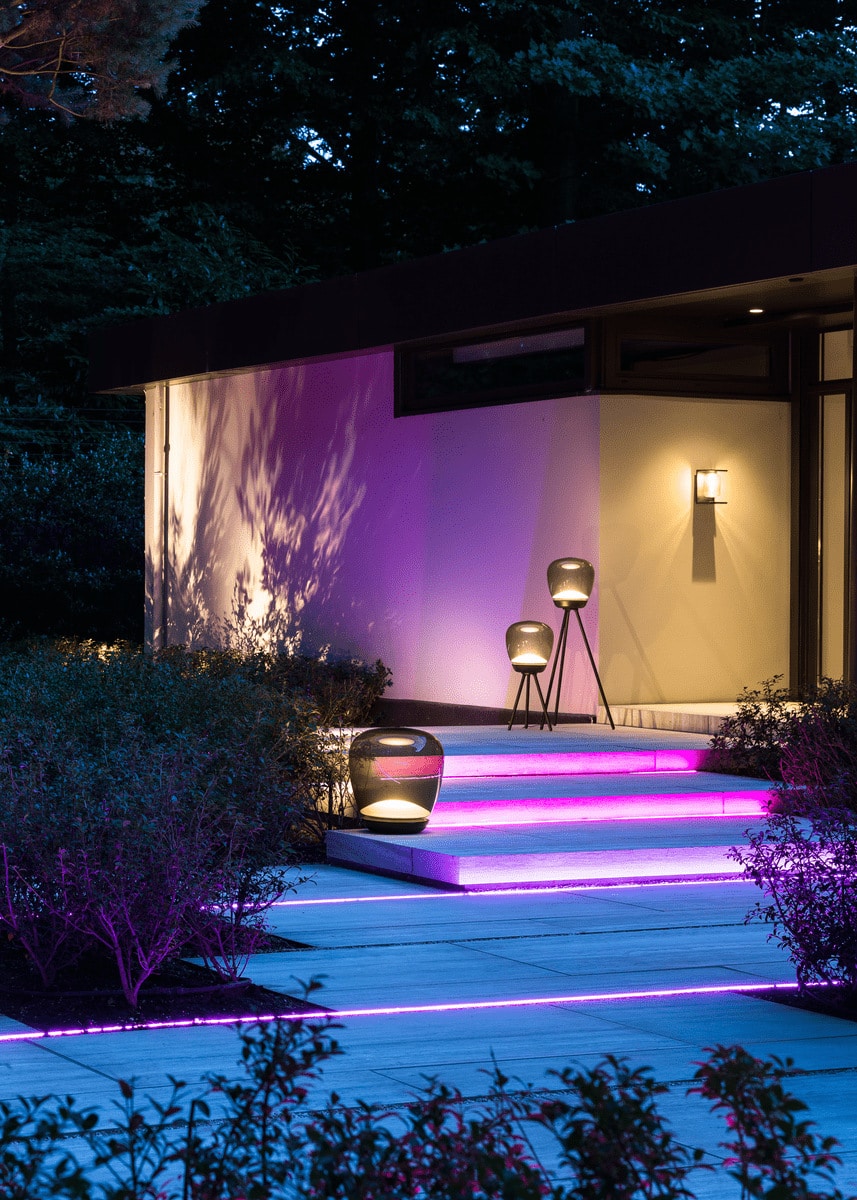

Colour and warm white light along garden edges
Use colour to change the mood around a terrace, or select white light for a quieter evening setting. This is the replacement strip only. Keep a working compatible driver or purchase the matching driver separately.
Choose the length and load
| 1m | 4.5VA / 2.5W |
|---|---|
| 2m | 7.5VA / 4.5W |
| 5m | 14.5VA / 10W |
Select 1m, 2m or 5m from the options. Allow the full published VA of the selected product when planning the circuit; do not size the transformer using watts alone.
What is supplied
One replacement strip in the selected length. The driver, transformer, main cable and mounting profiles are separate. Use the matching MINI WATERLOCK sealing arrangement whenever the installation instructions require it.
Power and control
TONE requires a compatible SMART HUB and 10/2 system cable. Use SMART DRIVER TONE 1 and the TONE extension connection. Check the current TONE manual for the permitted route rather than applying a general HUB cable length.
Plan the fixing before cutting
Use a straight profile beneath an edge, a suitable visible profile where the strip is exposed, or the flexible profile for curves. Clips and masonry fixings suit different substrates. Cut only at the marked 25mm positions and seal as instructed. Do not twist the strip or fold it sharply across the light emitting face.
Technical details
| Light | RGBW |
|---|---|
| Colour rendering | CRI 85+ |
| Protection | IP67 |
| Section | Approximately 6.5mm wide × 12mm high |
| Cutting interval | 25mm at marked positions |
| Bending radius | Approximately 30mm, follow the manual |
| Beam | 125° |

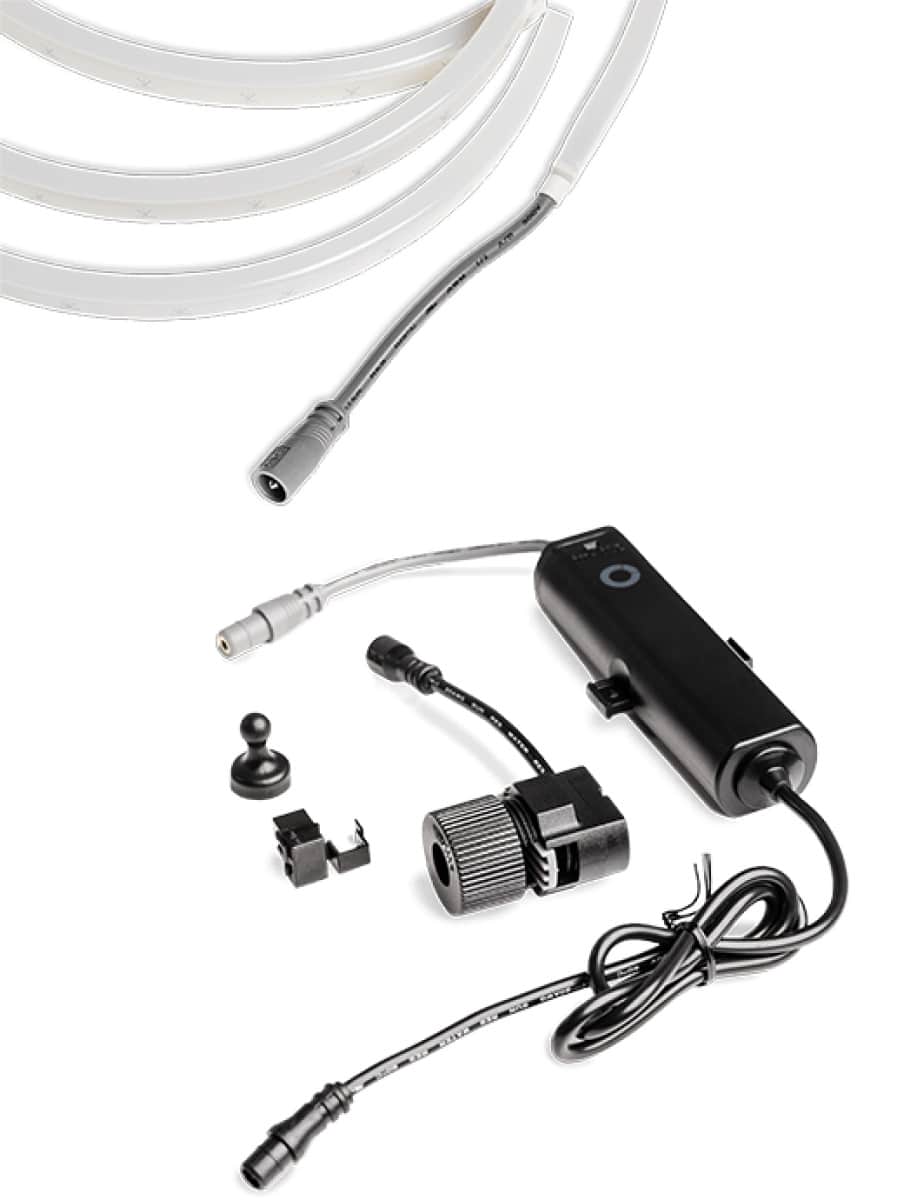

| Driver | SMART DRIVER TONE 1 |
Required driver and matching extension
TONE needs SMART DRIVER TONE 1 and its matching extension where required. It is not compatible with the standard warm white driver.
In-Lite SMART DRIVER TONE 1 for SMART EVO FLEX TONE · In-Lite SMART EXT CORD TONE 1 – 1m
