In-Lite BLINK 12V Wall Light

In-Lite BLINK 12V Wall Light

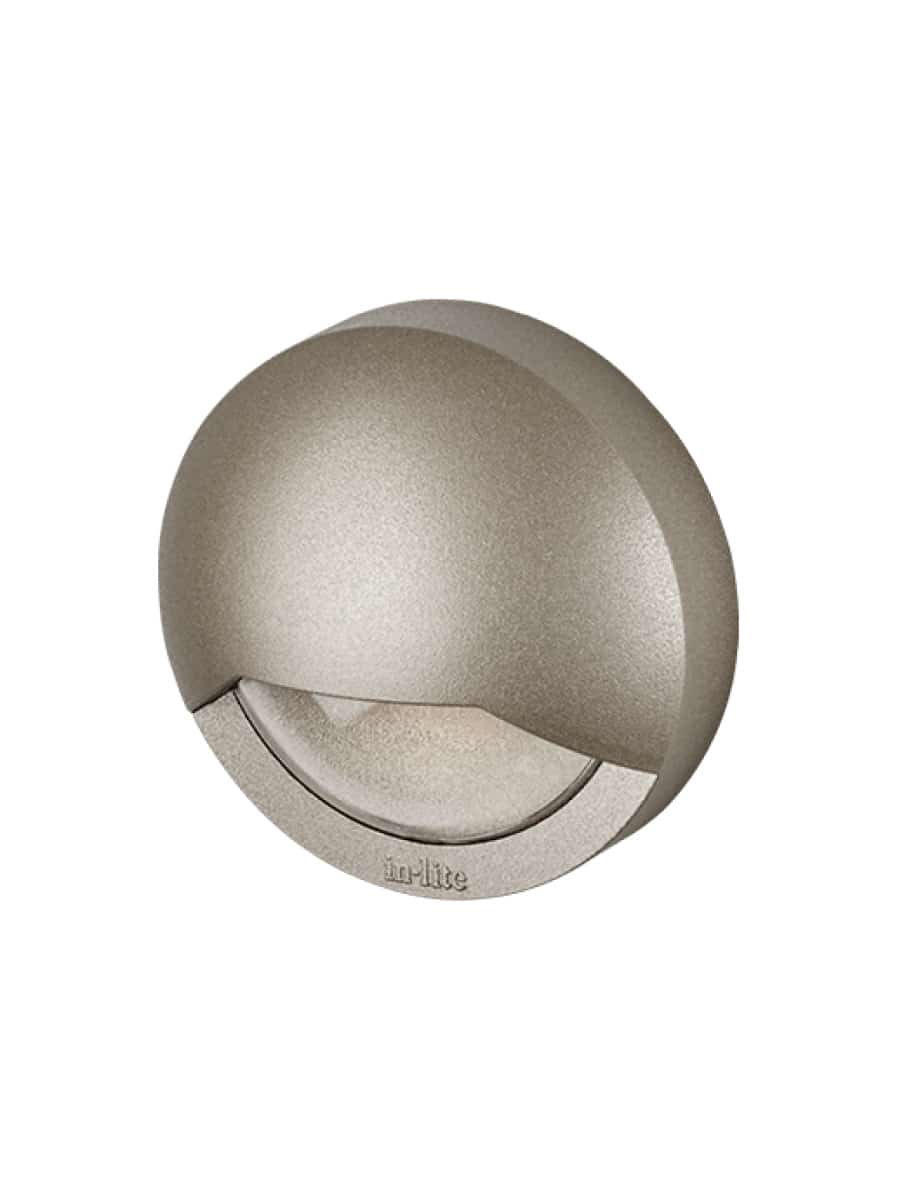

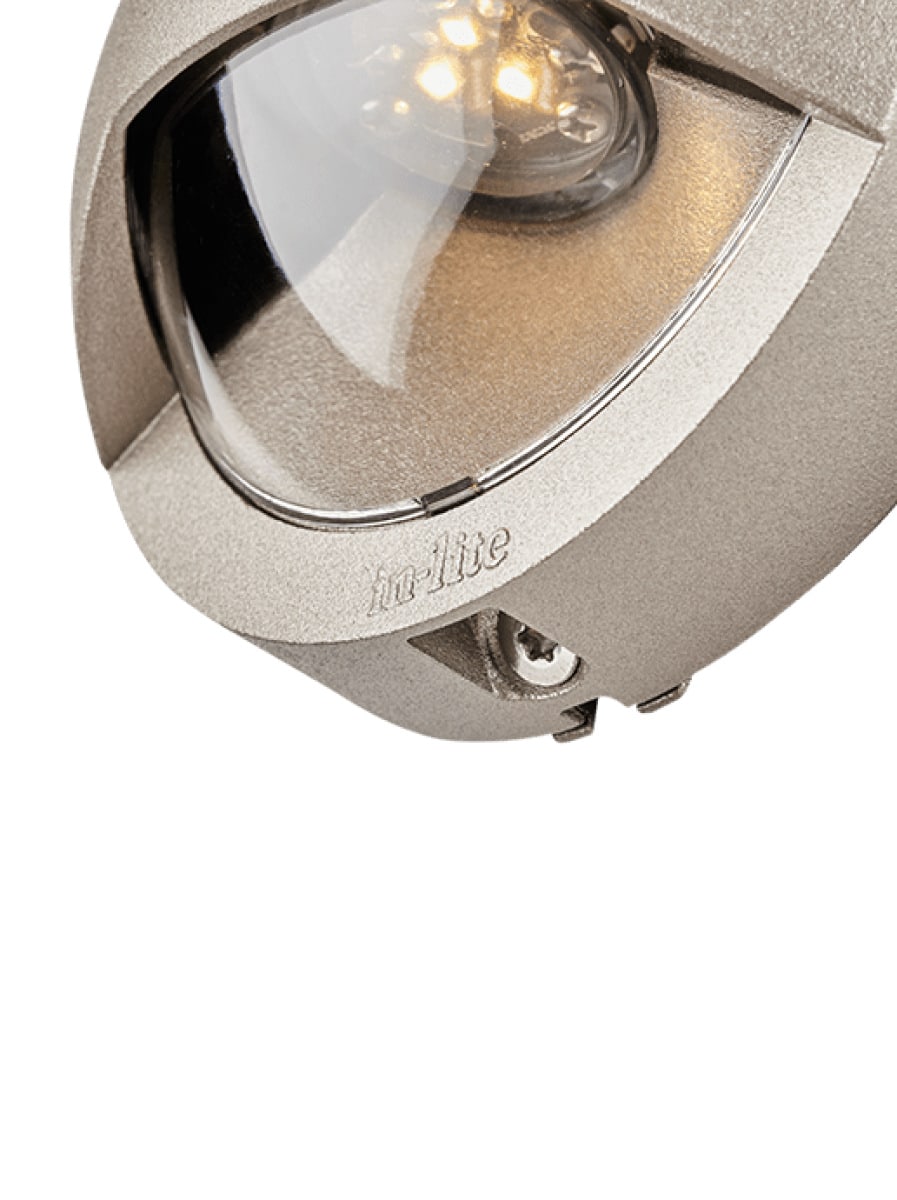

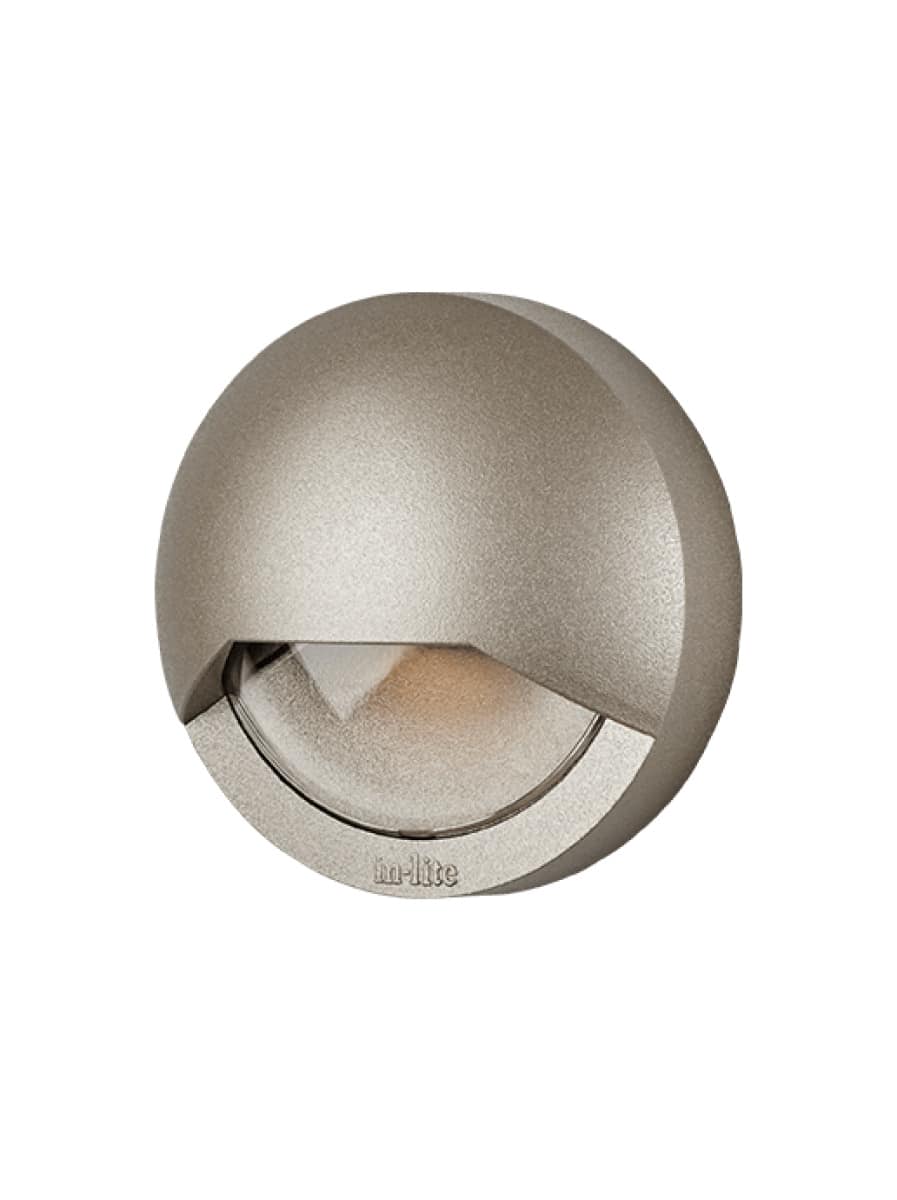

BLINK is a rounded compact wall light with a broad downward beam for paths, gates, terraces and garden walls. The curved housing softens its appearance compared with the more angular WEDGE and CUBID ranges.

The fitting is part of the In-Lite 12V system and is available in finishes that coordinate with the wider ACE, LIV and compact wall-light families.

The light effect on the wall

Its 88-degree distribution spreads light down the wall and across the immediate ground while shielding the LED from direct view.

Wall texture, mounting height and nearby surfaces all change the result. Hold a temporary light at the proposed position after dark before drilling every fixing point.

Where it works best

Use BLINK where a small rounded body suits the architecture and a comfortable pool of route lighting is needed.

Keep the fitting out of door swings and likely impact zones, and avoid mounting where irrigation or roof run-off will pour directly over it.

Installation and cable planning

Plan the system-cable route before finishing the wall or paving. The supplied EASY-LOCK connects the fitting to genuine In-Lite system cable. Use an accessible junction position and follow the current mounting template.

Verified technical information

• Light effect: broad downward wall wash
• Colour temperature: 3000K warm white
• Beam angle: 88°
• Transformer load: 1.7 VA
• Supply: In-Lite 12V low-voltage system
• Protection: IP55
• Material: coated aluminium
• Expected LED life: 25,000 hours
• Manufacturer guarantee: 5 years when correctly installed as an In-Lite system

Choosing between similar In-Lite wall lights

Choose BLINK for a rounded compact housing, WEDGE for a sharper angular form, CUBID for the smallest cube or ACE DOWN for a higher-output architectural wash.

Browse all In-Lite wall and ceiling lights or contact us with a wall photograph, dimensions and intended effect for practical help comparing the options.

Plan the complete In-Lite circuit

Add 1.7 VA for every fitting when sizing the transformer. Total the VA load on the whole route and leave sensible spare capacity for later additions.
