In-Lite WEDGE 12V Wall Light

In-Lite WEDGE 12V Wall Light

A wide downward wall wash In-Lite 12V wall light for entrances, paths, terraces and garden structures, available in coordinated finishes

WEDGE is a compact, sloping wall light that directs warm light down the wall and onto the ground immediately below. Its clean shape suits contemporary fences, garden rooms, low walls and entrances.

The fitting is part of the In-Lite 12V system and is available in finishes that coordinate with the wider ACE, LIV and compact wall-light families.

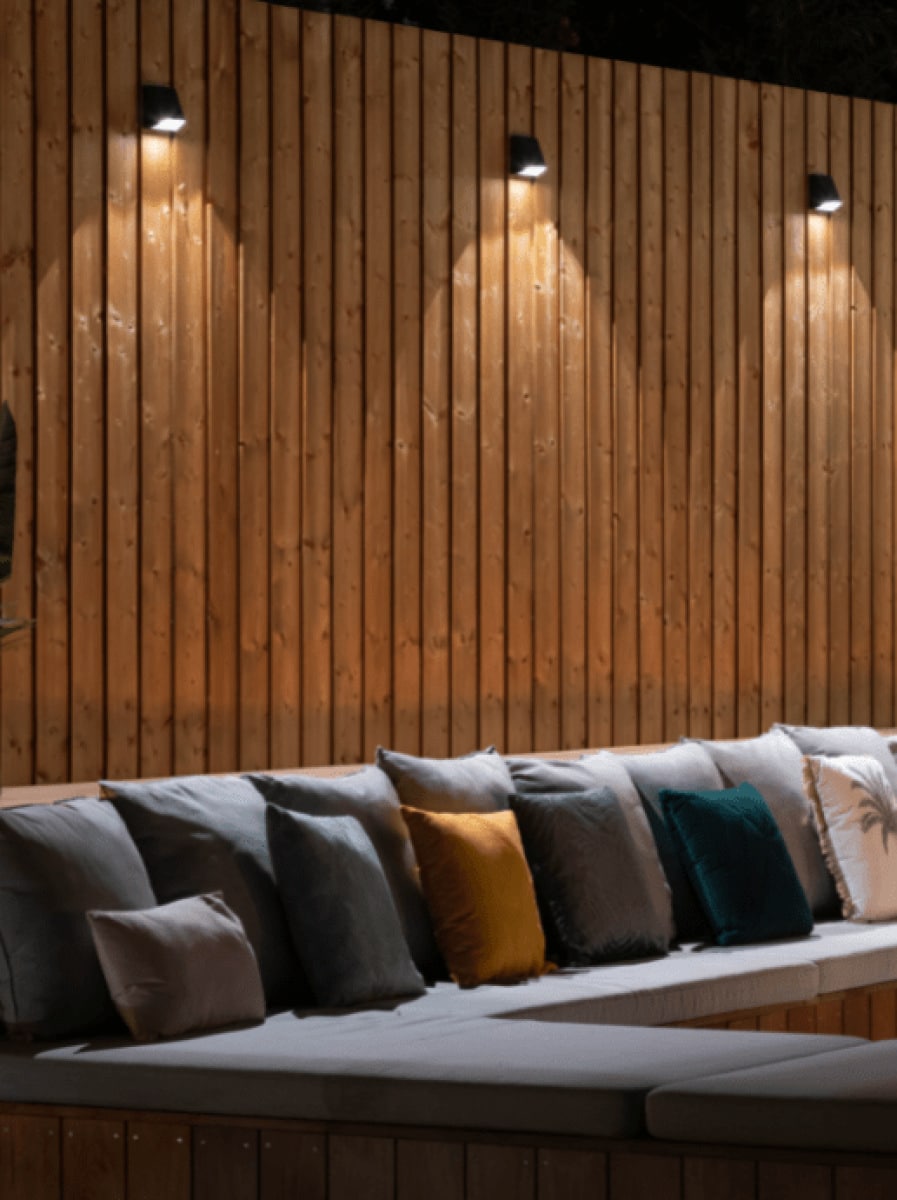

The light effect on the wall

An 88-degree downward spread produces a practical pool without lighting the sky. The fixture remains visually quiet by day and keeps the source shielded from normal viewing angles.

Wall texture, mounting height and nearby surfaces all change the result. Hold a temporary light at the proposed position after dark before drilling every fixing point.

Where it works best

Use WEDGE for path-side walls, gates, steps and terraces where a modest amount of directed light improves orientation.

Keep the fitting out of door swings and likely impact zones, and avoid mounting where irrigation or roof run-off will pour directly over it.

Installation and cable planning

Plan the system-cable route before finishing the wall or paving. The supplied EASY-LOCK connects the fitting to genuine In-Lite system cable. Use an accessible junction position and follow the current mounting template.

Technical information

• Light effect: wide downward wall wash
• Colour temperature: 2800K warm white

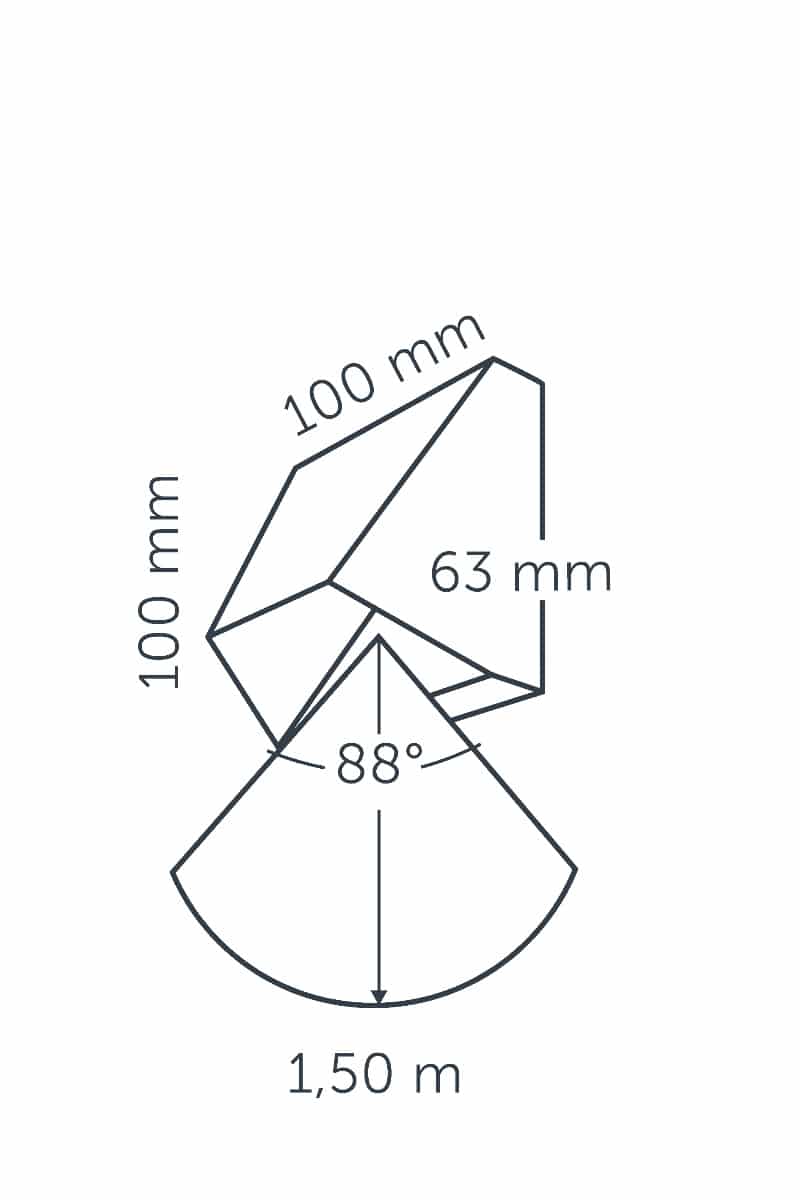

• Beam angle: 88°
• Transformer load: 1.6 VA
• Supply: In-Lite 12V low-voltage system
• Protection: IP55
• Material: coated aluminium
• Expected LED life: 25,000 hours
• Manufacturer guarantee: 5 years when correctly installed as an In-Lite system

Choosing between similar In-Lite wall lights

Choose WEDGE as the balanced compact option. MINI WEDGE is smaller and gentler; WEDGE SLIM has a longer, slimmer face; ACE DOWN is substantially brighter and more architectural.

Browse all In-Lite wall and ceiling lights or contact us with a wall photograph, dimensions and intended effect for practical help comparing the options.

Plan the complete In-Lite circuit

Add 1.6 VA for every fitting when sizing the transformer. Total the VA load on the whole route and leave sensible spare capacity for later additions.

Choose the mounting height from the finished light pattern

Before fixing In-Lite WEDGE 12V Wall Light, test the proposed position against the final wall, doorway, path or seating layout. Mounting height changes both the spread on the surface and how visible the source feels to people nearby. Align repeated fittings carefully and plan the cable entry before drilling so the finished installation remains tidy.

For mains-powered versions, electrical work must follow the current installation instructions and UK requirements. For 12V versions, include the stated VA load in the transformer calculation and use the specified In-Lite connection system.

Optional accessories

FIT can help level the documented fitting on an appropriate sloping mounting surface.

In-Lite FIT Wall-Light Mounting Plate
