Evolution Aqua Tempest Waste Valve Assembly

Evolution Aqua Tempest Waste Valve Assembly

A replacement drainage assembly for the original and upgraded Tempest filter

The Evolution Aqua Tempest Waste Valve Assembly is the replacement fitting used at the bottom of a Tempest filter to control the discharge of dirty water during cleaning. This is the upgraded assembly with a blue-handled double-union ball valve and a separate air-inlet valve. Evolution Aqua identifies the part as TEMPWSA and confirms that it can be fitted to both the newer Tempest and previous Tempest models.

Choose this assembly when you need to replace the complete drainage fitting or bring an older Tempest up to the current waste-valve design. It is a spare for the Evolution Aqua Tempest Filter, so you do not need to purchase another complete filter simply to replace this component. Check the location and appearance of your existing fitting before ordering, particularly if your installation has been modified.

What makes this the upgraded assembly?

The main water outlet uses a double-union ball valve. The broad blue handle gives you a clear operating point, while the unions form part of the serviceable valve construction. Evolution Aqua also explains that the handle can be used to adjust the valve seal tightness. Follow the manufacturer’s procedure for this adjustment: a stiff handle is a reason to inspect the valve, rather than apply increasing force to the fitting.

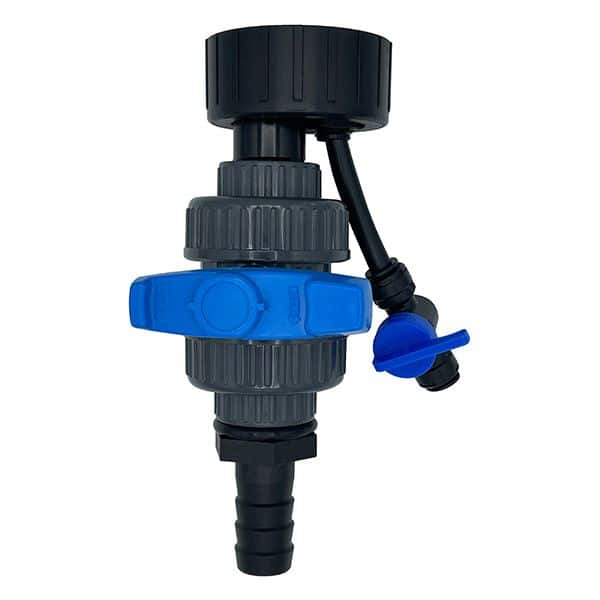

A separate small valve controls the air inlet. Keeping the water-discharge control and air-inlet control identifiable is useful when checking the cleaning arrangement on an older installation. The supplied photograph shows the assembly you are selecting, including the large upper connection, main valve, lower hosetail and small air line with its own blue control.

Compatibility and product identification

Brand	Evolution Aqua
Manufacturer reference	TEMPWSA
Application	Tempest filter waste outlet
Compatible filter generations	Original and upgraded Tempest models, as confirmed by Evolution Aqua
Main control	Double-union ball valve
Air control	Separate air-inlet valve

Compatibility with the Tempest does not establish compatibility with a Nexus, EazyPod, Surge or another manufacturer’s filter. Similar-looking waste fittings may have different connections or operating arrangements. Use the TEMPWSA reference when comparing parts. If the fitting you have removed differs from the photograph, compare the complete assembly and filter identification rather than choosing by handle colour alone.

How the waste assembly supports cleaning

During a Tempest cleaning cycle, dirty water leaves the vessel through the waste outlet. Evolution Aqua explains that air enters as the vessel empties, agitating the water and helping clean the K+Media. This is why the drainage path and air-inlet arrangement both matter: they work together as part of the filter’s cleaning process.

The replacement assembly restores the intended waste-control arrangement when that component needs replacing. It does not change the amount of media in your filter or increase its rated water flow. Follow the cleaning sequence in the manual supplied with your particular Tempest, including the positions of the filter inlet and outlet valves. Do not confuse those valves with the controls on the waste assembly.

Preparing to replace the fitting

Before removing a drainage component, stop the pump supplying the filter, isolate the filter using its inlet and outlet controls and drain it safely in accordance with the Tempest instructions. Arrange a suitable route for the waste water before loosening the assembly. Make sure you can reach the connection comfortably and that nearby hose or pipework will not pull against it while you work.

Inspect the sealing surfaces and the O-ring rather than assuming that every leak requires a complete replacement. Evolution Aqua’s troubleshooting advice specifically identifies an incorrectly seated or visibly damaged O-ring as a possible cause of a leaking waste assembly. A clean, correctly positioned seal is therefore an essential part of the fitting check. Consult the current instructions for your filter before reassembly and check the connection for leaks when returning it to service.

Choosing the right spare for the problem

If the body or operating parts of the waste assembly are damaged, a complete assembly gives you a defined replacement component to compare with the existing one. If the symptom is simply water around the upper connection, first establish where that water originates. A sealing problem, a damaged body and a leaking nearby hose connection are different faults; identifying the source helps avoid ordering a part that does not address the issue.

Similarly, slow draining should prompt an inspection of the waste route as well as the valve. Replacing a valve will not remove a restriction elsewhere in the drainage hose. Keep the outlet accessible for routine checks and avoid arranging stored equipment where it prevents you from operating the handles or inspecting the joint.

Before you order

Confirm that your filter is an Evolution Aqua Tempest, compare the pictured assembly with your current waste fitting and note any alterations to its connections. This listing is for the waste-valve assembly; the complete filter vessel, K+Media, mounting brackets and main filter inlet and outlet valves are separate items. If you are planning a complete installation instead of a repair, see our pond filters range and the linked Tempest product page.

For help identifying the part, provide the filter model and clear photographs of the complete waste fitting and its upper connection. That gives us more useful information than a photograph of the blue handle alone and helps distinguish a straightforward replacement from an installation that needs additional fittings.
