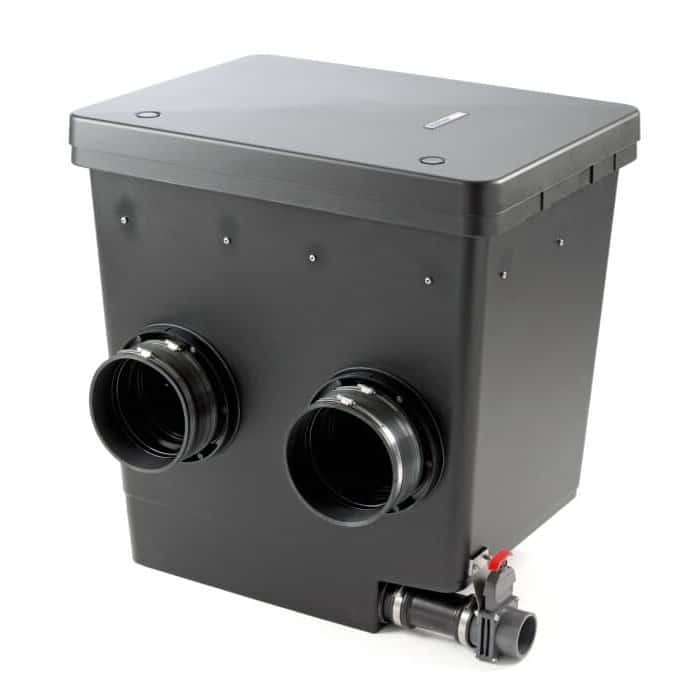

Oase ProfiClear Premium Individual Module L

Oase ProfiClear Premium Individual Module L

The Oase ProfiClear Premium Individual Module L Filter is ideal for both professional and new pond keepers too, giving you the best water quality possible through sophisticated technology.

Premium Gravity filters are modular in design, meaning they can be connected together in separate ways in order to create a tailored system to suit virtually any pond size.

The Individual Module allows for easy installation of Aquamax Gravity Eco filter pumps or Bitron Gravity UVC products.

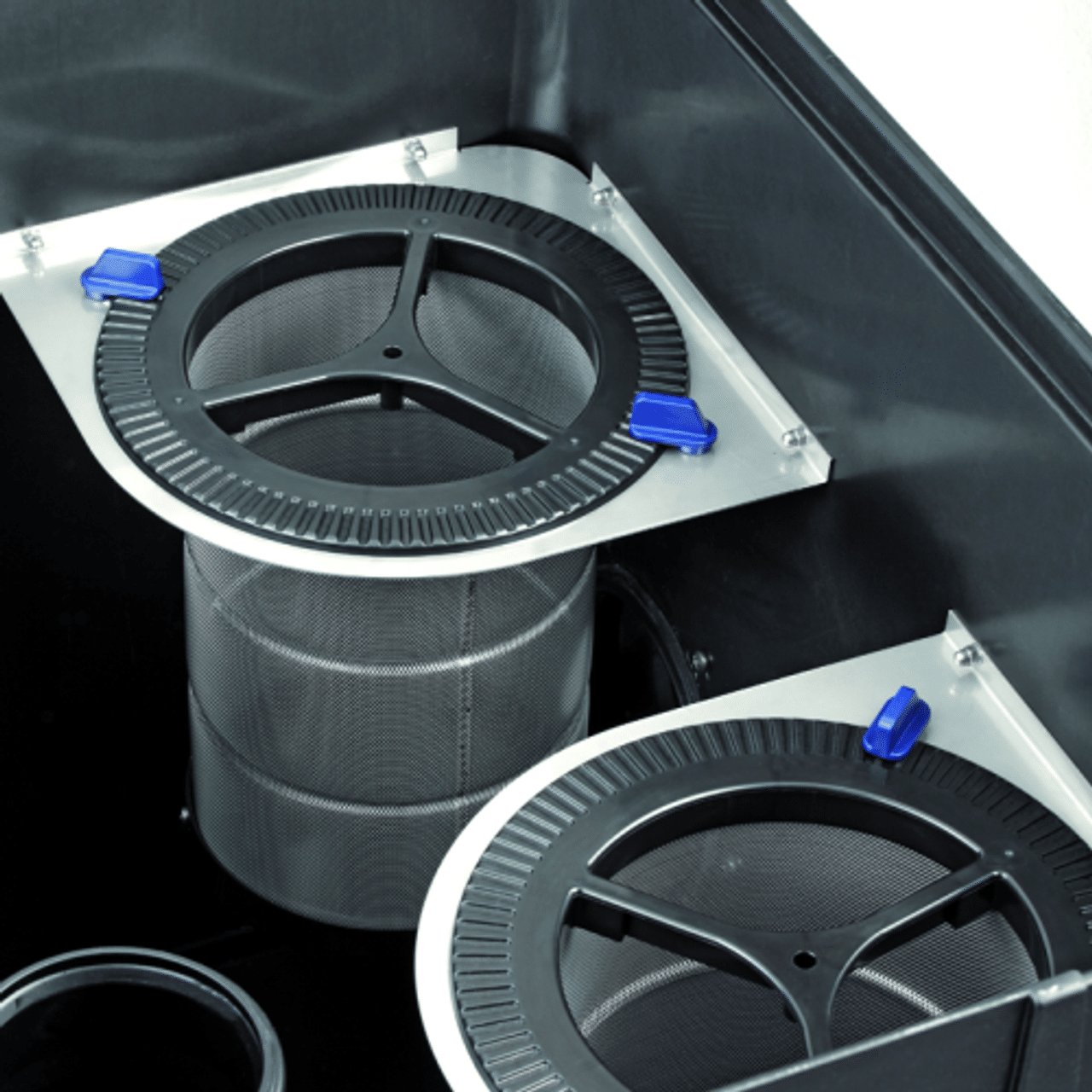

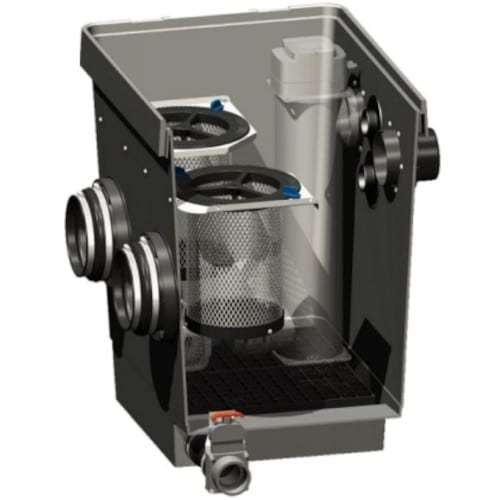

Pre-installed within the Filter box are stainless steel baskets for addition extra filter materials from A (active carbon) to Z (Zeolite).

DN100 pipework allows for multiple installation configurations to suit your needs with minimal pressure loss.

ProfiClear Individual Module Features:

Max Flow Rate of up to 25,000 Litres Per Hour
Minimum Flow Rate of 10,000 Litres Per Hour
Includes 2x 8 Litre Stainless Steel Baskets for Filter Material
Typically used as part of a Pumping or Gravity Fed System

Characteristics:

• Mature, professional technology with more than three years of development time

• Space saving pump and UVC chamber for

• Maximum flexibility in the connection through 2 x DN110 and 2″ transitions

• To increase the filter capacity, it is possible to fill the individual baskets in the flow area with additional filter media – up to 8 litres fill volume

• Integrated bottom drain with high quality, finely engineered slide valve

• Flexible adaptation of the filter system to individual requirements (individual module)

• Innovative and reliable product »Made in Germany



The Full Oase Proficlear Premium L Gravity Fed Filter System Comprises of:

Oase ProfiClear Premium DF-L Gravity Fed OC

Oase ProfiClear Premium Standing Bed Module L

Oase ProfiClear Premium Moving Bed Module L

Oase ProfiClear Premium Individual Module L

2x Oase Bitron Premium 60w UVC

2x Oase Aquaamx Gravity Eco 15000



The Full Oase Proficlear Premium L Pump Fed Filter System Comprises of:

Oase ProfiClear Premium DF-L Pump Fed OC

Oase ProfiClear Premium Standing Bed Module L

Oase ProfiClear Premium Moving Bed Module L

Oase ProfiClear Premium Discharge Module L

Oase Bitron Premium 120w UVC

Oase Aquamax Eco Expert 26000



Technical Info:

Dimensions (L x W x H)	mm	830 x 600 x 820
Net weight	kg	37.00
Limited Warranty	Years	2 + 1
Material		GRP Duroplast/stainless steel
Number of inlets	Units	2
Inlet connections	mm	180
Inlet connections		2 x 185 mm
Number of outlets	Units	4
Connections, outlet	mm	50
Outlet connections		2 x 2″ / 2 x DN 110
Sludge discharge connections		DN 75
Connection to		AquaMax Eco Gravity, Bitron Premium
Min. flow rate	l/h	10000
Max. flow rate	l/h	33000
Installation height above water level	cm	11.5
Type of use		Gravity fed system, Pump fed system
Other		Pollutant discharge incl. slide valve
