Oase BioSmart 16000 Pond Filter
| Brand |
|---|
The Oase BioSmart UVC 16000 is a flow through pond filter with integrated 11W UVC clarifier designed for ponds up to 16,000 litres. It provides mechanical and biological filtration to remove debris and support beneficial bacteria for clear pond water. This standalone filter unit can be paired with a suitable pond pump depending on pond size and filtration requirements.
£189.99 (inc VAT)

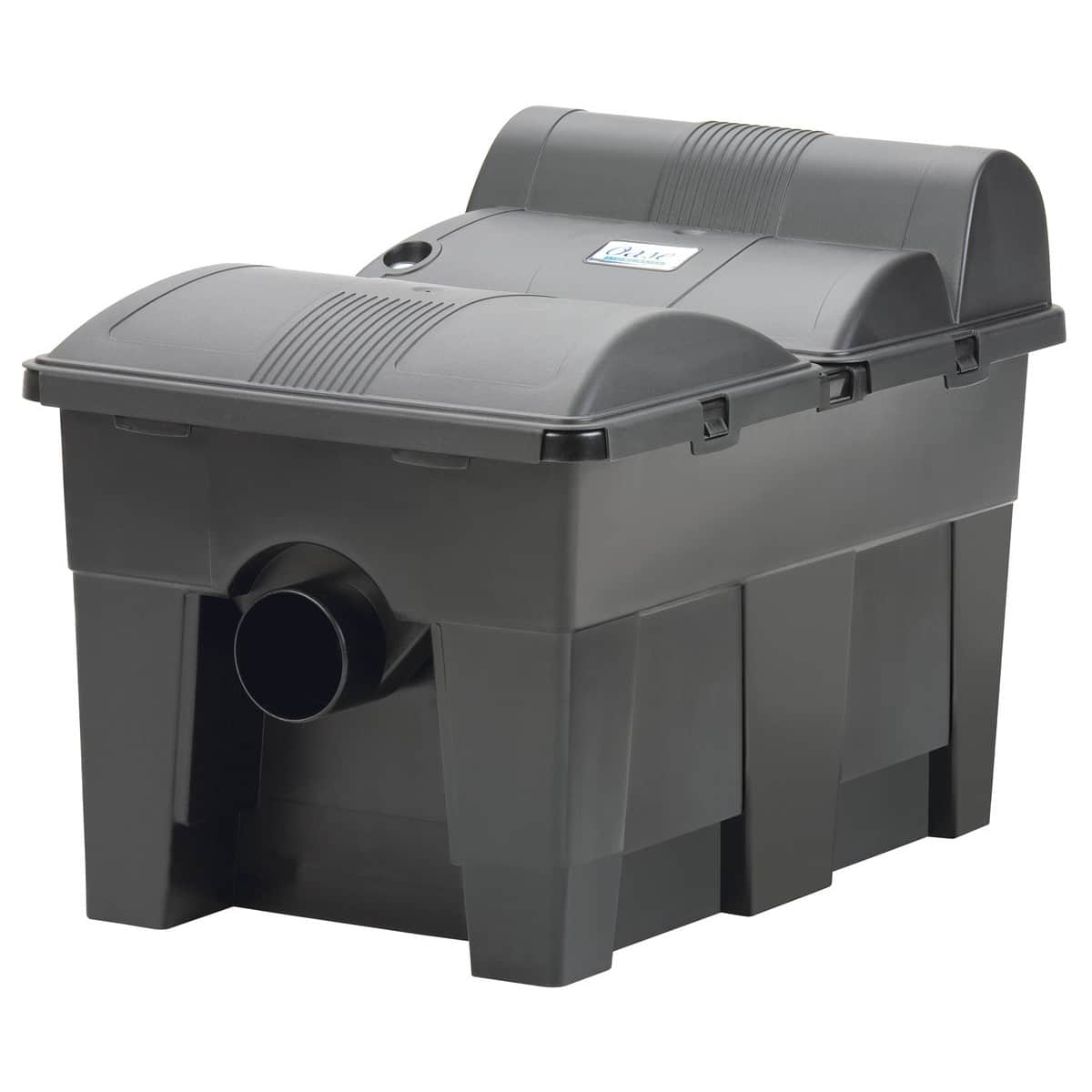

Oase BioSmart UVC 16000 Flow Through Pond Filter
Flow Through Pond Filter with Integrated UVC Clarifier
The Oase BioSmart UVC 16000 is a flow through pond filter designed to provide mechanical and biological filtration for garden ponds up to 16,000 litres. Featuring an integrated UVC clarifier, the system helps control green water algae while supporting beneficial bacteria that maintain healthy pond water.
Unlike the BioSmart Set kits, the BioSmart UVC 16000 is supplied as the filter unit only, allowing it to be paired with a suitable pond pump depending on the size and requirements of the pond.
How the BioSmart UVC 16000 Works
Water from the pond is pumped through the integrated UVC clarifier before entering the filter chamber. The ultraviolet light helps eliminate suspended algae and harmful microorganisms that cause green water, improving overall water clarity.
The water then flows through six filter foams inside the filter box. These foams remove suspended debris while also providing a large surface area for beneficial bacteria to colonise. These bacteria break down waste products such as ammonia and nitrite produced by fish waste and decaying organic material.
The BioSmart filter includes several maintenance features designed to simplify cleaning. External cleaning handles allow the filter foams to be compressed and rinsed without removing them from the filter box, while a built in pollutant level indicator shows when maintenance is required.
An integrated sludge drain at the bottom of the filter allows debris and dirty water to be discharged easily. The filter lid also includes a temperature display which allows pond owners to monitor water temperature at a glance.
The filter housing can also be partially buried in the ground, helping it blend more naturally into the surrounding landscape.
Pond Size Recommendations
The filtration capacity of the BioSmart UVC 16000 varies depending on fish stocking levels.
Natural ponds without fish can be filtered effectively up to approximately 16,000 litres.
Lightly stocked ponds or goldfish ponds are typically suitable up to around 8,000 litres.
Koi ponds require significantly more filtration and are recommended up to approximately 4,000 litres.
Selecting a suitable pump and matching the filtration system correctly to pond size helps ensure clear and healthy water.
Key Features
- Flow through pond filter with integrated UVC clarifier
- Suitable for ponds up to 16,000 litres depending on stocking levels
- Integrated 11W UVC unit for green water control
- Mechanical and biological filtration using six filter foams
- External cleaning handles for easy foam cleaning
- Built in pollutant level indicator
- Bottom sludge drain for quick waste removal
- Integrated temperature display in the filter lid
- Filter housing can be partially buried for discreet installation
Technical Specifications
- Maximum pond size (no fish): 16,000 litres
- Maximum pond size (goldfish): 8,000 litres
- Maximum pond size (koi): 4,000 litres
- Maximum flow rate: 5,500 litres per hour
- Filter dimensions: 380 x 560 x 410 mm
- Filter media: 6 filter foams (3 coarse blue, 3 fine red)
- UVC power: 11W
- Total power consumption: 14W
- Inlet conConnections: 19mm, 25mm, 32mm, 38mm
- Outlet connection: DN 75
Technical information
| Dimensions filter (L x W x H) | mm | 382 x 555 x 408 |
| Net weight | kg | 5.50 |
| Limited Warranty | Years | 3 |
| Number of filter foams, total | Units | 4 |
| Number of blue filter foams | Units | 2 |
| Number of red filter foams | Units | 1 |
| Number of green filter foams | Units | 1 |
| Temperature display | Yes | |
| Inlet connections | mm | 25 / 32 / 38 |
| Inlet connections | 1″, 1 ¼”, 1 ½” | |
| Outlet connections | DN 75 | |
| Sludge discharge connections | DN 50 | |
| Max. flow rate | l/h | 5500 |
| Suitable for ponds up to max. | m3 | 18.0 |
| Suitable for ponds with fish stock | m3 | 9.0 |
| Suitable for ponds with koi | m3 | 4.5 |
UV sizing and maintenance notes
Oase BioSmart 16000 Pond Filter should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.
- Replace UV lamps as part of routine seasonal maintenance.
- Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
- Match the UV to the pump and filter rather than installing it in isolation.
- Allow safe access for lamp changes and winter maintenance.
Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
