Oase Vitronic 24 W UVC
| Brand | |
|---|---|
| UV Type | Pond UV Clarifier |
| UV Wattage | 24 W |
| Compatible Spare Category | UV Spares |
The Oase Vitronic 24 W UVC is a compact ultraviolet pond clarifier designed to eliminate green water algae and improve pond water clarity. Suitable for ponds up to 25,000 litres, it connects easily to most pond pumps and filtration systems. This inline UV clarifier helps maintain clear pond water by destroying suspended algae and harmful microorganisms.
£123.49 (inc VAT)

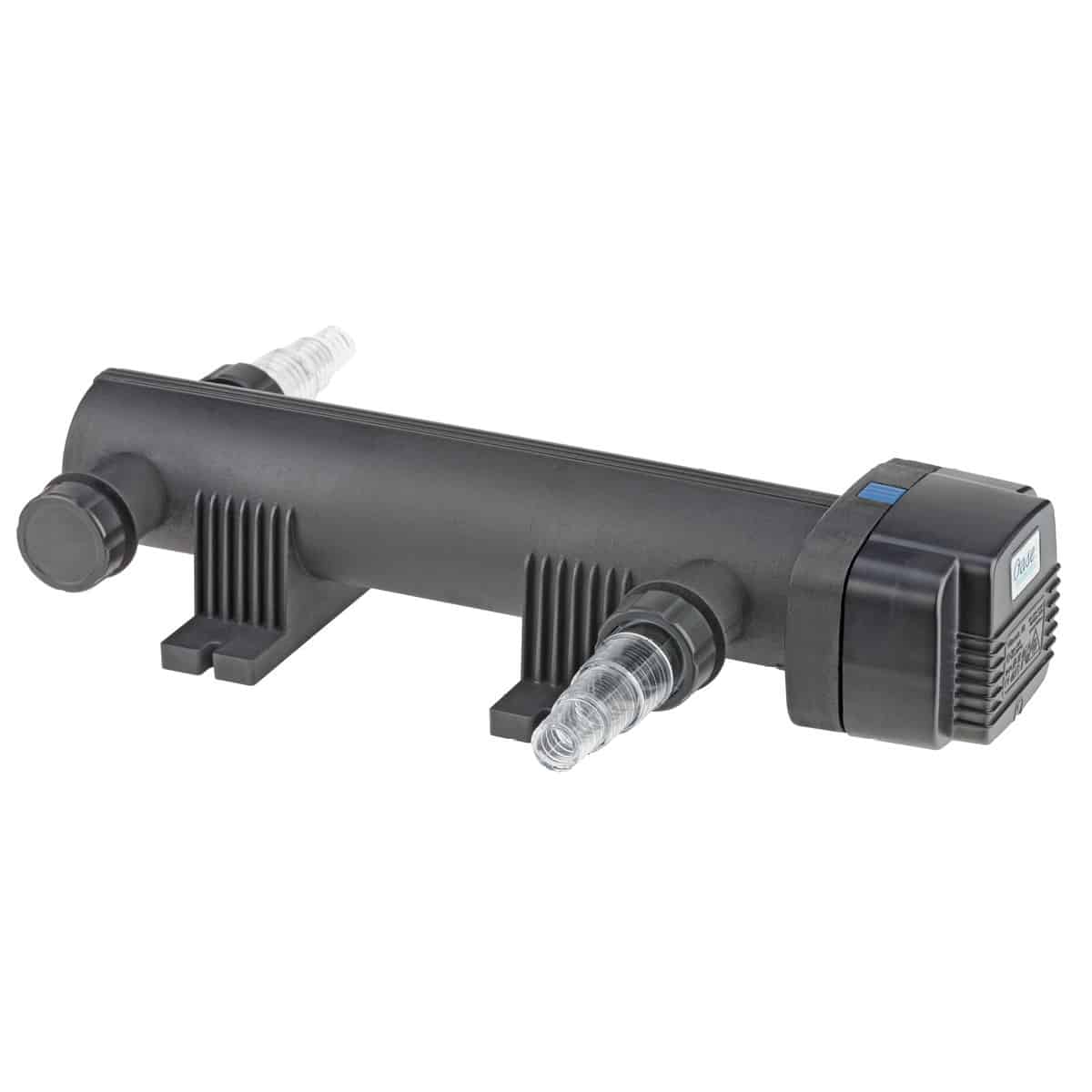

Oase Vitronic 24 W UVC Pond Clarifier
Powerful UV Clarifier for Clear and Healthy Pond Water
The Oase Vitronic 24 W UVC is a compact ultraviolet pond clarifier designed to eliminate green water caused by suspended algae and improve overall pond water clarity. As pond water passes through the unit, it is exposed to ultraviolet light which disrupts the cellular structure of single celled algae, bacteria and other harmful microorganisms responsible for cloudy or green pond water.
Designed for inline dry installation, the Vitronic 24 W can be easily connected to most pond pumps and filtration systems. The supplied stepped hose connectors allow the clarifier to work with several hose sizes, making installation simple for a wide range of pond setups.
How the Oase Vitronic 24 W UVC Works
Water from the pond is pumped through the UVC chamber where it flows past the ultraviolet lamp. The UV light damages the cells of suspended algae, causing them to clump together so they can then be removed by the pond filtration system.
This process helps restore clear pond water while also reducing harmful microorganisms and improving overall water quality. Clearer water allows sunlight to reach deeper areas of the pond and helps create a healthier environment for fish and beneficial bacteria.
The Vitronic 24 W UVC includes several features designed to simplify maintenance and operation. A visual inspection window allows you to confirm that the lamp is operating, while the quick release ballast unit allows the lamp to be replaced quickly and safely.
For additional safety, the unit includes a built in switch which automatically shuts off the UV lamp when the housing is opened. This prevents accidental exposure to ultraviolet light during maintenance.
The Vitronic UVC range is compatible with many pond filters including the Oase BioSmart filter series, making it a practical upgrade for ponds struggling with green water.
Pond Size Recommendations
Natural ponds without fish can be treated up to approximately 25,000 litres.
Goldfish ponds are typically suitable up to around 12,000 litres.
Koi ponds require stronger filtration and are recommended up to approximately 6,000 litres.
Correct pump flow rate and filtration are important to ensure effective UV clarification.
Key Features
- 24 watt ultraviolet clarifier for controlling green water algae
- Helps reduce harmful bacteria and microorganisms in pond water
- Suitable for ponds up to 25,000 litres depending on stocking levels
- Inline installation for easy connection to pond pumps and filters
- Visual inspection window to confirm lamp operation
- Quick release ballast unit for simple lamp replacement
- Built in safety switch prevents lamp operation when opened
- Compatible with Oase BioSmart filtration systems
- Stepped hose connectors for multiple hose sizes
Technical Specifications
- Dimensions 529 x 186 x 130 mm
- UV lamp power 24 watts
- Maximum pond size 25,000 litres without fish
- Maximum pond size 12,000 litres with goldfish
- Maximum pond size 6,000 litres with koi
- Maximum flow rate 4,500 litres per hour
- Hose connections 25 mm
- Hose connections 32 mm
- Hose connections 38 mm
- Power cable length 5 metres
Technical information
| Dimensions (L × W × H) | mm | 529 × 186 × 130 |
|---|---|---|
| Rated voltage | 220 – 240 V / 50/60 Hz | |
| Power consumption | W | 24 |
| Power cable length | m | 5.00 |
| Net weight | kg | 2.21 |
| Guarantee | Years | 2 |
| UVC power | W | 24 |
| Temperature display | No | |
| UVC operating hours meter | No | |
| Function check | Visual | |
| Number of inlets | Units | 1 |
| Inlet connections | mm | 25 / 32 / 38 |
| Inlet connections | 1″, 1 ¼”, 1 ½” | |
| Number of outlets | Units | 2 |
| Connections, outlet | mm | 25 / 32 / 38 |
| Outlet connections | 1″, 1 ¼”, 1 ½” | |
| Max. flow rate | l/h | 4500 |
| Max. operating pressure | bar | 0.6 |
| Suitable for ponds up to max. | m3 | 25.0 |
| Suitable for ponds with fish stock | m3 | 12.5 |
| Suitable for ponds with koi | m3 | 6.5 |
| Connection to | BioSmart 18000/36000, BioTec ScreenMatic2 40 – 60000 |
UV sizing and maintenance notes
Oase Vitronic 24 W UVC should be matched to the pond volume, flow rate and water clarity problem you are trying to solve. UV clarification works best when water passes the lamp at a suitable speed and the quartz sleeve is kept clean. If the flow is too fast, contact time can be reduced. If the lamp is old or the quartz sleeve is dirty, performance can drop even when the unit still appears to be switched on.
- Replace UV lamps as part of routine seasonal maintenance.
- Clean or inspect the quartz sleeve when water clarity starts to deteriorate.
- Match the UV to the pump and filter rather than installing it in isolation.
- Allow safe access for lamp changes and winter maintenance.
Good UV performance also depends on mechanical filtration. Removing fine debris before the UV helps the lamp work on green water algae more effectively.
Helpful links and compatible products
Use these links to plan the rest of the system around this product. The right pump, pipework, UV, air supply, media or spares will make the installation easier to set up, maintain and service.
- View the full Oase range
- Browse pond UV clarifiers

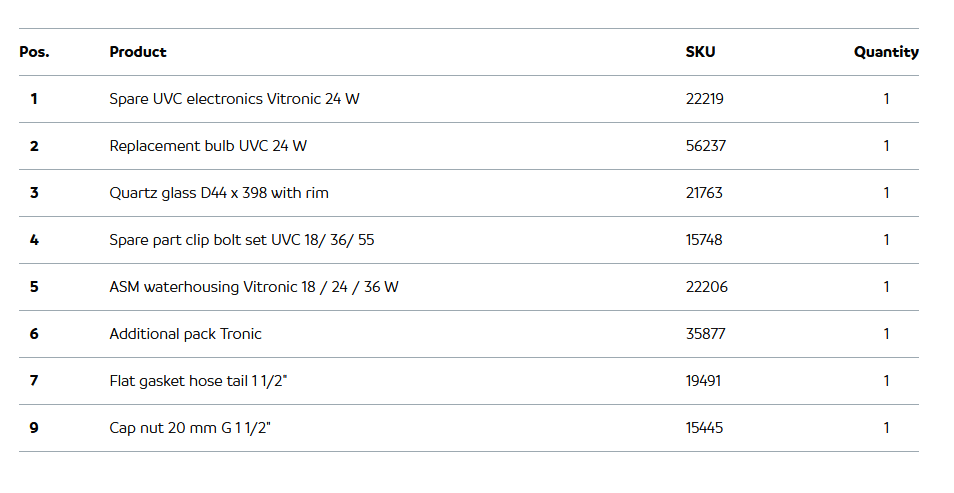

- Replacement UV bulbs and quartz sleeves
- Pond filters
- Pond pumps
- Standard flexible pond hose
- Heavy duty flexible pond hose
More useful ranges and guides
These related ranges and guides may help you compare options, choose the right accessories and plan the full pond system rather than viewing this product in isolation.
Reviews
There are no reviews yet.
