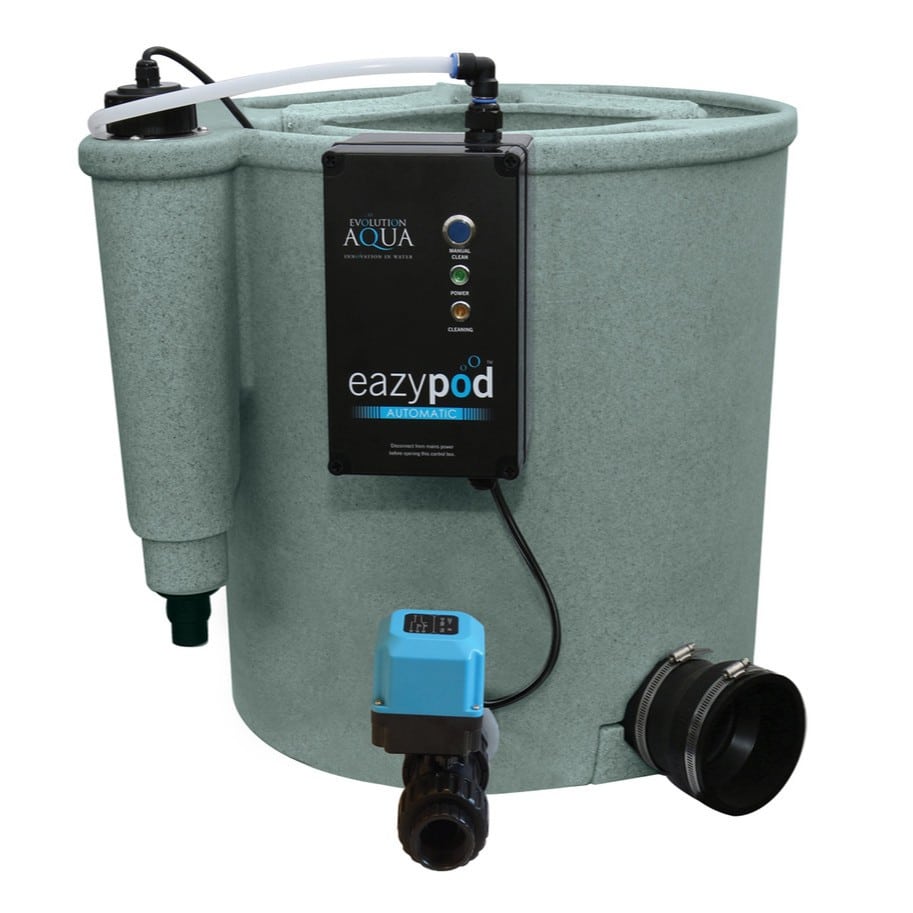

Evolution Aqua EazyPod Automatic UV – Green

Evolution Aqua EazyPod Automatic UV Green

Fully Automated Self Cleaning Pond Filtration with Integrated UV

The Evolution Aqua EazyPod Automatic UV Green is a fully automated mechanical and biological filtration system designed for pond owners who want high performance water clarity with minimal hands on maintenance. Built around the trusted EazyPod static K1 system, this version adds an integrated control box, automatic waste valve and built in 18W UV clarifier.

As a result, it removes solid waste, supports stable biological filtration and controls green water automatically. Designed for garden ponds up to 20000 litres and koi ponds up to 10000 litres, it offers dependable filtration in a compact, easy to manage unit.

Because the cleaning cycle runs on an adjustable timer, the system continues operating efficiently even when you are away from home.

How the Evolution Aqua EazyPod Automatic UV Green Works

First, pond water enters the outer chamber where heavier debris settles naturally at the base. This reduces the load on the internal filtration chamber.

Next, water passes through a stainless steel grill that captures larger suspended solids before entering the central chamber.

Inside the chamber, 18 litres of static K1 media provide dual stage filtration:

• Mechanical filtration by trapping fine solids
• Biological filtration by supporting nitrifying bacteria that convert ammonia and nitrite

At the same time, the integrated 18W UV clarifier neutralises algae spores and reduces green water.

When the programmed cleaning cycle begins, the control box automatically opens the waste valve and drains contaminated water. Immediately afterwards, the internal air pump agitates the K1 media, dislodges trapped debris and flushes waste out through the outlet. Once complete, the system automatically returns to normal filtration mode.

This model is designed for pump fed installations.

Key Features

• Fully automated self cleaning pond filter with programmable timer
• Integrated 18W UV clarifier for green water control
• 18 litres of static K1 media for mechanical and biological filtration
• Automatic waste valve for controlled sludge discharge
• Built in air pump located inside control box
• Adjustable cleaning frequency to suit pond stocking levels
• Compact footprint suitable for smaller koi and garden ponds
• Pump fed installation design
• Durable rotationally moulded construction for outdoor use
• Granite green finish for natural garden blending

Technical information

• Maximum garden pond size: 20000 litres
• Maximum koi pond size: 10000 litres
• Maximum garden pond flow rate: 10000 litres per hour
• Maximum koi pond flow rate: 5000 litres per hour
• K1 media included: 18 litres
• UV bulb: 18W PL L
• Air pump: Integrated inside control box
• Installation type: Pump fed
• Colour: Granite Green
• Inlet: 1.5 inch hosetail
• Waste outlet: Automated valve system
• Dimensions: Diameter 520 mm, Height 585 mm

Practical setup advice

Before ordering, think about how this product fits into the full pond setup. Compatibility, maintenance access, pipe or hose size and future servicing are often just as important as the headline specification. A product that is technically suitable can still disappoint if it is installed with restricted flow, poor access or the wrong supporting equipment.

Where possible, plan the main product and the accessories together. This makes installation neater, maintenance easier and the final system more reliable over time.

Before you order

Check the product size, connection details, access requirements and the equipment it will be used with. On ponds, the surrounding system often decides how well the product performs. Suitable pump flow, clean filters, correctly sized hose or pipework, good access for servicing and realistic maintenance all help the product work as intended.

Maintenance and compatibility checks

It is worth checking the supporting parts at the same time as the main product. Hose size, pressure pipe, valves, unions, UV units, filter inlets, air manifolds, spares and cleaning access can all affect how well the final system works. A correctly matched installation usually performs better and is easier to maintain than one built from parts chosen separately.

Aeration setup notes

Evolution Aqua EazyPod Automatic UV – Green should be chosen as part of the complete air system, not just by litres per minute. Airline length, airline bore, diffuser depth, manifold taps and back pressure all affect the real airflow that reaches the pond or filter. A well matched aeration system runs more quietly, puts less strain on the pump and gives more dependable oxygen support.

• Use suitable airline size for the pump output and distance involved.
• Keep the air pump dry, ventilated and protected from flooding.
• Spread airflow across multiple diffusers on larger ponds where possible.
• Check diaphragms, filters and diffusers during routine servicing.

For koi ponds, moving bed filters and warm weather aeration, consistent airflow is often more useful than simply oversizing the pump. Balanced diffuser placement gives better circulation and helps avoid stagnant areas.
