A lower cost central aeration layout for a shallow, open pond

This layout concentrates four diffuser discs on one station. It suits an open pond where one carefully chosen aeration position makes more sense than several separate air lines. The ETD200 provides a lower purchase price and lower rated power consumption than the ET200 in the equivalent central kit, while retaining the same DSW4 layout and weighted airline choices.

Compare the layouts in our large pond and lake aeration kit guide. The right choice depends on the shape and depth of the water, the oxygen demand and the route from the pump to each diffuser, as well as the price.

Why choose this diffuser layout?

A central station keeps installation straightforward: there is one underwater air line to route and one station to position. The rising bubble plume encourages water movement around that position. It is less suitable where islands, narrow connecting channels or separate bays leave areas isolated from the main circulation. For those shapes, consider distributing the same four discs across two or four stations.

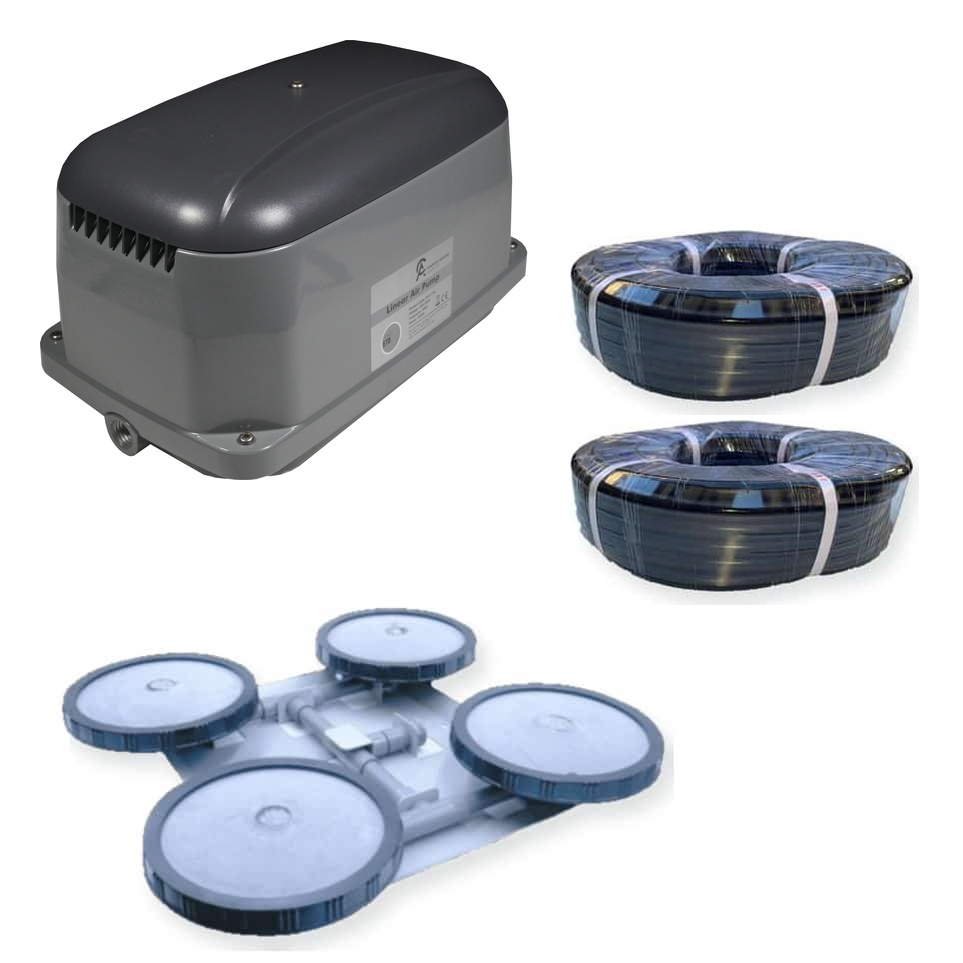

What is included?

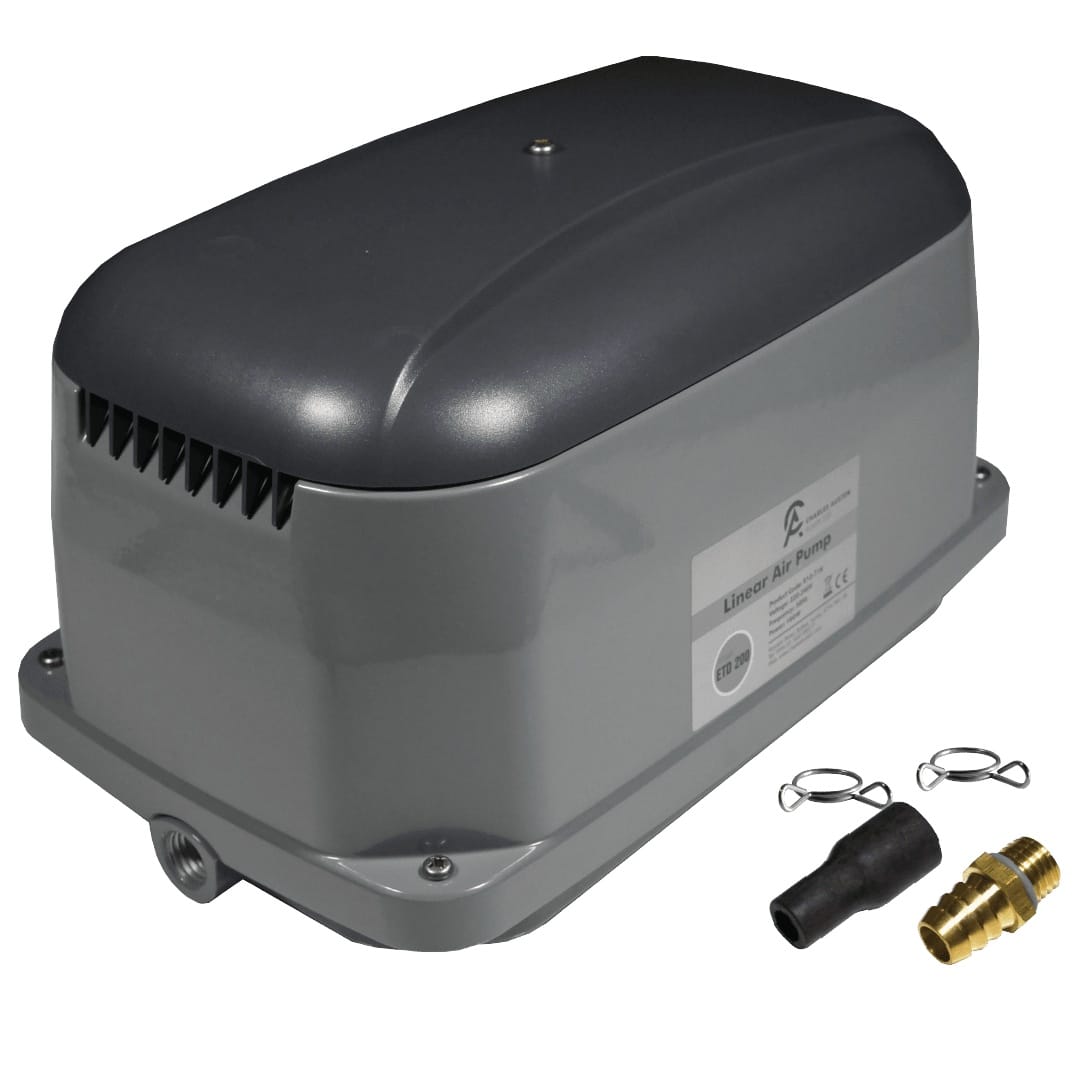

• One Charles Austen ETD200 air pump.
• Charles Austen 1 x DSW4 diffuser station, giving 4 diffuser discs in total.
• Super heavy duty weighted airline in the length selected: 30m total (1 x 30m) or 60m total (2 x 30m joined).
• Correctly sized pump and airline connections, hose clips and any joiners required for the chosen length.

Pump performance and diffuser airflow

The ETD200 is rated at 200 litres per minute at 0.15 bar and 160 W. The ET200 reference kit uses a pump rated at 200 litres per minute at 0.20 bar and 195 W. That makes the ETD200 attractive where lower pressure is sufficient, with 35 W less rated consumption. The ET200 has more pressure available at the same stated flow and is the better starting point where diffuser depth or pipe resistance is more demanding.

At the pump rating of 200 litres per minute, an even split across four discs would be 50 litres per minute per disc. Charles Austen specifies 30 to 60 litres per minute for each diffuser head. Depth, airline length, fittings and the condition of the membranes all affect the airflow delivered at the pond. Check the operating system and balance separate branches where fitted.

Pump	ETD200
Rated airflow	200 litres per minute at 0.15 bar
Rated power	160 W
Pump dimensions	360 x 220 x 200 mm, length x width x height
Pump outlet connector	18 mm
Diffuser arrangement	1 x DSW4 diffuser station; 4 discs

Depth and pond suitability

The 0.15 bar figure is a rated operating point, not a maximum installation depth. At 1 metre of water depth, static water pressure alone is approximately 0.10 bar; at 2 metres it is 0.20 bar and at 3 metres it is 0.29 bar. These figures exclude system losses. Water pressure increases with depth, and additional pressure is needed to move air through the airline, fittings and diffuser membranes. The pump needs to deliver sufficient air at the combined resistance of your chosen depth, airline and diffusers.

For a deeper installation, compare the ET200 version before choosing on price alone. It delivers its stated 200 litres per minute at 0.20 bar rather than the ETD200 rating of 0.15 bar. Neither rating is a maximum depth. The four heads need a combined 120 to 240 litres per minute at the installed system pressure, so check the pressure curve with the intended line lengths and diffuser depth.

Send us the intended diffuser depth and line lengths so we can check the complete arrangement. There is no single reliable maximum pond volume for every installation: fish loading, temperature, organic matter, circulation and the purpose of aeration all change the demand. Diffused aeration supports oxygen transfer and water movement; it does not replace filtration or guarantee clear water.

Choosing the weighted airline length

The standard option supplies 30m total (1 x 30m). The extended option supplies 60m total (2 x 30m joined). These are total included lengths, so allow for the distance across the bank as well as the submerged route and descent to the station. Measure the actual route rather than using the pond width alone. Longer runs increase resistance and should be checked alongside depth.

The weighted airline stays down in the pond and has a nominal half inch internal bore. Use the matched barbed connections and secure the joints with the supplied clips. Keep the pump connection and manifold appropriately sized; small aquarium airline and narrow multi outlet fittings are unsuitable substitutes for this system. Additional 30m weighted airline is available when planning a different route, but extra length should be included in the suitability check.

Installation and commissioning

Stand the pump on a firm, dry and ventilated base above the water level. Its weatherproof casing does not make it submersible or suitable for a location that floods. Keep the electrical connection dry and use a properly protected outdoor supply. Leave access for the air filter and future servicing instead of enclosing the pump in an unventilated box.

Lower the diffuser station carefully into position and keep the discs clear of deep soft sediment. Use a suitable lowering line rather than lifting or supporting a station by its air hose. Check every connection for leakage, look for a consistent bubble pattern and adjust the branches where fitted. Keep an outlet path open while the pump is running.

Introduce bottom aeration gradually in a pond that has been stagnant or has poorly oxygenated deep water. Sudden mixing can change water conditions quickly. Where fish are already distressed, seek immediate advice rather than assuming a newly installed bottom diffuser will resolve the problem straight away.

Care and useful comparisons

Inspect the pump filter, airline and clips regularly. Reduced bubbling can indicate an air leak, a dirty membrane, a restricted line or pump wear; check the cause before adjusting valves. Follow the pump’s servicing instructions and use the correct model parts. A clean air path helps preserve performance and avoids unnecessary back pressure.

See the individual ETD200 pump and DSW4 diffuser station for component information. For a different layout, compare ETD200 Twin DSW2 Pond and Lake Aeration Kit. ETD200 Four Zone DSW1 Pond Aeration Kit. ETD150 Three Zone DSW1 Pond Aeration Kit. ETD150 DSW2 and DSW1 Pond Aeration Kit.

Before ordering, send us the pond length and width, average and maximum depth, approximate volume, fish stocking and the route to each proposed station. We can help check the layout and airline option against the installation you actually have.

Compare another pump and diffuser layout

Compare our Charles Austen ET200 Central DSW4 Pond Aeration Kit. Check the number and position of diffuser heads, rated pressure, power and airline options against your pond before choosing.
