Building a Concrete Block Koi Pond: Planning, Drains and Lining
A good koi pond starts with the decisions you make before digging
A raised block-built pond can give you a neat finish, a comfortable place to watch the fish and room for a viewing window. It also gives you plenty of decisions to get right before the first block is laid. The pond walls, floor, drains, filter and lining all have to suit one another.
When we discuss a build, we want to know how the pond will be used as well as what it should look like. Where will you sit? How will you clean the filter? Can you get a net into every part of the pond? Where will rainwater run? It is much easier to answer those questions on a plan than after the patio has been finished.
This guide takes you through the planning and construction stages of a concrete block koi pond. It explains the decisions to make with your builder and pond installer. The structural design must suit the ground, water depth, wall arrangement and any window; a block size copied from another pond is not a design for yours.
What do you want from the finished pond?
Start with the fish, the available garden space and the amount of maintenance you want to do. Think about adult koi rather than the small fish you might buy at the beginning. More water does not excuse inadequate filtration, and a larger filter does not make unlimited stocking sensible.
A formal pond with vertical sides is different from a planted garden pond. Koi can disturb planting and substrate, while a pond intended mainly for wildlife needs accessible margins and habitat. Be clear about the priority instead of expecting one small design to do every job.
Draw the outline on the ground and look at it from the house and the seating area. Leave room to walk, clean the glass, open filter lids and move equipment. If the pond is raised, consider whether its edge invites children to climb or sit on it. Raised walls do not make open water childproof.
Our pond safety guide is worth reading at this stage. Safety measures are easier to build into the design than add around a completed feature.
Check the site before settling the design
Ground conditions and nearby structures
A pond filled with water places substantial loads on its shell and foundations. A wall may also retain surrounding soil, depending on the design. The foundation and reinforcement need to account for those conditions, including the pond when empty.
Nearby buildings, patios, retaining walls, boundaries and mature trees can affect what is possible. Excavation must not undermine them. If there is uncertainty about ground stability, structural support or a large window opening, bring in the appropriate designer before work starts.
Groundwater is another consideration. Water entering an excavation can interrupt construction and lining, while external water pressure can matter when the pond is drained. Do not assume a dry-looking garden means there is no groundwater issue.
Buried services, access and spoil
Establish where services run before digging. Old drawings alone are not a guarantee of their position. The HSE’s guidance on underground services explains the need to plan, locate services and use safe excavation methods.
Measure the access route for machinery and materials. Include gates, steps, turns and overhead obstructions. Decide where excavated material will go and how deliveries can be made without blocking emergency access or damaging the garden unnecessarily.
Ask the local planning authority about your particular proposal where permission is uncertain, especially where structures, levels, boundaries or protected sites are involved. There is no useful blanket promise that every garden pond is exempt. The government’s planning guidance points you to the local authority.
Agree the finished water level first
The water level connects several decisions: the height of the walls and window, the skimmer opening, the filter installation level and the return arrangement. Mark a clear reference level that everyone working on the build understands.
With gravity-fed filtration, the relationship between pond and filter water levels is particularly important. The filter manual sets the installation requirements. Do not build the filter base and hope to correct a significant level error with the pump later.
Allow for the final lining, coping and any external paving. A measurement taken from unfinished ground can lead to awkward steps, a return that sits too low or a window positioned differently from the original plan.
Pond size and depth: make them suit the design
Depth is only one part of a suitable koi pond. The swimming area, total water volume, stocking, oxygen supply, winter conditions and safe access all matter. A deep pond with poor circulation or little biological capacity can still be a difficult pond to keep.
Avoid choosing dimensions purely to reach an attractive number of gallons. Check how much of the outline is full depth and whether benches, shelves or steps reduce the volume. Use our pond volume guide during design and record the metered fill later if possible.
Consider maintenance from outside the pond. You should be able to reach the fish safely with suitable equipment. Do not design routine care around someone climbing into a filled pond or balancing across a narrow edge.
Plan the filter and pipework before the concrete
Choose the basic filtration arrangement early. A bottom drain feeding a gravity filter needs the correct pipe routes, inlet supply and filter level. A pump-fed system has different requirements and may need an elevated open filter with an unrestricted return.
A drum filter, Nexus or another suitable system can work well when properly matched. The choice depends on the fish load, feeding, space, waste arrangements and cleaning routine, not simply the water volume.
Allow enough room for the equipment you are installing, and think about what might need replacing. Door widths, removable panels and space above lids matter. Filters need access to their baskets, screens, valves and media; hiding everything tightly behind the pond can make ownership frustrating.
| Item | Agree before construction | Why it matters later |
|---|---|---|
| Bottom drains | Number, position, pipe size, route and isolation | Buried connections are difficult to change once the shell and paving are finished |
| Skimmer | Operating level, fish protection and route to filtration | The opening must meet the planned water level |
| Returns | Positions, pipe sizes and intended flow | They affect circulation and must be detailed into the lining |
| Filter area | Levels, base, lids, servicing and waste | Equipment has to be installed and cleaned to its manual |
| Window | Glass specification, support, recess and sealing system | An opening changes the structural and lining details |
| Overflow and top-up | Controlled water level and suitable incoming supply | Heavy rain and unattended filling should not become surprises |
| Electrical supply | Equipment demand, safe isolation and suitable installation | Retrofitting cables through finished landscaping is disruptive |
Bottom drains and skimmers do different jobs
A bottom drain provides a route for water and settled solids to leave the pond floor. Its effectiveness depends on the layout, flow and how waste reaches it. It is not a promise that nothing will ever settle in a corner.
An aerated drain also supplies air through its diffuser. That adds an air line and a pump requirement to the design. Select the correct drain version for the construction and lining; fittings intended to clamp a flexible liner are not automatically detailed in the same way as fittings incorporated into GRP.
A skimmer collects floating debris before it sinks. Position it with the pond shape, prevailing wind, returns and safe fish access in mind. Both skimmers and drains need a thought-through route to filtration, isolation and maintenance.
You can compare our bottom drains and drainage fittings while planning. Confirm the actual connection dimensions and lining arrangement before ordering components that will be cast or built in.
Building the base and blockwork
The base, walls and any reinforcement form the supporting structure. Their specification should come from the project design and site conditions. Water depth, wall length, support, ground conditions and openings all affect the loads.
That is why we do not give one concrete thickness, block type or reinforcement pattern as a recipe for every pond. A small partly buried pond and a long raised wall with a broad viewing window are not the same structure.
Before a concrete pour, check the position and support of drains and pipework, the required levels and any designed reinforcement. Photograph routes and connections before they disappear. Pipe ends should be protected from concrete and debris.
As the walls go up, recheck internal dimensions, diagonals where relevant, window openings and the intended water level. Correcting a discrepancy then is far simpler than trying to hide it in the coping or lining.
Concrete and masonry also need the curing and preparation required by the construction and finishing systems. A surface that appears firm does not automatically meet the moisture or preparation requirements of the chosen lining.

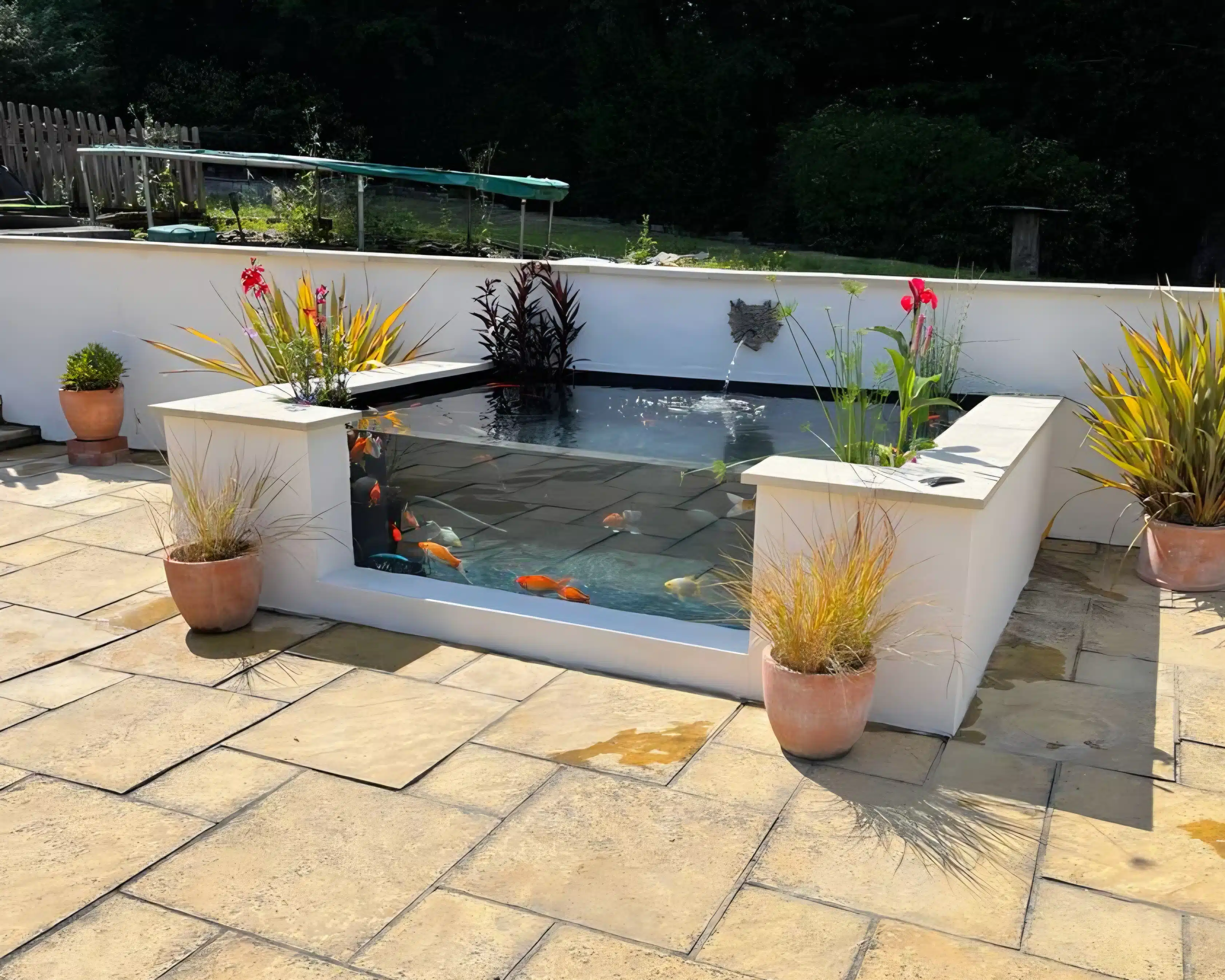

Planning a viewing window
A window is more than a piece of glass fitted into a gap. The glass, support, frame or rebate, water depth, opening dimensions and sealing method need to be designed together.
Use a specialist specification for the actual pond. Do not select glass thickness from an online photograph or assume that a panel used on a shorter, shallower opening will suit yours. The supporting wall and the way the panel bears against it matter too.
Agree how the lining finishes around the opening and which sealant or glazing system is compatible. Check curing and filling requirements with the installer. Leave access to clean both sides of the viewing area safely.
A window can make it easier to watch the fish without leaning over the pond. It is also an opportunity to see body condition and behaviour from the side, although it does not replace water testing or turn observation into a health diagnosis. Our guide to shy koi discusses getting the fish used to your presence.
Making the shell watertight
Blockwork alone is not the finished pond lining. The waterproofing system must suit the supporting shell and every fitting, corner and opening.
GRP fibreglass lining is a common choice for formal koi ponds because it can follow the prepared shape and provide a smooth continuous finish. It needs a sound, suitable substrate and correct detailing. It should not be expected to hold together a moving or inadequately supported structure.
Some designs use flexible liners or other specified systems. Compare the whole installation, including folds, penetrations, repairs and the intended finish. The cheapest material price does not necessarily give the lowest finished cost.
Our pond fibreglassing guide explains preparation, fittings, curing and filling. If another builder is preparing the shell, have the lining requirements agreed before that work is signed off.
Starting with an existing masonry pond
An existing shell needs assessing before deciding how much can be retained. Look at its condition, water history, levels and fittings, then agree the structural and lining work needed. A new surface finish should not be used to hide an unexplained defect.
The photographs below are from our Eastgate House pond renovation. They show the existing pond during the work and the prepared interior before lining. It is a useful reminder that walls, shelves and connections need considering together when a pond is refurbished.


For a pond that is being relined, settle the required preparation with the specialist before declaring the shell ready. For a new build, agree those requirements while the structure and fittings are still being planned. Our fibreglassing guide explains that part in more detail.
Test pipework while you can still reach it
Buried pipework deserves proper checking before it is covered. Agree an appropriate test with the installer for the actual pipes, fittings and installation. Keep a record of what was checked and when.
Do not improvise a compressed-air test from a general pond article. The method and safe limits need to suit the system. A leak found before backfilling is much easier to deal with than one beneath a completed patio.
Use accessible pressure pipe unions and suitable valves where equipment needs removing. Match nominal sizes, pipe systems and fittings properly; similar-looking metric, imperial and waste-pipe connections are not interchangeable.
Filling the pond and getting the filter established
Follow the lining and sealant manufacturers’ release-to-water instructions. Complete any specified cleaning and flushing before the final fill. Record the water volume where a meter can give a useful measurement.
Once filled, check levels, joints, drains, returns and the filter under normal running conditions. Confirm that waste can be discharged safely and that the system restarts as intended after an interruption. Check for overflow or siphoning risks with the installer.
New biological filtration needs time and a carefully managed load. Dechlorinate incoming water appropriately, use water tests from the start and do not add a full collection of koi simply because the water looks clear. Read our ammonia and nitrite guide before stocking.
When fish are returning from temporary accommodation, plan the transfer around compatible conditions and safe handling. The holding system needs proper aeration, filtration, water checks and protection throughout the build, not just on the day the pond is emptied.
What should a quotation include?
Ask for a clear scope rather than a single price attached to an attractive finished image. Identify who is responsible for excavation, spoil, structure, pipework, filtration, lining, glass, electrics, landscaping and commissioning.
Check what happens if unsuitable ground or unexpected services are found. Confirm the equipment models, what is included, the intended finishes and the arrangements for the existing fish. Any warranty should be written clearly, including its scope and exclusions; it is not a substitute for a suitable design.
Keep the final drawings, photographs of concealed work, equipment manuals and commissioning records. They are useful when the pond needs servicing or a component is replaced years later.
Allow for the parts of the build that are easy to miss
A quotation can look complete while leaving important work between trades. Discuss who provides the drain and window details, who checks concealed plumbing and who confirms the shell is ready for the liner. Put those responsibilities alongside the main construction items.
The filter area needs more than a concrete base with the right footprint. Allow for connections, lids, waste drainage, ventilation and removing parts. A taller future filter may need different levels, so discuss realistic upgrade routes before making the enclosure permanent.
Think about the route used to clean the pond. Where can a vacuum stand? Can the discharge be managed without crossing the only path? Is there a stable place to prepare a bowl if fish handling is necessary? Ordinary care should not depend on balancing tools on the coping.
Top-ups, overflows and waste connections deserve the same attention as the visible returns. Agree how the water level is controlled, how incoming water is treated and what happens if the filling arrangement fails. Confirm any water-supply and drainage requirements with the appropriate installer.
A useful handover from the builder and installer
Ask to see the completed system running, including any cleaning or control functions you will operate. A demonstration on your own pond is much easier to follow than discovering unfamiliar valves from an online diagram later.
Record the normal pond and filter levels, the usual flow appearance and the controls’ intended settings. Keep a photograph of the valve arrangement. If something is changed during the final visit, update that record.
Have the installer explain safe isolation and the limits of what you should service yourself. Know how to contact the right person for a plumbing, electrical, lining or fish-care concern; those may not all be the same contractor.
| Keep | Why it is useful |
|---|---|
| Final layout and water level | A common reference for the pond, skimmer and filter |
| Photographs before pipes were covered | Shows routes without guessing beneath paving |
| Equipment models and manuals | Correct operation and replacement parts |
| Lining and glazing handover instructions | Material-specific curing, care and warranty information |
| Measured fill record where available | A better basis for water management than an outline estimate |
| Normal running and cleaning demonstration | Helps the owner recognise a change or incorrect valve position |
| Initial water results and stocking plan | Connects construction completion with biological commissioning |
Do not let the attractive finished view distract from those records. The shell may be complete while the biology is still establishing. Agree the follow-up checks and feeding or stocking plan rather than assuming construction sign-off means the pond can immediately support its final fish load.
For an existing collection, keep the holding-system and return arrangements in that handover too. Someone should remain responsible for the fish throughout any delay, including when the building work has finished but the pond is not yet ready for them.
Common questions about block-built koi ponds
Can I build one myself?
Some owners take on parts of the work, but structural design, excavation, glass, waterproofing and electrical installation need the right competence. Decide responsibilities before starting, particularly where several trades will meet at the same fitting or opening.
Does every pond need a bottom drain?
No single arrangement suits every existing pond. For a new formal koi pond, it is sensible to discuss the benefits and layout before the base is built. A later retrofit can be much more involved.
Can an old block pond be fibreglassed?
It may be suitable after assessment and preparation. Existing cracks, movement, damp, coatings and fitting details need checking. A new finish cannot be relied on to correct a structural problem.
How long does a build take?
The site, structure, materials, weather, access and finishing requirements all affect the programme. Allow proper time for curing and commissioning rather than treating the last day of construction as the automatic fish-return date.
Where can I see examples?
Our koi pond showcase shows different layouts and finishes. The Eltham renovation includes a viewing window, patio and filtration area. Use the projects for ideas, then have the details designed for your own pond.
If you are planning a build, send us photographs, approximate dimensions, access details and the kind of fish pond you want. Our koi pond building service is the place to start that discussion.
