Oase Filtral UVC 9000 Pond Filter Kit

Oase Filtral UVC 9000 Pond Filter Kit

High Capacity All In One Pond Filtration System with UVC, Fountain and Aeration

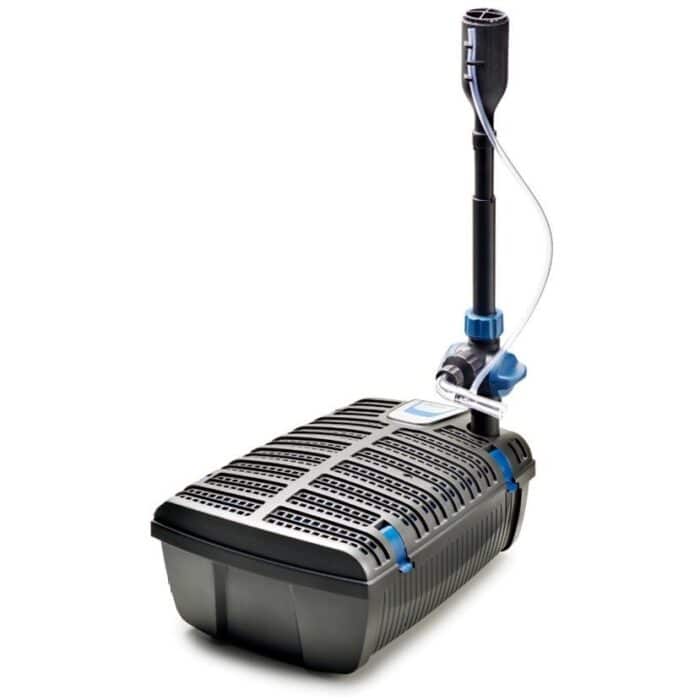

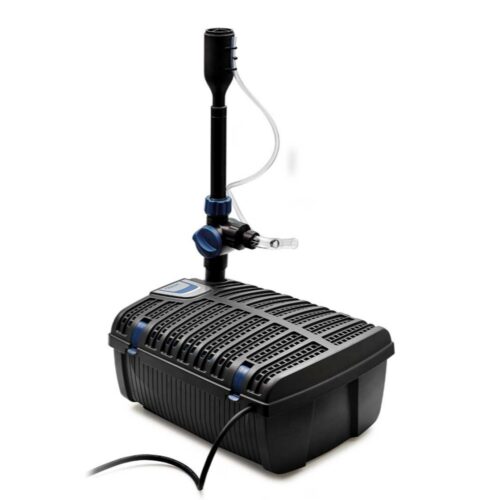

The Oase Filtral UVC 9000 Pond Filter Kit is a compact yet powerful all in one submersible filtration system designed for small to medium garden ponds and decorative water features. Suitable for ponds up to 9000 litres, this discreet underwater unit combines mechanical filtration, biological filtration, ultraviolet clarification, water circulation, fountain display and aeration in one simple solution.

Because the Filtral UVC 9000 is installed fully below the water surface, there are no external filter boxes, hoses or pipework visible. As a result, the pond retains a clean and uncluttered appearance. Therefore, it is an excellent choice for ornamental ponds, wildlife ponds and formal water features where aesthetics are just as important as water quality.

Integrated Mechanical and Biological Filtration

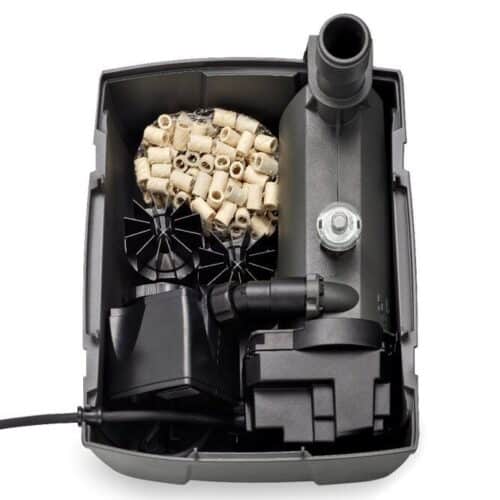

Inside the unit, water flows through a multi stage filtration system made up of coarse and fine filter foams, ceramic elements and bio surface media. These components remove physical debris while also providing a generous surface area for beneficial bacteria to colonise. Consequently, organic waste is broken down efficiently and water parameters remain stable.

In addition, the integrated 13 watt UVC clarifier helps control green water algae. As water passes through the ultraviolet chamber, suspended algae cells are neutralised. The filter foams then capture the remaining particles. Therefore, water clarity improves gradually when the system is correctly sized and maintained.

Fountain and Aeration Supplied as Standard

The Filtral UVC 9000 includes an integrated pump delivering up to 2500 litres per hour. This provides reliable circulation throughout the pond and can also supply a small waterfall, stream or decorative feature. Furthermore, the unit is now supplied as standard with both the Filtral Fountain Kit and the Filtral Aeration Kit.

The Fountain Kit includes interchangeable fountain heads, allowing three decorative water displays with adjustable height. Meanwhile, the Aeration Kit increases oxygen levels within the pond. As a result, fish health improves and beneficial bacteria perform more efficiently.

Because everything is contained within a single submerged unit, installation remains quick and straightforward. Maintenance is equally simple thanks to practical side clips that provide fast access to the filter media without disconnecting hoses or managing external equipment.

Key Benefits

• All in one submersible pond filter with pump, UVC, fountain and aeration
• Suitable for ponds and water features up to 9000 litres
• Suitable for fish ponds up to 4500 litres
• Integrated 13 watt UVC for green water control
• Multi stage mechanical and biological filtration
• Supplied with Fountain Kit and Aeration Kit as standard
• Fully underwater installation for a discreet finish
• Can run fountains, small waterfalls or streams
• Easy maintenance with quick access clips

Technical Specifications

• Maximum pond volume without fish: 9000 litres
• Maximum pond volume with fish: 4500 litres
• Maximum pump flow rate: 2500 litres per hour
• Maximum lift height: 2.10 metres
• UVC wattage: 13 watts
• Power consumption: 58 watts
• Cable length: 10 metres
• Dimensions: 347 x 276 x 157 mm
• Guarantee: 2 years

Technical information

• Never guess UV lamp compatibility from length alone.
• Clean quartz sleeves carefully so the UV can work efficiently.
• Replace damaged seals or brittle clips before restarting the system.

Match UV lamps, quartz sleeves and electrical spares to the exact model and wattage of your unit. Before fitting, isolate the power supply, allow the unit to cool and check the quartz sleeve, seals and retaining clips for wear or damage.

UV and spare part setup notes
