In-Lite HUB-100 12V Garden Lighting Transformer

In-Lite HUB-100 12V Garden Lighting Transformer

HUB-100 is a transformer and automatic controller for the original In-Lite 12V garden-lighting system. It converts the incoming mains supply to low voltage, provides two cable outlets and can switch the connected lighting automatically from its supplied external light sensor.

This is an earlier-generation HUB model retained on the 2026 Landscape Plus installer sheet. The current range also includes newer HUB and SMART HUB options. Choose this product when its 100 VA capacity and original HUB controls suit the project, or when replacing a matching existing unit; do not assume every current smart accessory is backwards compatible.

Capacity and cable outlets

The combined VA of every fitting connected to both outlets must remain within 100 VA. The two outputs allow separate physical cable runs, but they are controlled together—not as independently scheduled zones. Add the VA rating printed for each fitting, allow a sensible margin for expansion and never size from lamp wattage alone.

Automatic dusk and timer control

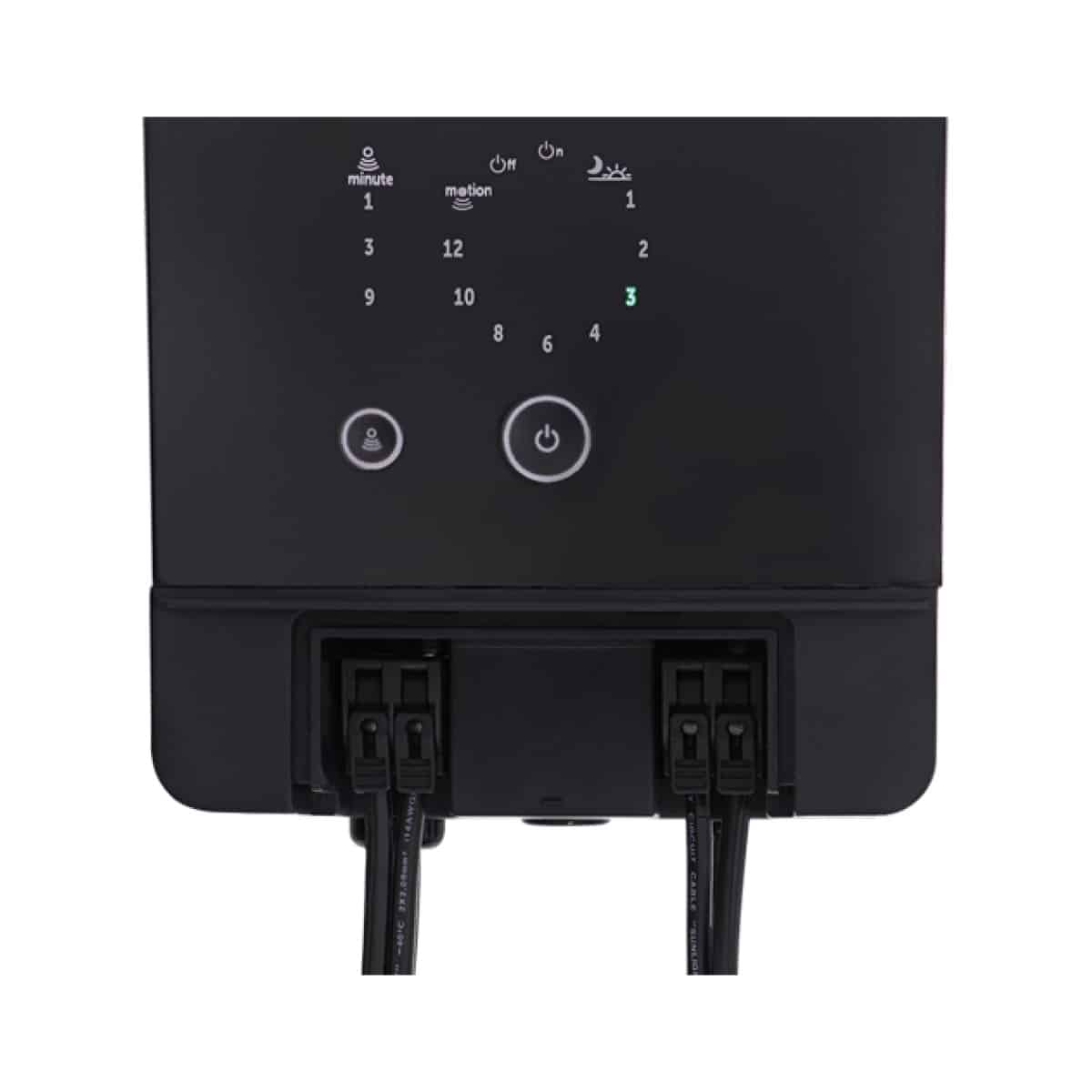

The supplied light sensor tells the HUB when darkness falls. Using the front controls, the connected lighting can remain permanently on, switch off, operate from dusk for a chosen number of hours or work with the compatible wired MOVE detector. Position the light sensor where artificial light from the garden cannot repeatedly trigger it.

Installation and weather protection

• Mount vertically at least 500mm above ground.
• Install indoors or under effective cover wherever possible.
• Use the matching legacy HUB PROTECTOR if the permitted location is exposed.
• Keep both cable outlets, controls and sensor connection accessible.
• Connect only genuine In-Lite low-voltage components to the 12V outputs.

The unit is supplied with a moulded UK plug and approximately 2.3m mains lead. Any alteration or fixed mains wiring must be carried out safely and in accordance with the manufacturer’s instructions; use a qualified electrician where appropriate.

Key technical information

• Maximum connected load: 100 VA
• Output: In-Lite 12V low-voltage system
• Two easy-connect cable outlets, controlled together
• External light sensor included
• Compatible with the original wired In-Lite MOVE detector
• Not an app-controlled SMART HUB
• 5-year manufacturer guarantee when correctly installed as a complete In-Lite system

Plan the complete system

Choose genuine In-Lite system cable and connectors, then add the VA for all proposed lights. Compare all In-Lite transformers and smart controls, or send us the fitting list and cable lengths if you would like the HUB capacity checked before ordering.

Compatible and related In-Lite products

For the same project, compare In-Lite CBL Two-Wire Garden Lighting System Cable, In-Lite CBL-EXT CORD Garden Light Extension Cable, In-Lite HUB-75 UK 12V Garden Lighting Transformer, and In-Lite HUB-50 12V Garden Lighting Transformer. These direct links make it easier to check the precise size, load, finish and connection of each item rather than relying on a similar-looking photograph or family name. If this is a replacement, compare the label and existing connection before assuming that two parts from the same family are interchangeable.
