In-Lite EVO HYDE 180 12V Linear Light

In-Lite EVO HYDE 180 12V Linear Light

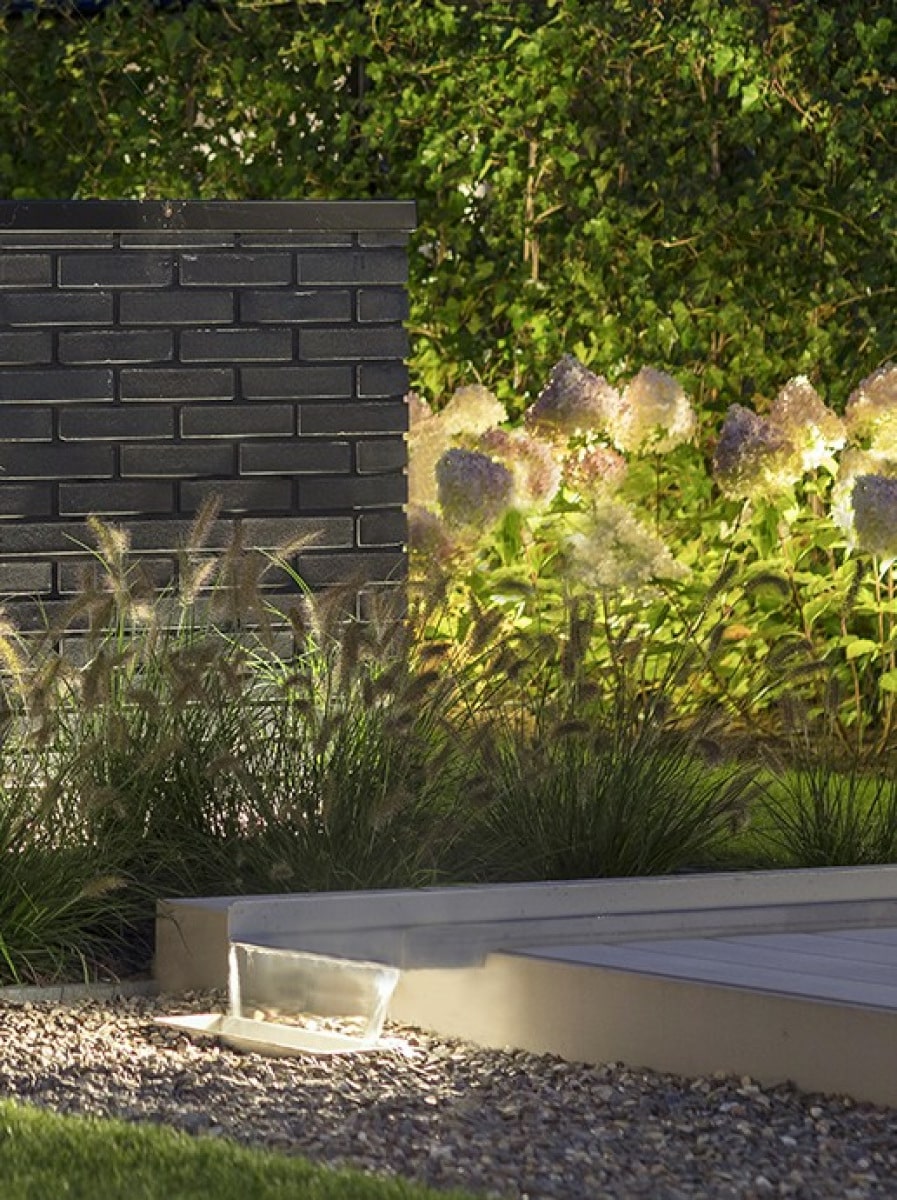

A compact 180mm shielded linear fitting for indirect light beneath steps, benches, decking edges, balustrades and low walls.

EVO HYDE hides the LED source beneath an overhang so the eye sees the illuminated surface rather than a bright row of diodes. The result is both decorative and practical: it can define a change in level, make a seat wall easier to read after dark and add a calm line of light without turning the feature into a glare source.

Where EVO HYDE 180 works best

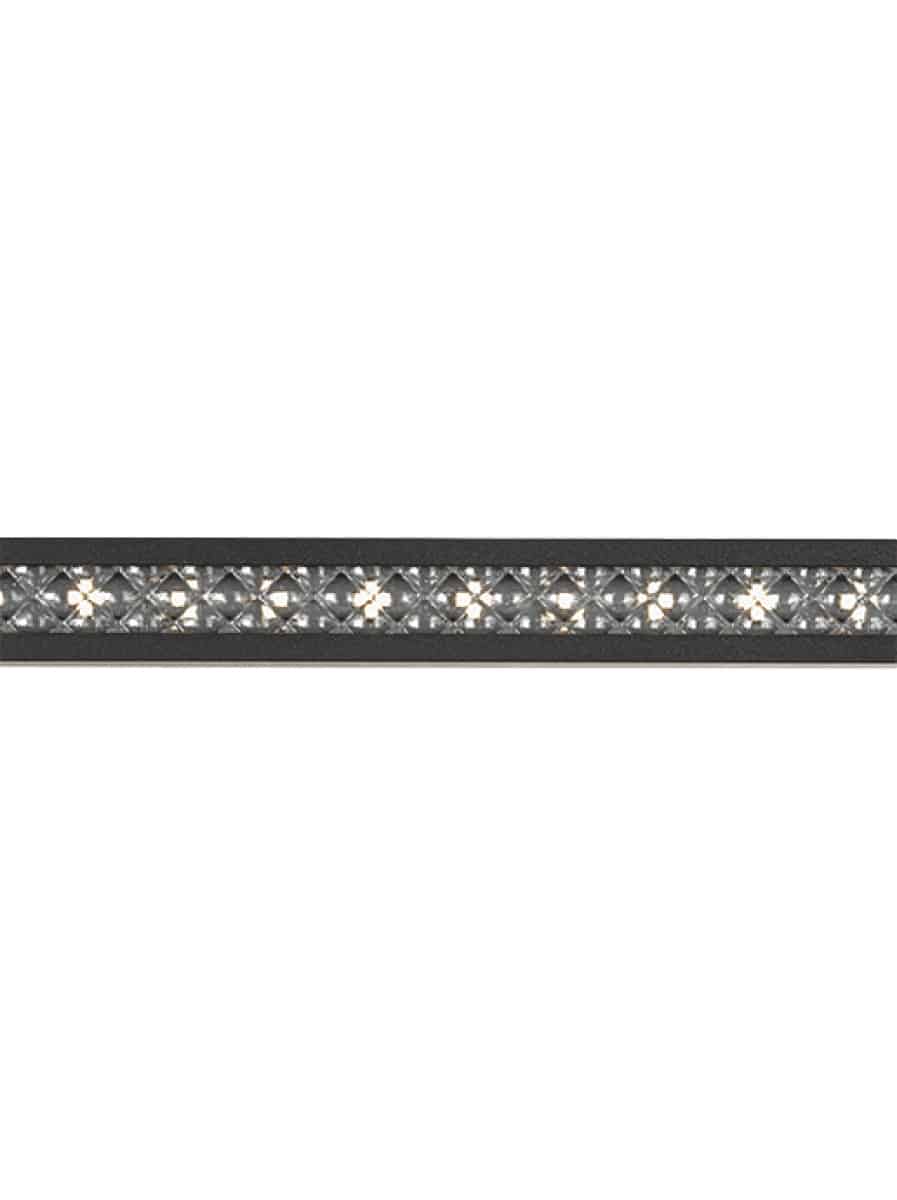

The black anodised aluminium body is slim enough to remain discreet under timber, natural stone and concrete details. Its broad distribution gives a soft wash over a shorter, more local section. Several fittings can be set end to end where a longer run needs an even rhythm, but it is worth testing the spacing after dark before every fixing position is drilled.

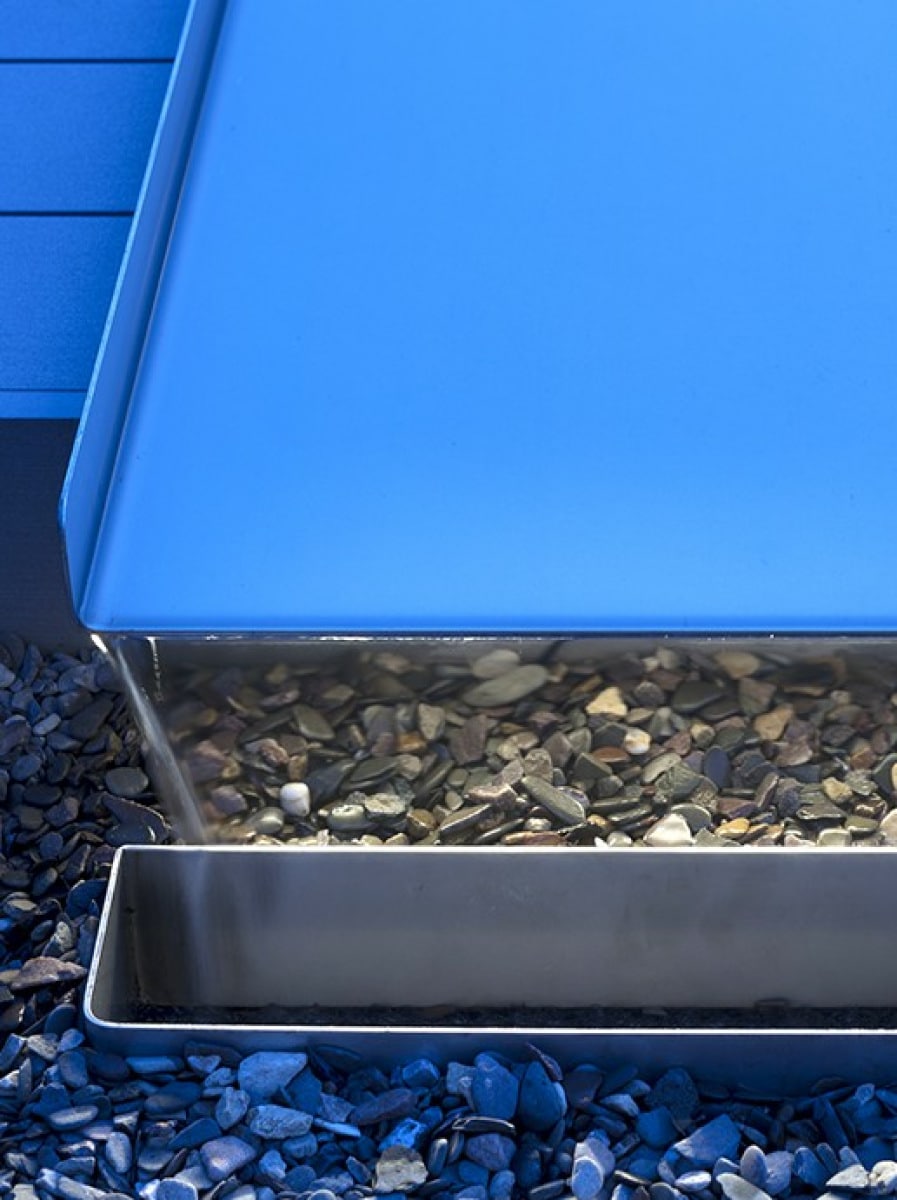

For the cleanest effect, install EVO HYDE beneath an overhang of approximately 50–60mm. Keep the fitting, cable exit and fixings accessible, and make sure the detail does not trap water around the light.

Choose between EVO HYDE 180 and EVO HYDE 550

This 180mm version is the shorter fitting for compact steps, narrower seats and local highlights. Choose In-Lite EVO HYDE 550 12V Linear Light where a longer, more continuous wash is more appropriate. Mixing the two sizes can work well, but keep the mounting height and setback consistent so the illuminated surfaces still read as one scheme.

Verified technical specification

• Manufacturer part number: 10250200

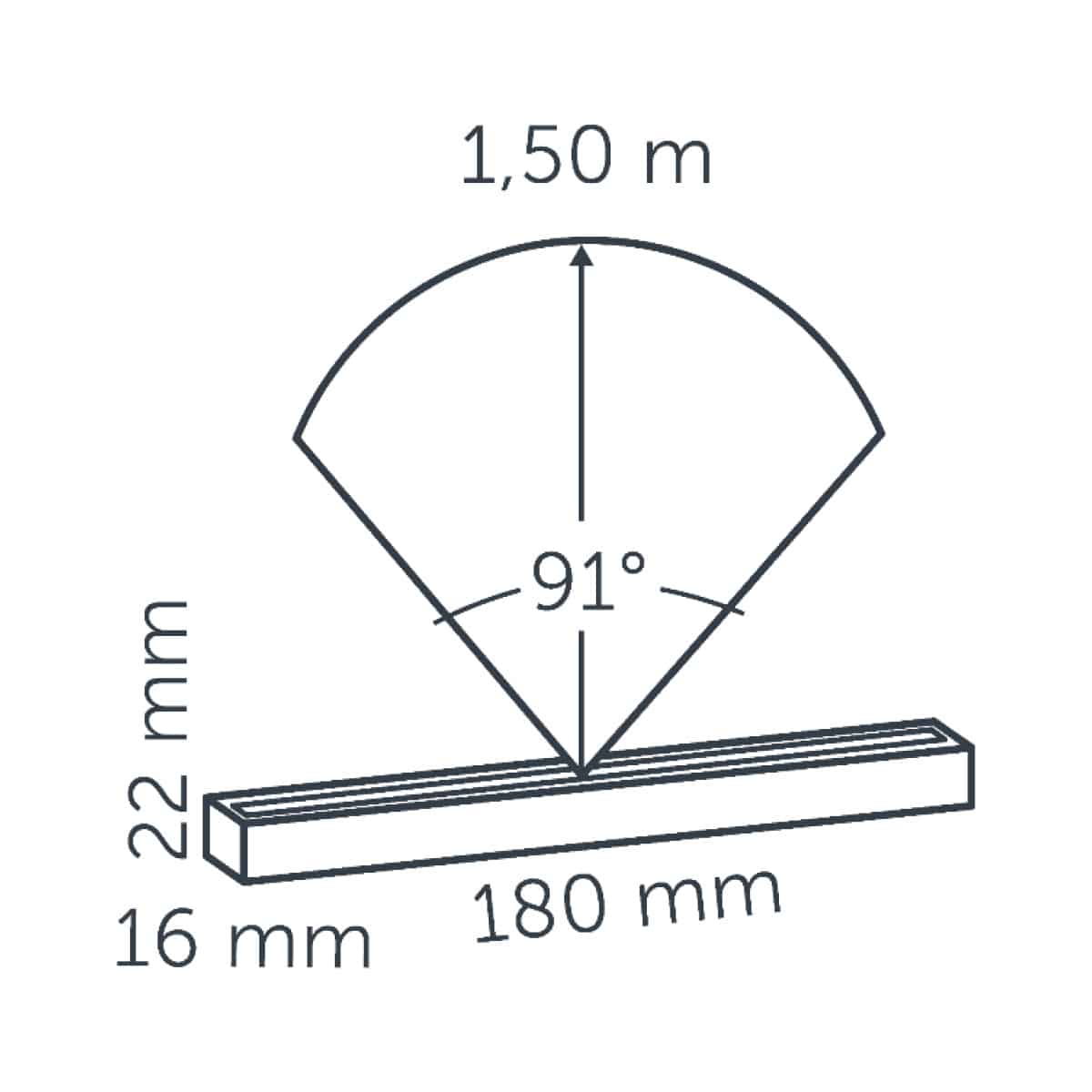

• Fitting length: 180mm; width 16mm; height 22mm
• Light output: 25 lumens
• Colour temperature: 2950K warm white
• Beam: broad indirect distribution
• Power consumption: 0.5W; transformer load: 0.6 VA
• IP55 outdoor protection rating
• 600mm fixture cable
• LED design life: 25,000 hours
• Five-year In-Lite system guarantee when installed as specified

Connection and transformer planning

The fitting is supplied with an EASY-LOCK for connection to genuine In-Lite CBL Two-Wire Garden Lighting System Cable. Add the VA value—not just the LED wattage—to the total circuit load when selecting a HUB. The In-Lite HUB-75 UK 12V Garden Lighting Transformer is one option for a modest circuit, although the correct transformer depends on the combined VA of every fitting and how the garden needs to be controlled.

A CBL-EXT CORD can extend the fixture-side cable by up to 3m where the main cable cannot sensibly pass close to the mounting position. Keep every connection accessible for testing and future maintenance. For masonry and stacked elements, also compare In-Lite FIX 3 Mounting Plate for EVO HYDE 180.

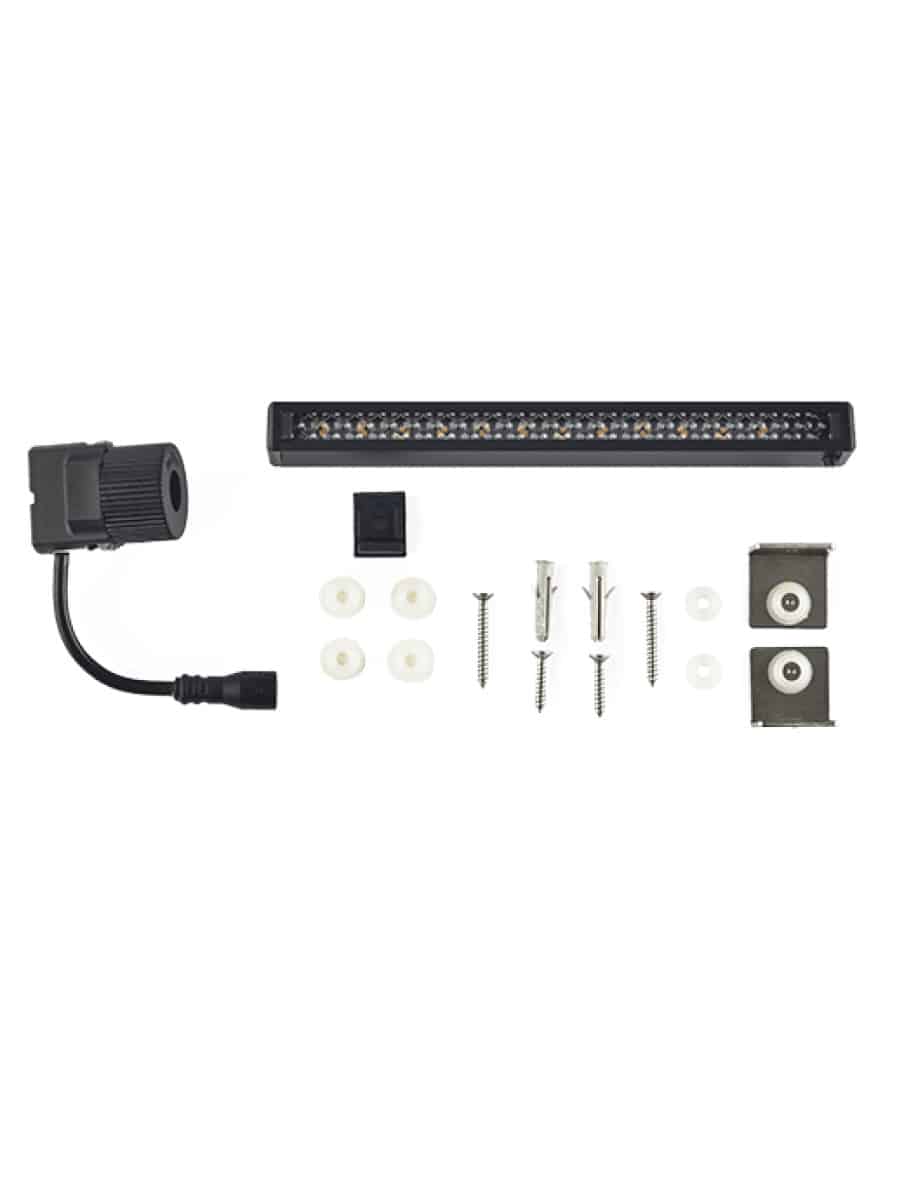

What is included

• One EVO HYDE 180 fitting
• One EASY-LOCK connector
• 600mm fixture cable
• Manufacturer-specified mounting plates, plugs, screws and cable caps

Our practical advice

Temporarily power one fitting and view it from the main seating and walking positions before committing to the full run. A small change in setback can make the difference between a smooth wash and a visible hot spot. If you send us the run length, mounting detail and total number of fittings, we can help sense-check the spacing, cable route and transformer load before dispatch.
