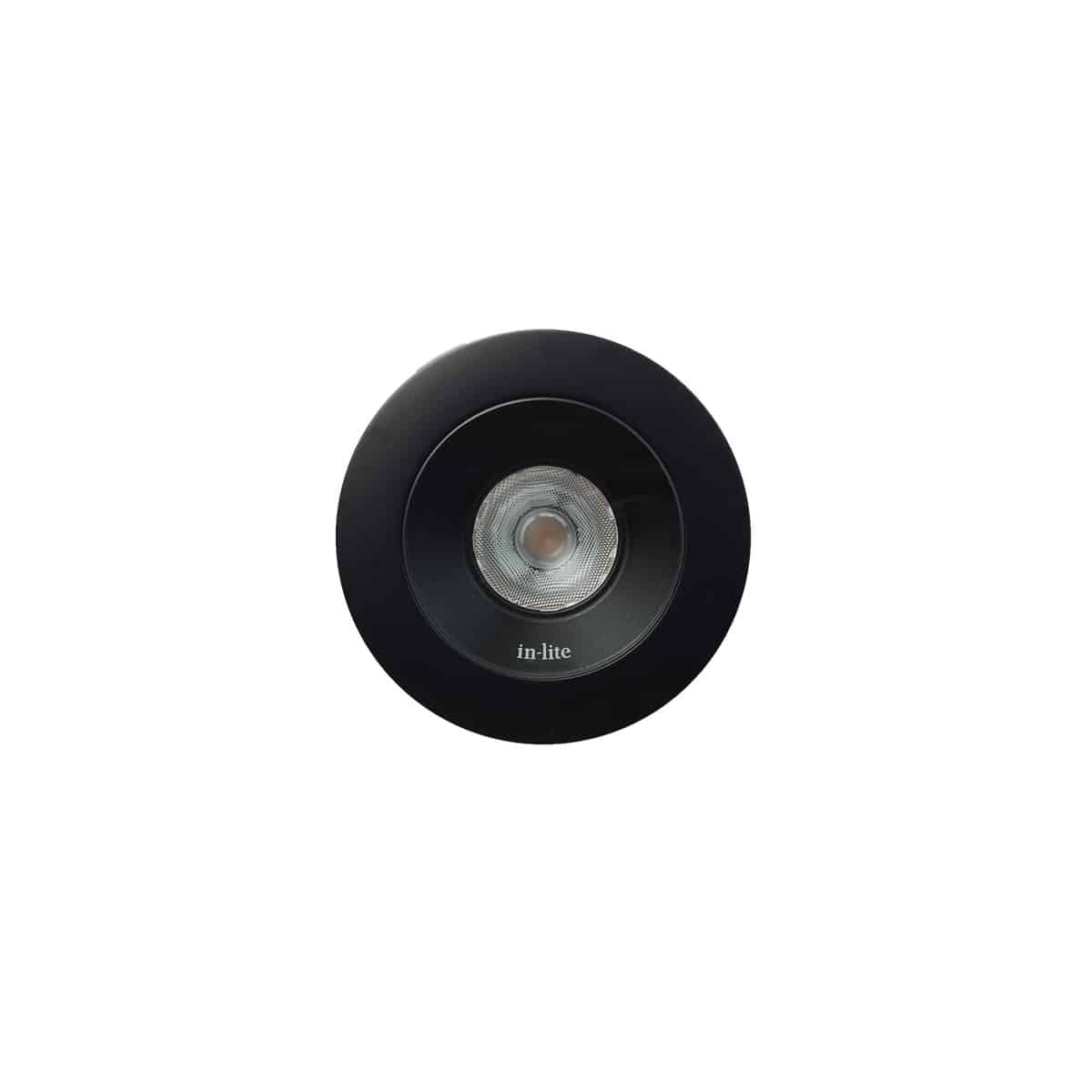

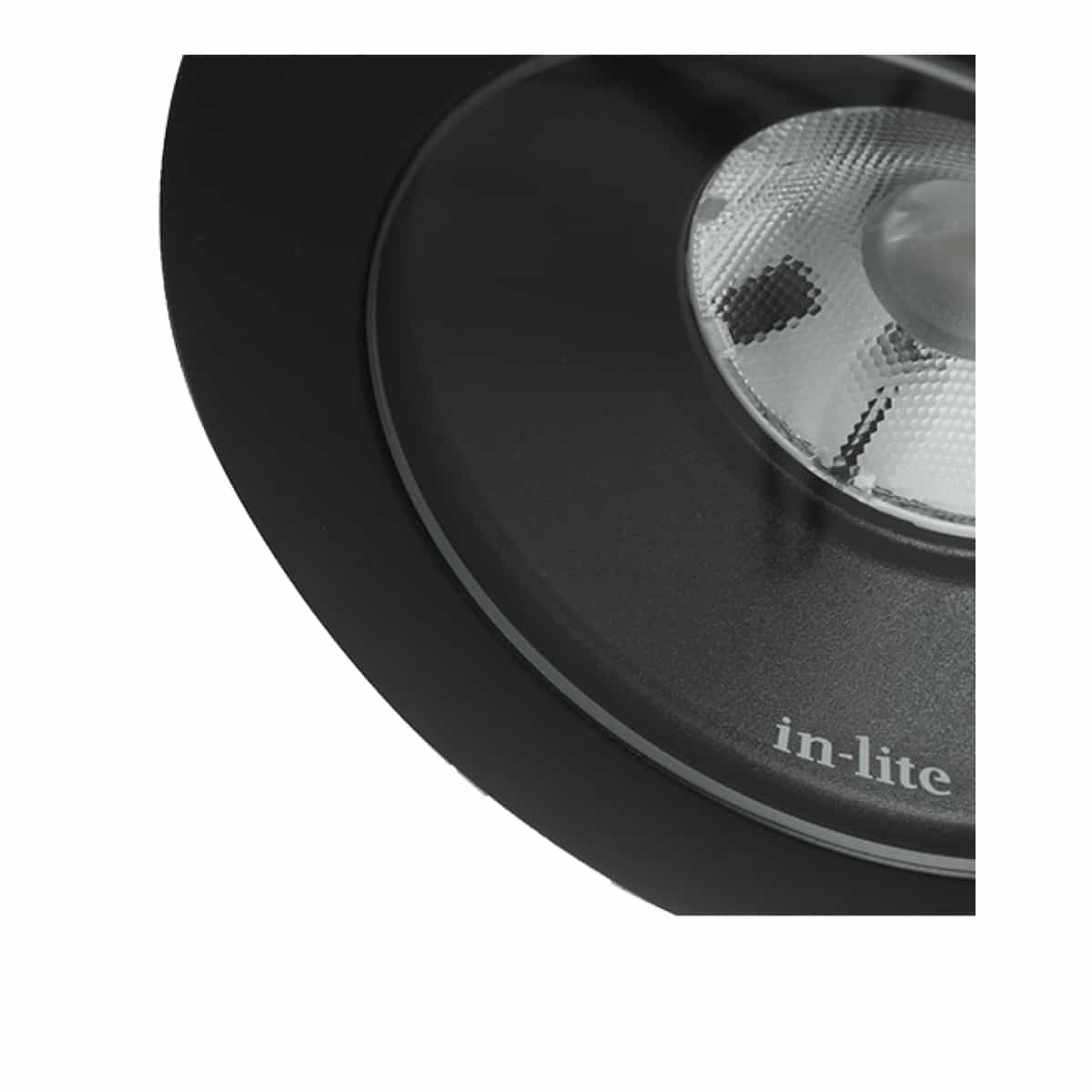

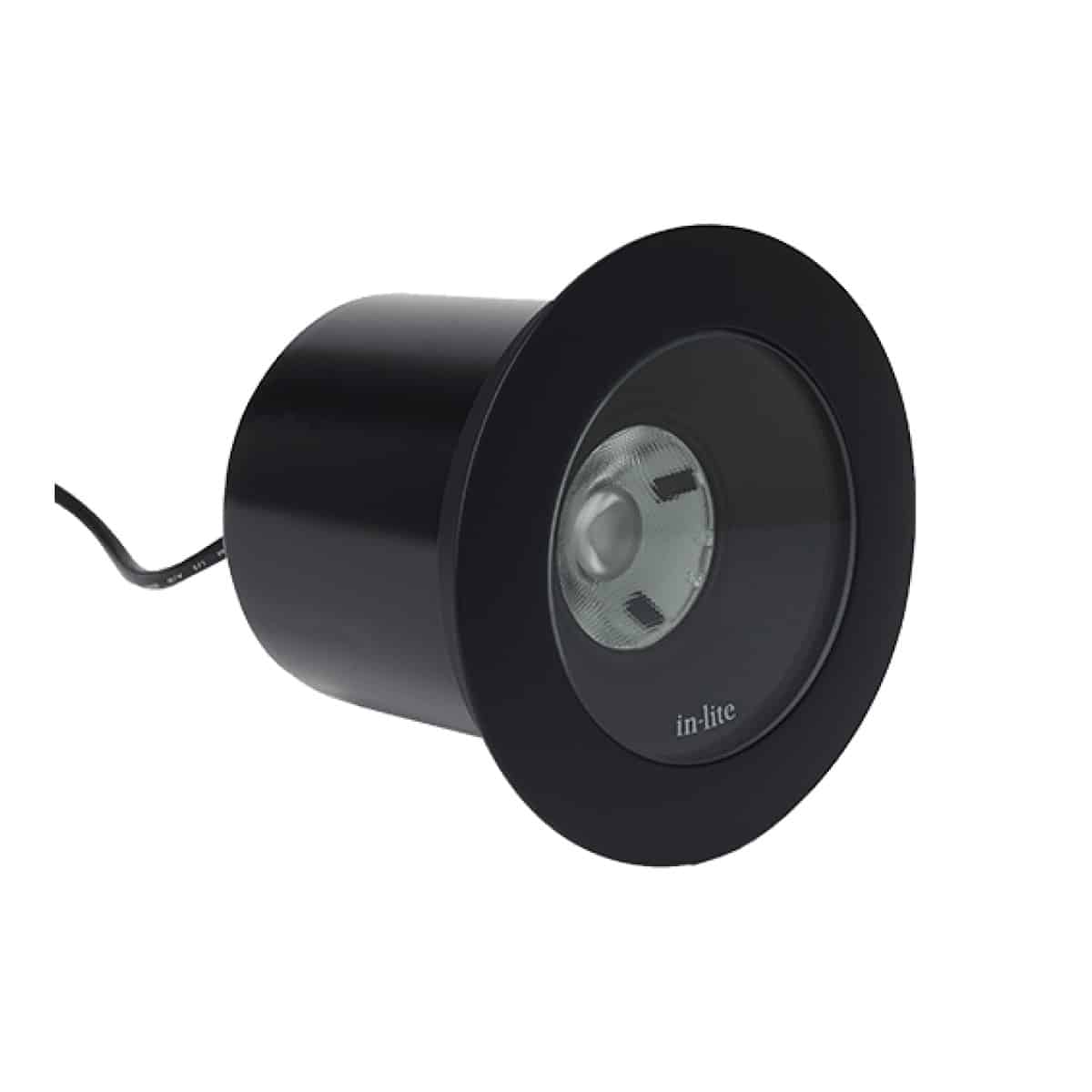

In-Lite NERO 12V Recessed Uplight

In-Lite NERO 12V Recessed Uplight

A larger adjustable recessed spotlight for trees, facades and substantial architectural features

NERO 12V Recessed Uplight is a larger adjustable recessed spotlight for trees, facades and substantial architectural features. It is a complete In-Lite 12V fitting for a considered recessed-light installation.

Where this light works best

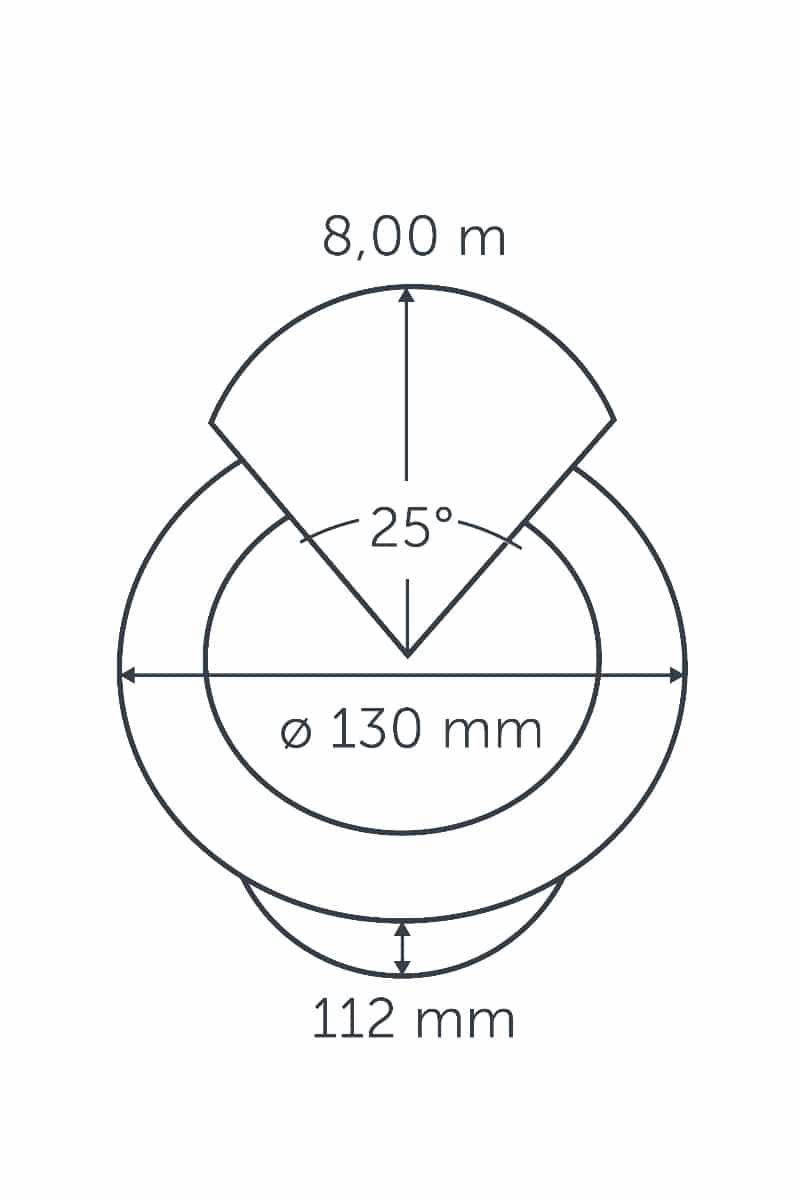

Use the 25° light distribution to match the feature rather than choosing only by lumen or wattage. Narrow beams suit vertical targets and taller features, broad beams cover wider architecture, asymmetric optics push light across a surface, and diffuse modules provide orientation rather than a dramatic spotlight.

Plan the recess and drainage first

Confirm the cut-out, installation depth, drainage and cable route before forming the opening. Recessed fittings should never sit in a pocket that permanently holds water.

Technical information

• Power source: In-Lite 12V transformer system
• Light distribution: 25°
• Colour / temperature: 3100K
• Rated load: 4.7 VA
• Protection: IP67
• Manufacturer part number: 10103401
• 5-year manufacturer guarantee when correctly installed

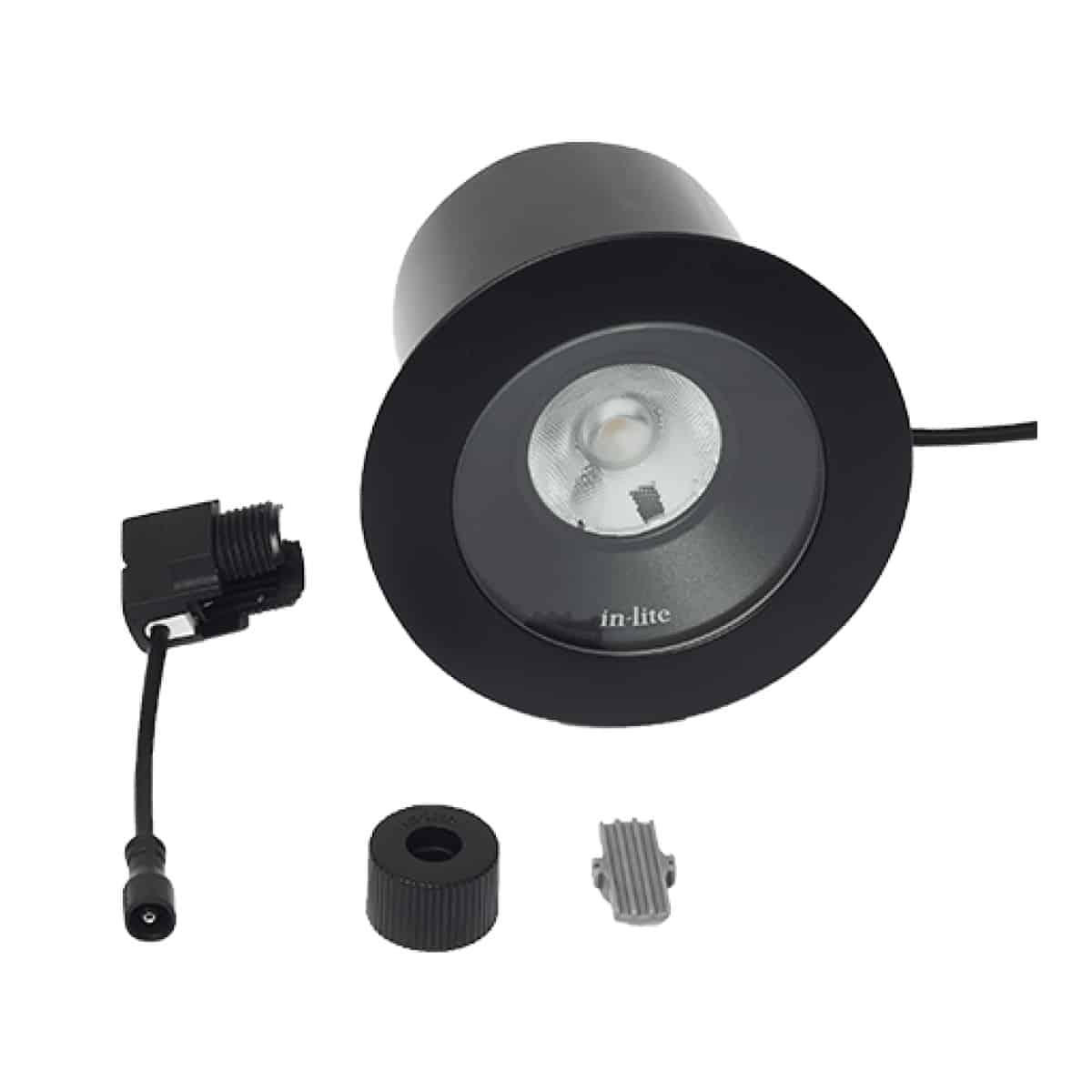

What is supplied

• One NERO 12V Recessed Uplight
• Manufacturer-specified mounting and connection components
• Manufacturer installation guidance

Complete the installation correctly

Browse In-Lite recessed lights and compatible bezels, transformers and smart controls, and cables and connectors. Contact us with the module and bezel part numbers if you would like compatibility checked before dispatch.

Practical design advice

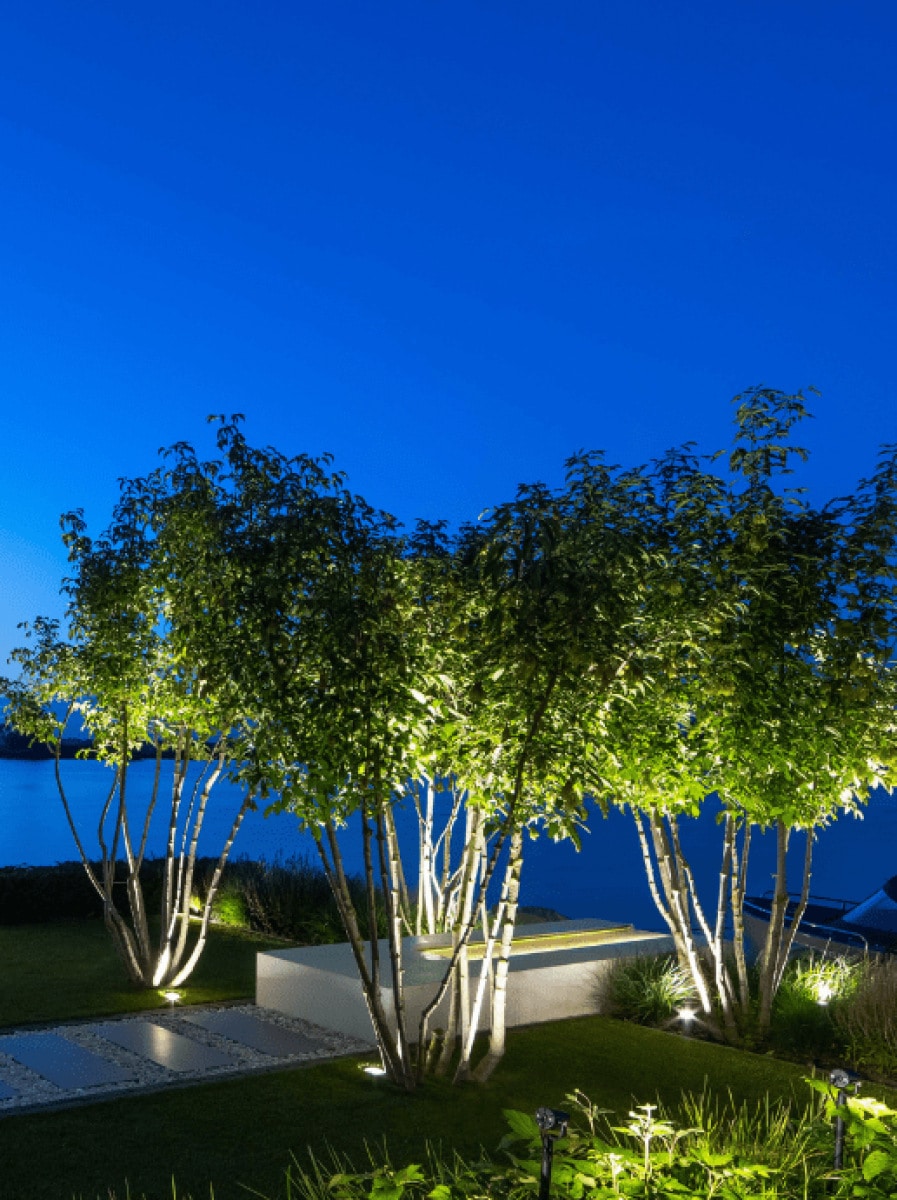

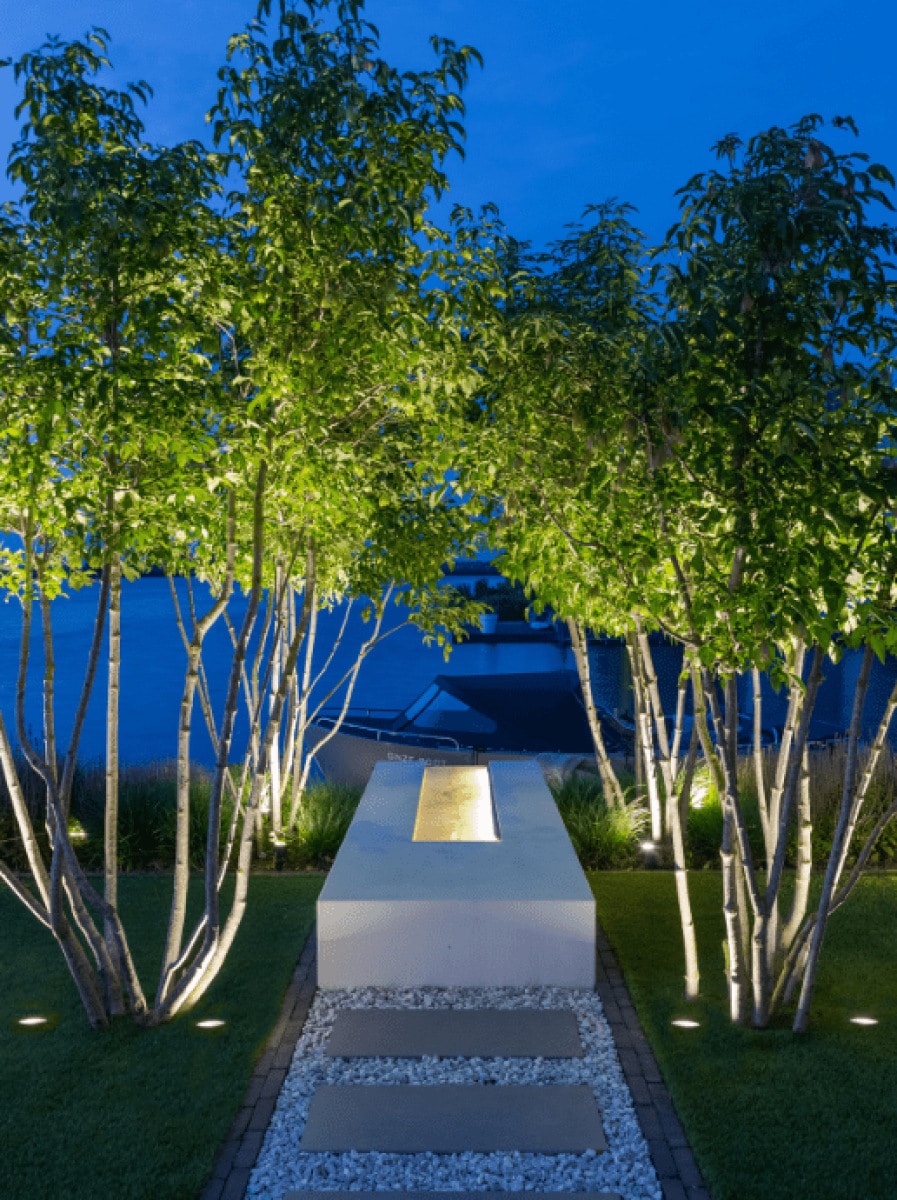

Position recessed lights from the target backwards. Mark the centre of the tree, facade or path feature, test the aiming and glare from normal viewpoints, then commit to the cut-out. A small change in location can make more difference than choosing the next larger fitting.

Set out recessed lighting before the surface is finished

For In-Lite NERO 12V Recessed Uplight, confirm the cut-out, recess depth, drainage and material thickness from the current installation drawing before drilling. Recessed lights are most convincing when their spacing follows the paving, step or deck geometry and the source is not directly in the normal line of sight.

Dry-lay the fittings and cable route first, then test the effect after dark. Do not bury an EASY-LOCK or other serviceable connection where it cannot be reached without lifting a finished surface.

Compare NERO fittings

Compare the NERO sizes and beam choices before drilling. Each needs its own installation dimensions.

In-Lite BIG NERO 12V Tilting Recessed Uplight · In-Lite BIG NERO NARROW 12V Tilting Recessed Uplight
