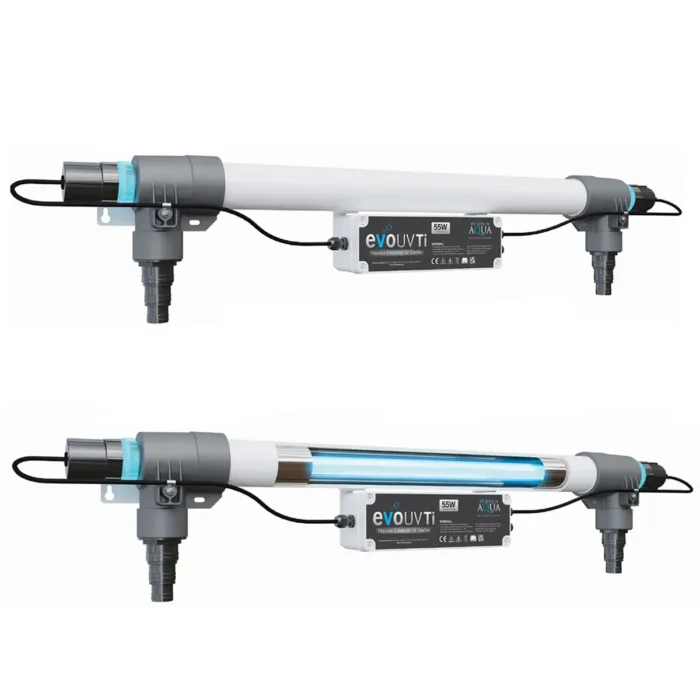

Evolution Aqua evoUV Ti 55w Titanium Enhanced

Evolution Aqua EvoUV Ti 55W

Titanium Enhanced UV Clarifier for Superior Pond Water Clarity

The Evolution Aqua EvoUV Ti 55W is a high performance UV clarifier designed to deliver exceptional water clarity in ponds up to 55,000 litres. Built with a titanium lined reaction chamber, this advanced unit increases UV effectiveness and provides a more powerful treatment compared to standard UV systems. As a result, it is ideal for koi ponds and heavily stocked systems where water clarity is critical.

Unlike traditional UV clarifiers, the EvoUV Ti uses the photocatalytic properties of titanium to enhance purification. When exposed to UV light, the titanium surface generates hydroxyl radicals which actively break down algae, bacteria and organic waste. This process helps maintain cleaner, healthier water while reducing the likelihood of persistent green water issues.

With a high output 55 watt T8 UV bulb, the unit delivers strong and consistent performance. It is suitable for both new installations and upgrades, offering a reliable solution for improving water clarity in a wide range of pond systems.

Advanced UV Performance with Titanium Technology

The titanium lined chamber reflects UV light more effectively than standard materials, increasing exposure and improving treatment efficiency. This means more algae and harmful microorganisms are neutralised as water passes through the unit.

In addition to algae control, the photocatalytic reaction helps break down dissolved organic waste. This contributes to improved water quality and a healthier pond environment overall. Because of this, the EvoUV Ti 55W is particularly effective in ponds with higher fish loads or ongoing water clarity issues.

The unit is also designed for ease of maintenance, with a fully serviceable control box and easy access to both the UV bulb and quartz sleeve. This ensures long term reliability and straightforward servicing.

Key Features

• Titanium enhanced UV clarifier for improved performance
• Up to 1.5 times more effective than standard UV units
• 55 watt high output T8 UV bulb
• Photocatalytic reaction helps break down algae and organic waste
• Suitable for ponds up to 55,000 litres
• Improves water clarity and overall pond health
• Fully serviceable design with removable electronics
• Thermal overload protection for added safety
• Flexible installation with horizontal or vertical mounting
• Clear end caps for visual bulb inspection

Technical Specifications

• Max pond size: 55,000 litres
• Optimum flow rate: 15,000 litres per hour
• Maximum flow rate: 20,000 litres per hour
• UV bulb: 1 x 55 watt T8
• Dimensions: 990mm x 85mm x 153mm
• Connections: 1.5 inch inlet and outlet
• Fittings supplied: 2 x 1.5 inch threaded hosetails
• Installation: Horizontal, vertical or angled mounting

Practical setup advice

Before ordering, think about how this product fits into the full pond setup. Compatibility, maintenance access, pipe or hose size and future servicing are often just as important as the headline specification. A product that is technically suitable can still disappoint if it is installed with restricted flow, poor access or the wrong supporting equipment.

Where possible, plan the main product and the accessories together. This makes installation neater, maintenance easier and the final system more reliable over time.

Before you order

Check the product size, connection details, access requirements and the equipment it will be used with. On ponds, the surrounding system often decides how well the product performs. Suitable pump flow, clean filters, correctly sized hose or pipework, good access for servicing and realistic maintenance all help the product work as intended.

Maintenance and compatibility checks

It is worth checking the supporting parts at the same time as the main product. Hose size, pressure pipe, valves, unions, UV units, filter inlets, air manifolds, spares and cleaning access can all affect how well the final system works. A correctly matched installation usually performs better and is easier to maintain than one built from parts chosen separately.

Product choice checklist

Before buying, double check the product against the way the pond is actually set up. Look at the water volume, fish load, flow rate, pipework, filter position, service access and the parts already installed. A product that is correctly matched to the system will usually be quieter, easier to maintain and more reliable than one chosen only because it has a higher rating.

This is especially important on koi ponds and larger garden ponds, where pumps, filters, UVs, air systems, food, treatments and fittings all affect one another. Taking a little time to check compatibility before ordering helps avoid restricted flow, awkward maintenance and unnecessary returns later.

Best results in the pond

Evolution Aqua evoUV Ti 55w Titanium Enhanced should be used as part of a sensible water quality routine. Treatments work best when the pond is correctly filtered, well aerated and tested regularly. Before adding any pond treatment, check the pond volume, read the dosage instructions and consider recent changes such as heavy rain, filter cleaning, medication, water changes or new fish.

• Measure the pond volume as accurately as possible before dosing.
• Use water tests to understand the problem before treating.
• Keep filters and aeration running unless the product instructions say otherwise.
• Allow time for the pond to respond before repeatedly adding more product.

Good pond care is usually a combination of filtration, testing, sensible feeding and the correct treatment at the right time. That approach gives more reliable results than treating symptoms without checking the cause.
