Evolution Aqua evoUV Ti 110w Titanium Enhanced

Evolution Aqua EvoUV Ti 110W

Titanium Enhanced UV Clarifier for Large Pond Systems

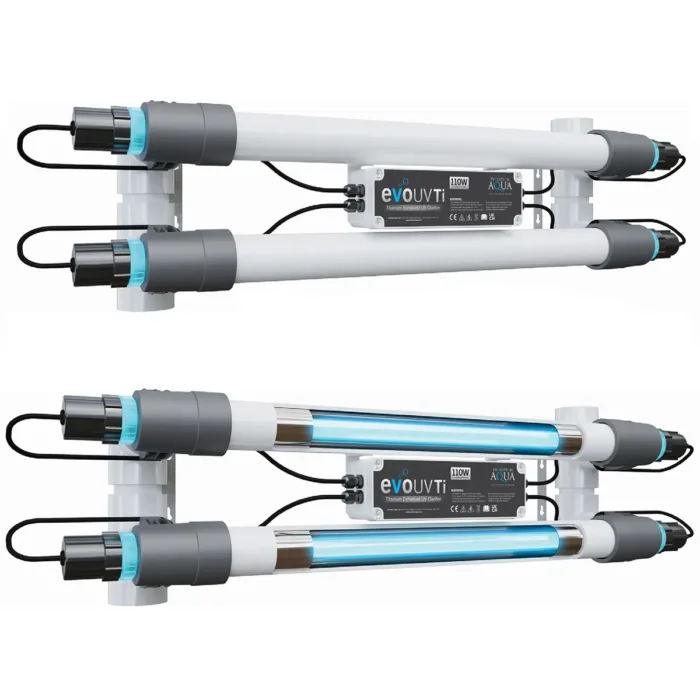

The Evolution Aqua EvoUV Ti 110W is a high performance UV clarifier designed for large ponds, koi systems and demanding filtration setups. Featuring dual 55 watt UV bulbs and a titanium lined reaction chamber, this advanced unit delivers significantly improved water treatment compared to standard UV clarifiers. As a result, it is ideal for maintaining clear and healthy water in larger pond environments.

Unlike conventional UV systems, the EvoUV Ti range uses photocatalytic technology to enhance purification. The titanium chamber generates hydroxyl radicals when exposed to UV light, which actively break down algae, bacteria and organic waste. This process improves overall water clarity while helping maintain a healthier pond ecosystem.

With its powerful dual lamp design, the EvoUV Ti 110W provides strong UV penetration even at higher flow rates. Therefore, it is particularly well suited to large koi ponds and systems with high stocking levels.

Maximum Performance with Dual UV and Titanium Technology

The dual 55 watt UV bulbs deliver a total of 110 watts of output, ensuring maximum exposure as water passes through the unit. Combined with the reflective titanium chamber, this increases treatment efficiency and improves algae control.

The photocatalytic reaction goes beyond basic UV clarification by breaking down dissolved organic compounds as well as harmful microorganisms. As a result, water remains clearer for longer while reducing the risk of green water and bacterial issues.

The unit is also designed for reliability and ease of maintenance. The control box houses dual ballasts with thermal overload protection, ensuring safe operation. In addition, the UV bulbs and quartz sleeves are easily accessible, allowing for straightforward servicing and replacement.

Flexible installation options allow the unit to be mounted horizontally, vertically or at an angle. This makes it easy to integrate into both new and existing filtration systems.

Key Features

• Titanium enhanced UV clarifier for superior performance
• Dual 55 watt UV bulbs for maximum output
• Up to 1.5 times more effective than standard UV units
• Photocatalytic reaction breaks down algae and organic waste
• Suitable for large ponds and koi systems
• Improves water clarity and reduces green water
• High flow capability for larger filtration systems
• Fully serviceable design with accessible components
• Thermal overload protection for safe operation
• Flexible installation with multiple mounting options

Technical Specifications

• Max pond size: 75,000 litres
• Maximum flow rate: 25,000 litres per hour
• UV output: 110 watts (2 x 55 watt T8 bulbs)
• Dimensions: 990mm x 167mm x 153mm
• Connections: 2 inch inlet and outlet
• Installation: Horizontal, vertical or angled mounting
• Application: Large koi ponds and advanced filtration systems

Practical setup advice

Before ordering, think about how this product fits into the full pond setup. Compatibility, maintenance access, pipe or hose size and future servicing are often just as important as the headline specification. A product that is technically suitable can still disappoint if it is installed with restricted flow, poor access or the wrong supporting equipment.

Where possible, plan the main product and the accessories together. This makes installation neater, maintenance easier and the final system more reliable over time.

Before you order

Check the product size, connection details, access requirements and the equipment it will be used with. On ponds, the surrounding system often decides how well the product performs. Suitable pump flow, clean filters, correctly sized hose or pipework, good access for servicing and realistic maintenance all help the product work as intended.

Maintenance and compatibility checks

It is worth checking the supporting parts at the same time as the main product. Hose size, pressure pipe, valves, unions, UV units, filter inlets, air manifolds, spares and cleaning access can all affect how well the final system works. A correctly matched installation usually performs better and is easier to maintain than one built from parts chosen separately.

Product choice checklist

Before buying, double check the product against the way the pond is actually set up. Look at the water volume, fish load, flow rate, pipework, filter position, service access and the parts already installed. A product that is correctly matched to the system will usually be quieter, easier to maintain and more reliable than one chosen only because it has a higher rating.

This is especially important on koi ponds and larger garden ponds, where pumps, filters, UVs, air systems, food, treatments and fittings all affect one another. Taking a little time to check compatibility before ordering helps avoid restricted flow, awkward maintenance and unnecessary returns later.
