Oase ProMax MudDrain 20000

SKU: PP3920
GTIN: 4010052577661
Brand

Pump Type

Dirty water pump

Maximum Flow Rate

20000 LPH

Maximum Head Height

10m

Wattage

950W

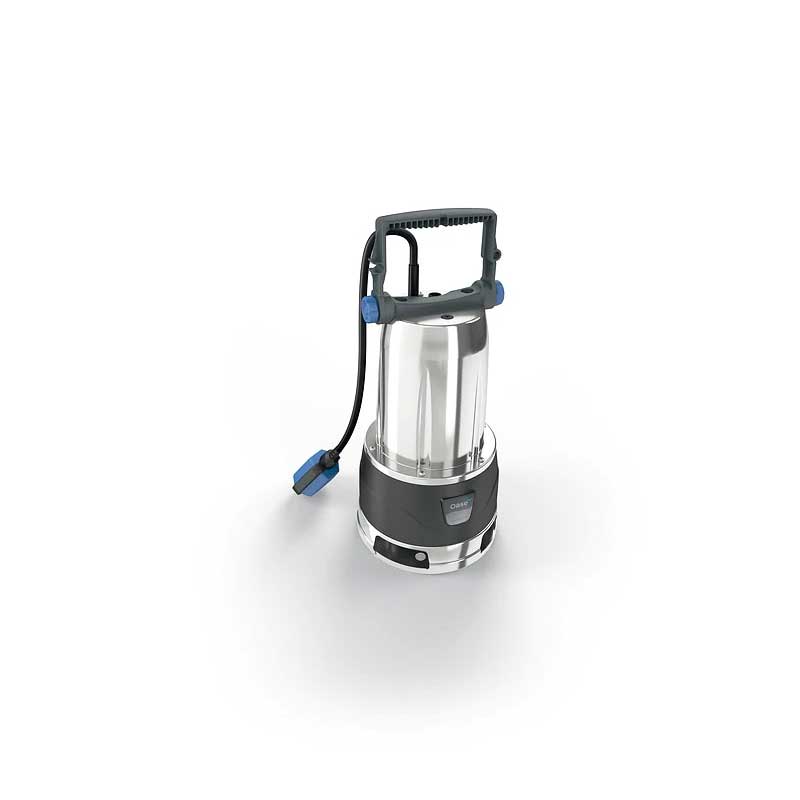

Oase ProMax MudDrain 20000 is a high-capacity submersible pump for contaminated water, capable of handling solids up to 35 mm, ideal for construction pits and heavy-duty drainage.

£512.99 (inc VAT)

Oase ProMax MudDrain 20000

Heavy-Duty Submersible Wastewater Pump for Contaminated Water, Construction Pits, and High-Flow Applications

Oase ProMax MudDrain 20000

The Oase ProMax MudDrain 20000 is a robust and high-performance submersible wastewater pump engineered for challenging water removal tasks in suitable pits, basins, shafts, and other demanding environments. Designed to reliably handle heavily contaminated water, this pump can convey particles up to 35 mm in diameter, delivering a maximum flow rate of 20,000 l/h. Built with high-quality stainless steel components, a ceramic-coated shaft, and a sturdy base, the MudDrain 20000 offers durability, stability, and reliable performance during suitable temporary drainage tasks. Its powerful motor features optimal heat dissipation through water cooling, ensuring extended operational life.

Equipped with a practical float switch, the pump automatically switches on and off, providing a dependable and hands-free operation. The ProMax MudDrain 20000 also features a back pressure port (1 ½”) for low-resistance flow, as well as an included 90° bend and step nozzle for versatile connection options. The adjustable handle allows easy positioning and handling, while the tangentially positioned pressure duct maximizes particle displacement for efficient pumping of contaminated water. Use it for suitable temporary drainage and water removal; follow the Oase manual for installation, permitted water and operating limits.

Benefits

  • High-capacity pumping up to 20,000 l/h
  • Handles contaminated water with solids up to 35 mm
  • Automatic operation with float switch for hands-free use
  • Robust stainless steel housing and base for stability
  • Ceramic-coated stainless steel shaft for long-term durability
  • Efficient particle displacement through tangential pressure duct
  • Adjustable handle for flexible operation
  • For submerged operation in suitable construction pits or basins; do not run dry

When to Use

  • Removal of contaminated water from construction pits and shafts
  • Pumping water with high debris content
  • Temporary water transfer or drainage in suitable construction or maintenance tasks
  • Emergency drainage operations
  • Temporary drainage of suitable water from basins or shafts

How It Works

  • Submersible pump design for direct water placement
  • Float switch triggers automatic on/off operation
  • High-capacity impeller efficiently conveys solids up to 35 mm
  • Tangentially positioned outlet reduces resistance for optimal flow
  • Water-cooled motor ensures heat dissipation for long life
  • Robust materials resist corrosion and abrasion

How To Use

  • Place the pump fully submerged in the water source
  • Connect the outlet to the desired hose or piping using included 90° bend and step nozzle
  • Adjust float switch to required on/off height
  • Ensure power supply matches rated voltage (230 V / 50 Hz)
  • Regularly inspect and clean intake and float mechanism for optimal operation

Product Specifications

  • Product Type: Submersible heavy-duty wastewater pump
  • Flow Rate: 20,000 l/h
  • Maximum Head: 10 m
  • Maximum Particle Size: 35 mm
  • Motor Power: 950 W (1.3 hp)
  • Voltage: 230 V / 50 Hz
  • Outlet Size: 1 ½ “
  • Power Cable Length: 10 m
  • Protection Class: IP X8
  • Maximum Immersion Depth: 7 m
  • Dimensions (L x W x H): 200 x 254 x 440 mm
  • Net Weight: 8.1 kg
  • Warranty: 2 + 1 Years

Ideal For

  • Temporary drainage of suitable pits and shafts
  • Temporary drainage of suitable basins or ponds containing debris
  • Emergency drainage or heavy-duty water transfer
  • Temporary drainage of suitable basins and shafts
  • Users needing a high-capacity submersible pump for temporary drainage

Related dirty water and pond pumps

Related Pond Pump Options

This MudDrain is a temporary drainage pump, not a pond filter or a pump for continuous pond recirculation. For a filtration setup, choose a suitable filter pump, filter, hose and fittings.
