Oase ProfiClear Guard Auto Top Up System

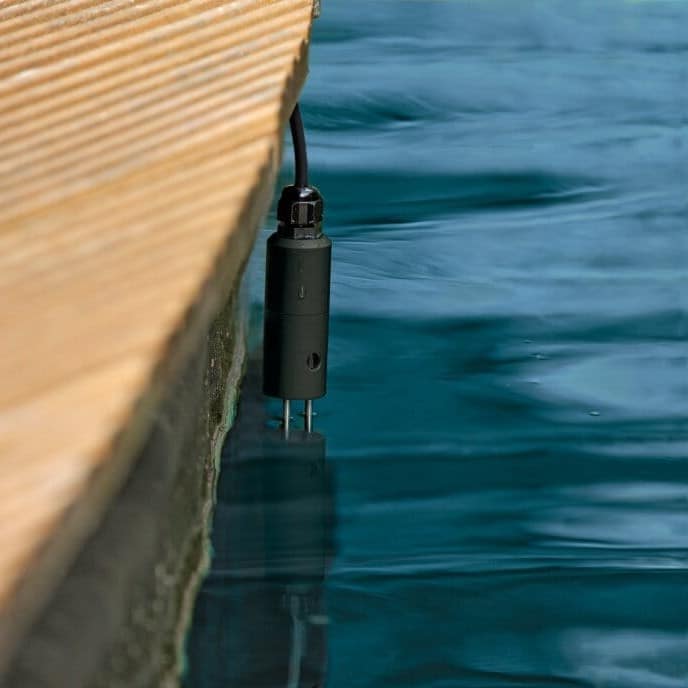

Equipped with a partially submerged water level sensor, the The Oase ProfiClear Guard Auto Top Up System promptly notifies the controller of any water depth fluctuations exceeding 20mm (3/4″). Upon detection, the controller signals the solenoid valve to open, allowing mains water to replenish the pond or reservoir. Once the desired water level is attained, the controller deactivates the solenoid valve.
Ideal for Koi Ponds or fish ponds utilizing gravity-fed filter systems, the Oase Proficlear Guard ensures consistent water levels, unaffected by evaporation. Additionally, commercial fountain displays employing water level-dependent nozzles benefit from this top-up system, ensuring consistent and precise decorative water features.
The Oase ProfiClear Guard Auto Top Up System includes:
- Weatherproof Control Unit with power, valve open and valve closed indicators.
- 12 volt water level sensor with 20mm switching differential.
- Water mains operated, 230 volt Solenoid Valve, supplied with 2m cable.
- Solenoid Valve inlet and outlet are 1/2″ BSP female threaded.
- 2 year guarantee.
Technical Specs:
Solonoid Valve: L65 x 83mm / Max 10 Bar pressure / 3m Cable to Controller supplied.
Sensor: L130 x D30mm / 20m Cable to Controller supplied.
Controller: L120 x W111mm / 2m Mains Cable.
| Dimensions (L x W x H) |
mm |
120 x 55 x 111 |
| Rated voltage |
|
230 V / 50/60 Hz |
| rated voltage – sensor |
V |
12 |
| Power consumption |
W |
3 |
| Net weight |
kg |
2.82 |
| Power cable length |
m |
2.00 |
| Sensor cable length |
m |
20.00 |
| Cable length of the valve |
m |
3.00 |
| Connection |
mm |
13 |
| Connection |
|
½” |
| Max. operating pressure |
bar |
18 |
| Switching differential |
mm |
25 |
| Limited Warranty |
Years |
2 |
| Protection class |
|
IP65 |
| Length |
mm |
120 |
