Oase Maxima Water Storage Blocks
| Brand | |
|---|---|
| Model | Maxima 60, Maxima 120 |
| Guarantee | 2 Years |
| Water Volume | 60 litres, 120 litres |
| Load Capacity | 6,000kg, 12,500kg |
High-strength Oase Maxima modular storage blocks with 96% void space for pondless waterfalls, hidden water-feature reservoirs and soakaway-style installations.
Price range: £38.99 through £47.99 (inc VAT)
Oase Maxima Water Storage Blocks
Structural underground modules for pondless waterfalls, hidden reservoirs and rainwater storage
Oase Maxima blocks create a large underground water volume without filling the excavation with solid material. Approximately 96% of each module’s volume is available for water, while the reinforced matrix supports the surface above. Several units can be clipped together to build a reservoir that suits the footprint and storage requirement of a pondless waterfall, stream or architectural feature.

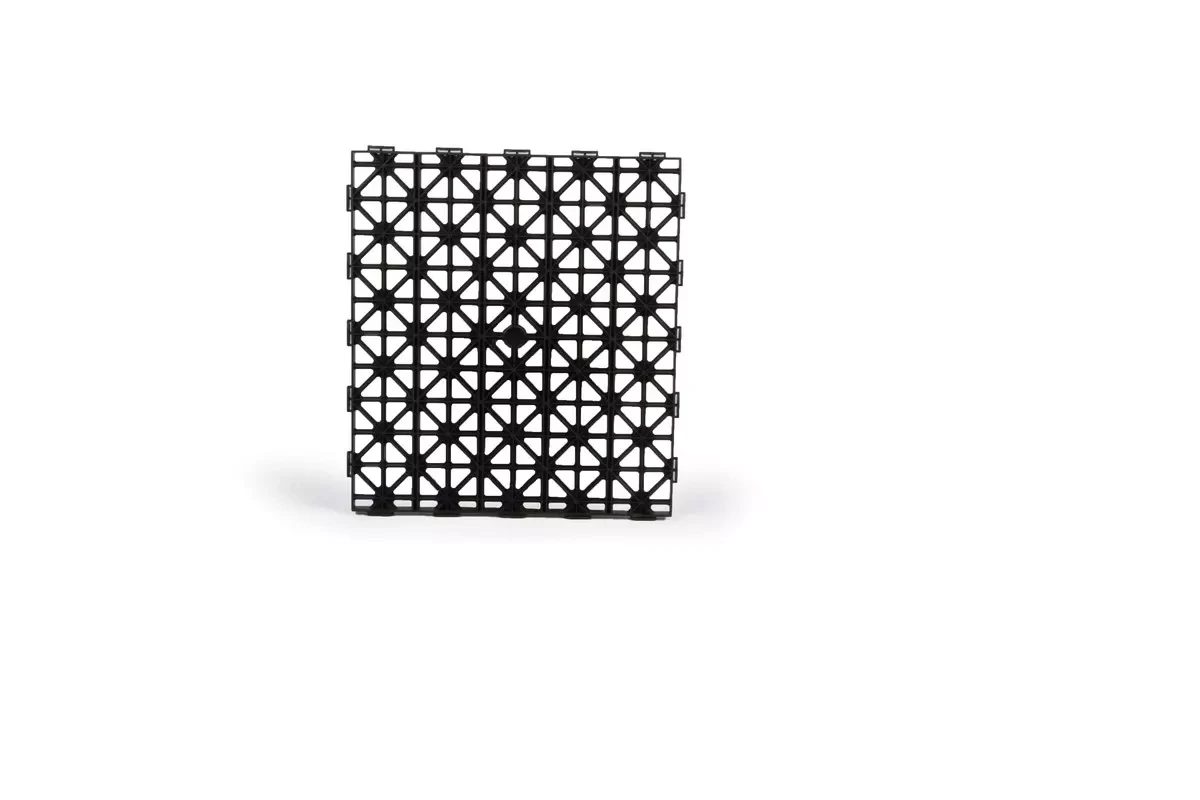

Maxima 60 and 120 share the same 686 × 406mm plan size; the 120 is twice the height and holds twice the water. Their published load figures are substantial, but the complete installation is only as strong as its base, surrounding fill, liner protection and load distribution.
| Model | Dimensions | Water volume | Published load capacity |
|---|---|---|---|

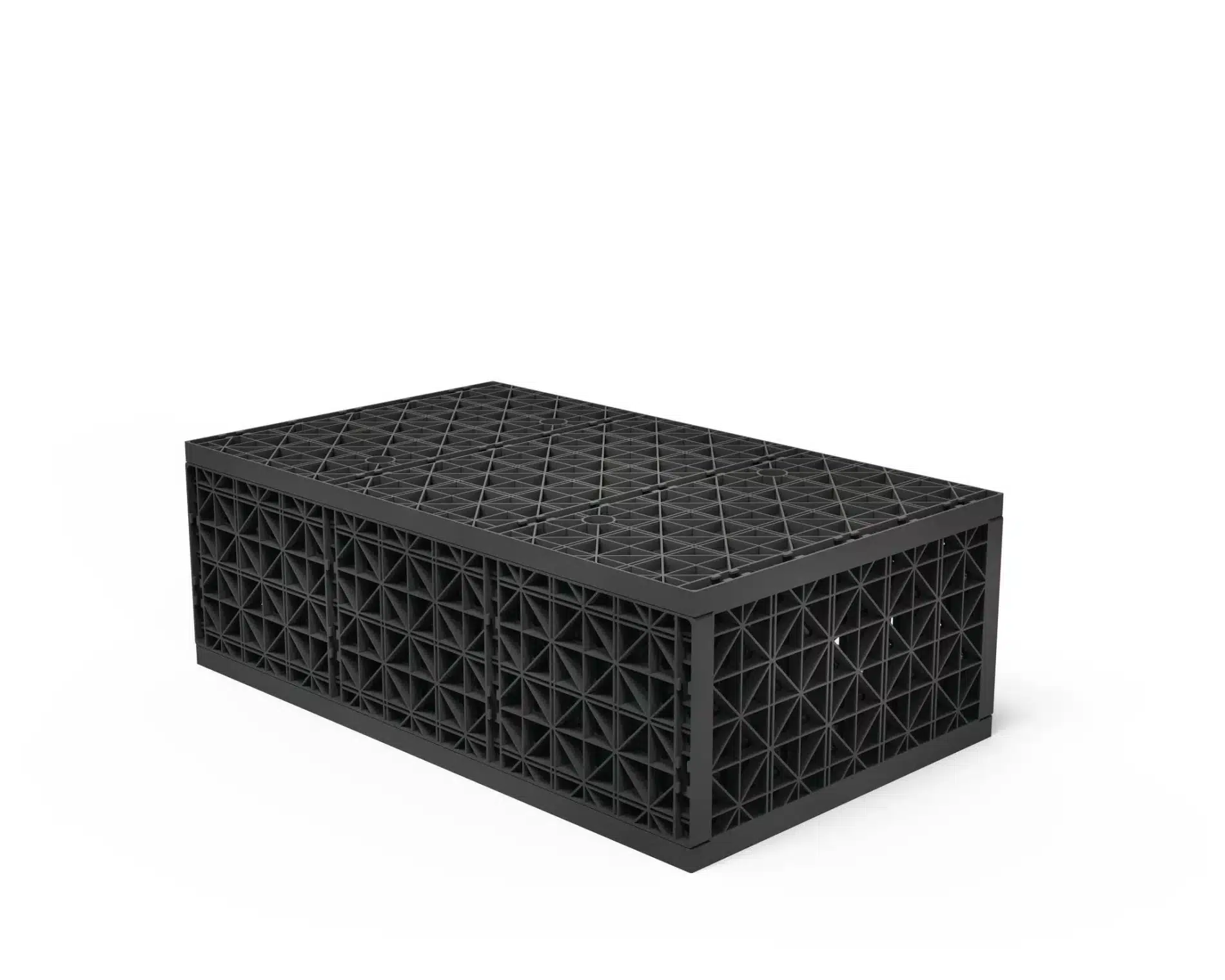

| Maxima 60 | 686 × 406 × 222mm | 60 litres | 6,000kg |

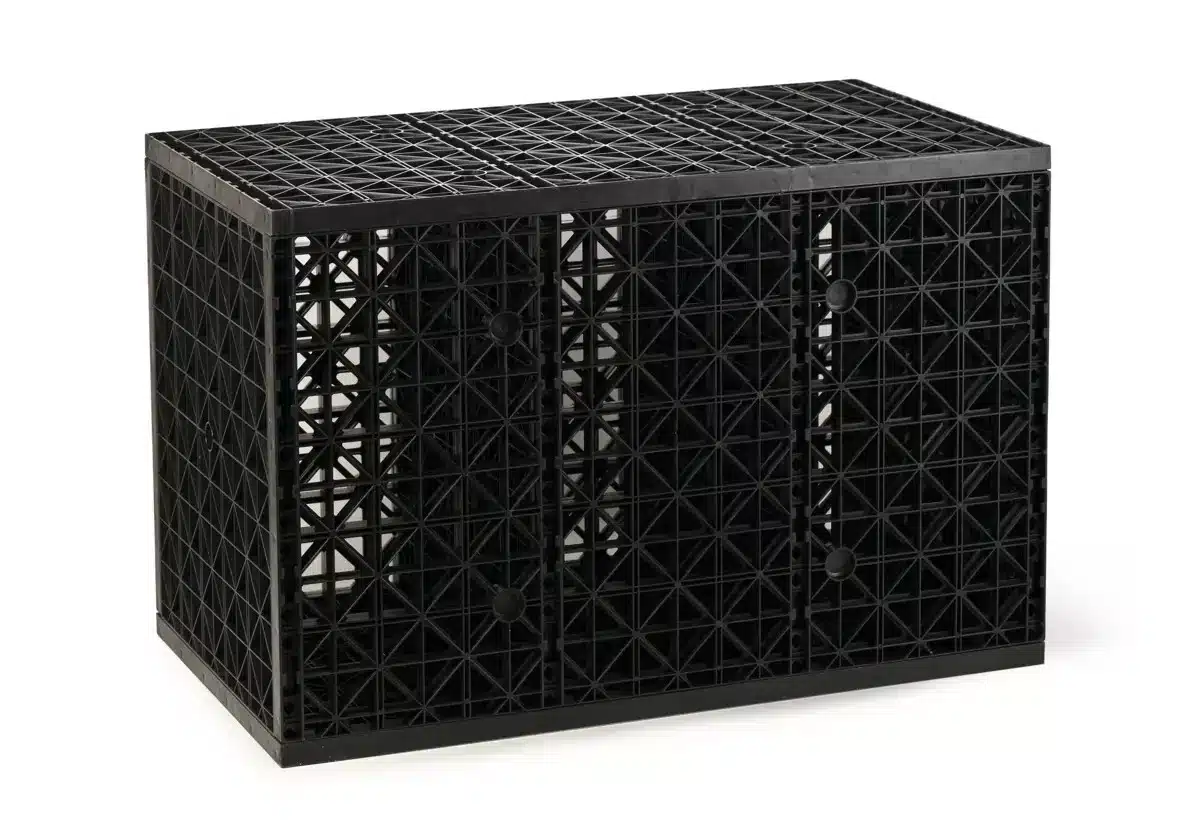

| Maxima 120 | 686 × 406 × 445mm | 120 litres | 12,500kg |
Build the complete pondless system
Use an Oase Pump Vault beside the blocks so the circulation pump can be removed without excavating the feature. At the head of the stream, an Oase Spillway Box distributes the return water. The Eco-Rise stand provides a stable support for a monolith or sculpture over a compatible reservoir.
Installation principles
- Excavate to stable ground and compact the base evenly.
- Use the specified liner and protective layers around the complete module field.
- Clip blocks together and follow Oase’s orientation and loading guidance.
- Keep the pump vault reachable from the finished surface.
- Calculate both working volume and shutdown return volume.
Frequently asked questions
Can I use several blocks together?
Yes. Their modular format is intended for building larger and differently shaped storage fields.
Are they a filter?
No. They store water and support the surface. Any filtration or debris management needed by the feature must be designed separately.
Can I put paving over them?
The modules have high published load ratings, but paving is only appropriate when the entire installation, backfill and load distribution have been designed correctly.
