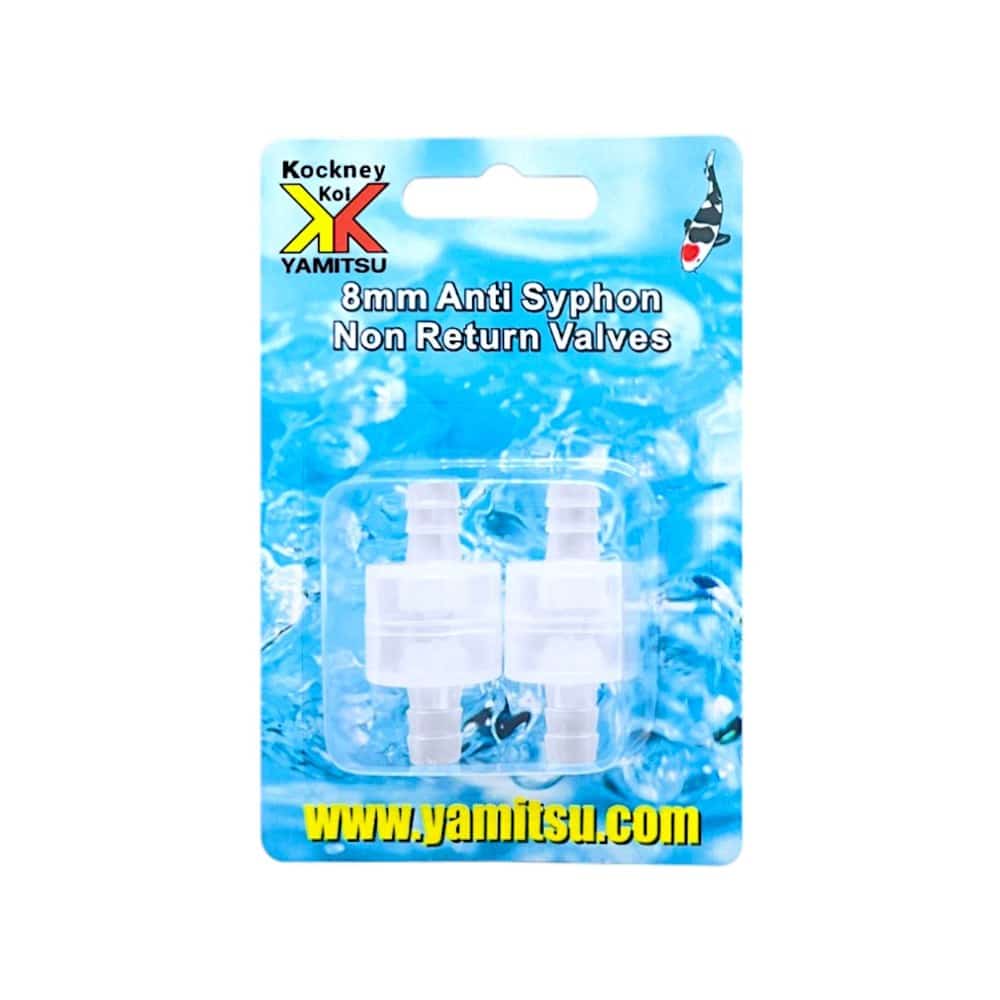

Kockney Koi 8mm Airline Non-Return Valves – Pack of 2

Kockney Koi 8mm Airline Non-Return Valves – Pack of 2

Compact anti-syphon valves for compatible pond and aquarium airlines

The Kockney Koi Hi-Flow 8mm Airline Non-Return Valves are designed to stop water travelling backwards through an airline towards the air pump. Each pack contains two valves for 8mm airline, making it a practical choice when setting up separate air lines or replacing an existing check valve. They fit into the airline itself and are separate from the pump, manifold and diffuser.

A non-return valve has a different job from an adjustable air tap. An air tap lets you balance or reduce air delivery to a branch; a non-return valve allows flow in one direction and resists reverse flow. If your system needs both functions, choose the appropriate fittings for each purpose rather than expecting one component to do both jobs.

Product details

Product	Hi-Flow 8mm Airline Anti-Syphon Non-Return Valves
Manufacturer	Kockney Koi / Yamitsu
Airline connection	8mm
Pack quantity	2 valves
Manufacturer reference	002197

Why a pond airline needs backflow protection

During normal operation the air pump pushes air down the hose towards the diffuser. When the pump stops, the pressure that normally keeps water out of the airline is no longer present. Depending on the route of the hose and the height of the equipment, water can travel back along the line. A correctly installed non-return valve provides a barrier to that reverse movement.

This is worth considering during planned maintenance as well as an unexpected power cut. Switching off an air pump to clean an air stone changes the conditions in the airline, even if the pump has run reliably for months. Check the whole route from pump to diffuser when arranging your equipment, particularly where the pump sits below pond water level.

Match the valve to your airline

Select this pack for an 8mm airline connection. Check your hose specification carefully: internal and external diameters are different measurements, and a thick-walled hose may look much larger than its stated bore. Do not select a fitting from the outside appearance of the hose alone. The connection should be secure without stretching unsuitable tubing over the fitting.

For a tidy underwater run, choose the appropriate 8mm option from our standard sinking airline or Evolution Aqua heavy-duty sinking airline. Check the selected size before ordering because those ranges also include other bores. Our black braided airline can also be used in a suitable air installation, but it does not sink and may need securing along its route.

Fit in the correct direction

Follow the flow direction indicated on the valve or its supplied packaging so that air travels from the pump towards the diffuser. Reversing a one-way valve can prevent the diffuser receiving air. After fitting, check that air reaches the intended outlet and that the hose connections remain secure. A newly fitted valve should be checked as part of starting the system, rather than assumed to be working because the pump is running.

Keep the valve somewhere you can reach for inspection and replacement. Avoid putting unnecessary strain on the ends of the fitting or leaving the airline sharply kinked beside it. Route the hose with gentle bends wherever possible. The valve is one component of the installation, so continue to follow the air pump manufacturer’s requirements for location, protection from weather and electrical safety.

Using two valves in an aeration system

The twin-pack gives you two individual valves. You might need one on each of two separate lines, depending on the layout and equipment instructions, or keep the second as a replacement. A pack of two does not mean both should automatically be installed in series on one hose. Extra restrictions can affect the air delivered to a diffuser, so plan the arrangement rather than adding fittings unnecessarily.

For systems with several outlets, consider how each branch is connected and whether water could move back along that branch when the pump is off. Different diffuser depths and hose lengths can change the airflow between outlets. An adjustable manifold helps with balancing, while non-return valves address reverse flow; neither increases the pump’s available output.

Inspection and maintenance

Include airline fittings in routine pond-equipment checks. Look for loose hose ends, cracked tubing and reduced airflow at the diffuser. If bubbles become weaker after a change, check the valve direction and connections along with the diffuser and pump. Replace a damaged or unreliable valve rather than leaving a known backflow problem unresolved.

Check the system again after moving the pump, extending the airline or changing the diffuser position. Those alterations can change the way the installation behaves. If water has already reached electrical equipment, isolate it safely and follow the manufacturer’s guidance before attempting to use it again. Keeping a compatible spare fitting with your pond maintenance supplies makes a straightforward replacement easier.
