Hiblow HP20 & HP40 Replacement Diaphragm Kits

Hiblow HP Replacement Diaphragm Kits

Matched diaphragm pairs for Hiblow HP20 and HP40 air pumps

Choose the model-specific replacement diaphragm kit for your Hiblow HP20 or HP40 air pump. It supplies a pair of diaphragm mounting blocks so that both sides can be renewed together. Each option contains a pair for the selected pump model. Choose it when the diaphragms on your existing Hiblow pump need replacement, rather than replacing an otherwise serviceable pump. The complete pump, inlet filter and inlet/exhaust casing assemblies are separate components.

Check the model label before ordering. Select HP20 for an HP20 pump or HP40 for an HP40 pump. The two options are different parts; choose from the label on your pump rather than comparing the general appearance of a diaphragm. Hi-Flow and Hiblow are different ranges, and other Hiblow HP or XP models have their own replacement parts. Keep the model number with your maintenance records to make future servicing easier.

Why replace the diaphragms as a pair?

These pumps use diaphragms on opposite sides of its actuating mechanism. The official UK distributor specifies that both should be replaced together. Renewing just the visibly damaged side leaves the other diaphragm in service after a similar period of use. This kit provides the pair needed for that approach.

Diaphragms are moving service components, so their condition matters even when the outside of the pump looks clean. Unusual noise or reduced performance deserves investigation. The distributor also identifies black membrane debris inside a pump as a sign of diaphragm deterioration. A service should establish the cause of the problem rather than assuming that every loss of bubbles is caused by the same fault.

Check the air system as well as the pump

Before arranging a repair, note what has changed in the pond. A kinked airline, restricted outlet, dirty diffuser or altered installation can affect the air seen at the surface. Record whether the reduction affects every outlet or only one branch. That information helps distinguish a problem at the pump from a restriction farther along the air system.

Inspect accessible hose connections and the inlet filter as part of your normal maintenance. A replacement diaphragm does not remove a blockage in an air stone or repair a leaking airline. Keeping the whole installation in reasonable condition helps the repaired pump do its job without immediately returning to the same operating conditions that prompted the inspection.

Diaphragm kit or complete chamber assembly?

This listing is for diaphragm mounting blocks. A chamber assembly includes additional parts associated with the air path and valves. Those are different repairs, so compare the parts required before ordering. If an inspection shows damage beyond the diaphragms, replacing only this pair may not complete the repair.

The HP20 parts diagram identifies the diaphragm, diaphragm base, casing block, actuating rod and electromagnet separately. That distinction is useful when discussing a fault or checking a service quotation. Send us the pump model and clear photographs of the affected components if you need help identifying the spare; include the complete pump label rather than only a close-up of the damaged rubber.

Choose the correct model

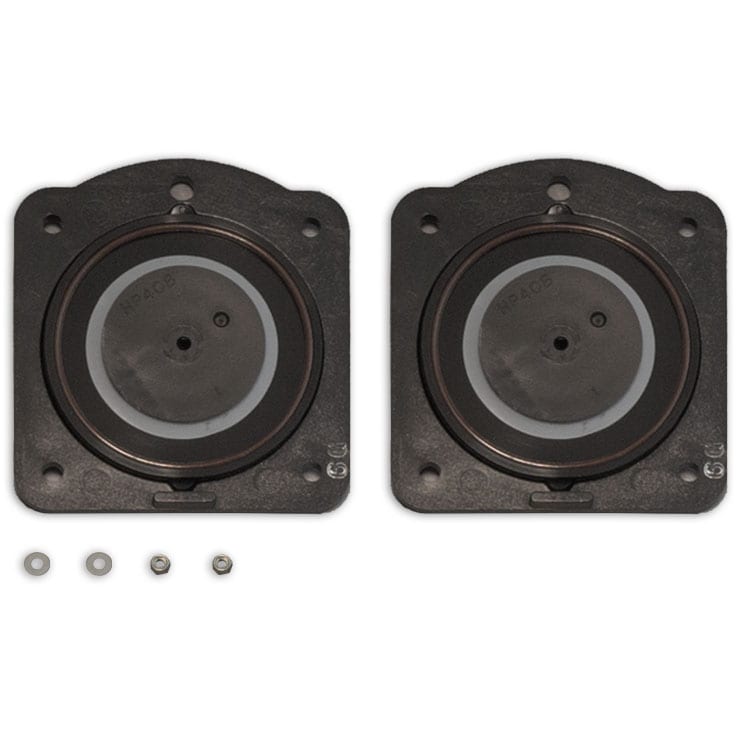

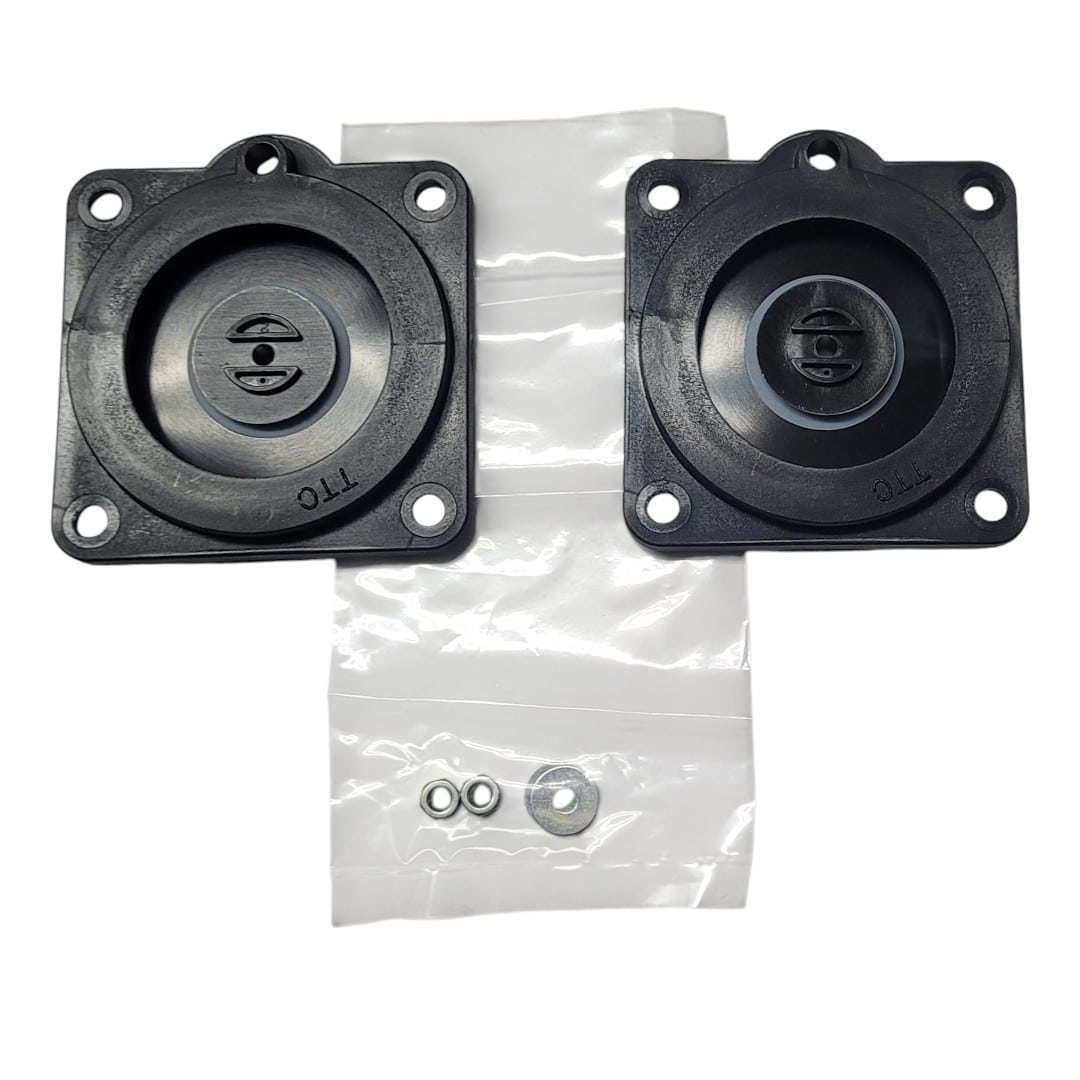

The HP20 option is for the Hiblow HP20 air pump. The HP40 option is for the Hiblow HP40 air pump. Select your model above to see the corresponding photograph and price. These are diaphragm mounting-block pairs, not a complete replacement pump or a full kit containing every internal service component.

Planning the replacement

Unplug the pump before opening it and follow the service instructions for your exact model. Arrange another suitable source of aeration while the pump is unavailable, particularly where it supports a stocked pond or an aerated filter. Prepare a clean working surface with room to keep screws and removed components organised.

For the HP20, the manufacturer’s service procedure includes attention to the actuating rod, new locking nuts and washers, the position of the diaphragm bases and the alignment within the pump. Its warning about strong magnets should also be observed. These details matter: the parts should be fitted by someone comfortable following the full model-specific procedure, rather than treated as a quick external hose change.

Use the instructions supplied with the equipment or replacement parts to complete the repair. Do not rely on a video for a different model simply because the housing looks similar. If wiring, electrical components or other internal parts appear damaged, have the pump assessed before returning it to use.

Returning your pump to service

Once the unit has been correctly reassembled, reconnect it to the intended airline arrangement and check the outlets. Listen for a change from its normal sound and confirm that air reaches the diffusers as expected. Where a problem remains, investigate it rather than assuming that new diaphragms alone guarantee that every component is sound.

Keep the pump in a suitable protected position with its ventilation unobstructed, following its installation instructions. Check that airline routing does not introduce a back-siphon risk and that any non-return valve is suitable for the system and fitted in the correct direction. Review these details whenever a pump is moved during pond or filter maintenance.

Keep a useful maintenance record

Record the date and parts used after the repair. A short note about the symptom, the condition of the removed diaphragms and any other work carried out is more useful than relying on memory at the next service. Retain the model-specific manual with the pump information so that future replacement parts can be checked against the correct model.

Air pump spares and accessories

Browse our air pump accessories for other replacement and connection parts. If the pump itself needs replacing, compare the Hiblow pond air pump range and match the model to your existing aeration requirements. An HP20 or HP40 diaphragm kit does not convert a pump into a different output model.
