Plastic Air Manifolds with 18mm Inlet and 9mm Outlets
| Inlet size | 18mm |
|---|---|
| Outlet size | 9mm |
Divide one air supply between several air stones or diffusers with individually adjustable taps. Choose a 5, 7, 9 or 11 outlet plastic manifold, each with an 18mm inlet and 9mm hosetails. Supplied as one manifold in your selected size.
Connect using a suitable pump connector and flexible airline. Check the connection size and working airflow of your pump.
Price range: £50.99 through £82.99 (inc VAT)
Plastic Air Manifolds with 18mm Inlet and 9mm Outlets
Choose 5, 7, 9 or 11 individually adjustable air outlets
Distribute the air from one pond air pump to several air stones or diffusers with these adjustable plastic air manifolds. Each manifold has an 18mm inlet and a separate tap on every 9mm outlet, giving you a convenient place to balance the air supply around your pond, filter or holding system. Choose the number of outlets to suit the airline branches you need, rather than relying on a series of separate tee pieces with no individual adjustment.
The range includes 5, 7, 9 and 11 outlet models. Our photographs show the four sizes together so you can compare their layout, with individual photographs to help you identify your chosen option. The price is for one manifold in the selected size. Air pumps, airline, connecting elbows, clips and diffusers are available separately.
Compare the four manifold sizes
| Option | Side outlets | End outlet | Total adjustable outlets |
|---|---|---|---|

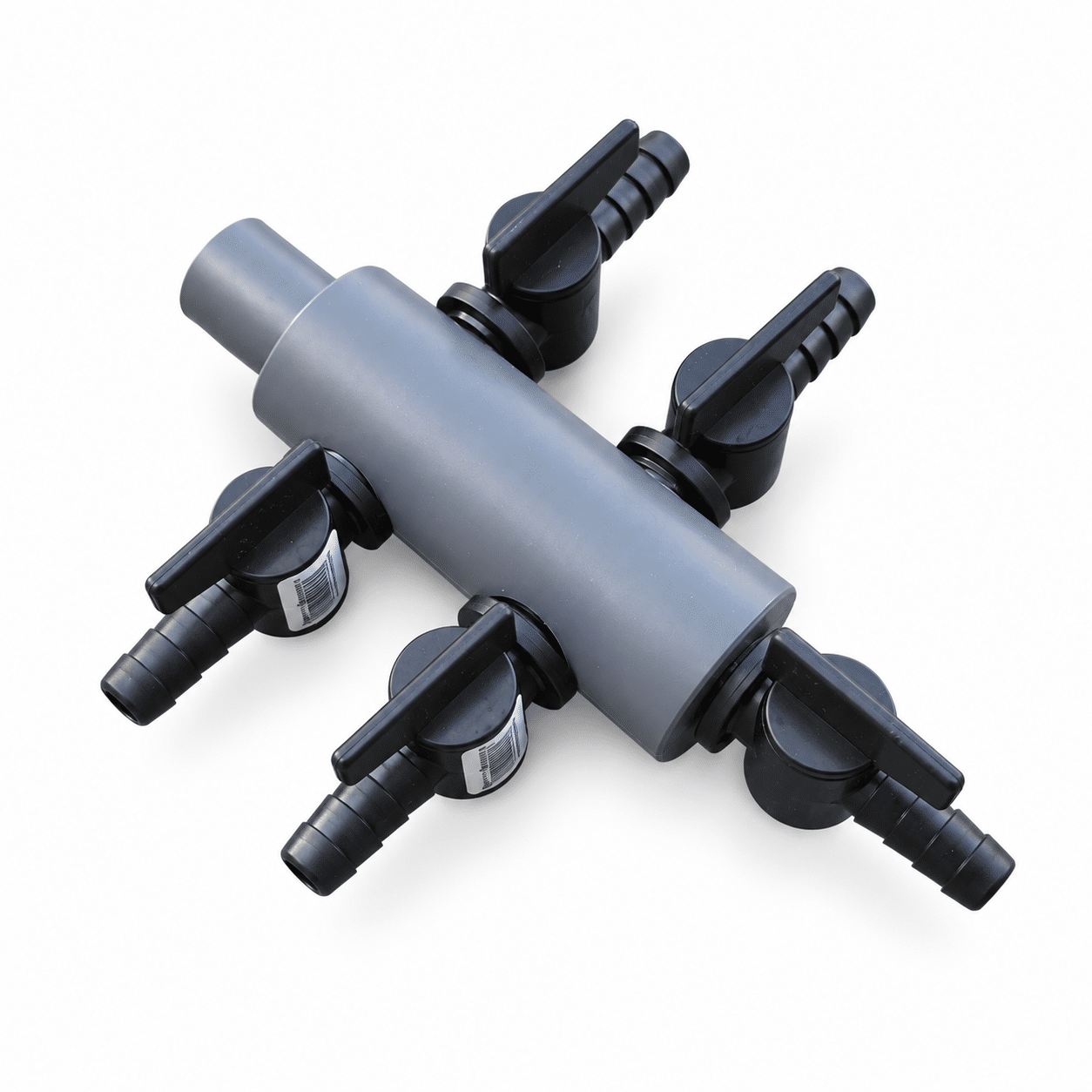

| 5 way | 2 on each side | 1 | 5 |

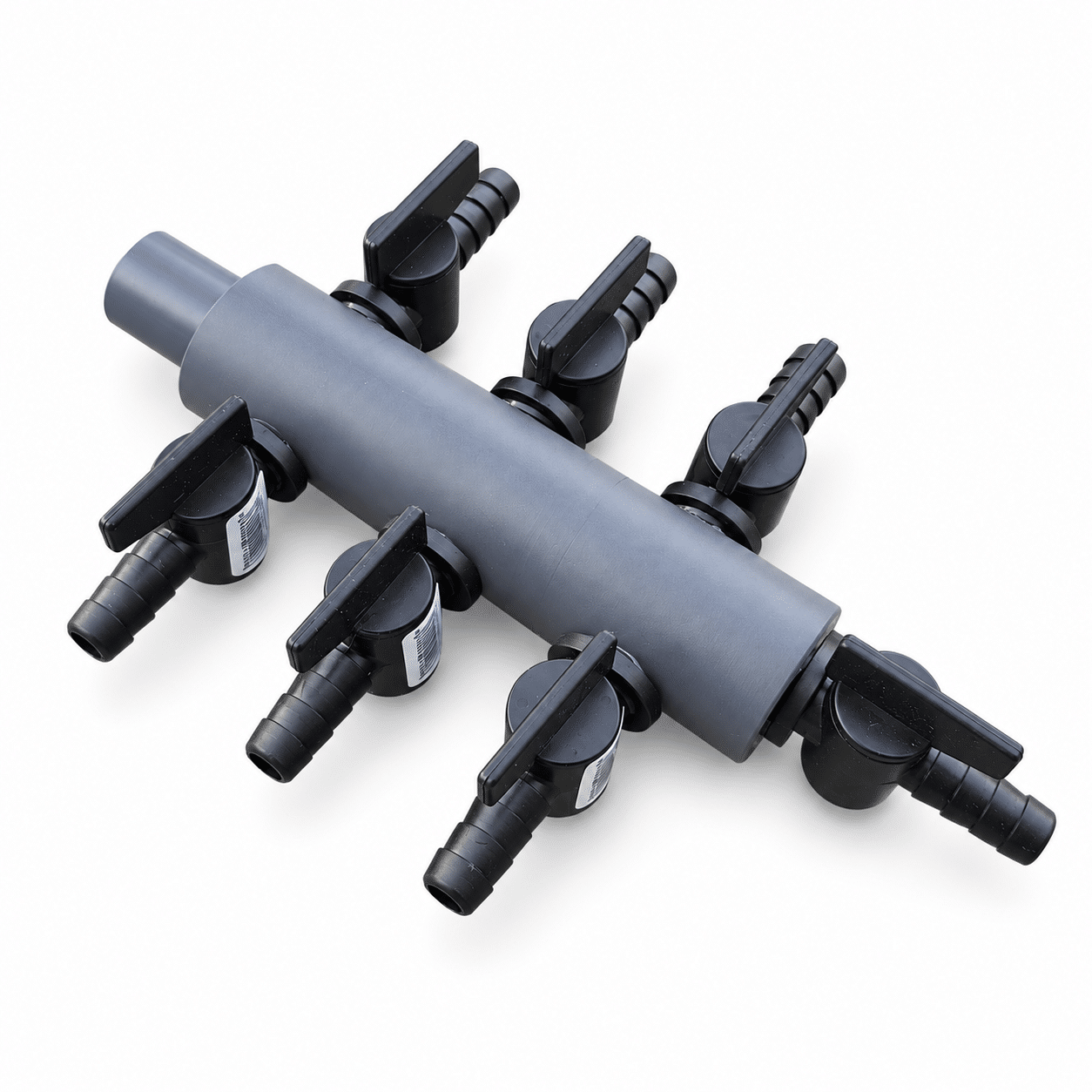

| 7 way | 3 on each side | 1 | 7 |

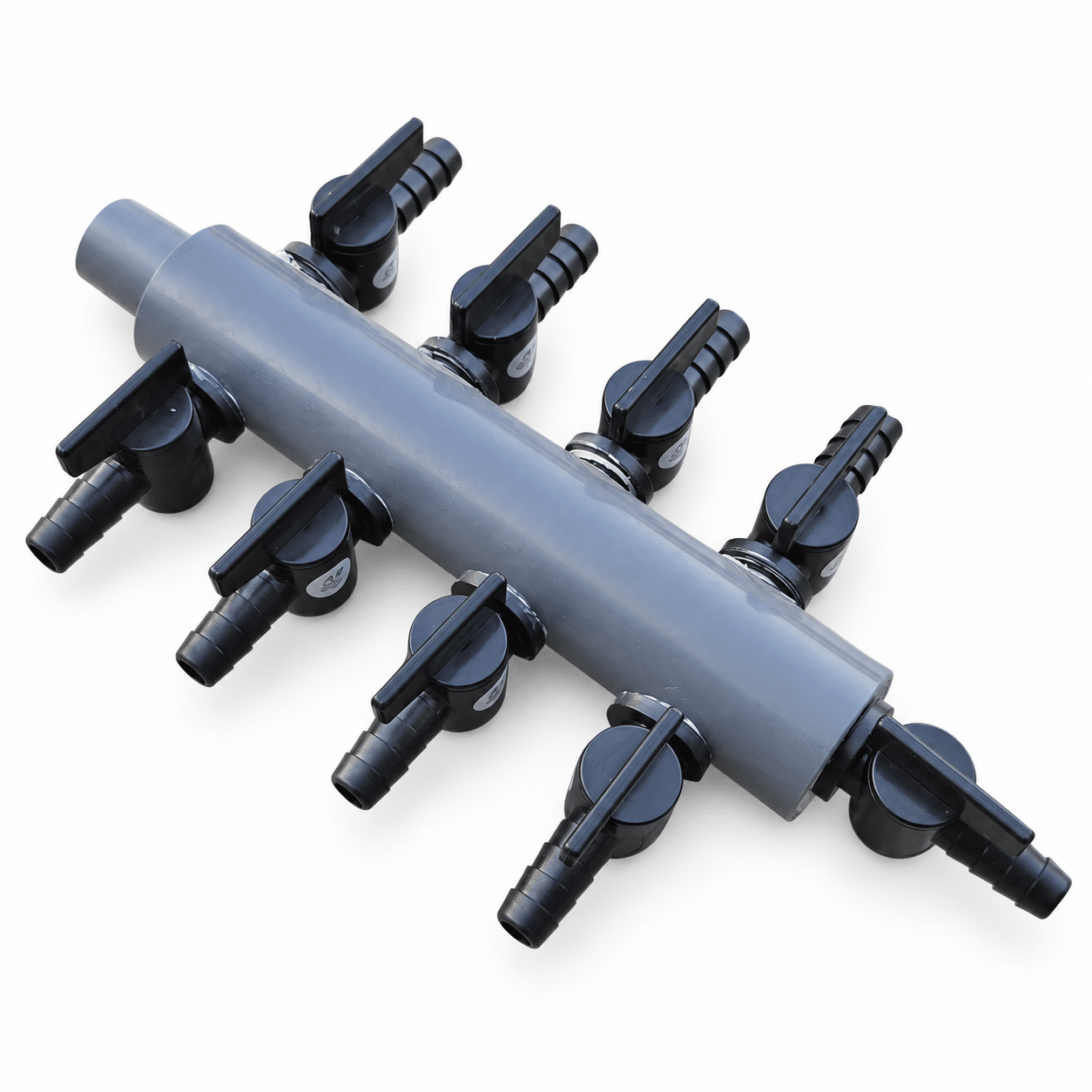

| 9 way | 4 on each side | 1 | 9 |

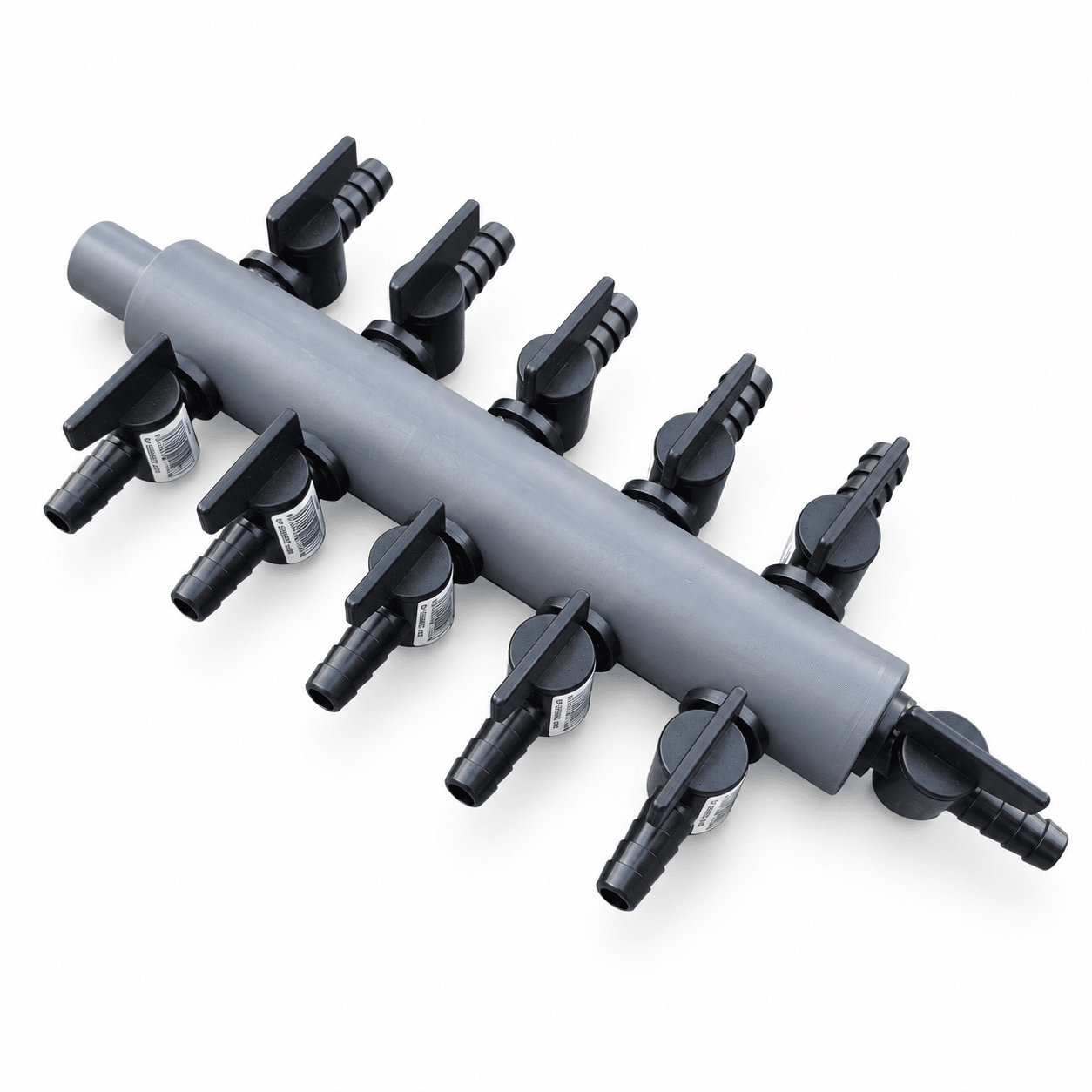

| 11 way | 5 on each side | 1 | 11 |
All four options use the same 18mm inlet and 9mm outlet connection sizes. The end tap is included in the advertised outlet count: for example, the 5 way model has four side outlets and one end outlet. Every outlet has its own handle, so a branch can be adjusted independently without disconnecting its hose. For other connection sizes and outlet arrangements, compare our full air manifold range.
Connecting the manifold to your air pump
The 18mm inlet connects to the air supply through a correctly sized flexible connector or rubber elbow. Check the connection supplied with your particular pump before ordering. Pump outlets vary between models, so an 18mm manifold is not necessarily a direct fit on every pump without an appropriate connecting piece. The manifold can form part of a system using different pump brands; the connection and the pump’s working airflow must suit the installation.
Browse our pond air pumps when putting together a new system. Tell us which pump you have if you would like help choosing the connection. The number of taps does not determine the pump size by itself: five large diffusers can require more air than a greater number of small air stones.
Which airline should you use?
The outlet fittings are 9mm hosetails. This manifold range is commonly paired with suitable flexible 8mm internal diameter airline, which stretches over the barbed connection to make a snug fit. Hose flexibility and wall construction matter, so check your chosen hose rather than assuming that every tube carrying an 8mm or 9mm label has the same fit. These are larger outlet fittings than those intended for standard 4mm aquarium airline.
For discreet runs inside a pond, we recommend our standard sinking airline or Evolution Aqua heavy duty sinking airline. Choose the suitable 8mm internal diameter option for these outlets and check the fit before installation. Both ranges are designed to sink, helping keep the airline below the water surface.
Our black braided airline can also be used where the selected size fits the connections, but black braided airline does not sink. Choose one of the sinking airline options when you want the hose to settle below the surface. Check both ends of every run, including the inlet on the air stone or diffuser.
Balancing air between different branches
Air does not automatically divide equally between outlets. A short airline feeding a shallow air stone may offer less resistance than a longer line feeding a deeper diffuser. Individual taps let you make small adjustments to the easier flowing branches while observing the effect across the system. This is especially useful where you want aeration in several places rather than a single concentrated stream of bubbles.
Start with the outlets serving your connected diffusers open, then adjust gradually. Check the bubbling at each diffuser after each change. A tap controls the flow available to a branch; it cannot increase the pressure or total output of the pump. If a deep diffuser receives too little air, check the pump’s performance at that depth, the airline route and the diffuser condition before restricting the other branches further.
Choosing capacity for your pond or filter
Count the separate airline runs you need today and consider whether you expect to add another air stone later. A larger manifold gives you more connection points, but adding extra outlets does not create extra air. Your pump must still supply the combined requirements of the equipment connected to it at its actual operating depth and resistance. Compare the recommended airflow and connections across our air stones and diffusers when planning each branch.
These manifolds offer a useful way to organise multiple air stones around a koi pond, supply several aeration points in a holding system or divide air between compatible pond and filter equipment. For a larger project, our large pond and lake aeration kits provide complete combinations to compare. Use the hose sizes and diffuser requirements specified for the particular system rather than changing a kit’s connections solely to match a spare manifold.
Installation and routine checks
Position the manifold where the handles remain accessible and the hoses can leave without sharp bends. Support the airline so its weight does not pull against the fittings. Fit and secure the pump connection according to the pump manufacturer’s instructions, and keep the pump in the dry, ventilated position specified for that model. Follow its guidance on preventing water from returning through the airline when power is switched off.
Close unused branches so air is delivered to the connected equipment, but never close every outlet while the pump is running. Maintain the airflow required by the pump and its connected diffusers. During routine pond checks, look for loose hoses, kinks, leaks and a reduction in bubbling. A blocked or dirty diffuser can change the balance between branches even when the tap positions have not moved.
What is included?
You receive one assembled plastic manifold with an 18mm inlet and either 5, 7, 9 or 11 individually adjustable 9mm outlets, according to the option selected. Choose your required size above. If you are unsure which arrangement best suits your pump and existing airline, contact That Pond Guy with the pump model, airline bore and the number and type of diffusers you want to run.
