Filtreau Drum Filter Replacement Bypass Bungs

Filtreau Drum Filter Replacement Bypass Bungs

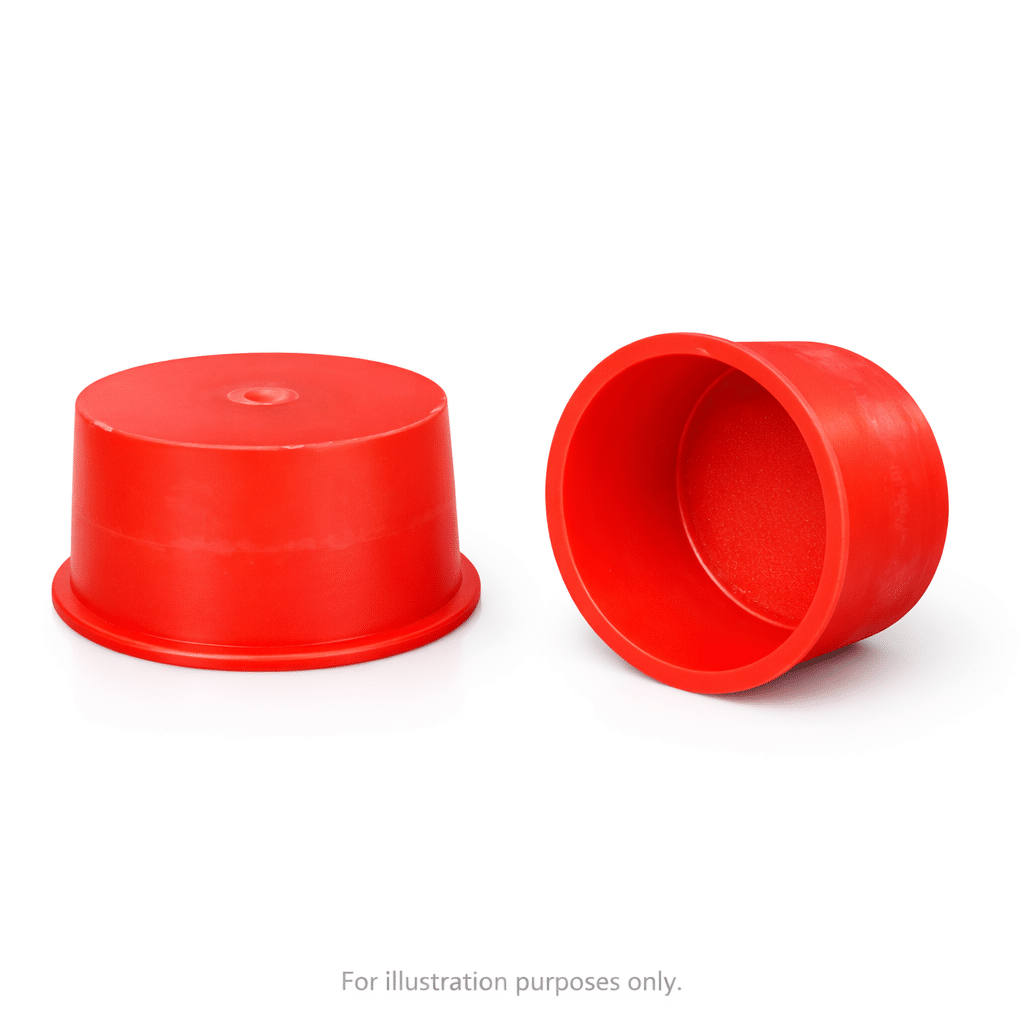

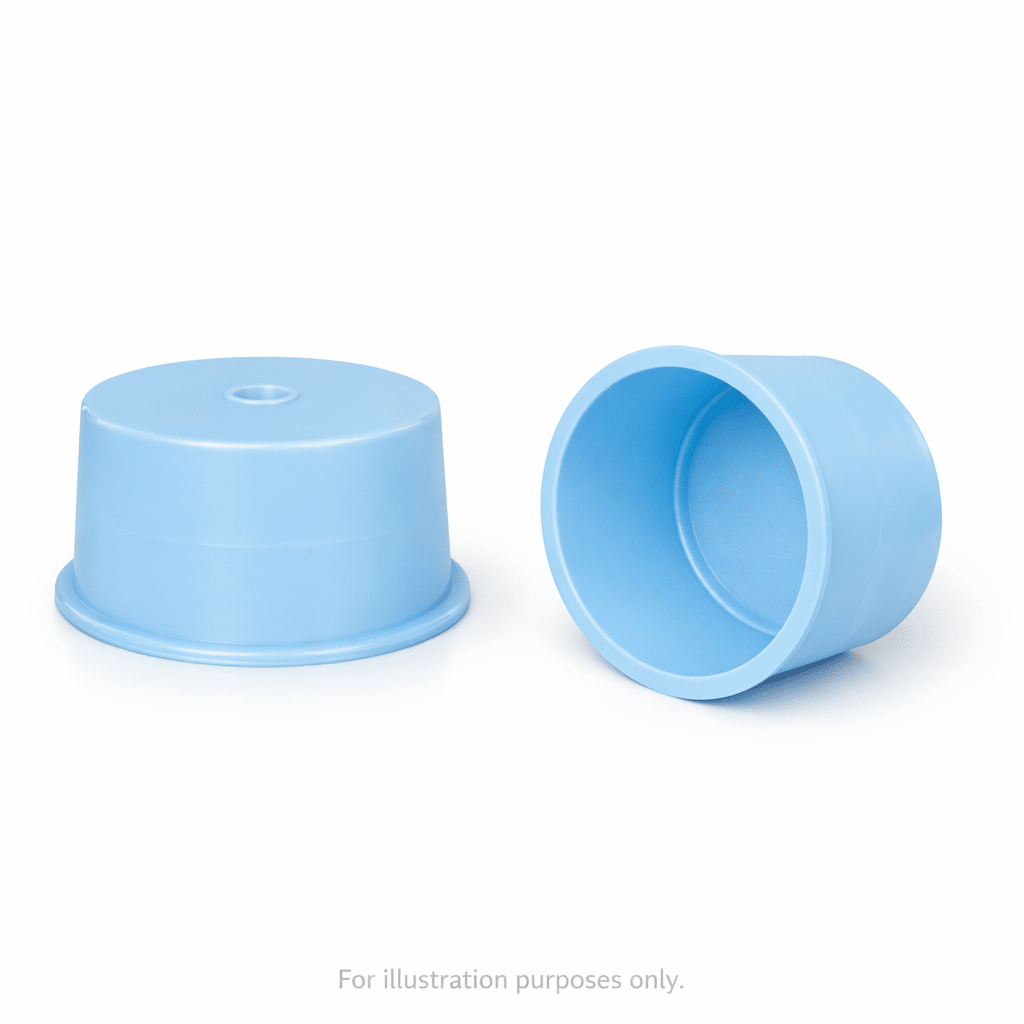

Red 50.8 mm and blue 54.5 mm replacement options

These replacement bypass bungs are offered in two distinct sizes for Filtreau drum filters. Choose the red 50.8 mm version or the blue 54.5 mm version to match the part you need to replace. Check both the colour and the stated diameter before ordering, particularly if you have more than one Filtreau filter on site.

Option	Stated diameter
Red bypass bung	50.8 mm
Blue bypass bung	54.5 mm

What does a bypass bung do?

A drum filter separates its incoming water from the filtered side using a screen. A bypass provides an alternative route around that screen. The bung closes the bypass opening when that route is not being used.

The Filtreau drum manual describes red bypass caps in the internal partition wall. This is a different job from a cap fitted to an external pipe end: identify the part within the filter before choosing a replacement. Follow the operating instructions for your particular filter when using its bypass facility.

Choosing the correct size

The two options have different stated diameters, so colour is a useful reference rather than a reason to treat them as interchangeable. Keep the old part available and compare it with the required option. A photograph of the bung, its opening and the filter’s identification details is useful if you need help identifying the replacement.

For routine maintenance, keep removed bungs somewhere they will not be lost or mixed with fittings from another filter. When returning the filter to normal operation, check its bypass arrangement against the model’s instructions.

Finding the part you need

Start by identifying where the old bung sits. The bypass opening is part of the water route through the filter, whereas the waste outlet carries away debris during cleaning. Matching a cap by colour alone is less useful than checking its location, size and the filter model together.

If the original bung is still present, retain it for comparison. Check the stated 50.8 mm or 54.5 mm option against the replacement you need, without rounding the two sizes to the same nominal measurement. If you are measuring the part yourself, note which part of the bung you measured: the lip and the section that seats in the opening may not have the same diameter.

Bypass operation and normal filtration

The Filtreau drum filter manual explains how the bypass is used on the filter it documents. Consult the instructions supplied with your own model for its operating sequence. The bypass is an alternative water route, so an open bypass should not be mistaken for water passing through the drum screen.

A replacement bung addresses the closure of the bypass opening. If you are investigating a separate screen or cleaning fault, identify the component responsible before ordering so the replacement matches the maintenance task. Browse our pond filter spares for other replacement components, checking the individual model details on each page.

Replacing a missing or damaged bung

Inspect the opening as well as the old part when planning a replacement. Debris around the seating area can make it harder to judge whether the bung fits correctly. Check the condition of the opening and remove loose debris as part of the filter’s normal maintenance procedure. A new bung cannot repair damage to the partition itself.

Keep electrical and moving components in mind whenever the filter is opened. The Filtreau manual requires the power supply to be disconnected for maintenance. Use the instructions for your own equipment before reaching into the filter, and refit its covers before returning it to service. The replacement part does not change the filter’s operating or maintenance requirements.

Keeping a spare with your filter equipment

A small removable part is easy to misplace while carrying out maintenance. Keep a correctly identified spare with the filter’s records and other model-specific service items, so it is available when needed. Label the storage container with the colour, diameter and filter it belongs to. This is particularly useful where several pond systems are maintained using the same tool kit.

Store the bung where it will not be crushed beneath tools or mixed into a container of unrelated pipe fittings. Before use, compare it with the part being replaced and inspect it for damage. Keeping the original model details makes later maintenance easier, especially if somebody else needs to identify or order a replacement for the same filter.

Ordering the correct option

Use the option selector to choose red 50.8 mm or blue 54.5 mm. The diameter belongs to the selected bung, not the filter’s inlet or outlet pipework. If you need to replace more than one installed bung, check how many parts your filter requires before setting the order quantity. Choose replacements for the parts actually missing or damaged, rather than assuming every Filtreau arrangement uses the same number.
