Evolution Aqua evoUV Replacement Ballast Boxes – 2021 Onwards
| Brand | |
|---|---|
| Wattage | 15W, 25W, 30W, 55W, 75W, 110W |
| Compatible generation | Pond evoUV manufactured from 2021 onwards |
Replacement electrical ballast assemblies for 2021-onwards Evolution Aqua pond evoUV units. Choose 15W, 25W, 30W, 55W, 75W or 110W. Includes the assembled box, cables, lamp connectors and end caps; replacement washers and O-rings are separate.
Price range: £74.45 through £90.45 (inc VAT)
Evolution Aqua evoUV Replacement Ballast Boxes
Complete electrical assemblies for the 2021-onwards pond evoUV range

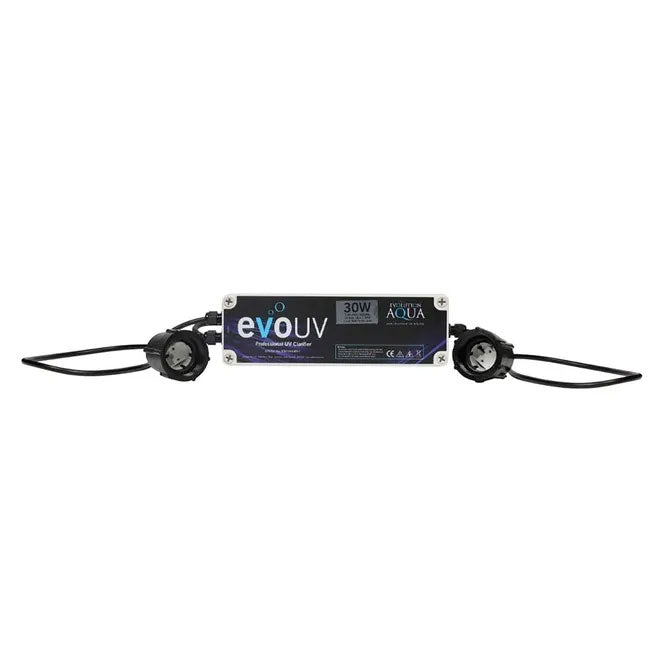

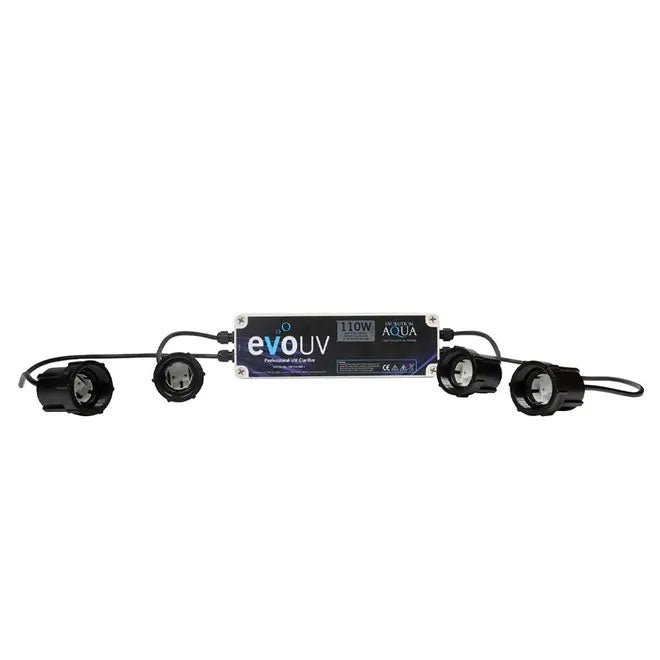

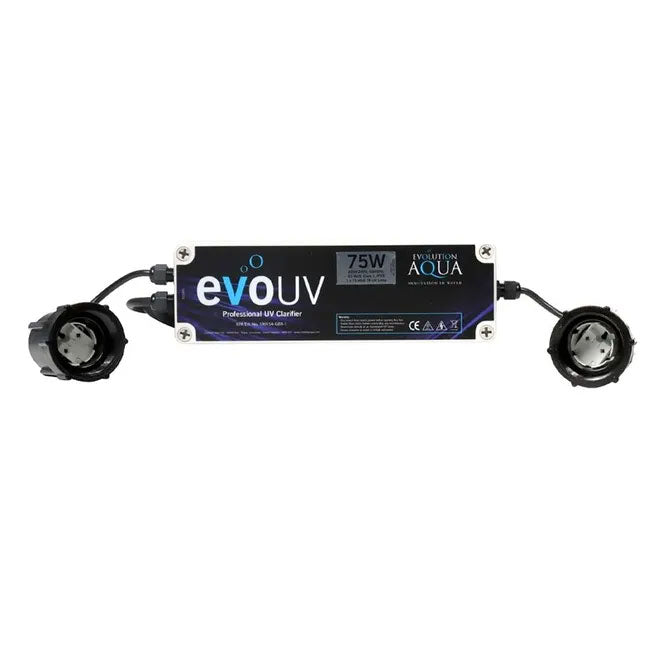

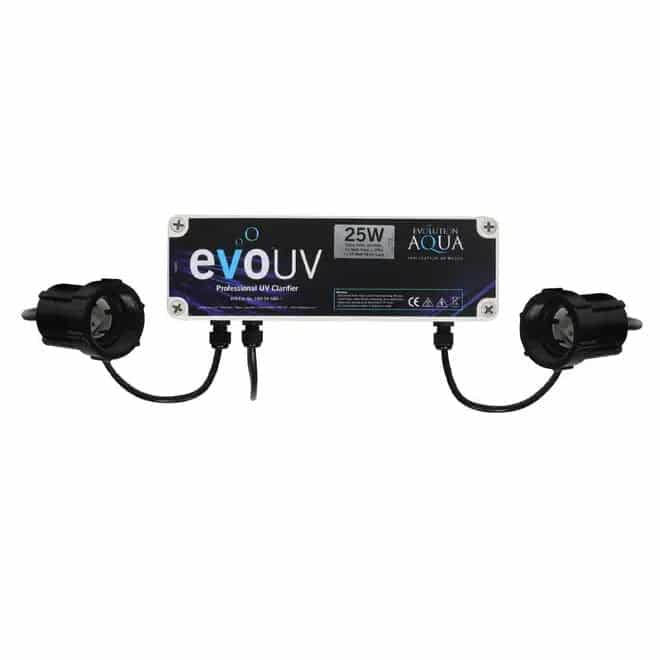

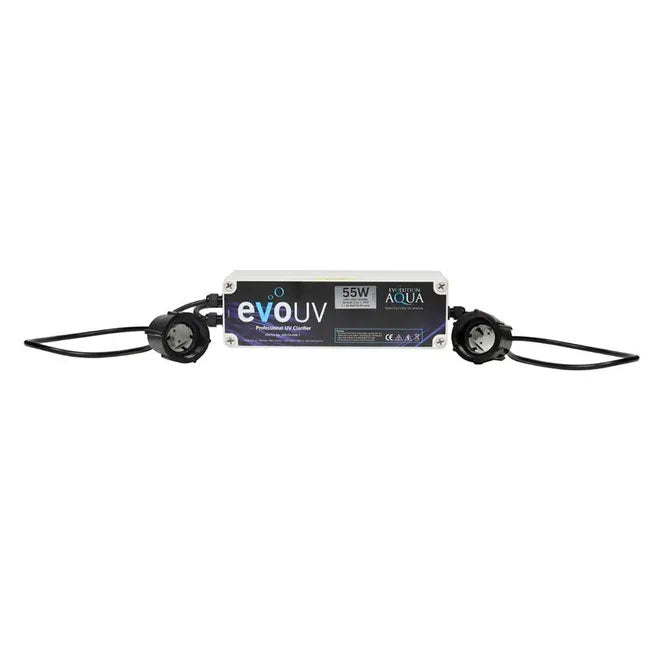

Replace the electrical ballast assembly in a compatible Evolution Aqua pond evoUV with the correct wattage-specific box. These are the 2021-onwards replacement electrics, supplied as assembled ballast boxes with cables, lamp connectors and electrical end caps.
Select the wattage printed on your existing evoUV before ordering. The 15W, 25W, 30W, 55W, 75W and 110W options are separate electrical assemblies; choosing a higher-wattage box does not upgrade a lower-wattage UV unit.
Compatibility and model selection
| evoUV rating | SKS part code | Version |
|---|---|---|
| 15W | UV6075 | 2021 onwards |
| 25W | UV6076 | 2021 onwards |
| 30W | UV6077 | 2021 onwards |
| 55W | UV6078 | 2021 onwards |
| 75W | UV6079 | 2021 onwards |
| 110W | UV6080 | 2021 onwards |
Check the age and version of the unit as well as its power rating. Evolution Aqua also supplies older-style ballast parts, so a wattage match alone is not sufficient. If your existing assembly differs from the photographs, send us its label and connector details before ordering. Compatibility with a different UV range, including evoUV Titanium, should not be assumed.
An assembled electrical replacement
Evolution Aqua supplies the ballast already installed inside its control box, together with cables, lamp connectors and end caps. This gives you the replacement electrical assembly for the selected model rather than a loose internal ballast component. Replacement washers and O-rings are separate items, so check those before planning the repair.
The box does not include a new clarifier body, quartz sleeve or UV lamp. If another component also needs replacement, identify it separately rather than assuming that an electrical assembly renews the whole UV. The wattage choice specifies which assembly you receive, not a range of interchangeable power settings.
Confirm the generation before ordering
These boxes are listed by Evolution Aqua for pond evoUV units manufactured from 2021 onwards. The year you bought the unit may differ from its manufacturing generation, especially if it was older stock. Check the unit’s identification and existing assembly as well as the wattage before selecting an option.
Evolution Aqua also lists pre-2021 internal ballasts separately. Matching only a familiar wattage is therefore not enough to establish compatibility. If the version is uncertain, contact That Pond Guy with the rating-label details and a photograph of the existing control box so the correct part can be checked.
Two installation layouts within this range
The manufacturer’s dedicated replacement guide separates the 15W and 25W units from the 30W, 55W, 75W and 110W units. The smaller models require access behind the control box, and the guide describes removing the UV from its wall mounting to reach the retaining screws. Allow for that access when assessing the work.
For the larger models, the illustrated sequence uses the control-box cover and the fixing cavities at its four corners to reach the mounting screws. The distinction is worth checking before starting: a demonstration for a 15W unit is not the same sequence as the one provided for a 55W unit.
Use the relevant page of the Evolution Aqua ballast-box replacement instructions. This product description helps identify and plan the replacement; the illustrated guide and the instructions for your unit provide the complete fitting procedure.
End caps, seals and cable routing
The replacement guide specifically instructs you to leave the locking nuts in place when removing the black electrical end caps. It also calls for the end-cap sealing rings to be in position when the lamp connectors are refitted. These are distinct components, so take care to identify which fitting is being handled.
Evolution Aqua specifies hand tightening for the end caps and warns against twisting the lamp wires. Its guide also shows refitting the cable clips and retaining screws. On the smaller models it calls for sufficient cable flex between each end cap and its clip. These details help explain why correct reassembly involves more than simply swapping one box for another.
Address the cause as well as the damaged part
A lamp that does not light is not, by itself, proof that the ballast must be replaced. Evolution Aqua’s troubleshooting guidance includes the electrical supply, lamp condition, correct lamp fitting and moisture around the end caps. Have the fault assessed before buying parts, particularly if water has entered an electrical connection.
The manufacturer warns that water entering a bulb socket can damage both the socket and ballast. Replacing the box while leaving a leaking seal unresolved can expose the new assembly to the same problem. Follow the unit’s leak-checking and reassembly instructions, and make sure electrical connections are dry before power is restored.
Electrical isolation and installation
Disconnect the UV from the mains before removing its control box or carrying out maintenance. The current evoUV operating manual specifies installation by a qualified electrician. Provide the installer with the exact unit details and the replacement guide for its wattage group rather than treating the assembly as a universal accessory.
Do not operate an exposed UV lamp to check whether it works. Follow the manufacturer’s safe checking procedure with the correct protective components in place. The full evoUV operating manual also covers the relationship between the quartz sleeve, seals and electrical connections.
Choosing the right replacement
Select the wattage that matches your compatible pond evoUV, then check the option shown before adding it to your basket. A higher-wattage box does not turn a smaller clarifier into a larger model, and compatibility with an aquarium UV, evoUV Titanium or another manufacturer’s unit should not be assumed.
If you are comparing repair with replacement, the complete Evolution Aqua evoUV 55W clarifier is a separate product, rather than this replacement electrical assembly. For an existing compatible unit, this listing provides the model-specific electrical assembly while retaining the serviceable parts of your current installation.
